BEV 1300-2 (600574420) Drill

Cardboard box

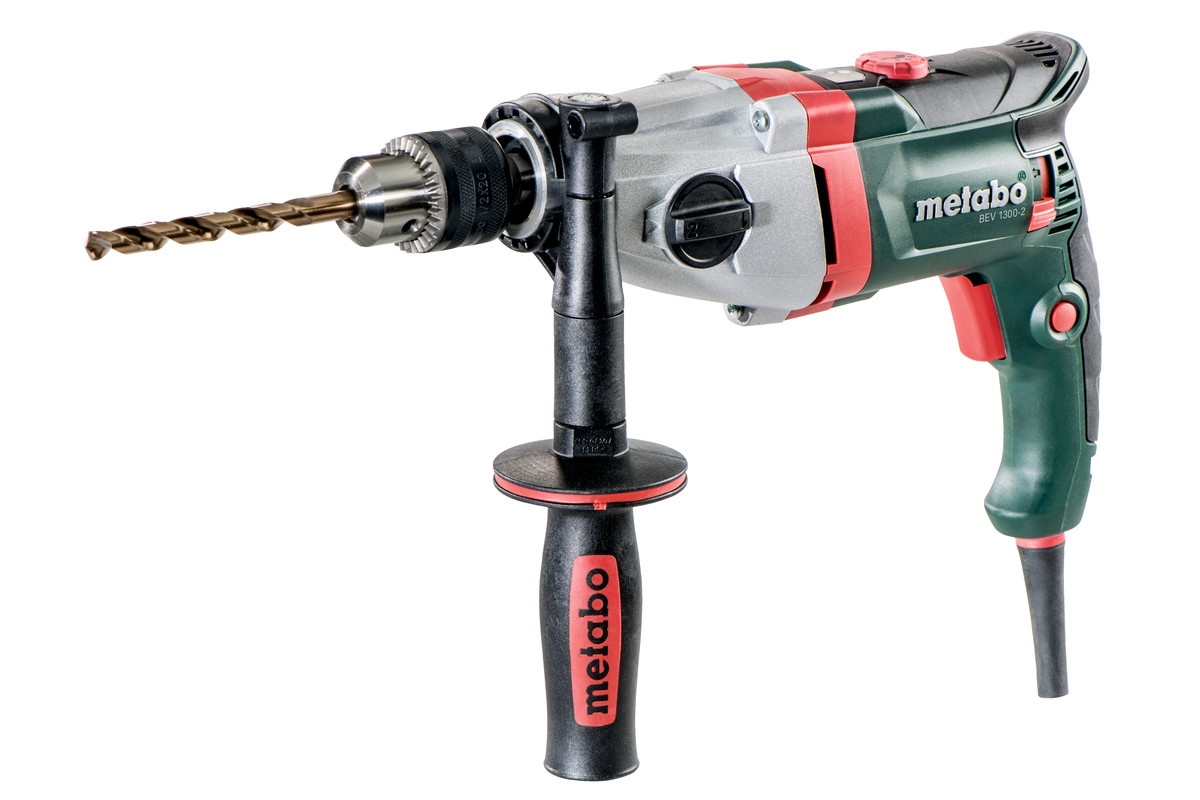

BEV 1300-2 (600574420) Drill
Order no.: 600574420 EAN: 4007430314390
Rated input power:
1100 W
Amps:
9.6 AMPS
Max. capacity in steel:
5/8 / 3/8 "
Max. capacity in soft wood:
1 9/16 / 1 "
No-load speed:
0 - 1100 / 0 - 3100 RPM
Maximum torque:
390 / 142 in-lbs
  • Selectable "impulse" mode for removal of damaged screws and for spot-drilling on smooth surfaces
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for working at customized speeds to suit the application material and speeds that remain almost constant, even under load
  • Two-speed gearbox
  • Metabo Long-life motor with patented dust protection for long service life
  • Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly.
Additional product information
 Shop Online
Instruction manual Replacement parts list
  • Selectable "impulse" mode for removal of damaged screws and for spot-drilling on smooth surfaces
  • Robust die cast aluminum gear housing for optimum heat dissipation and durability
  • Rotating carbon brush bridge for maximum performance even in counter-clockwise operation for removing stubborn screws
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for working at customized speeds to suit the application material and speeds that remain almost constant, even under load
  • Thumbwheel for speed preselection
  • Two-speed gearbox
  • Metabo Long-life motor with patented dust protection for long service life
  • Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly.
  • Forward and reverse rotation
  • Spindle with hexagonal recess for screwdriver bits for working without chuck
  • Overload protection: protects the motor from overheating
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Handle with non-slip soft-grip surface
  • Cable-protecting ball joint for the best freedom of motion when working
  • Wear indication for carbon brushes
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Parameters
Rated input power
1100 W
Amps
9.6 AMPS
Output power
580 W
Max. capacity in steel
5/8 / 3/8 "
Max. capacity in soft wood
1 9/16 / 1 "
No-load speed
0 - 1100 / 0 - 3100 RPM
Speed at rated load
1100 / 3100 RPM
Gears
2
Maximum torque
390 / 142 in-lbs
Collar diameter
1 11/16 "
Chuck capacity
0.059 - 0.512 "
Drill spindle with hexagonal recess
1/4 "
Drill spindle thread
1/2 " - 20 UNF
Weight (without power cable)
6 lbs
Cable length
13 ft
Vibration
Drilling in metal
4.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
84 dB(A)
Sound power level (LwA)
95 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Geared chuck
  • Chuck key
  • Side Handle
