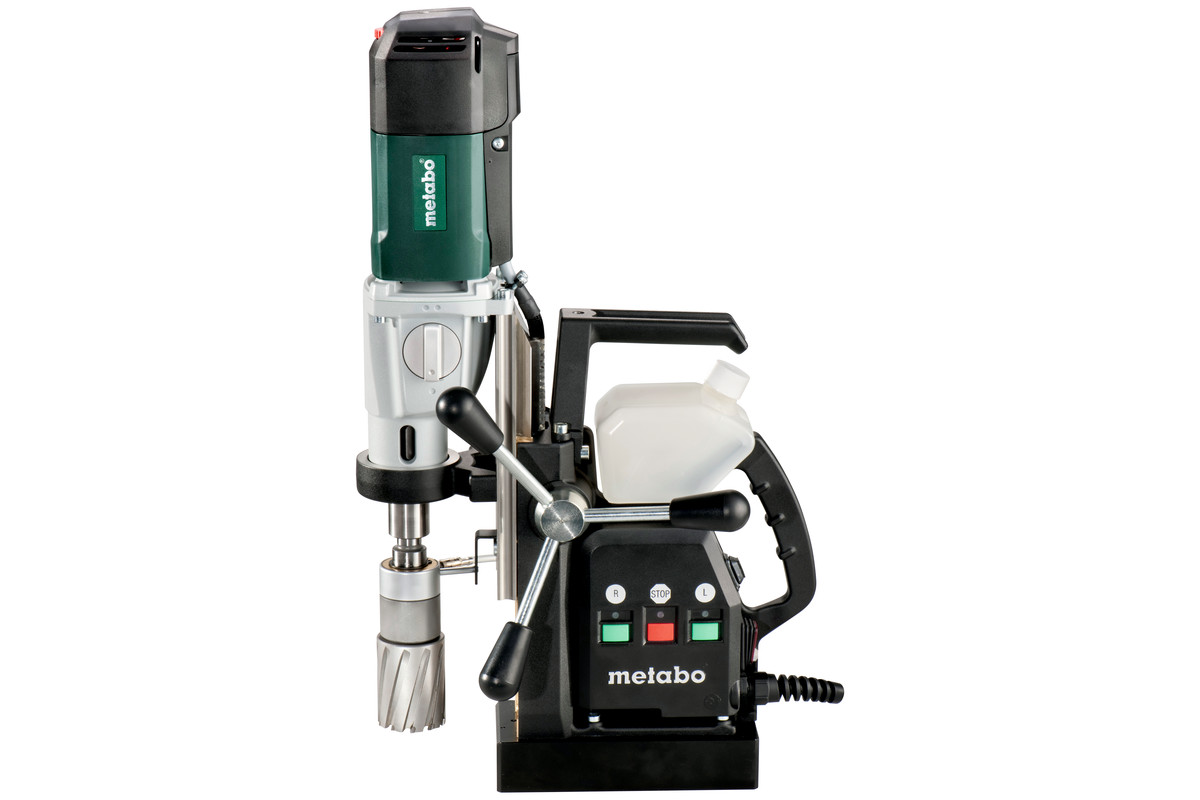

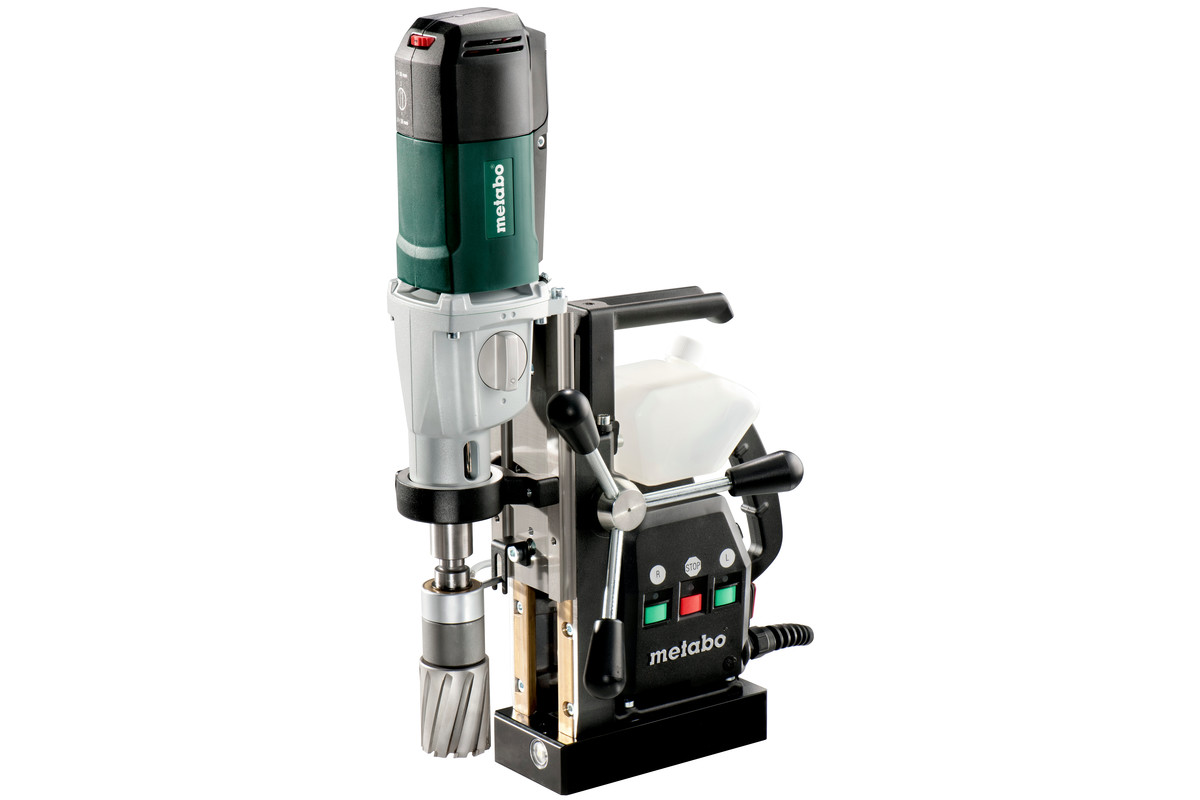

MAG 50 (600636620) Magnetic Core Drill

Plastic Carry Case

Order no.: 600636620 EAN: 4007430238290
Rated input power:
1200 W
Amps:
11.9 AMPS
Max. drill-Ø with core drill:
2 "
Max. drill-Ø with spiral drill:
3/4 "
Maximum drilling depth:
2 "
No-load speeds:
100 - 250 / 200 - 450 RPM
Bit retainer:
Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Max. magnetic holding force:
12250 N
  • Magnetic core drill with large depth of feed, therefore suitable for using core drills, spiral drills and countersinks.
  • Metabo Long-life motor with patented dust protection for long service life
  • Clockwise/counter-clockwise rotation with thread cutter
  • Durable two-speed gearbox with oil bath lubrication for ideal speed selection
  • Integrated coolant container for easy to dose internal cooling from the core drill
  • Bright LED light for easy alignment in poor light conditions
  • Magnetic core drill with large depth of feed, therefore suitable for using core drills, spiral drills and countersinks.

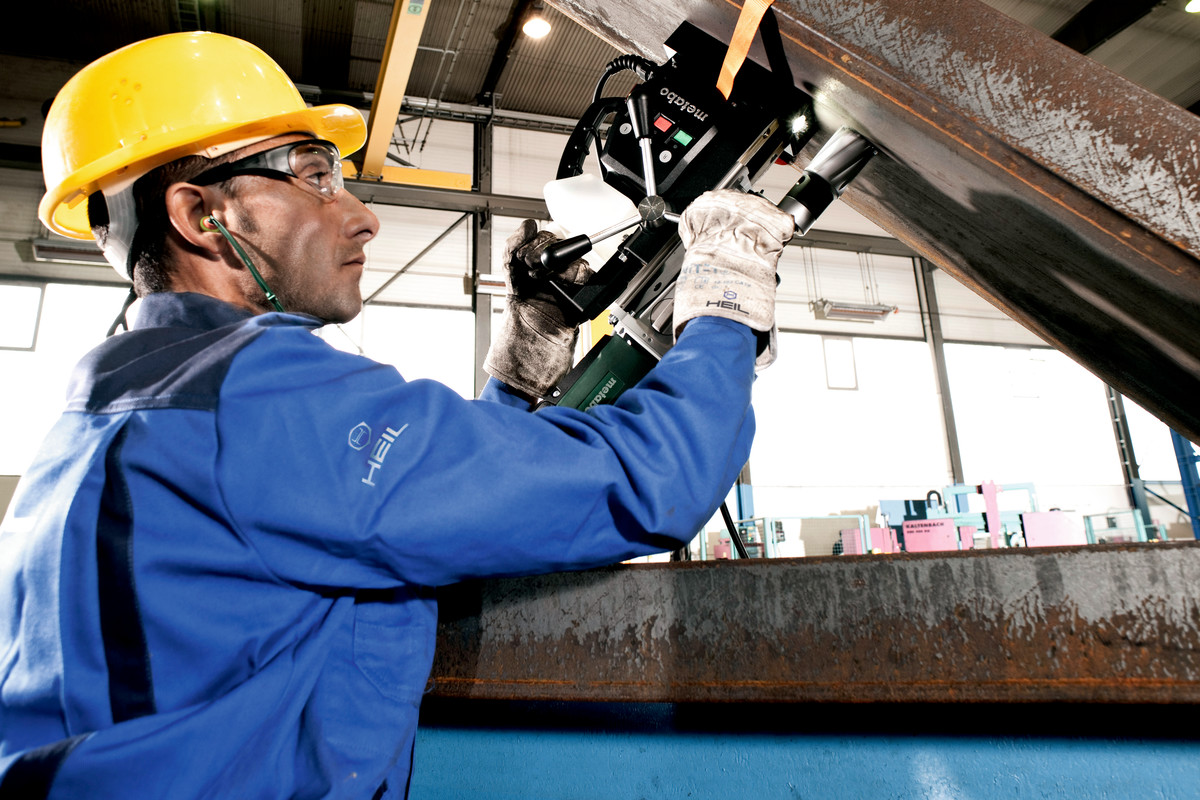

  • Magnetic base with high holding power permits working on vertical surfaces and overhead
  • Metabo Long-life motor with patented dust protection for long service life
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for working at customized speeds to suit the application material and speeds that remain almost constant, even under load
  • Clockwise/counter-clockwise rotation with thread cutter
  • Durable two-speed gearbox with oil bath lubrication for ideal speed selection
  • Integrated coolant container for easy to dose internal cooling from the core drill
  • Bright LED light for easy alignment in poor light conditions
  • Chip protection guard can be fixed without tools and protects the user from metal shavings and tool contact
  • Protective circuit starts motor only if the magnet is activated
  • Overload protection: protects the motor from overheating
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Lockable slide for comfortable tool change
  • Handle for easy carrying and lifting
  • Sturdy electric cord (16') with rubber sheathing
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Parameters
Rated input power
1200 W
Amps
11.9 AMPS
Output power
620 W
Max. drill-Ø with core drill
2 "
Max. drill-Ø with spiral drill
3/4 "
Maximum drilling depth
2 "
Thread cutting
M 16
No-load speeds
100 - 250 / 200 - 450 RPM
Speeds at rated load
250 / 450 RPM
Bit retainer
Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Weight
28 lbs
Cable length
16 ft
Torque
797 / 443 in-lbs
Max. depth of feed
6 5/16 "
Max. magnetic holding force
12250 N
Dimensions of the magnet base
3 9/16 x 7 1/2 "
Height of slide bottom setting
18 "
Height of slide top setting
24 "
Vibration
Drilling in metal
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
79 dB(A)
Sound power level (LwA)
92 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Industrial holder for Weldon shank 19 mm
  • Ejector pins 3" and 4"
  • MK 2 drift key
  • Safety strap
  • Allen wrench SW 5
  • Chip Protection Guard
  • Transport case
