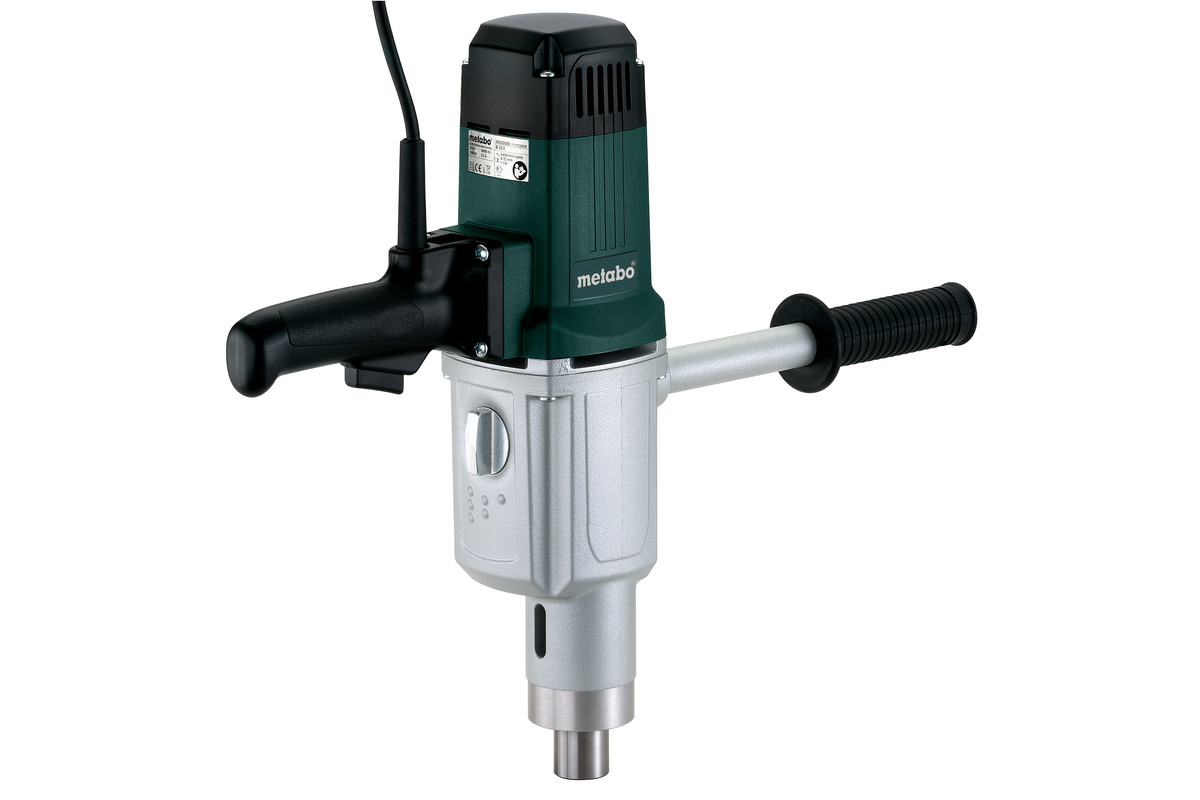

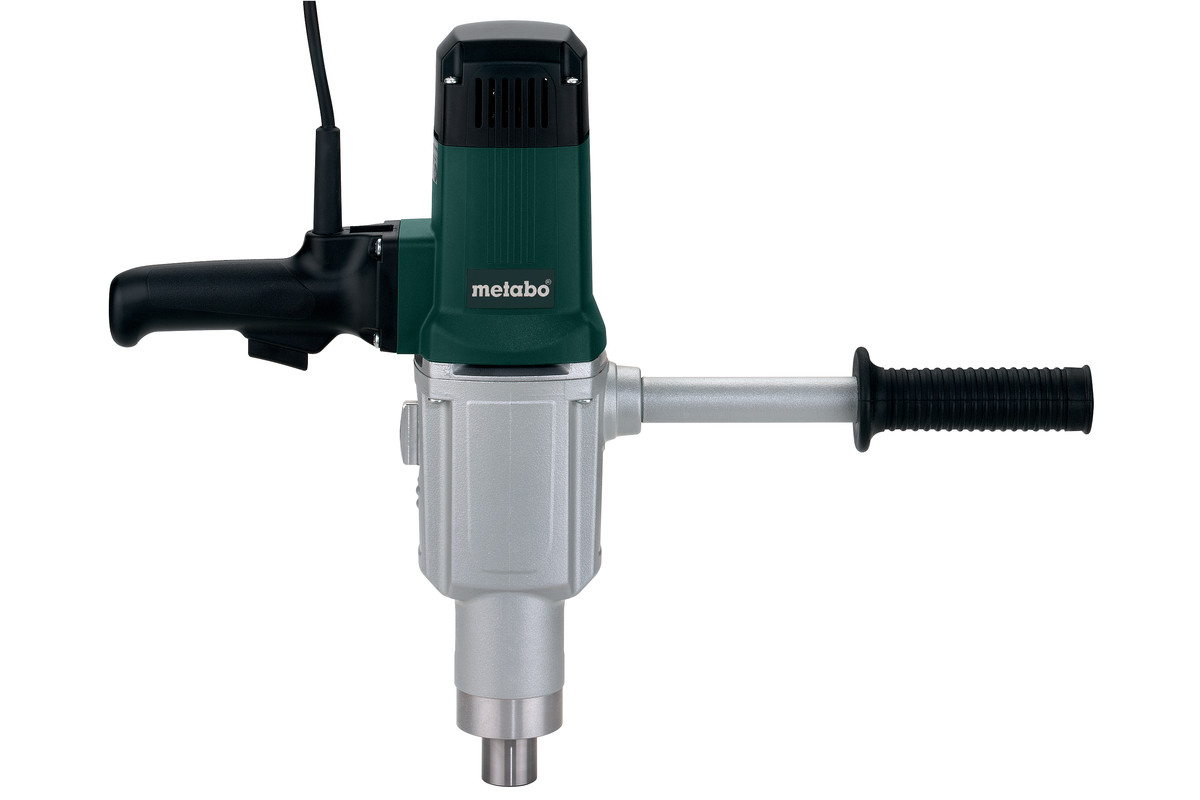

B 32/3 (600323260) Drill

(220-240 V / 50 - 60 Hz); Cardboard box

Order no.: 600323260 EAN: 4061792250048
Rated input power:
1750 W
Drill Ø steel:
32 mm // 1 1/4 "
Drill-Ø soft wood:
70 mm // 2 3/4 "
No-load speed:
0 - 170 / 0 - 320 / 0 - 470 rpm
Maximum torque:
190 / 120 / 90 Nm // 1682 / 1062 / 797 in-lbs
  • Powerful three-speed drill with extra high torque for manual working
  • Robust mechanical gearbox with oil bath lubrication
  • Vario (V)-Electronics for working at customised speeds to suit various application materials
  • Safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
  • For easy drilling of larger diameters and driving in of very long screws
  • Powerful three-speed drill with extra high torque for manual working
  • Robust mechanical gearbox with oil bath lubrication
  • Robust die cast aluminium gear housing for optimum heat dissipation and durability
  • Vario (V)-Electronics for working at customised speeds to suit various application materials
  • Safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
  • For easy drilling of larger diameters and driving in of very long screws
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Rated input power
1750 W
Output power
1200 W
Drill Ø steel
32 mm // 1 1/4 "
Drill-Ø soft wood
70 mm // 2 3/4 "
No-load speed
0 - 170 / 0 - 320 / 0 - 470 rpm
Speed at rated load
110 / 190 / 280 rpm
Gears
3
Maximum torque
190 / 120 / 90 Nm // 1682 / 1062 / 797 in-lbs
Collar diameter
65 mm / 2 9/16 "
Drill spindle with inside taper
MT 3
Weight (without power cable)
7.8 kg / 17.2 lbs
Cable length
5 m / 16 ft
Vibration
Drilling in metal
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
90 dB(A)
Sound power level (LwA)
101 dB(A)
Uncertainty of measurement K
5 dB(A)
  • Drift key
  • long side handle
