SSW 18 LTX 550 BL (602404840) Cordless impact wrench

18V; metaBOX 145

Badge New EN
Badge New EN

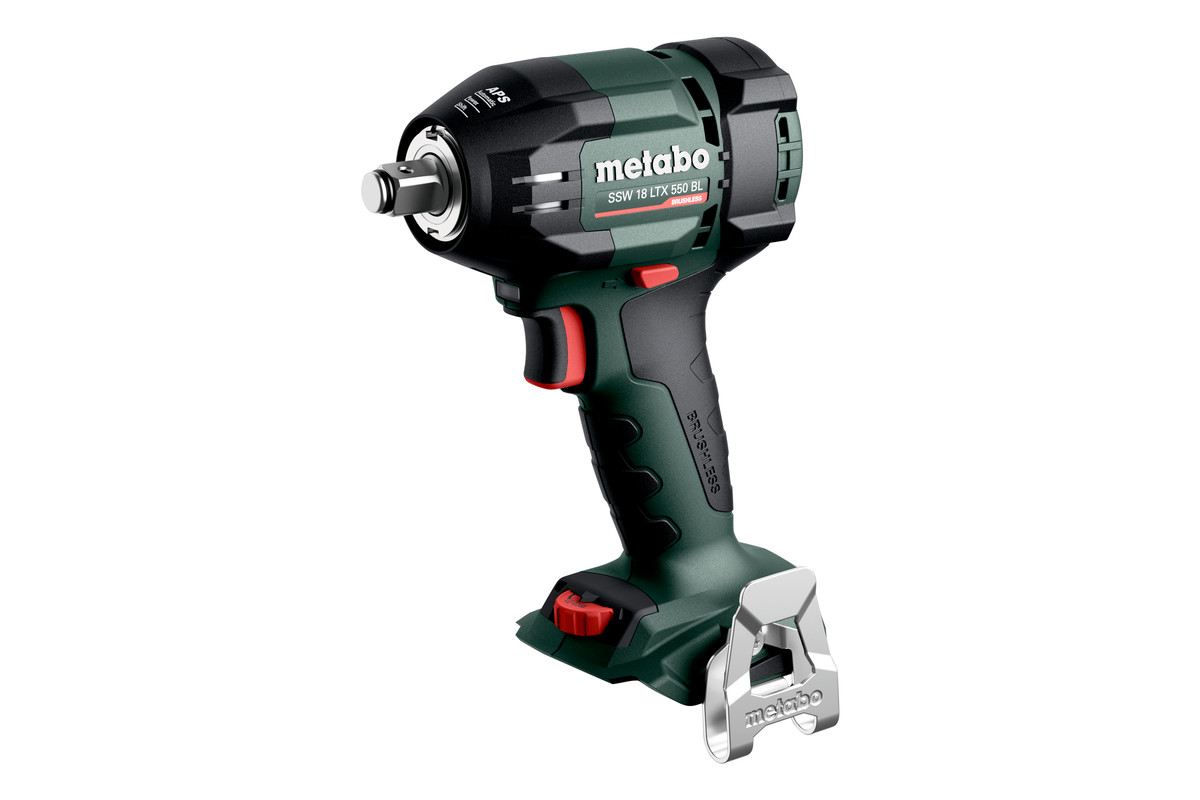

SSW 18 LTX 550 BL (602404840) Cordless impact wrench
Order no.: 602404840 EAN: 4061792263963
Battery voltage:
18 V
Maximum torque:
550 Nm / 406 ft. lbs
Tool holder:
Male square 1/2" (12.70 mm)
  • High-power, low weight: handy cordless impact wrench with 1/2" male square and high torque of 550 Nm

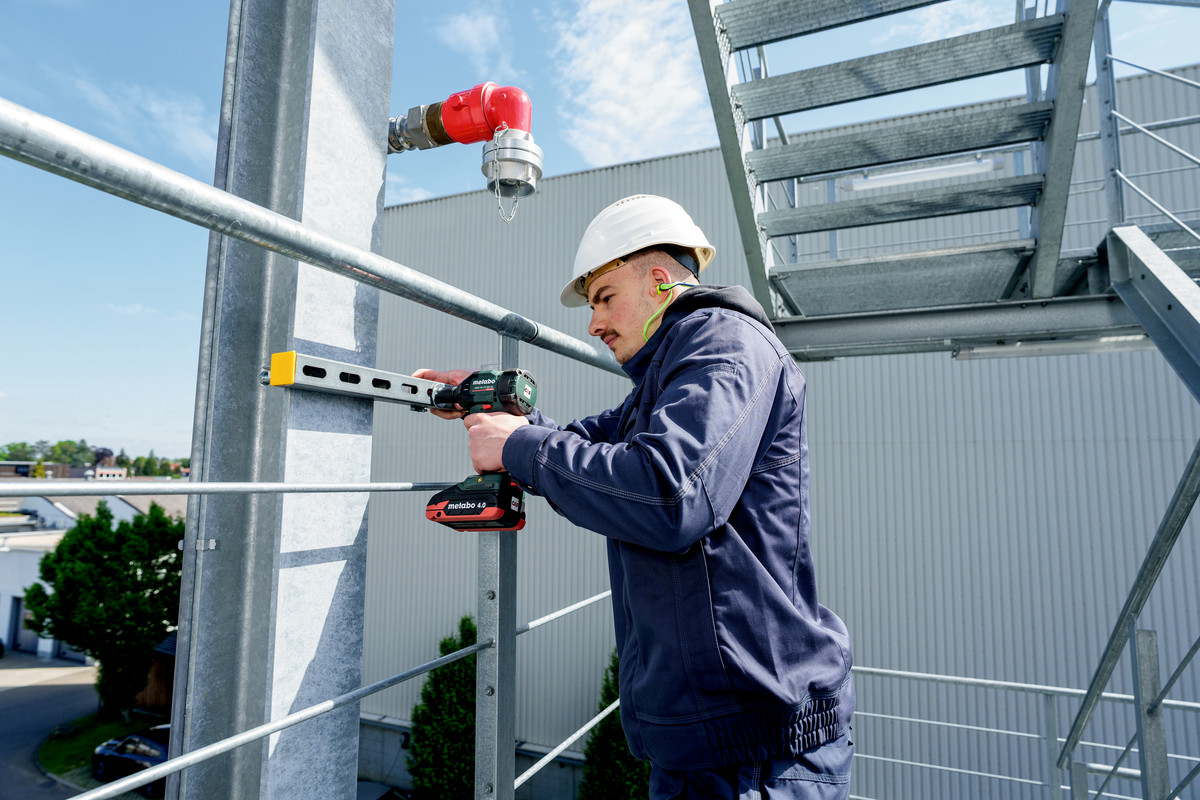

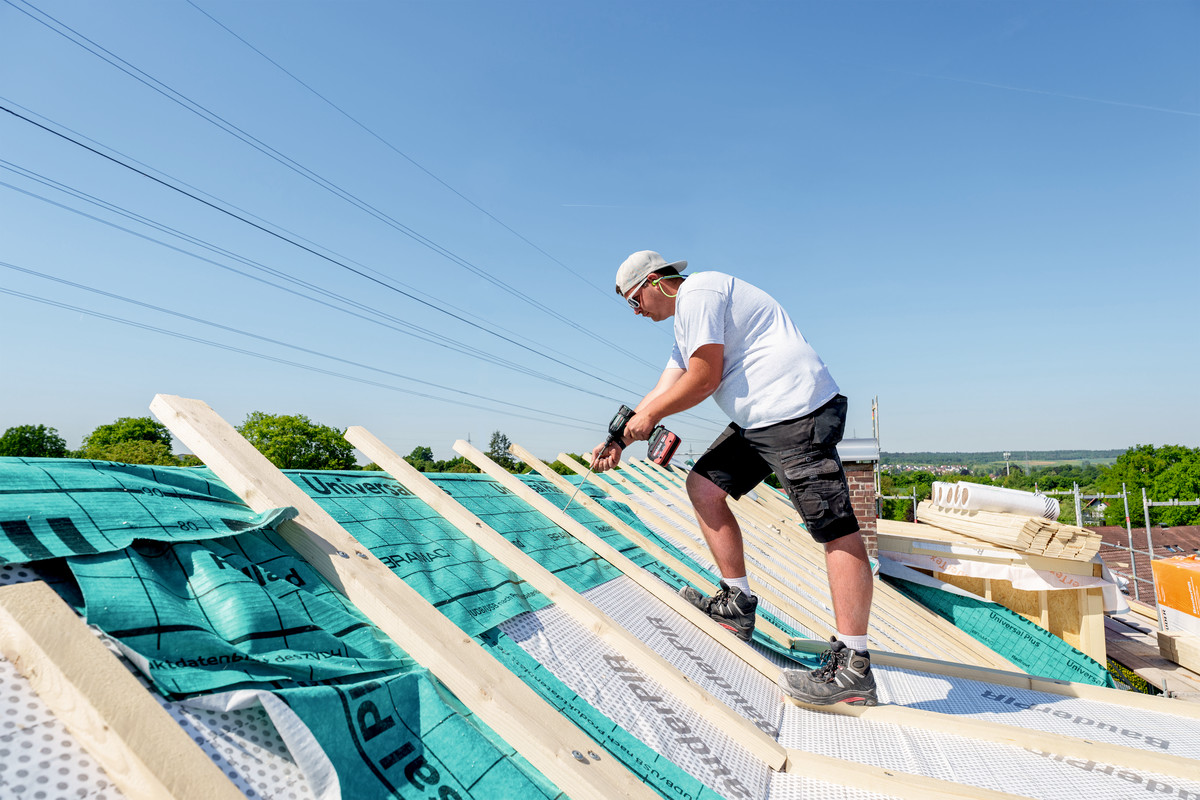

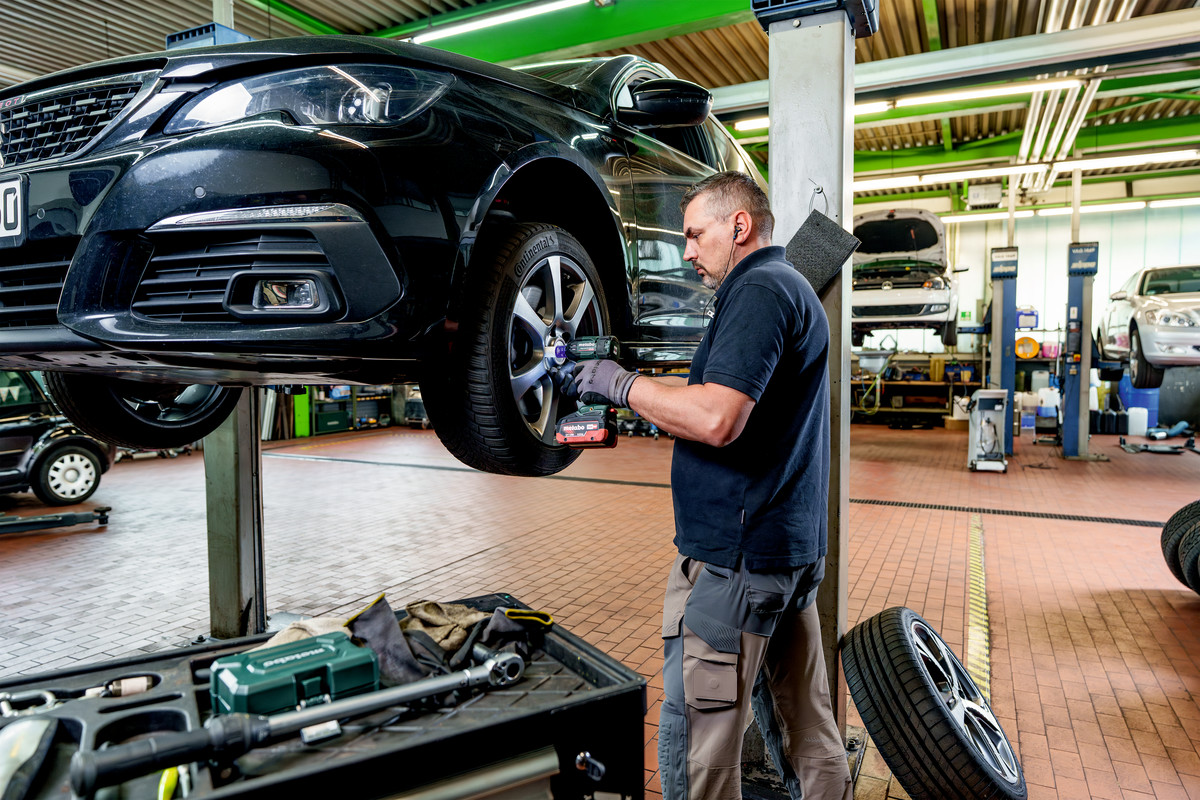

  • Perfect for woodworking, industrial assembly, changing tires, and more
  • Powerful Brushless motor for greatest efficiency and long battery pack runtime
  • Automatic Power Shift (APS): screws/nuts will not fall down when unscrewed, and no overtightening when screw fitting in APS mode
  • Twelve speed/torque levels for a wide range of applications
more product information
Manual Spare-parts list
  • High-power, low weight: handy cordless impact wrench with 1/2" male square and high torque of 550 Nm
  • Perfect for woodworking, industrial assembly, changing tires, and more
  • Powerful Brushless motor for greatest efficiency and long battery pack runtime
  • Automatic Power Shift (APS): screws/nuts will not fall down when unscrewed, and no overtightening when screw fitting in APS mode
  • Overload protection: protects the motor from overheating
  • Twelve speed/torque levels for a wide range of applications
  • Integrated LED work light with afterglow function for optimal brightness in the work area
  • Maximum service life thanks to a cast aluminium gear housing and robust striking mechanism for high loads
  • Handy belt hook, can be fixed either on the right or left side
  • With metaBOX, the intelligent solution for transport and storage
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Battery voltage
18 V
Max. screw size
M24
Max. no-load speed
0 - 2800 rpm
Maximum impact rate
3600 bpm
Maximum torque
550 Nm / 406 ft. lbs
Max. loosening torque
840 Nm / 620 ft. lbs
Speed/torque levels
12
Tool holder
Male square 1/2" (12.70 mm)
Weight without battery pack
1.4 kg / 3.1 lbs
Vibration
Impact screwdriving
18.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
98 dB(A)
Sound power level (LwA)
106 dB(A)
Uncertainty of measurement K
5 dB(A)
  • Belt Hook
  • metaBOX 145
  • without battery pack, without charger
