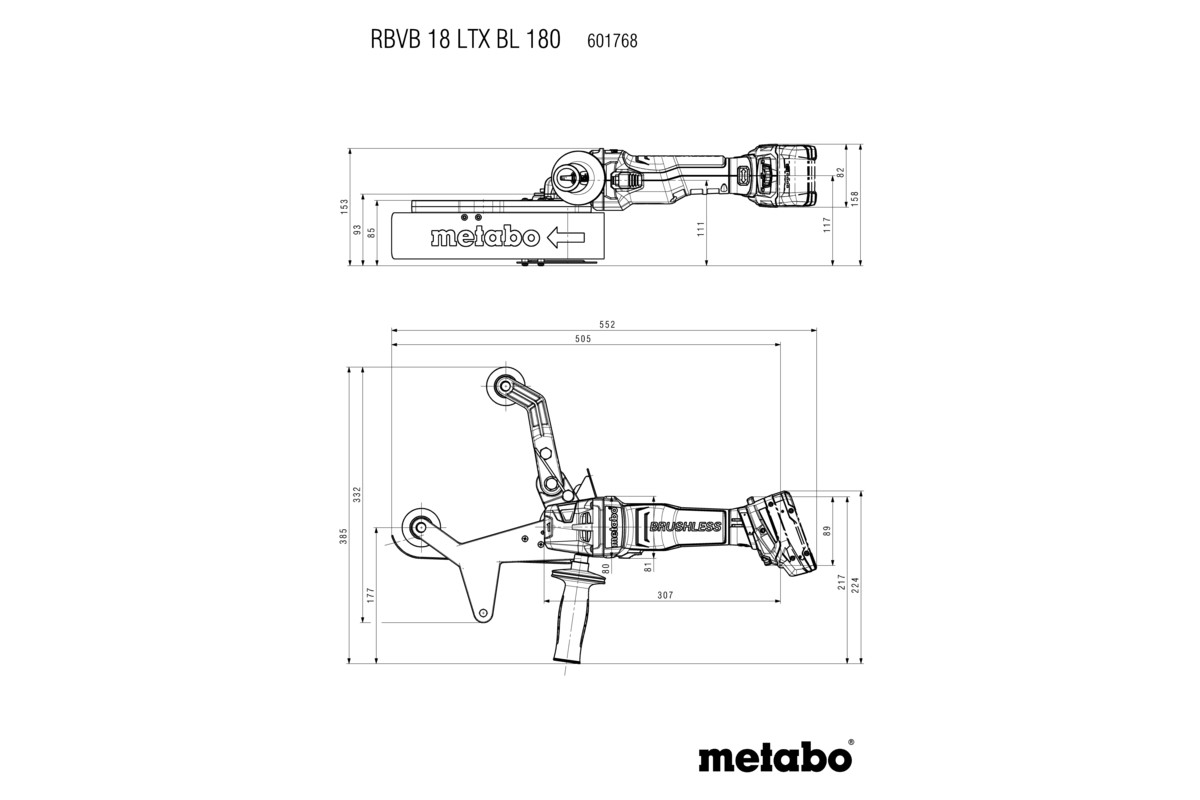

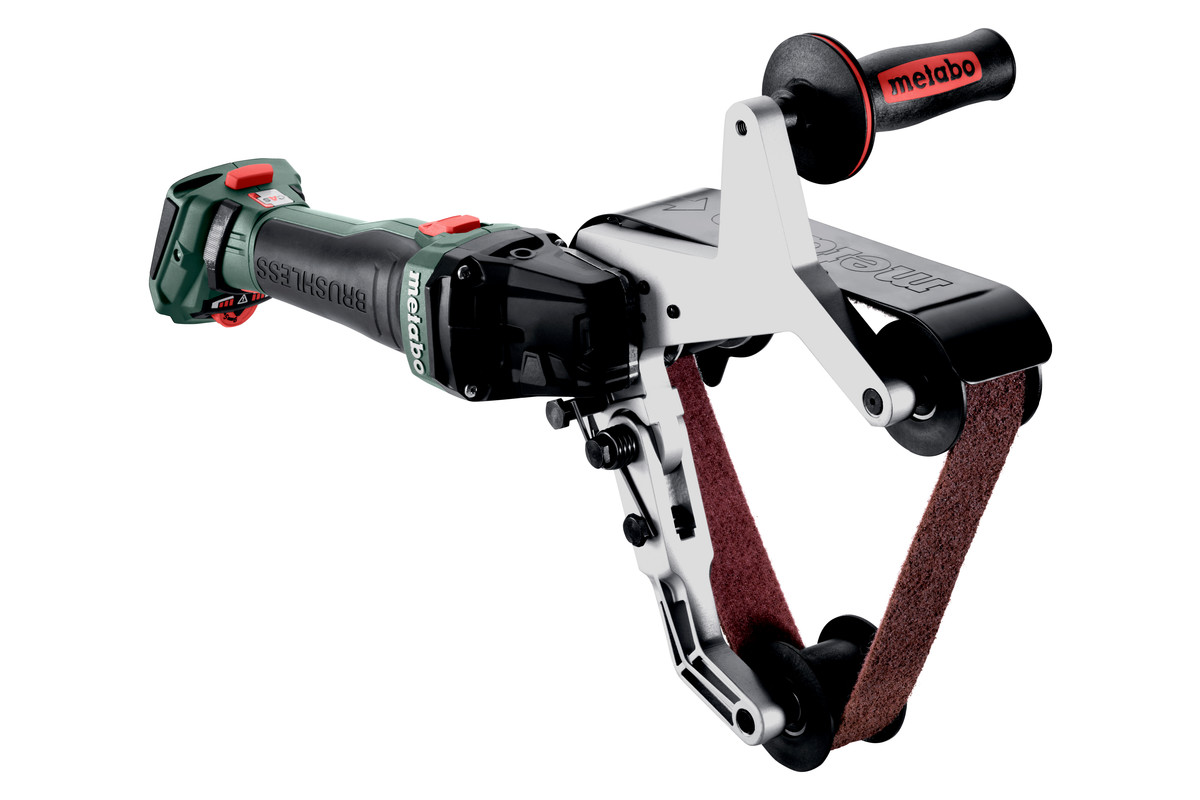

RBVB 18 LTX BL 180 (601768840) Cordless tube belt sander

18V; metaBOX 185 XL

Order no.: 601768840 EAN: 4061792263772
Battery voltage:
18 V
Maximum pipe diameter:
180 mm / 7 "
Wrap angle:
270 °
  • Easy to handle cordless tube belt sander with brushless motor for grinding and reworking metal tubes
  • Compact grinding attachment that can be adjusted without tools; perfect for reworking mounted handrails
  • Large wrap angle of 270° for smooth surfaces and quick work progress
  • Powerful brushless motor for quick work progress and highest efficiency
  • Variable speed setting with thumbwheel for working on materials requiring customised speeds, and at speeds which remain constant under load
  • Easy to handle cordless tube belt sander with brushless motor for grinding and reworking metal tubes
  • Compact grinding attachment that can be adjusted without tools; perfect for reworking mounted handrails
  • Large wrap angle of 270° for smooth surfaces and quick work progress
  • Powerful brushless motor for quick work progress and highest efficiency
  • Variable speed setting with thumbwheel for working on materials requiring customised speeds, and at speeds which remain constant under load
  • fast brake for increased safety with fast stopping of the tool used.
  • Tool-free change of sanding belt and adjustable belt guide
  • Battery pack can be rotated in 90°steps for best ergonomics in any working position
  • Detachable dust filter protects motor from coarse particles
  • Electronic overload protection, soft start and restart protection
  • With metaBOX, the intelligent solution for transport and storage
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Battery voltage
18 V
Belt speed in idle
5 - 18 m/s // 16.4 - 59 ft/s
Dimensions of grinding belt
40 x 760 mm // 1 5/8 x 30 "
Maximum pipe diameter
180 mm / 7 "
Wrap angle
270 °
Weight without battery pack
3.4 kg / 7.5 lbs
Weight with battery pack
3.9 kg / 8.5 lbs
Vibration
Surface grinding
2.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
84 dB(A)
Sound power level (LwA)
95 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Dust Protection Filter
  • metaBOX 185 XL
  • without battery pack, without charger
