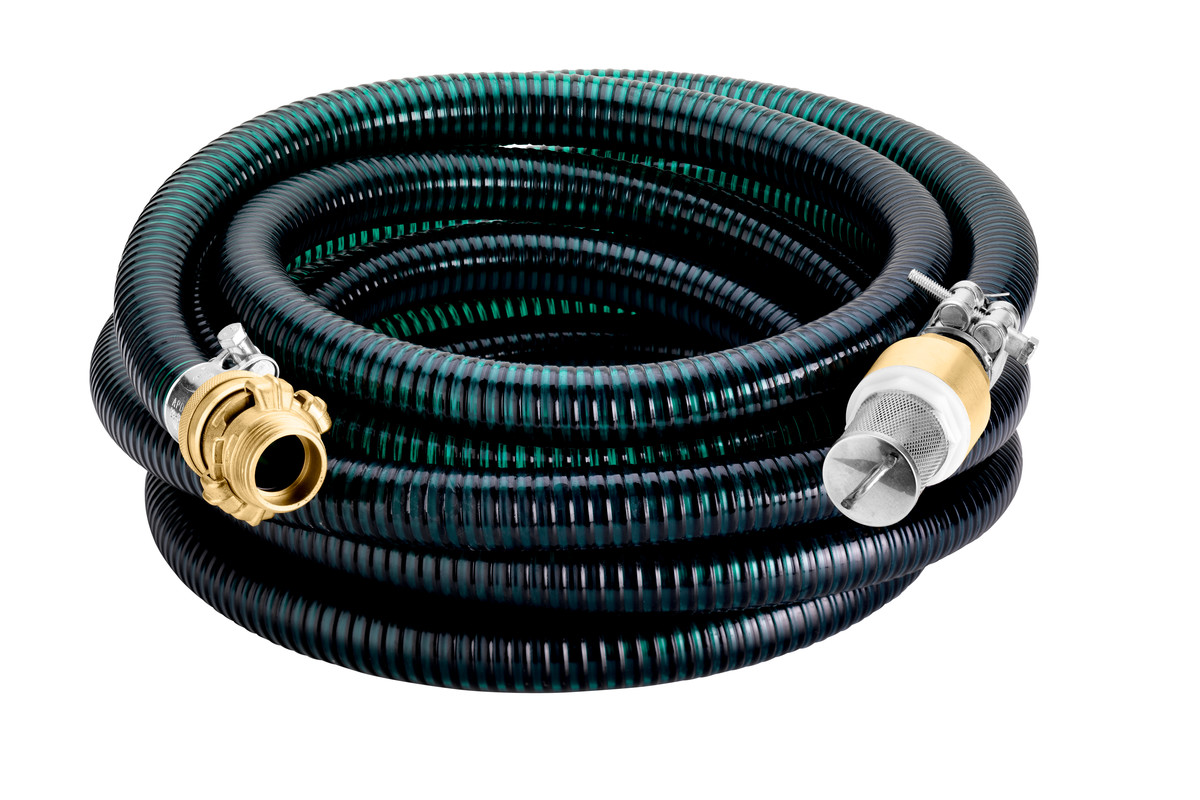

Suction hose set brass 7 m 1" (25 mm) (628798000)

  • For connection to the suction side of all garden pumps and domestic waterworks/ automatic domestic water systems with 1" female thread
  • Suitable for drawing from wells, cisterns, ponds or streams
  • 1" suction hose, transparent, with incorporated rigid PVC coil, buckling-proof and non-abrasive
  • Check valve prevents water from flowing back for fast suction and pumping after interruption
  • Strainer with shackle to attach a floating ball
  • Consisting of:
  • 1" Suction hose
  • Hinge bolt clamp, galvanised steel
  • Brass suction high pressure coupling, 1" nozzle
  • Brass quick-action coupling, 1" male thread
  • Brass hose nozzle/O-ring, 1" male thread
  • Brass check valve, 1" female thread with strainer, special steel
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Inner Ø
25 mm
Wall thickness
2.5 mm
Bending radius
110 mm
Length
7 m / 275 19/32 "
Operating pressure
2.5 bar / 36 psi
Burst pressure
7 bar / 102 psi
Temperature resistance
-5 - 60 °C
Water column (vacuum)
6 m
