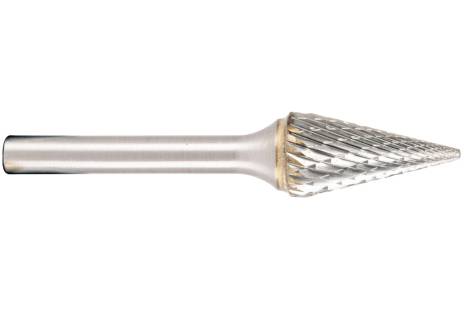

Conical burrs (pointed cone / M shape)
- Carbide burrs with cross-cut gearing for general applications. The cross-cut gearing permits comfortable working and better control. Thanks to the improved ease of cutting, the material removal is increased. Suitable for almost all metals, such as hardened and unhardened steel, stainless steel, titanium, brass, copper, cast iron, bronze.
- Application examples: Deburring, machining of contours, processing of surfaces, milling of hard to reach places, machining of narrow angles
- For processing hard to reach areas. Ideally suited for model construction. The conical shape permits the cutting of continuous diameters.
|Head Ø||Working length||Overall length||Shaft Ø||Gearing||Order no.|
|6 mm||20 mm||50 mm||6 mm||Cross-cut gearing||628368000|
|8 mm||18 mm||64 mm||6 mm||Cross-cut gearing||628369000|
|10 mm||20 mm||64 mm||6 mm||Cross-cut gearing||628370000|
|12 mm||22 mm||71 mm||6 mm||Cross-cut gearing||628371000|
