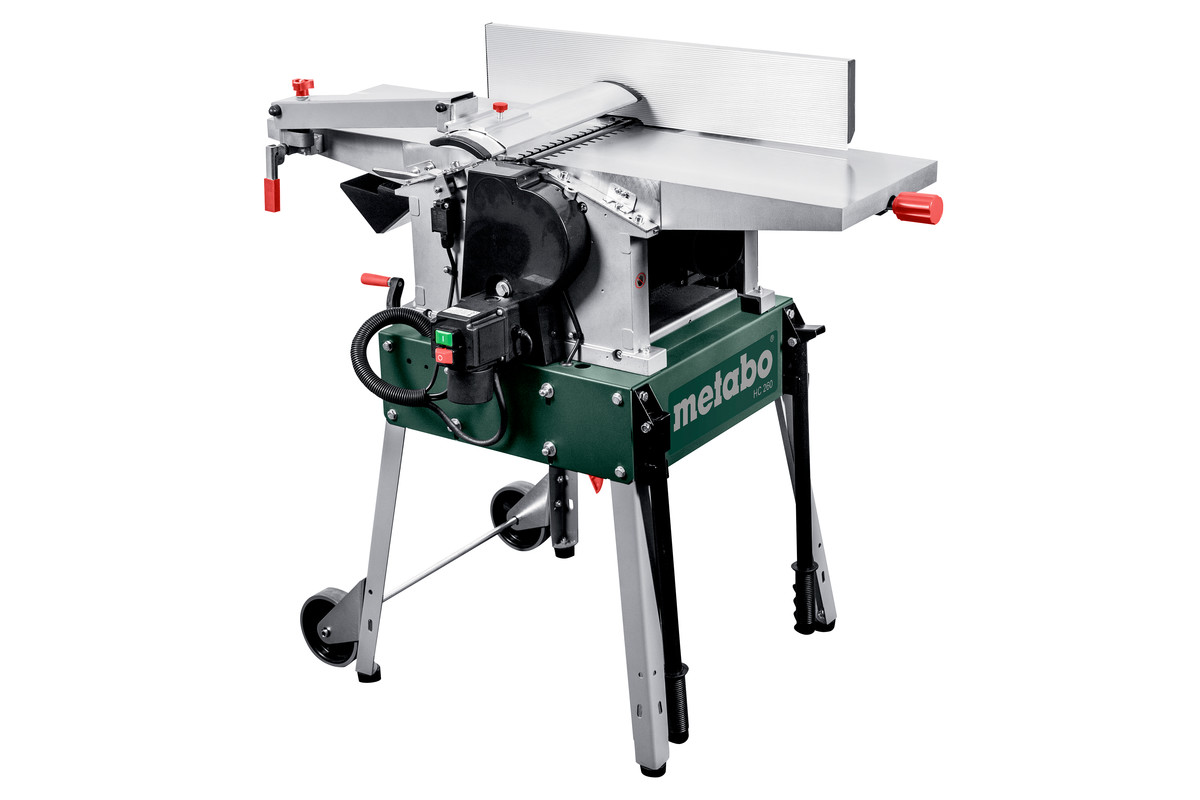

HC 260 C - 2,2 WNB (0114026000) Planer thicknesser

Cardboard box

HC 260 C - 2,2 WNB (0114026000) Planer thicknesser
Order no.: 0114026000 EAN: 4003665431277
Chip removal, planing:
0 - 3 mm
Chip removal bench thicknesser:
0 - 3 mm
Rated input power:
2200 W
  • Stable gear for uniform work piece feed
  • Thickness table made of solid, non-abrasive grey cast iron
more product information
Manual Spare-parts list
  • Simple conversion from surface planer to bench thicknesser without tools
  • Stable gear for uniform work piece feed
  • Thickness table made of solid, non-abrasive grey cast iron
  • Convenient height adjustment with crank handle
  • Planer blades with double blade for longer service life
  • Jointing fence, swivelling 90°-45°
  • Quiet induction motor, maintenance-free and robust.
  • Restart protection: prevents unintentional start-up after power supply interruption
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Dimensions
1110 x 620 x 980 mm
Dressing plates L x W
1040 x 280 mm
Chip removal, planing
0 - 3 mm
Chip removal bench thicknesser
0 - 3 mm
Material dressing plates
Cast aluminium
Material thickness table
Grey cast iron
Thickness table L x W
400 x 260 mm
Passage height/width
160 / 260 mm
Feed rate
5 m/min
Diameter of blade shaft
63 mm
Number of blades
2
Revolutions of blade shaft
6500 rpm
Mains voltage
220 - 240 V
Rated input power
2200 W
Output power
1600 W
Weight
71 kg
Noise emission
Uncertainty of measurement K
3 dB(A)
  • integrated disposable reversible planer blades
  • short, swivelling jointing fence
  • Chip ejection hood
  • Push stick
  • Extraction Nozzles
  • Transport wheels
