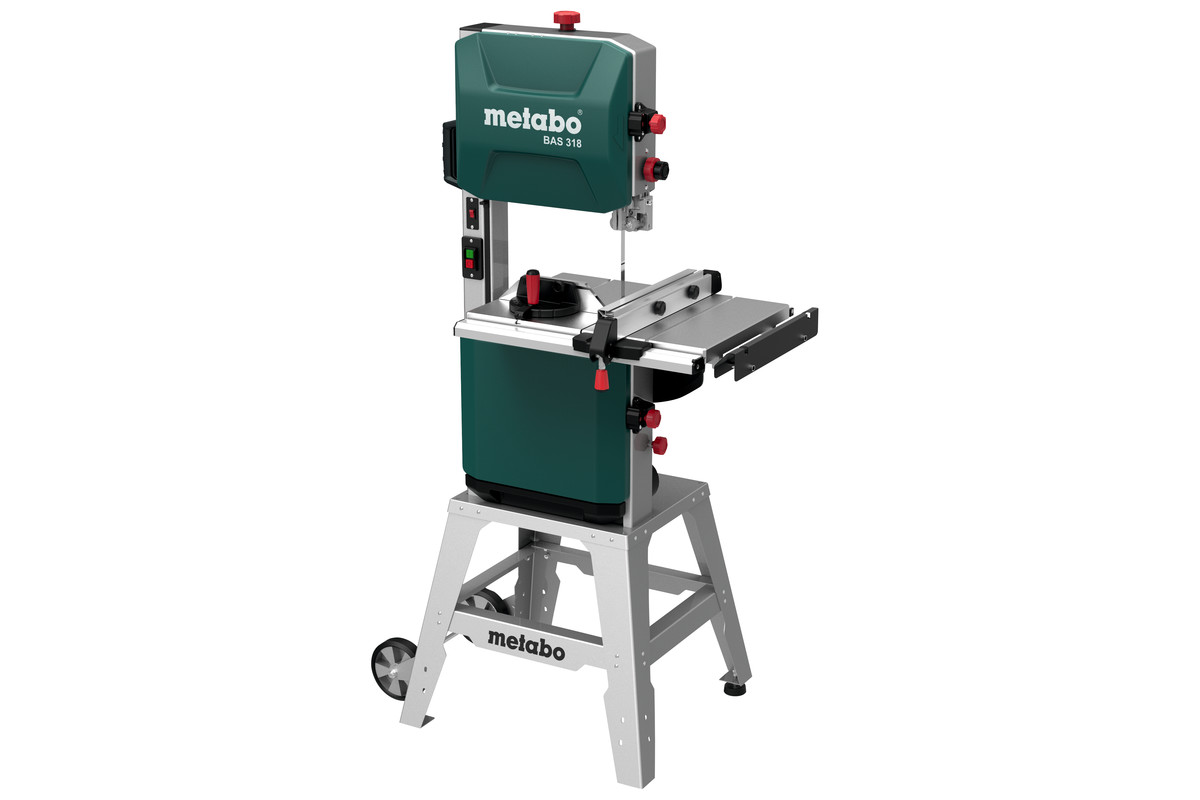

BAS 318 Precision WNB (619009000) Band saw

Cardboard box

Order no.: 619009000 EAN: 4007430304902
Cutting height:
170 mm
Passage width:
307 mm
Rated input power:
900 W
  • High precision and stability for highest cutting quality
  • Two cutting speeds for various applications and materials

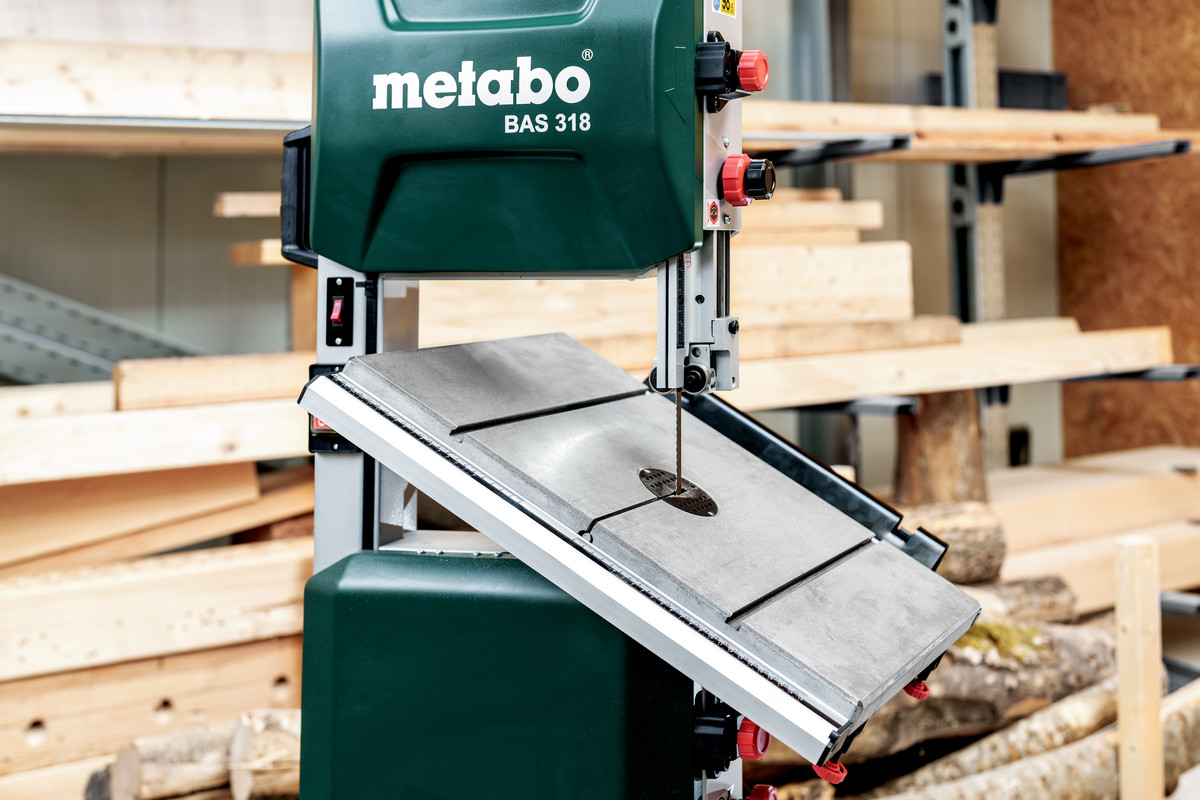

  • Easy inclination adjustment of the grey cast iron saw table for precise incline cuts thanks to toothed ring guide

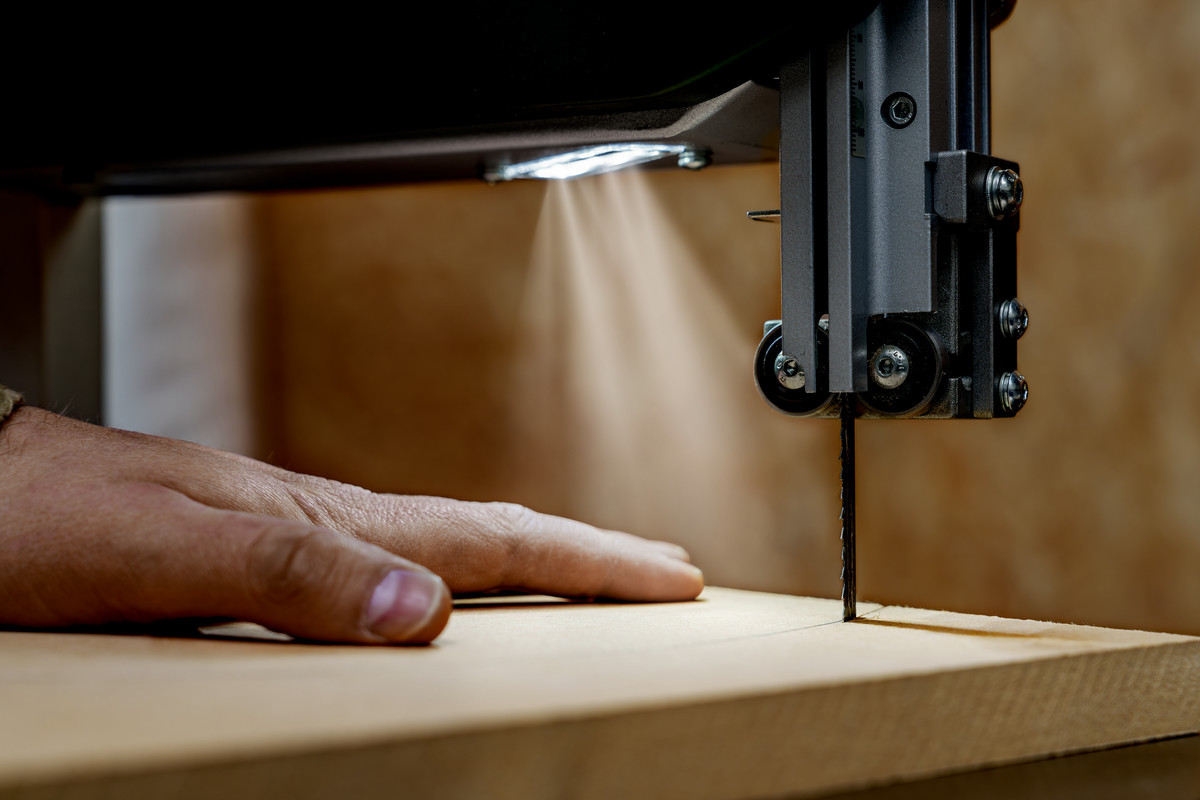

  • LED work light for illumination of the cutting line
  • Stand with wheels for comfortable change of position
  • High precision and stability for highest cutting quality

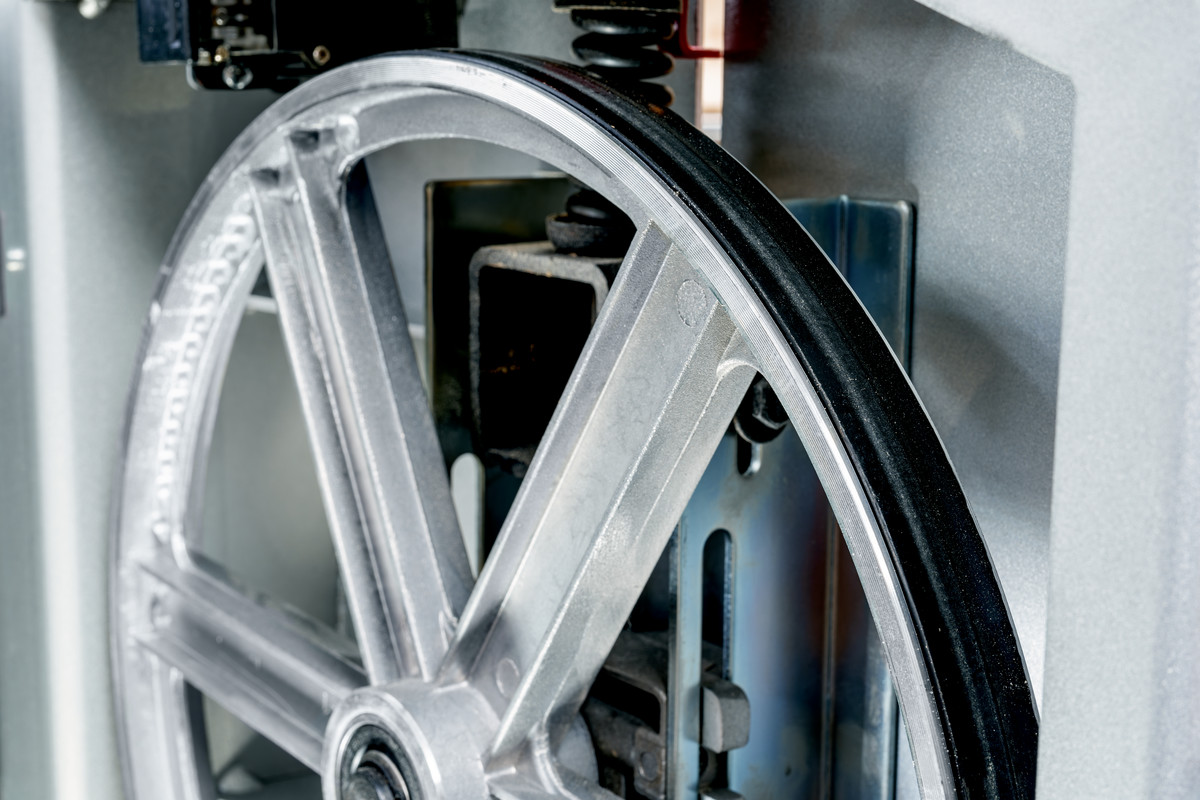

  • Quiet belt path thanks to balanced flywheels with rubber coating

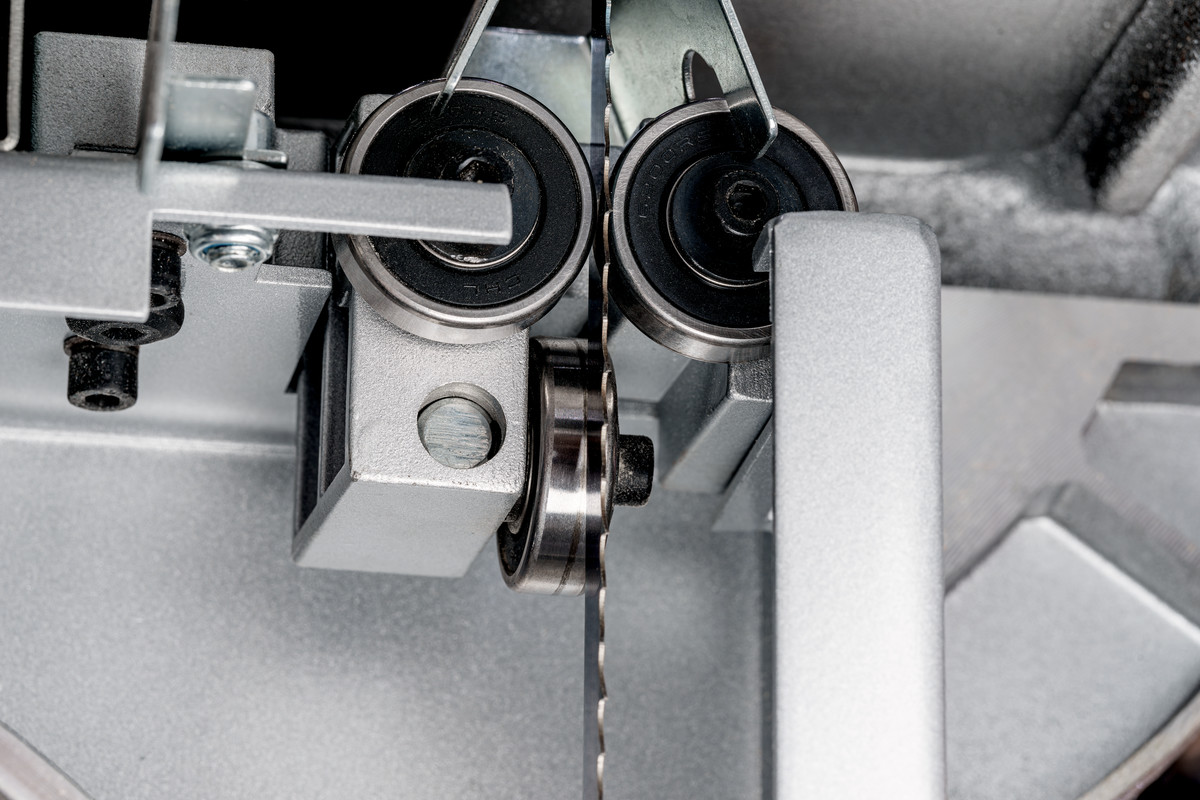

  • Top and bottom HSS precision three-roller guide of the band saw blade for accurate cutting results, adjustable without tools
  • Two cutting speeds for various applications and materials

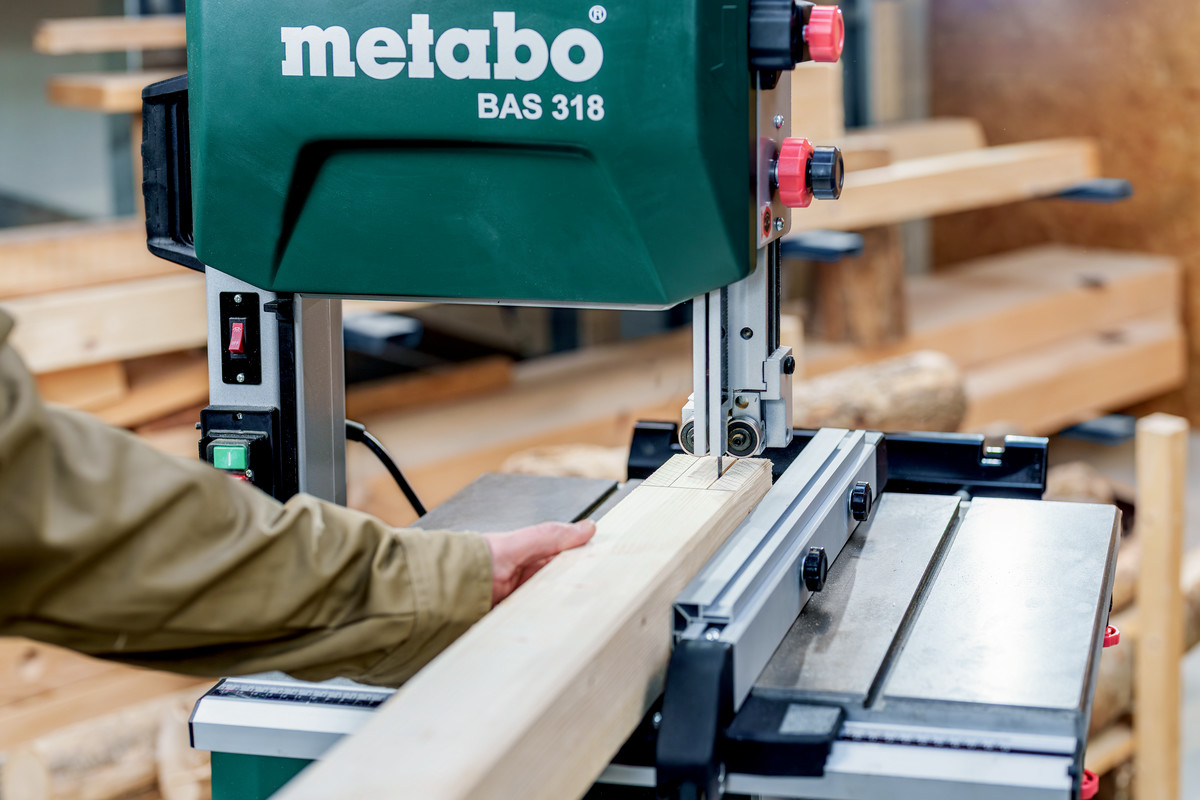

  • Precise rip fence with double clamping and quick fastening
  • Quiet induction motor, maintenance-free and robust.
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Easy inclination adjustment of the grey cast iron saw table for precise incline cuts thanks to toothed ring guide
  • Quick-action clamping lever and door opening without tools for easy saw blade change

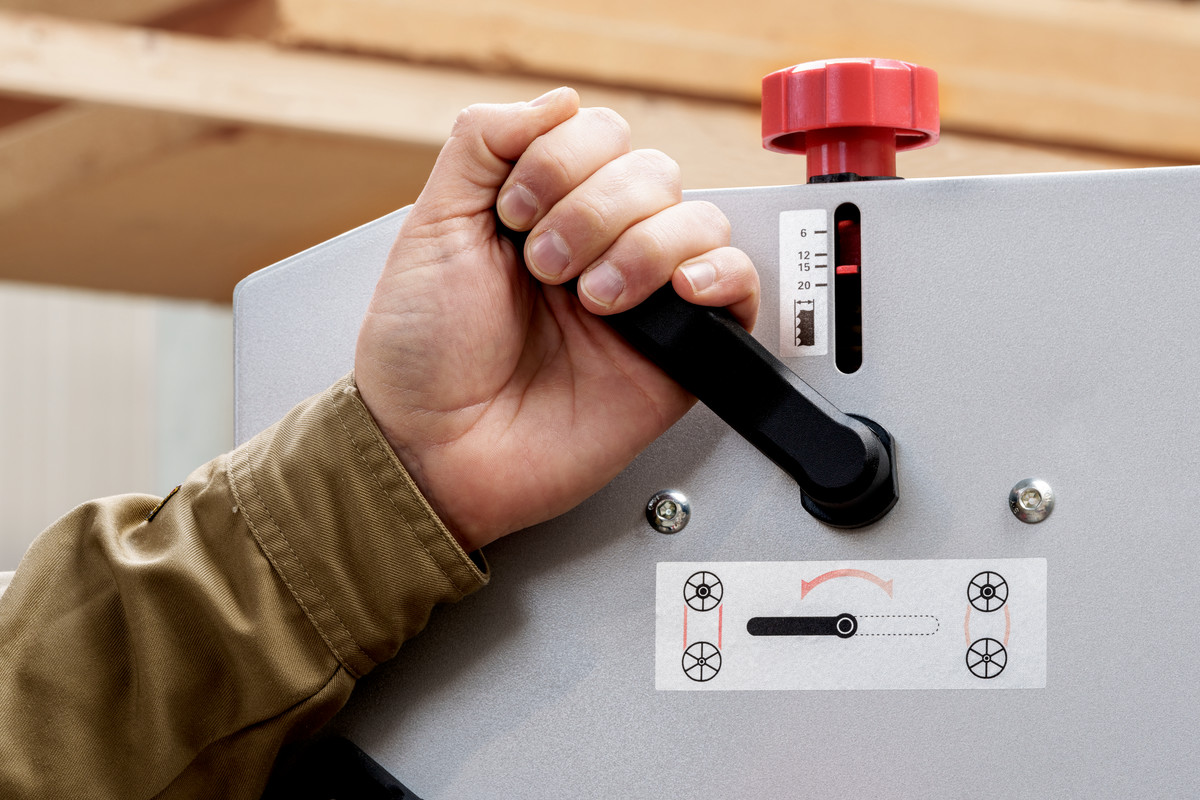

  • Blade clamp indicator with scale for easy control of the blade tension
  • Tool-less height adjustment of the saw blade guard
  • LED work light for illumination of the cutting line
  • External extraction possible for low-dust working
  • Drawer for simple disposal of collected sawdust

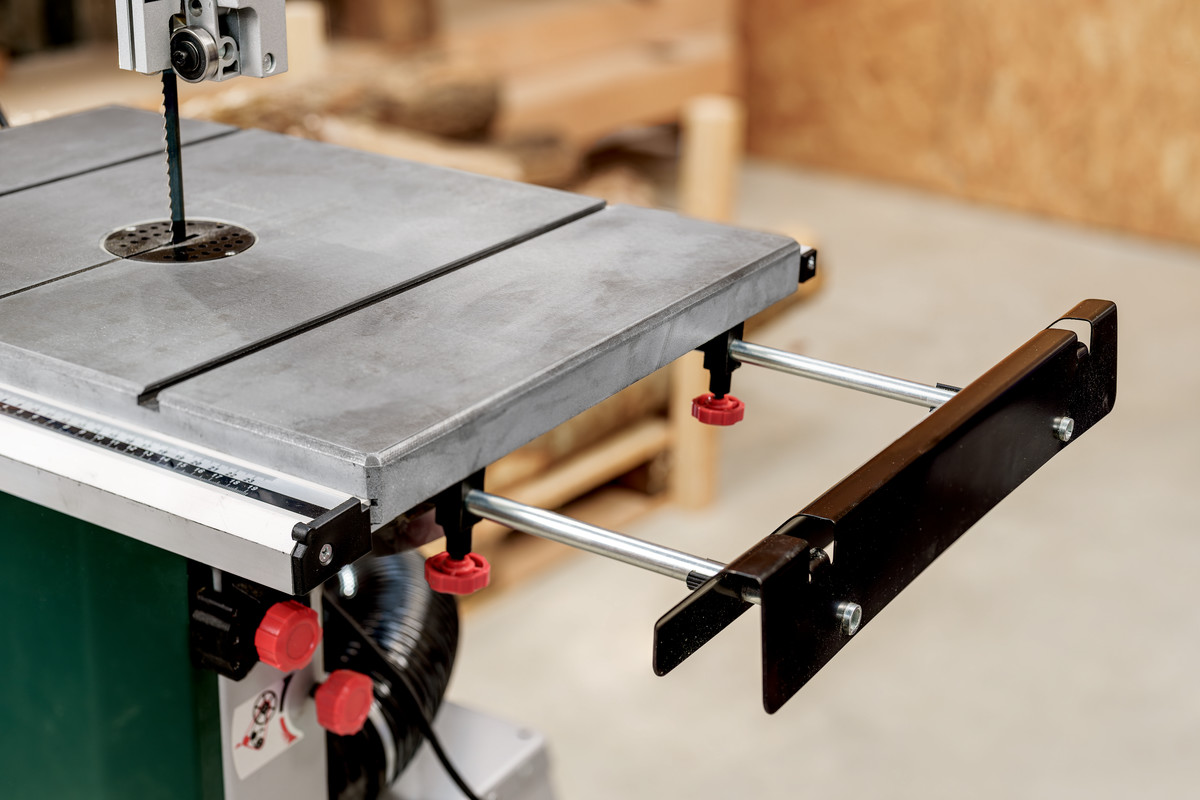

  • Extendable table width extension for processing large workpieces
  • Radius cutting with circle sawing attachment (accessory)
  • Regrinding surfaces and curved sawing cuts with belt sanding attachment (accessory)
  • Stand with wheels for comfortable change of position
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Dimensions
665 x 980 x 1600 mm
Support surface
560 x 400 mm
Working height with stand
1000 mm
Sawing bench swivel range
0 - 45 °
Cutting height
170 mm
Passage width
307 mm
Cutting speed
410 / 880 m/min
Saw belt length
2240 mm
Mains voltage
220 - 240 V
Rated input power
900 W
Output power
660 W
Weight
79 kg
  • Universal band saw blade A6
  • Stand
  • Rip fence
  • Mitre Fence
  • Suction adapter (for Ø 44, 58, 100 mm)
  • Dust collection container
  • Push stick
