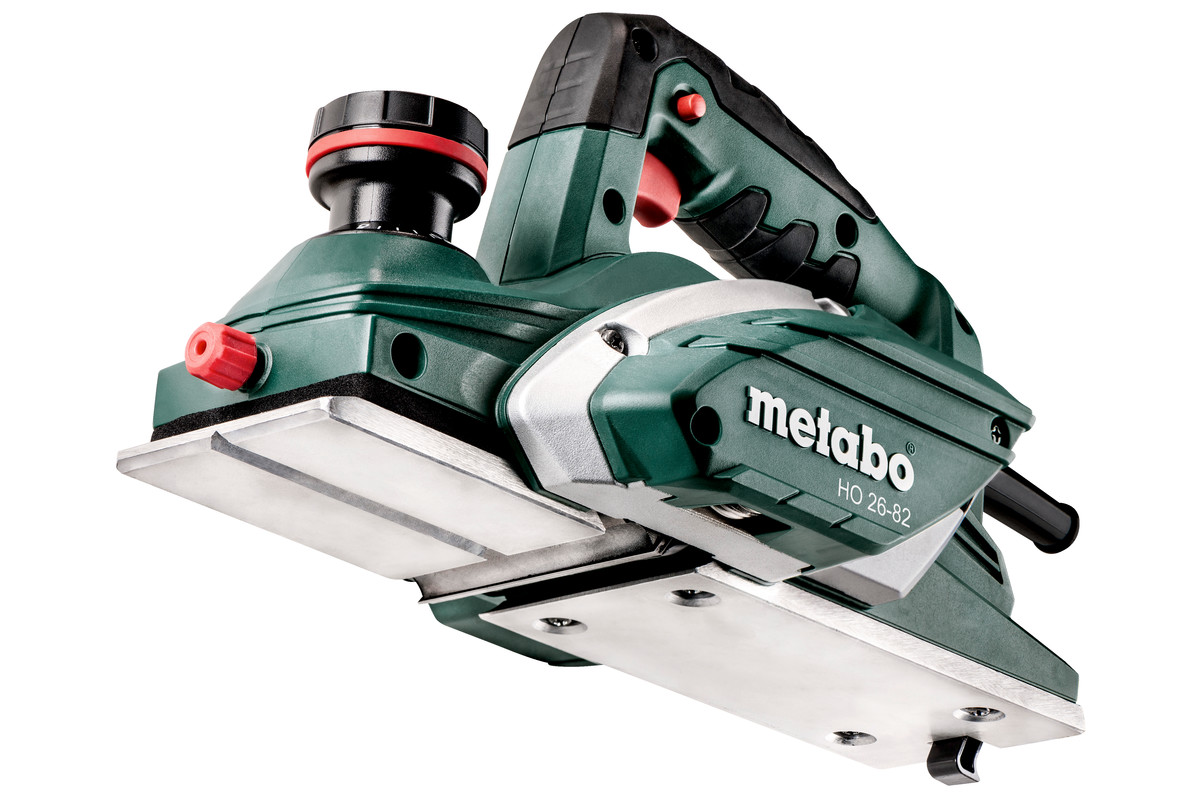

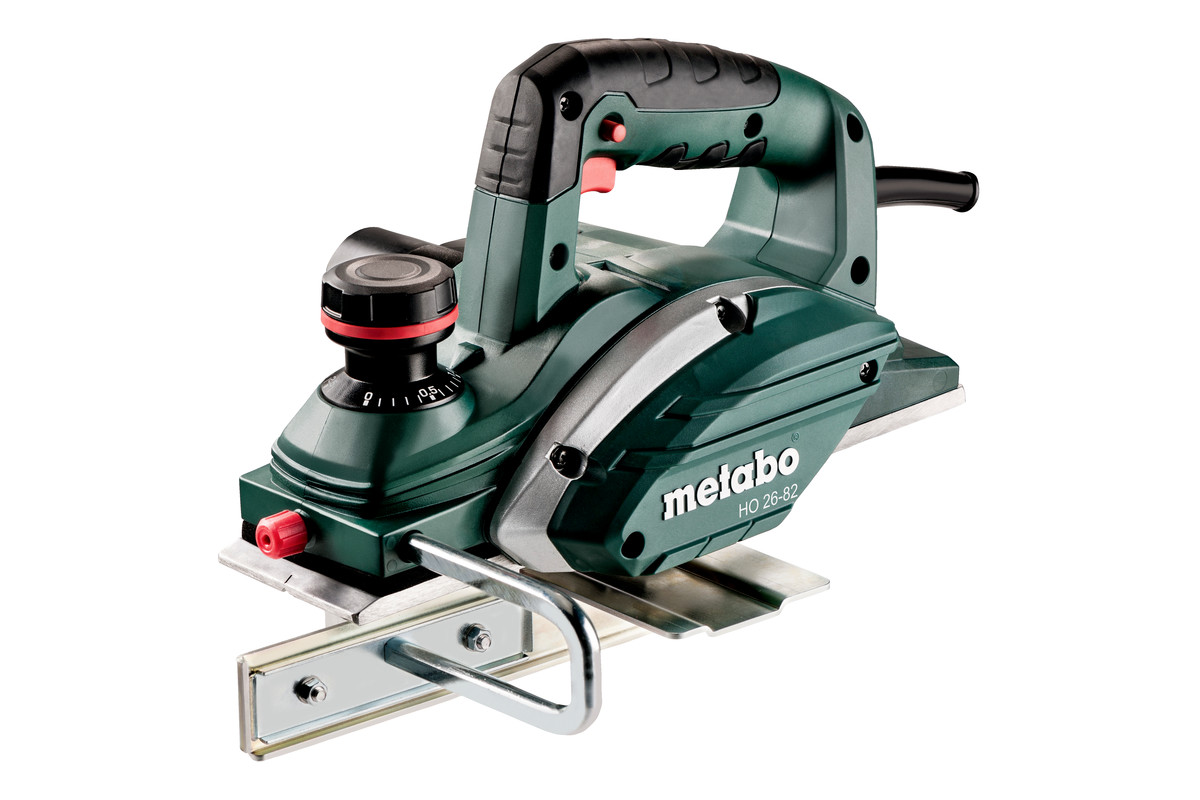

HO 26-82 (602682000) Planer

Cardboard box

HO 26-82 (602682000) Planer
Order no.: 602682000 EAN: 4007430321435
Planing width:
82 mm
Adjustable planing depth:
0 - 2.6 mm
No-load speed:
17000 rpm
Rated input power:
620 W
  • Light, compact universal planer for planing, rebating and chamfering
  • Adjustable planer depth and notch depth
  • Aluminium die cast and milled cut planer base with V-groove for easy chamfering
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Angled chip ejection adapter for controlled ejection of the wood shavings
more product information
Manual Spare-parts list
  • Light, compact universal planer for planing, rebating and chamfering
  • Adjustable planer depth and notch depth
  • Aluminium die cast and milled cut planer base with V-groove for easy chamfering
  • Parallel guide / rip fence for precise guiding of the planer
  • Grip area with non-slip soft-grip surface
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Angled chip ejection adapter for controlled ejection of the wood shavings
  • Easy to empty textile dust bag for working without extraction facilities
  • Strap on the planer base for stopping the machine and to protect the work piece
  • Easy blade change of the robust reversible carbide planer blades
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Planing width
82 mm
Adjustable planing depth
0 - 2.6 mm
Maximum notch depth
9 mm
No-load speed
17000 rpm
Rated input power
620 W
Output power
360 W
Speed at rated load
11200 rpm
Length of planer base
295 mm
Weight (without power cable)
2.7 kg
Cable length
4 m
Vibration
Planing soft wood
1.7 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
86 dB(A)
Sound power level (LwA)
97 dB(A)
Uncertainty of measurement K
3 dB(A)
  • 1 Set of disposable planer blades
  • Parallel Guide
  • Depth gauge
  • Extraction connector
  • Chip ejection adapter
  • Textile dust bags
  • Hexagonal wrench
