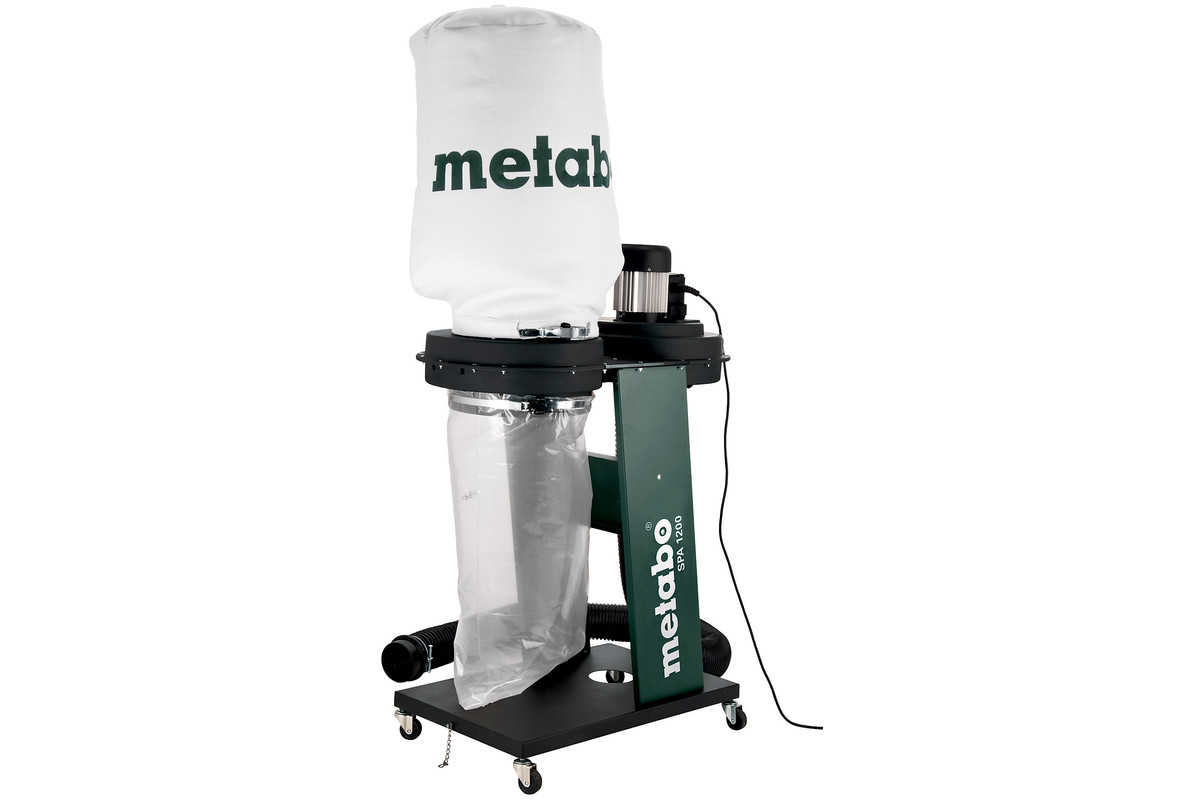

SPA 1200 (601205380) Chip and dust extraction unit

(220-240 V / 50 Hz); Cardboard box

Order no.: 601205380 EAN: 4007430212160
Maximum vacuum:
1600 Pa
Hose connection Ø:
100 mm
Chip bag capacity:
65 l
Rated input power:
0.55 kW
  • Raw air extraction device for (semi) stationary wood processing machines (observe country-specific regulations!)
  • Quick change of the application location by means of wheeled unit and simple connection
  • Raw air extraction device for (semi) stationary wood processing machines (observe country-specific regulations!)
  • Significantly reduces dust content
  • Filter material of dust class L
  • Integrated grounding as protection from electrostatic charge
  • Quick change of the application location by means of wheeled unit and simple connection
  • Stable stand with supported chip collection bag
  • Comprehensive range of accessories: automatic switch-on devices, filter cartridges, hoses and adapters
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Dimensions
830 x 450 x 1600 mm
Maximum vacuum
1600 Pa
Maximum volume flow
900 m³/h
Filter surface
1 m²
Hose connection Ø
100 mm
Chip bag capacity
65 l
Mains voltage
220 - 240 V
Rated input power
0.55 kW
Weight
22 kg
Cable length
3 m
Noise emission
Sound pressure level
85 dB(A)
Sound power level (LwA)
98 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Suction hose 100 x 2500 mm
  • Filter bag made of needle felt
  • Chip Collection Bag
