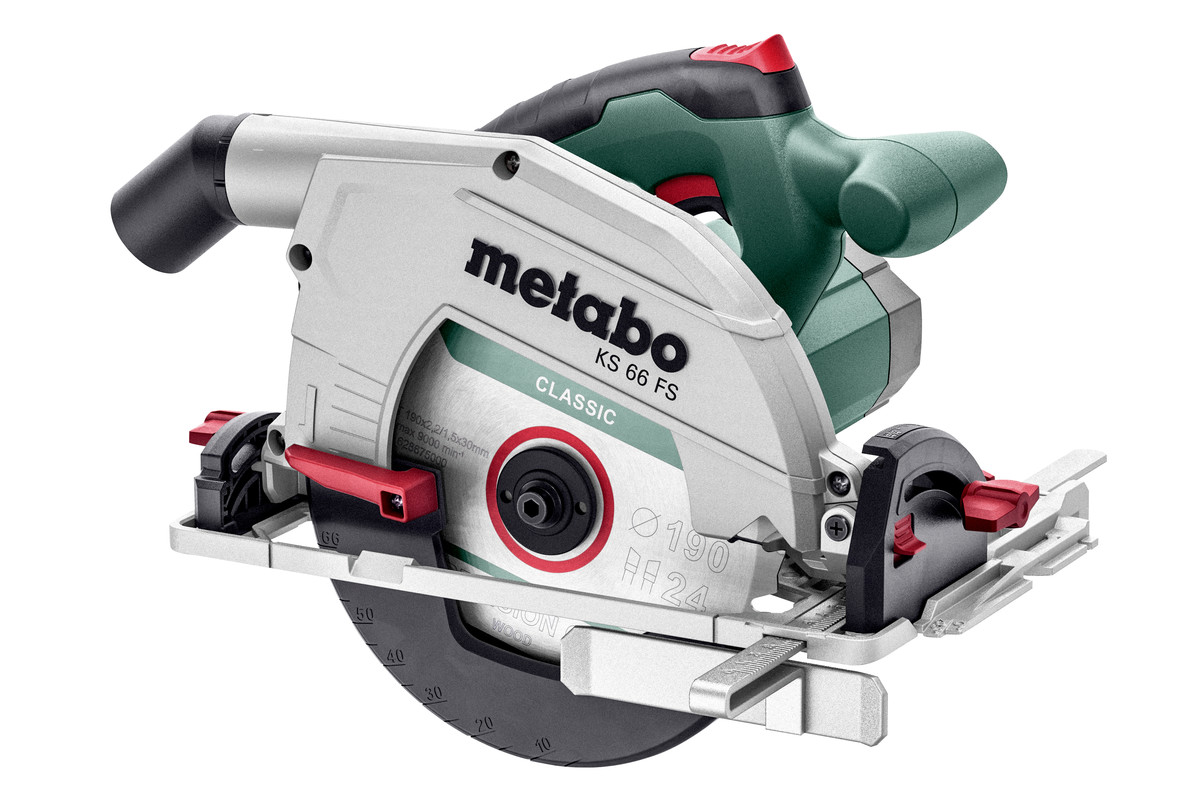

KS 66 FS (601066500) Circular Saw

(220-240 V / 50 - 60 Hz); MetaLoc

Order no.: 601066500 EAN: 4061792181267
Rated input power:
1500 W
Maximum cutting depth at 90°:
66 mm
Saw blade Ø x bore:
190 x 30 mm
No-load speed:
5000 rpm

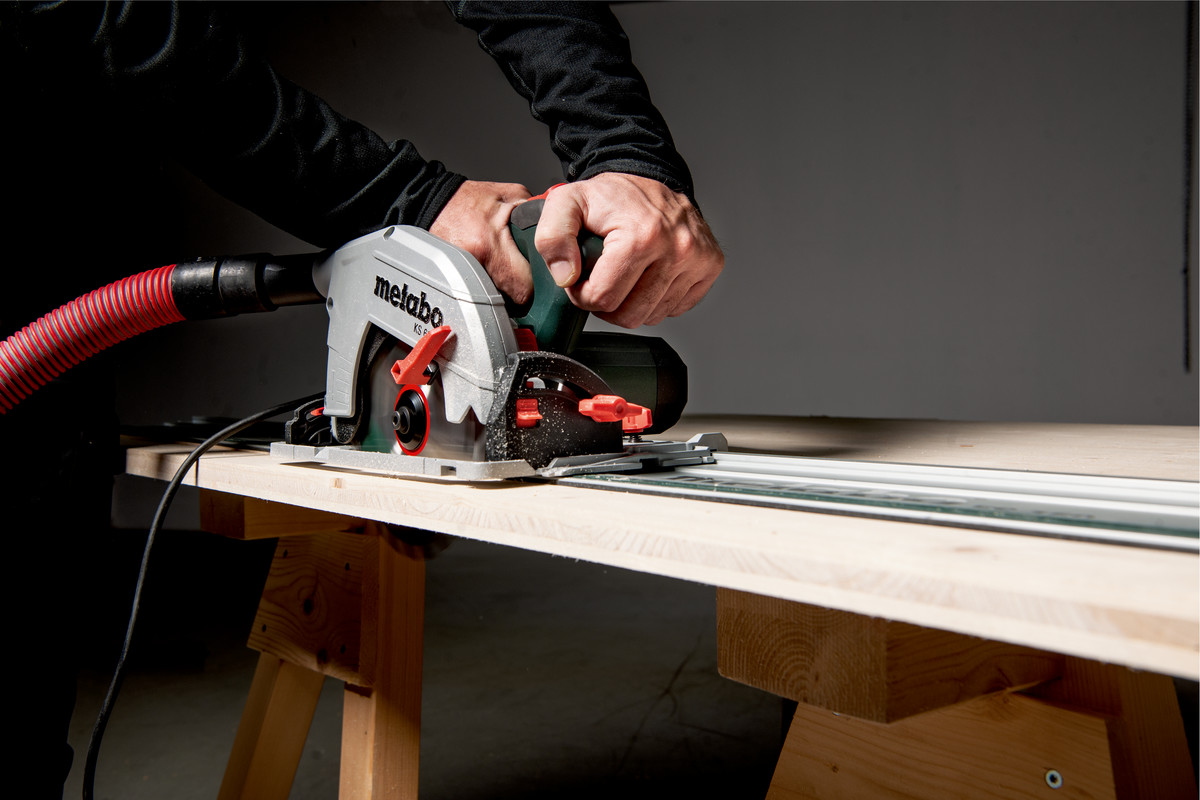

  • Robust circular saw can be used directly on guide rails from Metabo and other manufacturers for precise, long cuts
  • Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
  • Controllable chip ejection by means of rotating extraction nozzle
  • Robust circular saw can be used directly on guide rails from Metabo and other manufacturers for precise, long cuts
  • Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
  • Light guide plate made from die cast aluminium
  • Grip area with non-slip soft-grip surface
  • Clearly visible cutting indicator for precise sawing after initial cut
  • 0° position re-adjustable for highest cutting precision

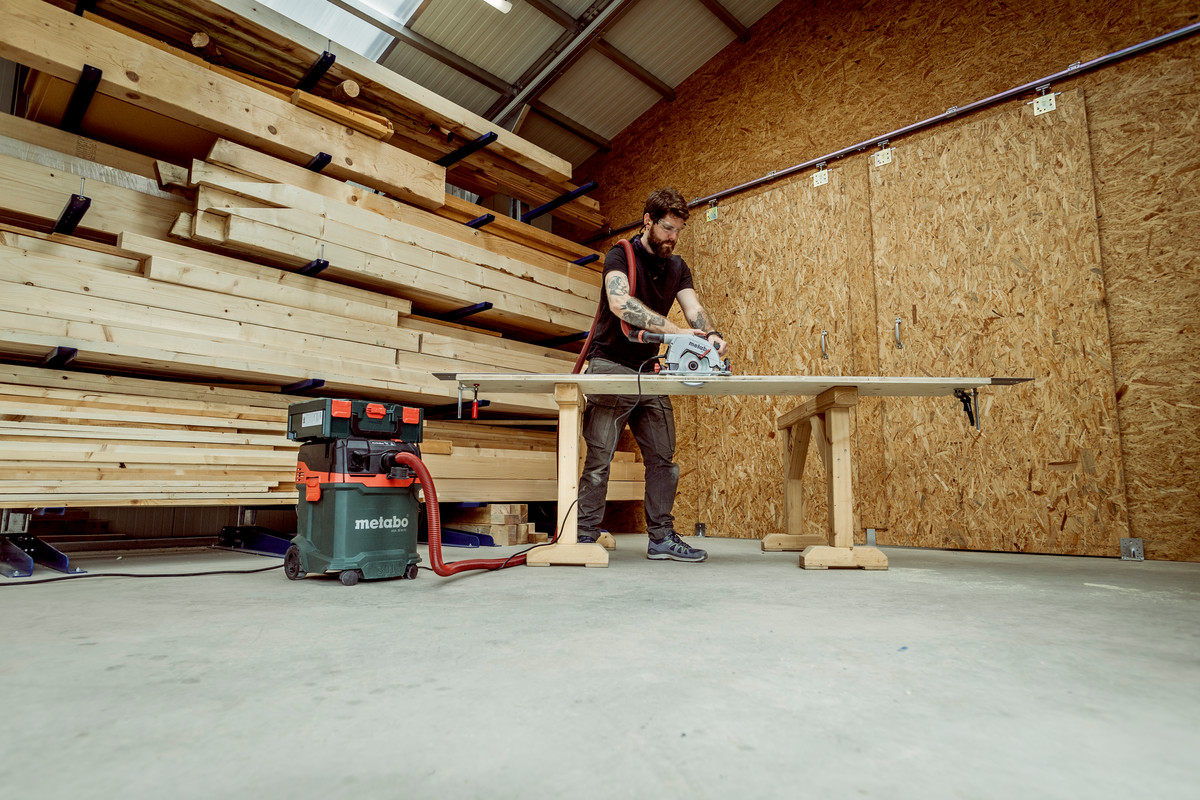

  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Controllable chip ejection by means of rotating extraction nozzle
  • Precision guide rail available as accessory
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Rated input power
1500 W
Output power
840 W
Maximum cutting depth at 90°
66 mm
Maximum cutting depth at 45°
47 mm
Max. cutting depth with guide rail
61 mm
Saw blade Ø x bore
190 x 30 mm
Swivel range from / to:
‌ 0 / + 47 °
No-load speed
5000 rpm
Revolutions at rated load
3800 rpm
Max. cutting speed
50 m/s
Weight (without power cable)
4.9 kg
Cable length
4 m
Noise emission
Sound pressure level
95 dB(A)
Sound power level (LwA)
106 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Carbide circular saw blade (24 teeth)
  • Parallel guide
  • Hexagonal wrench
  • MetaLoc case
