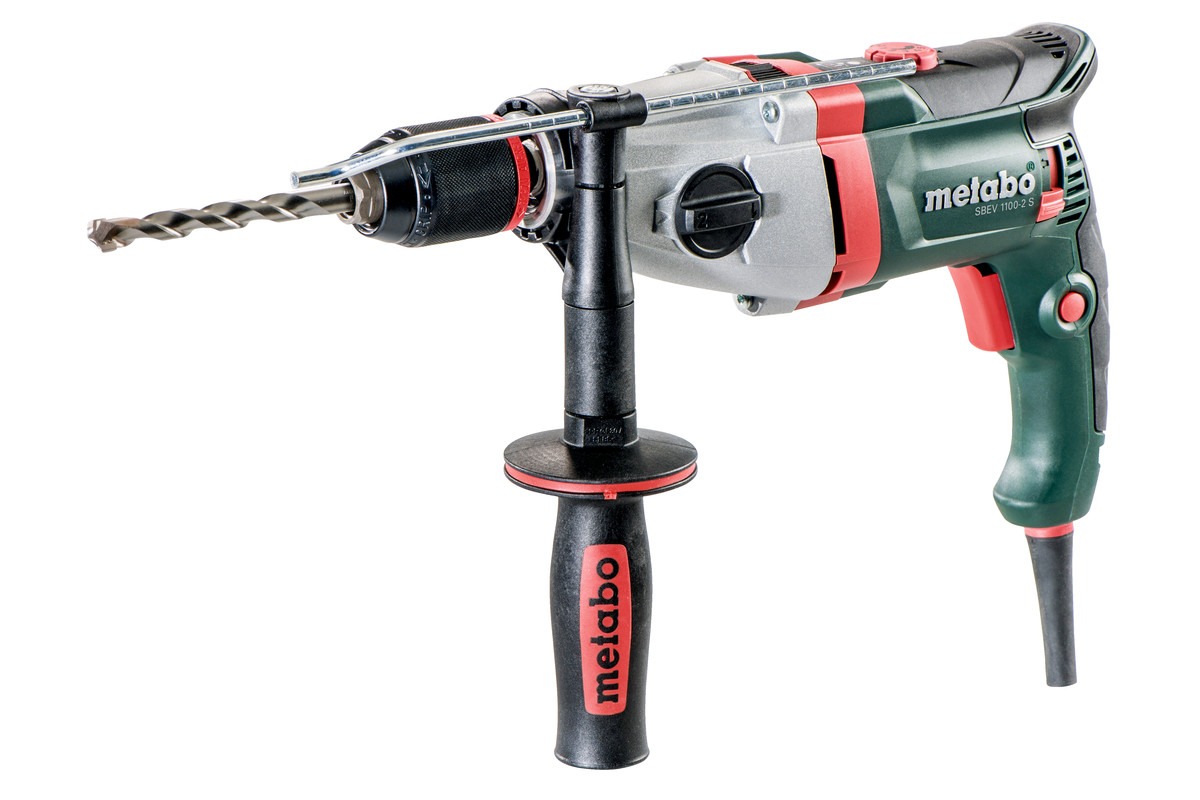

SBEV 1100-2 S (600784590) Impact drill
(220-240 V / 50 - 60 Hz); metaBOX 145 L
Order no.: 600784590
EAN: 4007430313041
Rated input power:
1100 W
Maximum torque:
42 / 15 Nm
Drill-Ø masonry:
24 mm
Drill-Ø concrete:
22 mm
Drill Ø steel:
16 / 10 mm
Drill-Ø soft wood:
40 / 25 mm
No-load speed:
0 - 1100 / 0 - 3100 rpm
- Powerful two-speed impact drill for versatile drilling with constant speed under load
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Robust die cast aluminium gear housing for optimum heat dissipation and long service life
- Metabo Marathon-motor with dust protection for long service life
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
- Keyless chuck and spindle stop gear for convenient one-handed tool change
- Powerful two-speed impact drill for versatile drilling with constant speed under load
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load

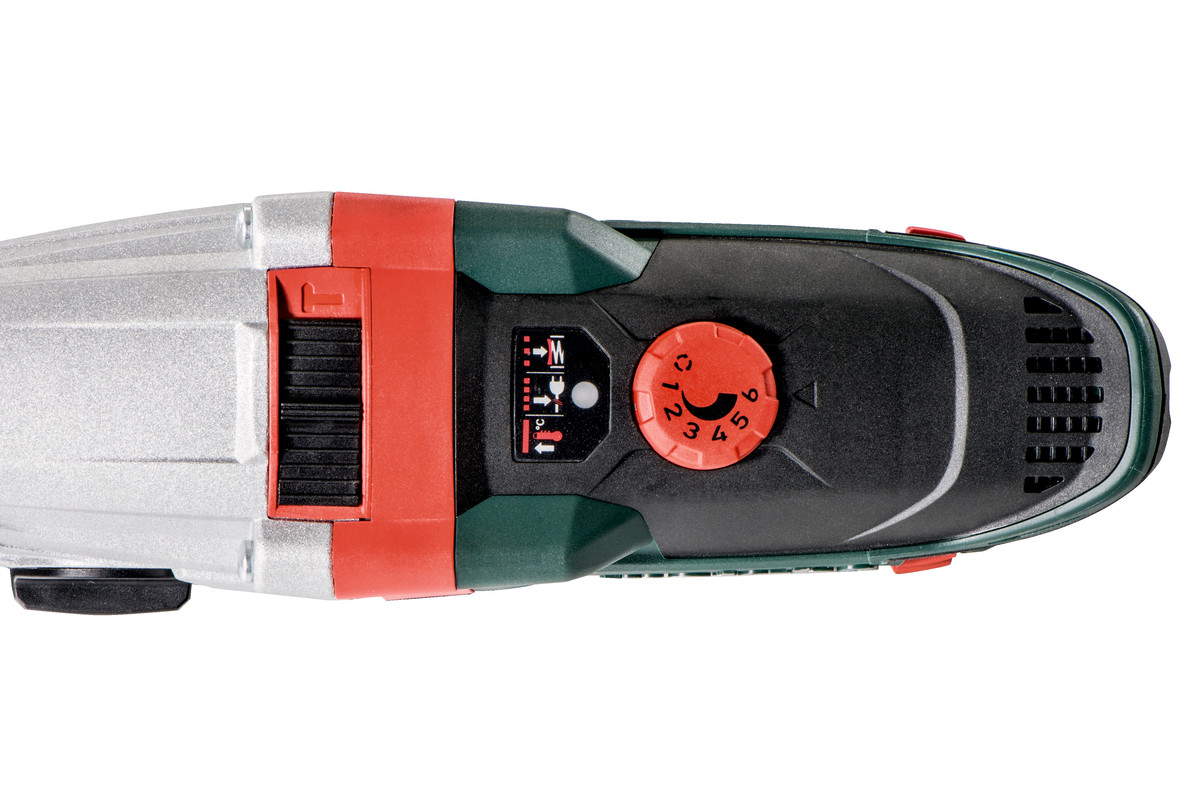

- Thumbwheel for Speed Preselection
- Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
- Robust die cast aluminium gear housing for optimum heat dissipation and long service life
- Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
- Metabo Marathon-motor with dust protection for long service life
- Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
- Forward and reverse rotation
- Keyless chuck and spindle stop gear for convenient one-handed tool change

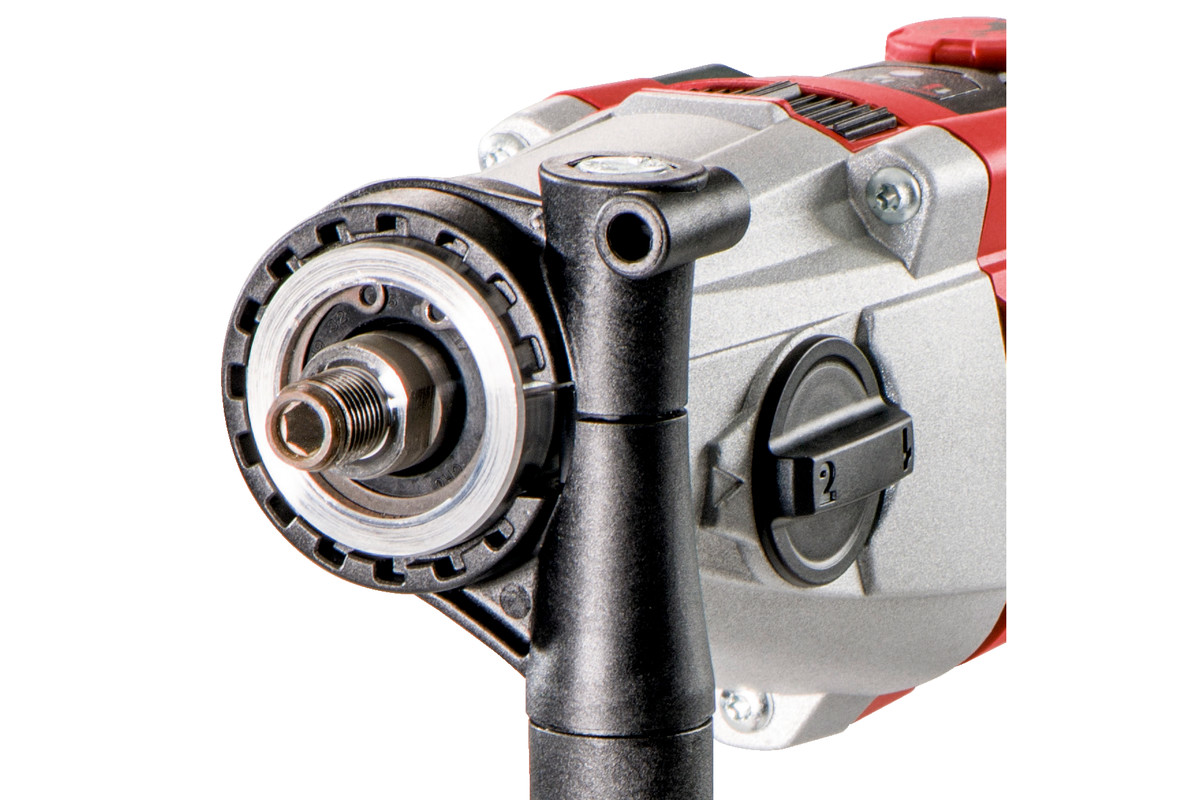

- Spindle with hexagonal recess for screwdriver bits for working without chuck
- Overload protection: protects the motor from overheating
- Restart protection: prevents unintentional start-up after power supply interruption
- Cable-protecting ball joint for optimal freedom of motion when working
- Wear Indication for Carbon Brush
- With metaBOX, the intelligent solution for transport and storage
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Rated input power
1100 W
Output power
580 W
Maximum torque
42 / 15 Nm
Drill-Ø masonry
24 mm
Drill-Ø concrete
22 mm
Drill Ø steel
16 / 10 mm
Drill-Ø soft wood
40 / 25 mm
No-load speed
0 - 1100 / 0 - 3100 rpm
Speed at rated load
1100 / 3100 rpm
Maximum impact rate
58900 bpm
Gears
2
Chuck capacity
1.5 - 13 mm
Collar diameter
43 mm
Drill spindle with hexagonal recess
6.35 mm
Drill spindle thread
1/2 " - 20 UNF
Chuck clamping type
Keyless chuck
Weight (without power cable)
2.8 kg
Cable length
4 m
Vibration
Drilling in metal
4.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Impact drilling concrete
17 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
103 dB(A)
Sound power level (LwA)
114 dB(A)
Uncertainty of measurement K
3 dB(A)
- Futuro Plus keyless chuck
- rubber-coated side handle
- Drilling depth guide
- metaBOX 145 L
