FM 500-6 (601741380) Trim router

(220-240 V / 50 - 60 Hz); Cardboard box

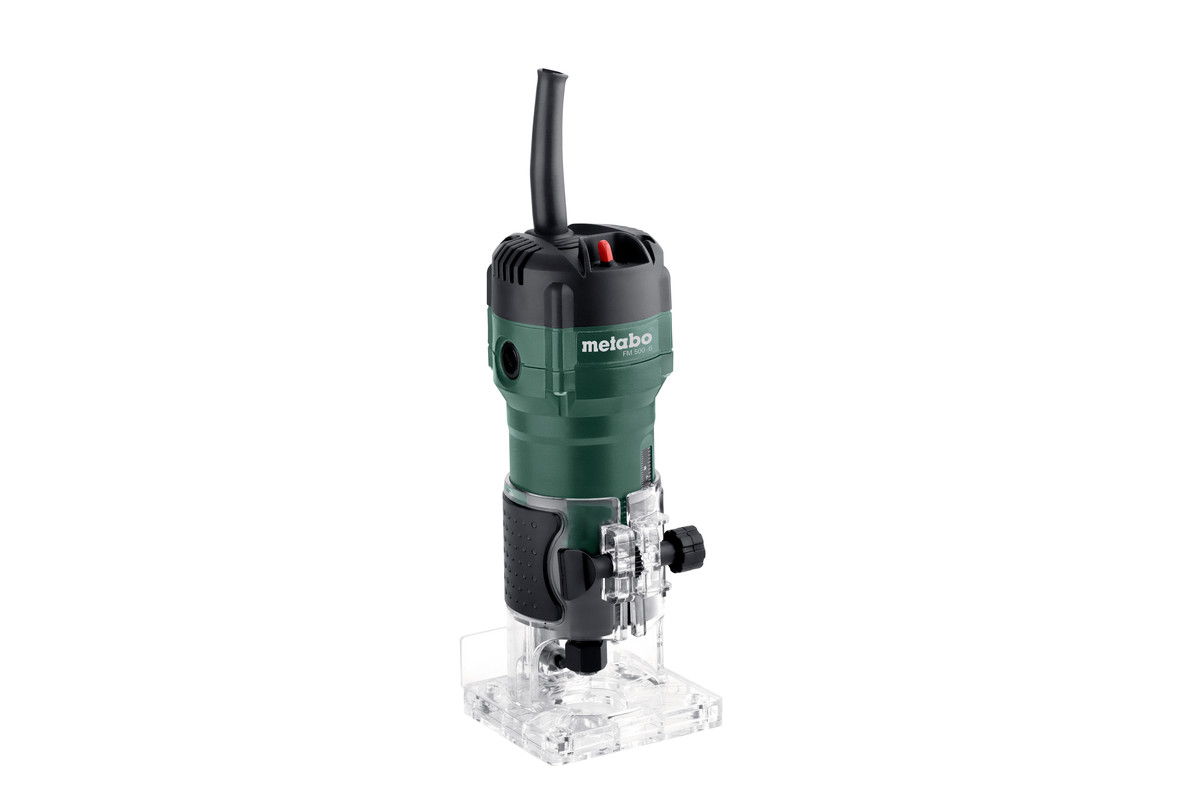

FM 500-6 (601741380) Trim router
Order no.: 601741380 EAN: 4061792243101
No-load speed:
32000 rpm
Rated input power:
500 W
Collet chuck bore:
6.35 mm
  • Light, compact trim router for single-handed profile cutting, trimming and cutting of grooves
  • Powerful motor for quick cutting of wood and wood-like materials
  • Precise, stepless depth adjustment and fixing of the motor unit using rack jacks
more product information
 Shop Online
Manual Spare-parts list
  • Light, compact trim router for single-handed profile cutting, trimming and cutting of grooves
  • Powerful motor for quick cutting of wood and wood-like materials

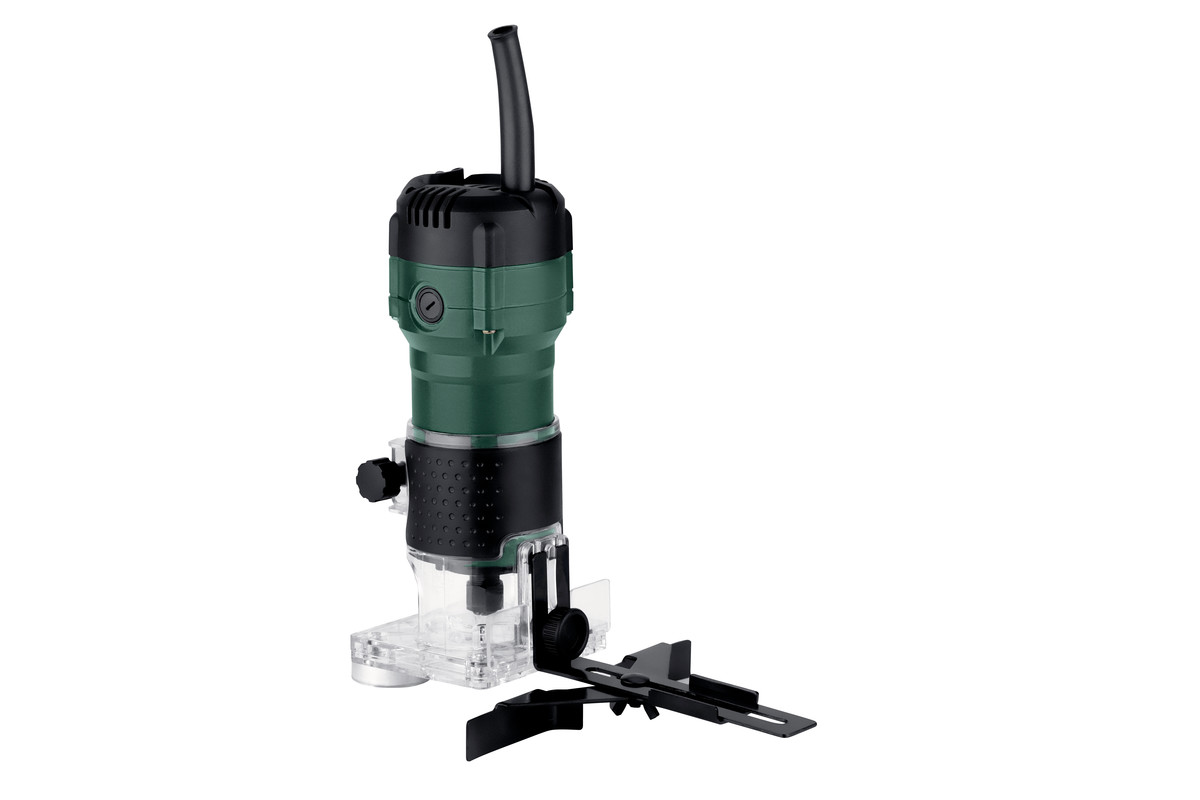

  • With extensive scope of delivery: parallel guide, template follower and roller guide
  • Precise, stepless depth adjustment and fixing of the motor unit using rack jacks

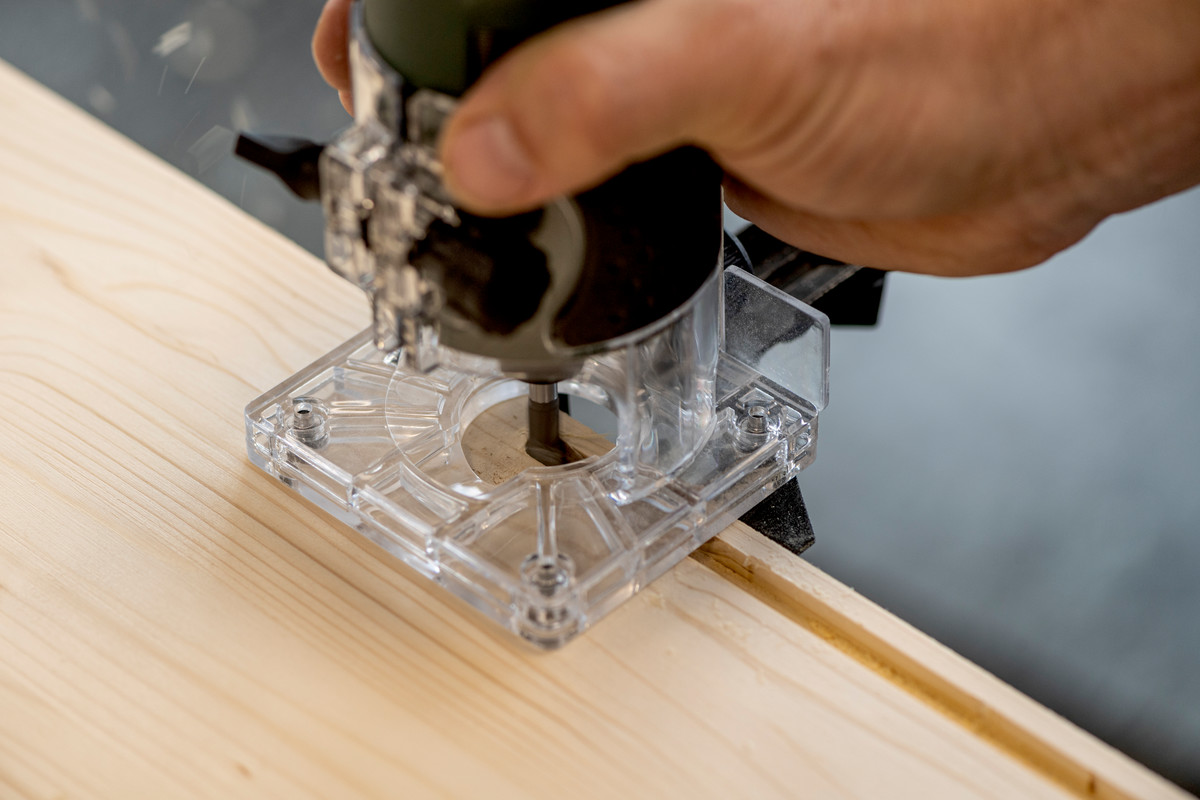

  • Transparent baseplate for maixmum view of the router bit and workpiece
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Auto-stop carbon brushes to protect the motor
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Maximum stroke height
40 mm
No-load speed
32000 rpm
Rated input power
500 W
Output power
300 W
Speed at rated load
19000 rpm
Collet chuck bore
6.35 mm
Weight (without power cable)
1.3 kg
Cable length
2 m

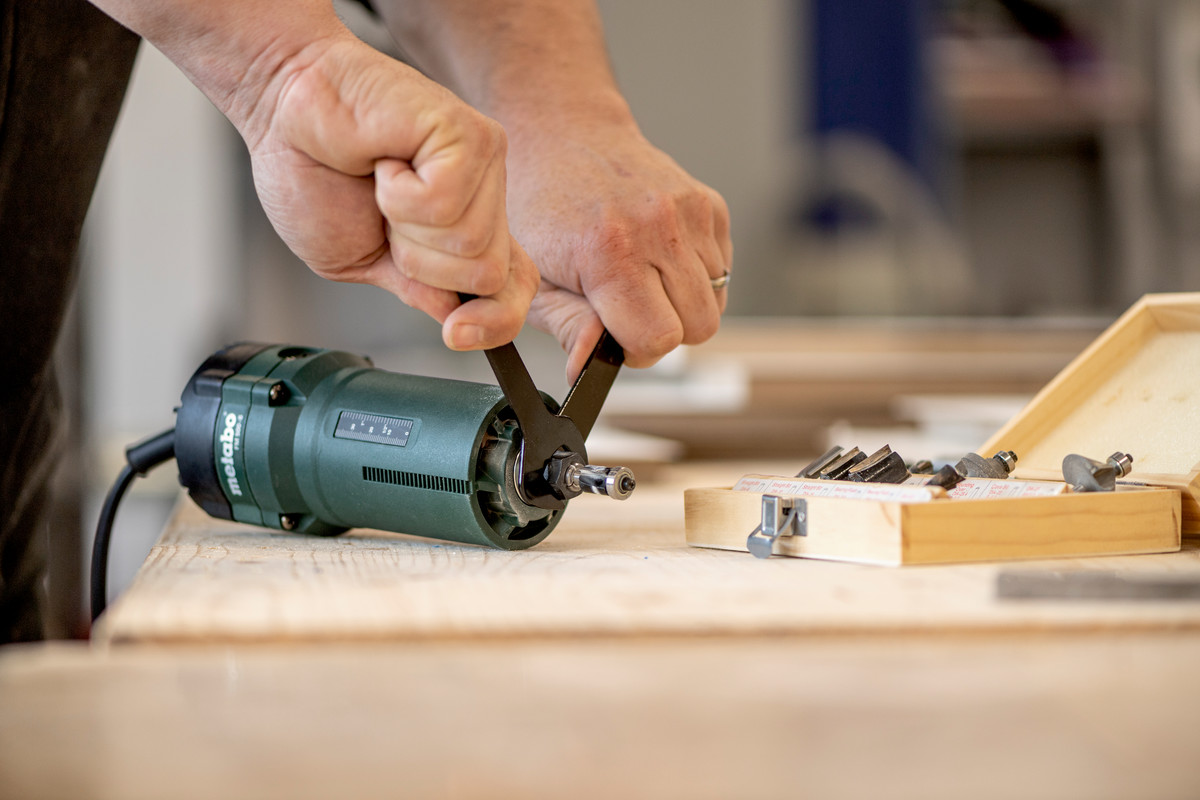

  • 2 open-jawed spanners
  • Parallel guide

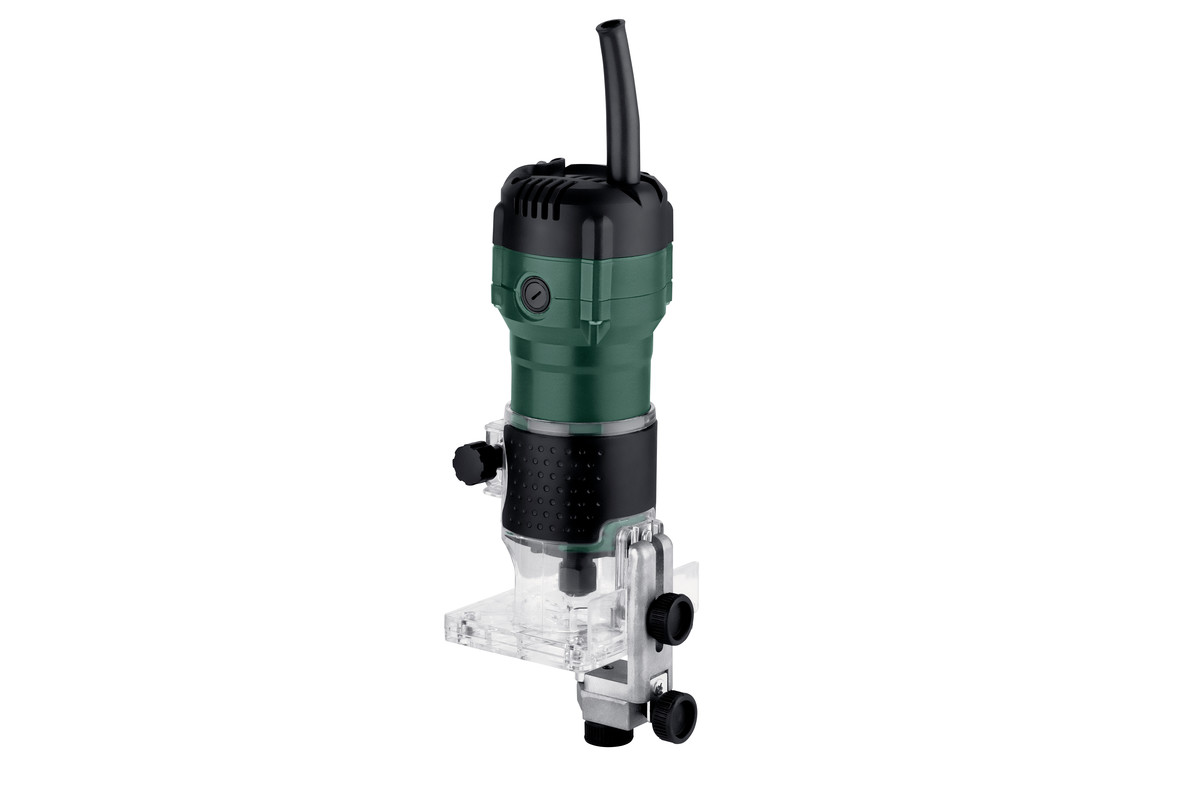

  • Template Follower
  • Roller guide
  • Protective glass
Full service - Complete protection for full cost control
Full service price group FS1
One-time cost for 36 months (RRP with VAT) 42.00 £

The full service benefits:

  • All repairs within 3 years are fully covered, even repairs of wear and tear
  • Free theft protection




This Full Service Package provides all-round protection thanks to fairly calculated service flat rates.
When purchasing the machine buy a full service code from your dealer.
Using this code you can register your machine for the full service within 4 weeks from the date of purchase.

Register at www.metabo-service.com
More information at www.metabo.com/services
