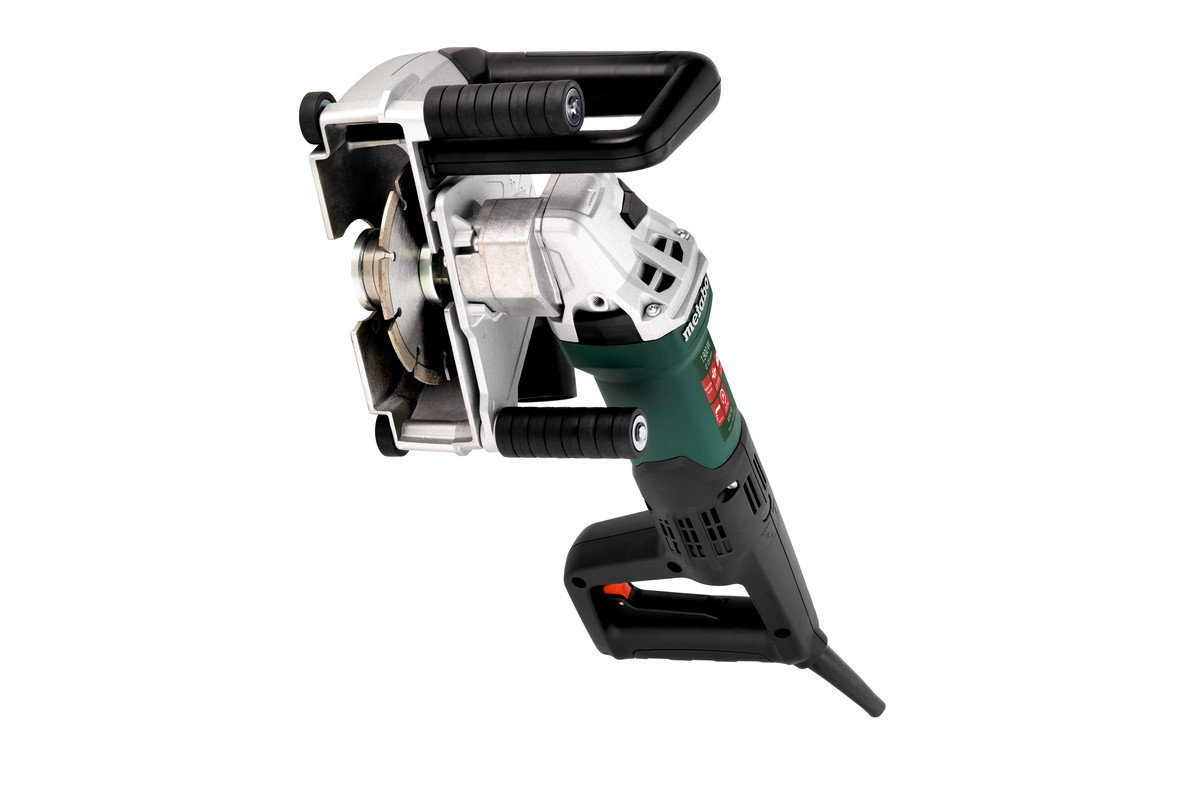

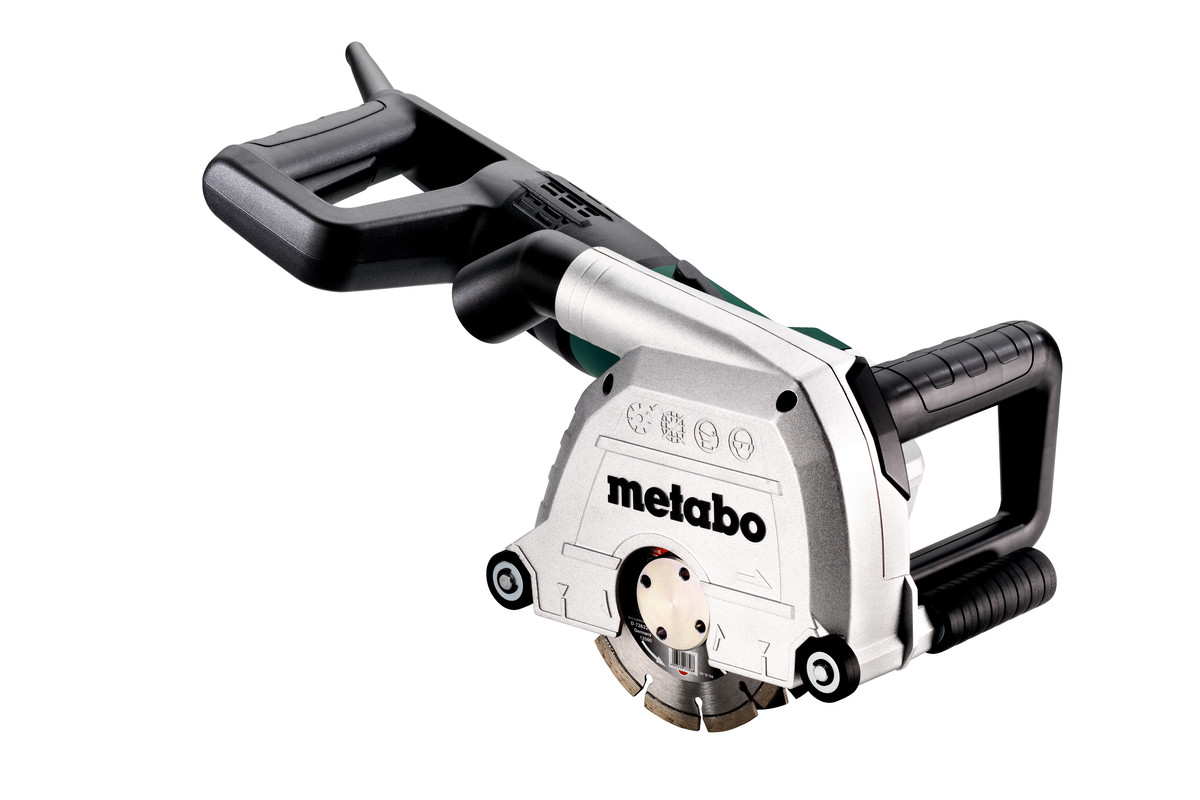

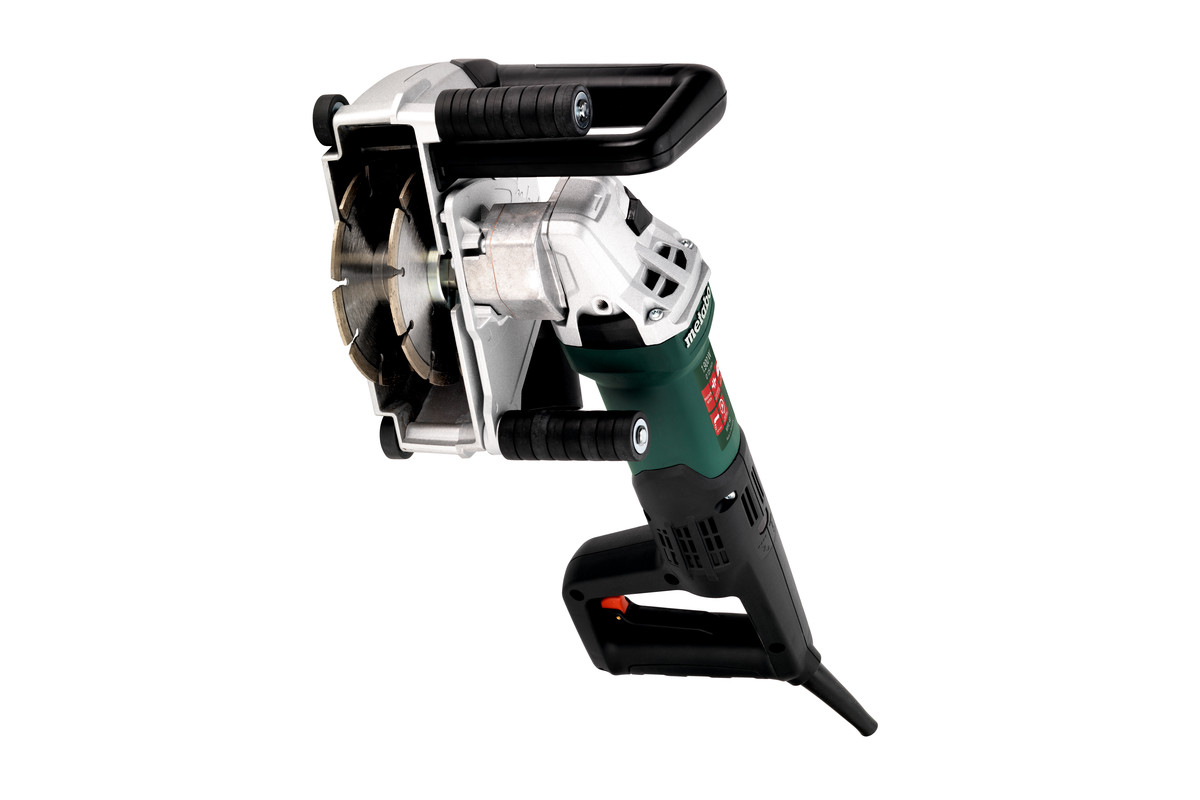

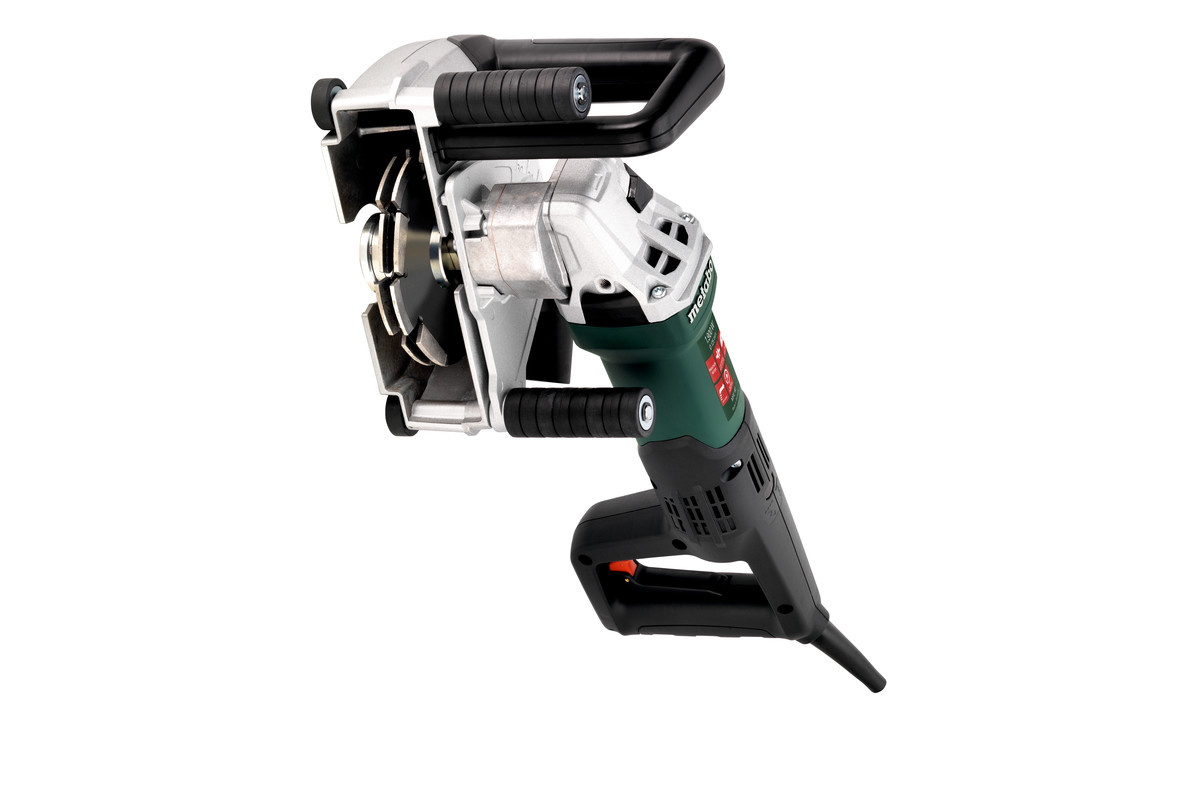

MFE 40 (604040610) Wall chaser

(110-120 V / 50 - 60 Hz); Plastic Carry Case

MFE 40 (604040610) Wall chaser
Order no.: 604040610 EAN: 4007430327635
Adjustable cutting depth:
10 - 40 mm
Possible groove widths:
9 / 15.5 / 22 / 28.5 / 35 mm
Cutting disc Ø:
125 mm
Rated input power:
1700 W
Weight (without power cable):
4.6 kg

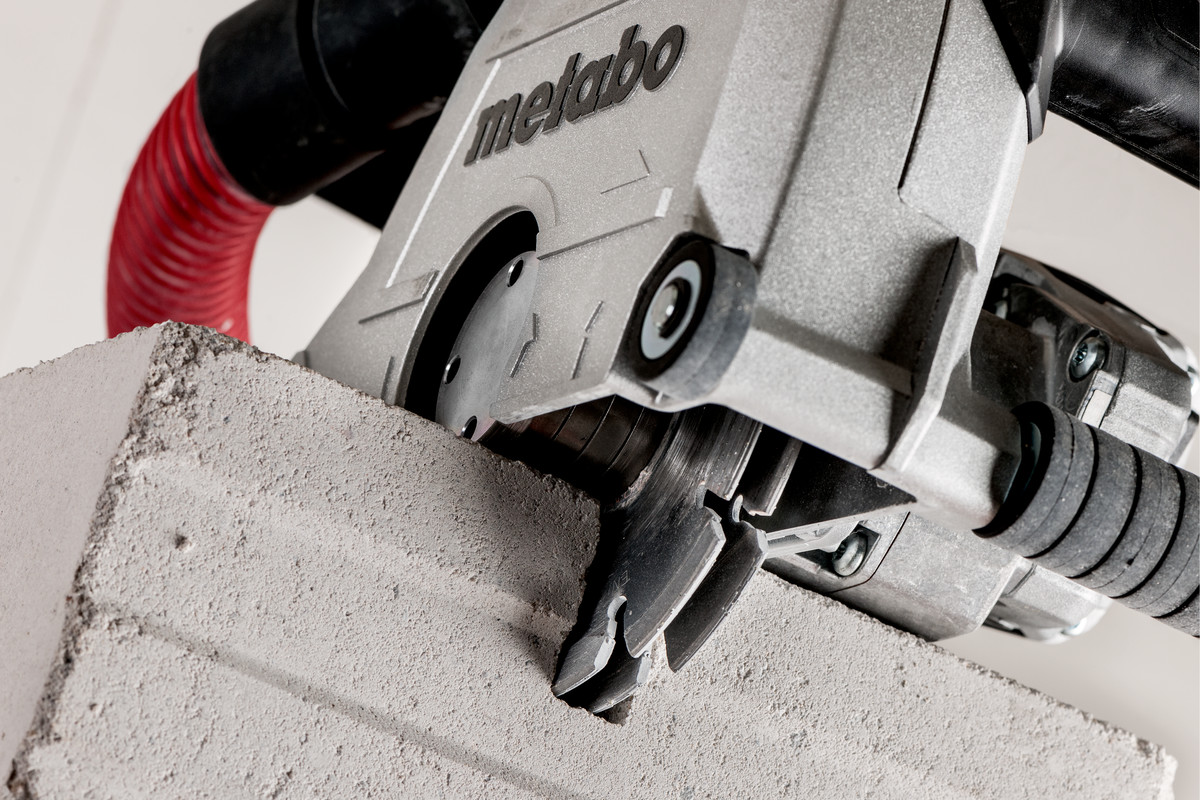

  • Ideal for electric installations to lay cables and pipework under plaster with cutting depths up to 40 mm
  • Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
  • Robust aluminium die-cast hood with rubber rollers and optimal handle position for comfortable guidance of the machine
  • Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
  • Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
more product information
Manual Spare-parts list
  • Ideal for electric installations to lay cables and pipework under plaster with cutting depths up to 40 mm
  • Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
  • Robust aluminium die-cast hood with rubber rollers and optimal handle position for comfortable guidance of the machine
  • Push cut for optimal view of the marking line
  • Channel width and cutting depth can be set
  • Metabo Marathon motor with patented dust protection for long service life
  • Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
  • Electronic soft start and restart protection for safe working
  • LED signal informs about overload or active restart protection
  • Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
  • Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)
  • Also suitable for cutting with only one diamond cutting disc
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Adjustable cutting depth
10 - 40 mm
Possible groove widths
9 / 15.5 / 22 / 28.5 / 35 mm
Cutting disc Ø
125 mm
Rated input power
1700 W
Output power
970 W
No-load speed
5000 rpm
Speed at rated load
4000 rpm
Torque
6 Nm
Weight (without power cable)
4.6 kg
Cable length
4 m
Vibration
Vibration
5.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
93 dB(A)
Sound power level (LwA)
104 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Spacer Rings
  • 2 Diamond cutting discs
  • Flange nut
  • Face pin wrench
  • Chase chisel
  • Plastic carry case
