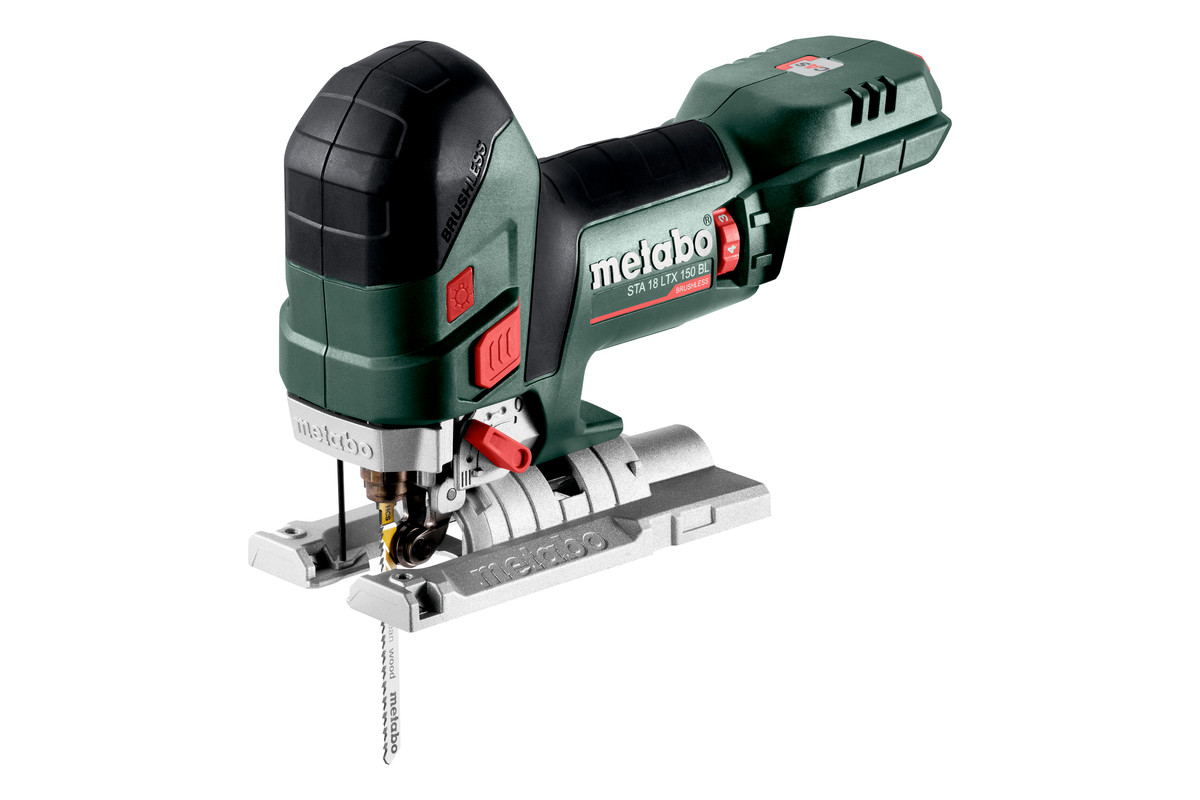

STA 18 LTX 150 BL (601502840) Cordless jigsaw

18V; metaBOX 145 L

Order no.: 601502840 EAN: 4061792234024
Battery voltage:
18 V
Cutting depth wood:
150 mm
Strokes in idle:
1000 - 3500 rpm
  • The power pack for demanding applications: Cordless jigsaw with maximum cutting output thanks to powerful Brushless motor and constant strokes under load
  • Best ergonomics in all working positions and soft-grip surface for perfect handling and safe guidance of the saw
  • Powerful Brushless motor for quick work progress and highest efficiency
  • Metabo "Quick" for changing saw blades without tools and with automatic ejection
  • Efficient chip blowing function for clear view of the cutting line
  • Integrated LED work light, can be switched off for cuts from below without getting blinded by the light
  • The power pack for demanding applications: Cordless jigsaw with maximum cutting output thanks to powerful Brushless motor and constant strokes under load
  • Best ergonomics in all working positions and soft-grip surface for perfect handling and safe guidance of the saw
  • Powerful Brushless motor for quick work progress and highest efficiency
  • Metabo "Quick" for changing saw blades without tools and with automatic ejection
  • Low-lying saw blade guidance for precise cuts
  • Efficient chip blowing function for clear view of the cutting line
  • Integrated LED work light, can be switched off for cuts from below without getting blinded by the light
  • Restart protection: prevents unintentional start-up after battery pack change
  • Long service life thanks to optimum gear and motor design and robust die-cast aluminium gear housing
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Splinter-free and gentle sawing due to guard plate and chip break guard
  • With metaBOX, the intelligent solution for transport and storage
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Type of battery pack
LiHD
Battery voltage
18 V
Cutting depth wood
150 mm
Cutting depth NF metal
35 mm
Cutting depth sheet steel
10 mm
Swivel range from / to:
- 45 / + 45 °
Pendulum stroke levels
4
Strokes in idle
1000 - 3500 rpm
Saw blade stroke
26 mm
Weight without battery pack
1.9 kg
Weight with battery pack
2.5 kg
Vibration
Sawing wood
6.1 m/s²
Uncertainty of measurement K
1.5 m/s²
Sawing metal
5.8 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
88 dB(A)
Sound power level (LwA)
99 dB(A)
Uncertainty of measurement K
5 dB(A)
  • Extraction nozzle
  • Protective glass
  • Plastic guard plate
  • Chip guard plate
  • 3 Saw blades
  • Hexagonal wrench
  • metaBOX 145 L
  • without battery pack, without charger
