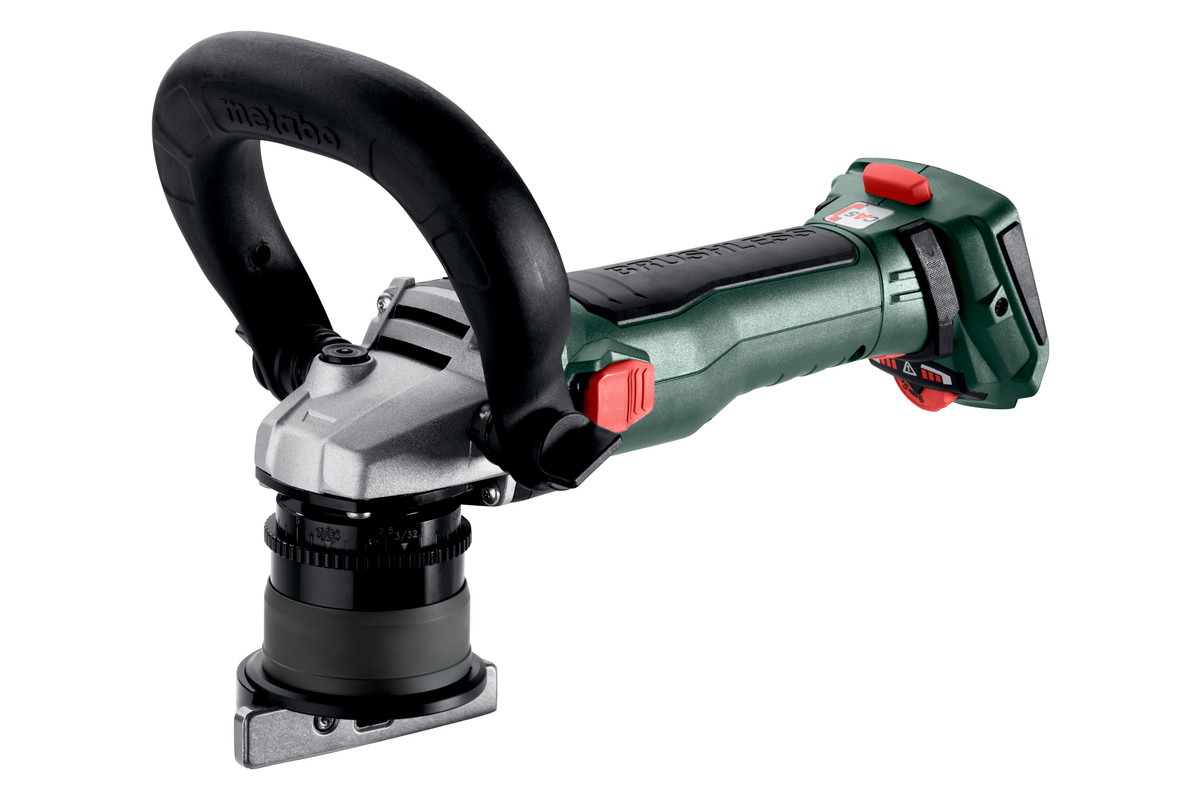

KFMVB 18 LTX BL 4 RF (601769840) Cordless bevelling tool for metal

18V; metaBOX 215

Order no.: 601769840 EAN: 4061792263802
Battery voltage:
18 V
Max. chamfer height at 45°:
4 mm
Possible radii:
R2 / R3
  • High-power cordless beveling tool for metal with brushless motor for easy and quick preparation for subsequent coating
  • For creating 45° chamfers up to 4 mm and radii of 2 and 3 mm on interior and exterior edges, as well as for rounding off the edges of drill holes
  • Small metal chips are generated during trim routing (no metal dust that is a health hazard)
  • Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
  • High-power cordless beveling tool for metal with brushless motor for easy and quick preparation for subsequent coating
  • For creating 45° chamfers up to 4 mm and radii of 2 and 3 mm on interior and exterior edges, as well as for rounding off the edges of drill holes
  • With thrust ring for efficient deburring of sheets 0.7 mm and larger
  • Small metal chips are generated during trim routing (no metal dust that is a health hazard)
  • Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
  • One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
  • Slim milling head and ball bearing stationary seal ring for working in pipes and on curves
  • Guide stop for a uniform finish and high quality of the surface when processing straight sheets
  • Variable speed setting with thumbwheel for working on materials requiring customised speeds, and at speeds which remain constant under load
  • fast brake for increased safety with fast stopping of the tool used.
  • Battery pack can be rotated in 90°steps for best ergonomics in any working position
  • Electronic overload protection, soft start and restart protection
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Battery voltage
18 V
No-load speed
4000 - 8600 rpm
Type of edges
Chamfer and radius
Max. chamfer width 45°
6 mm
Max. chamfer height at 45°
4 mm
Possible radii
R2 / R3
Grading of cutting depth setting
0.1 mm
Curves smallest internal Ø
13 mm
Weight without battery pack
2.3 kg
Weight with battery pack
2.7 kg
Vibration
Vibration
8.1 m/s²
Uncertainty of measurement K
2.5 m/s²
Noise emission
Sound pressure level
81 dB(A)
Sound power level (LwA)
89 dB(A)
Uncertainty of measurement K
3 dB(A)
  • 2 Carbide indexable inserts 45° chamfer
  • without battery pack, without charger
  • 2 Carbide indexable inserts radius R2
  • 2 Carbide indexable inserts radius R3
  • Thrust ring
  • Guide Stop
  • Screwdriver for Torx screws 15
  • Bow-type handle
  • Dust Protection Filter
  • metaBOX 215
