Pump assembly set MSS 310 – HWA/ P (0903061260)

  • All in one package with illustrated assembly instructions
  • Filter to protect the pump and sprinkling systems from damage caused by sand and dirt particles, 28 bar burst pressure
  • Return valve: prevents the water flowing back into wells or cisterns
  • Ball valve (closed): prevents the water flowing back into wells or into the suction area during maintenance jobs, e.g. filter cleaning or pump disassembly
  • Quick-action coupling as connection option for suction hose sets
  • Seal strip: seals without hemp or sealing paste
  • For mounting to the suction connector of all garden pumps and domestic water / automatic domestic water systems with 1" female thread
  • Garden pumps and domestic water works automatic domestic water systems require a short filter due to their lower construction height
  • Manufactured length approx. 310 mm

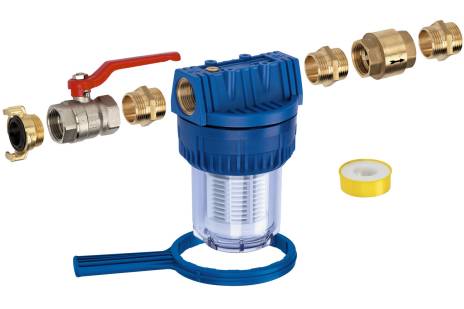

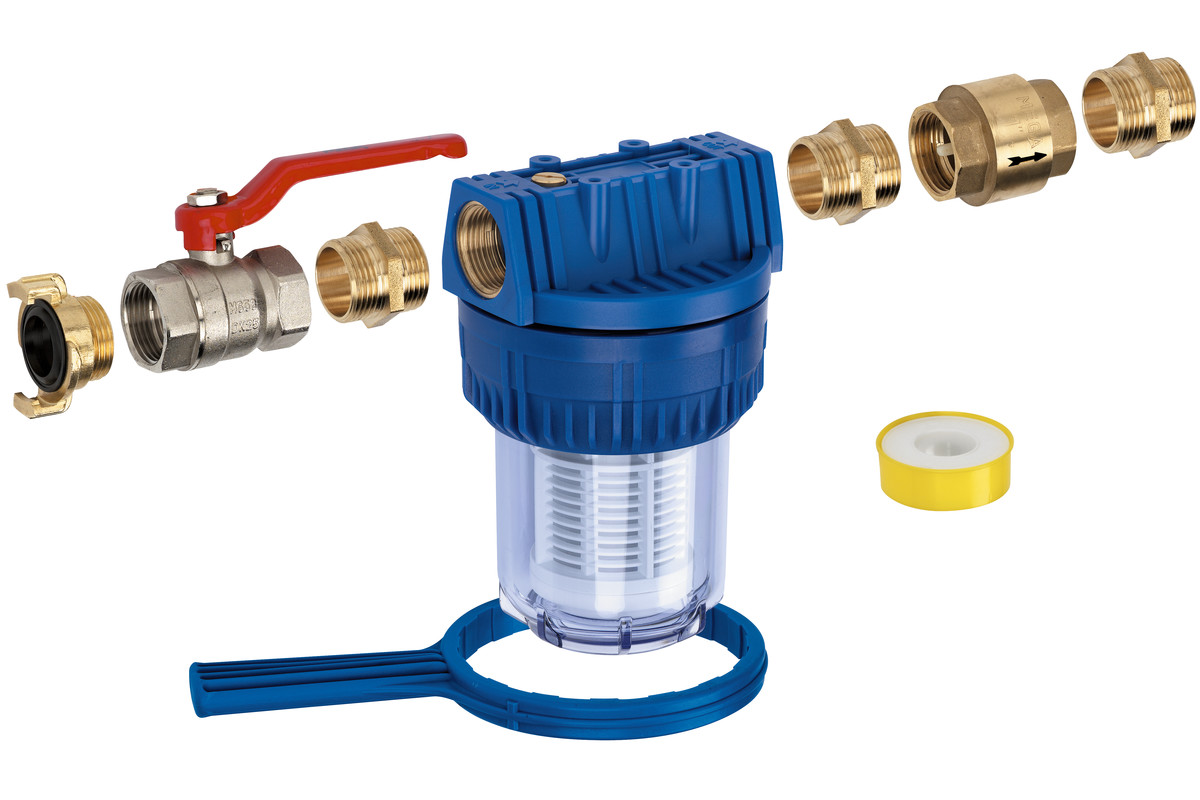

  • Consisting of:
  • Filter for garden pumps, short, 1" brass female thread
  • Washable filter insert, 80 my
  • Brass double nipple, 1" MThr x 1" MThr
  • Brass check valve, 1" FThr x 1" FThr
  • Nickel-plated brass ball valve, 1" FThr x 1" FThr
  • Brass quick-action coupling, 1" MThr
  • Fabric sealing tape, 12 m roll
  • Filter key for loosening the filter dome
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
