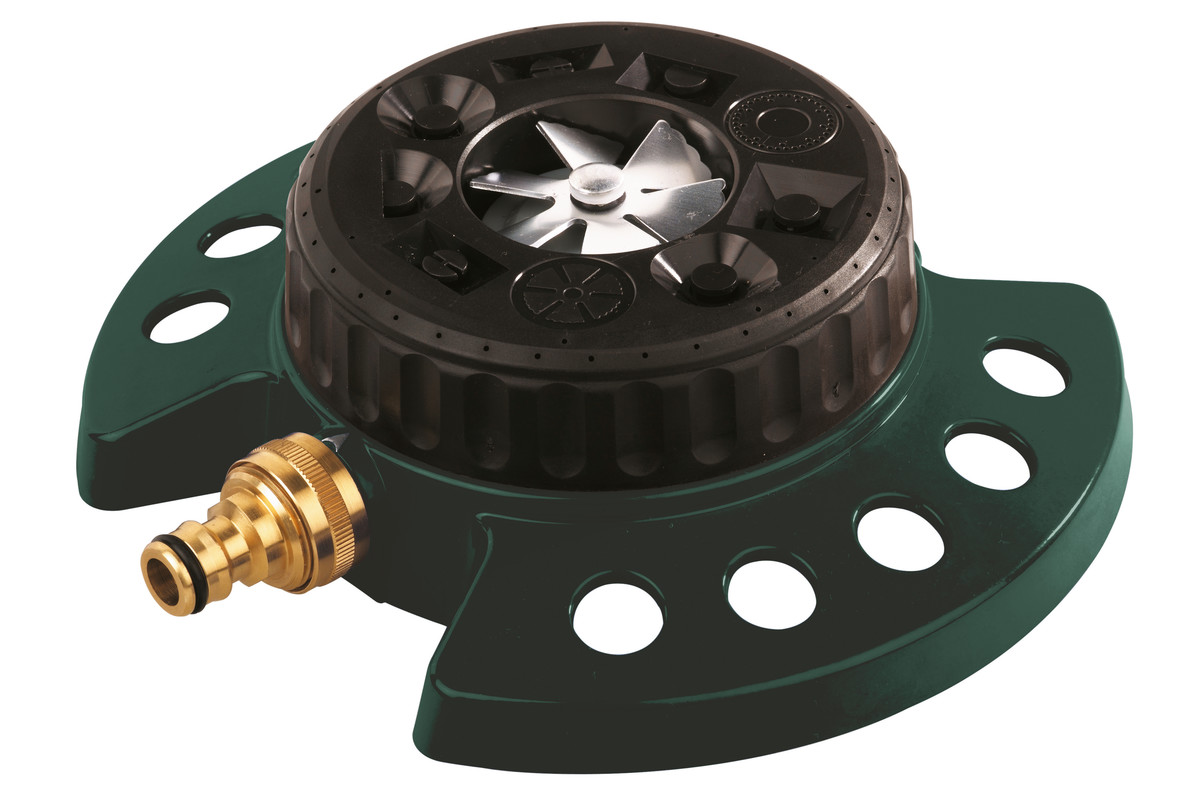

Surface sprinkler FR 9 (0903063149)

  • Sturdy metal version for mobile and stationary use
  • Removable dirt filter to protect the sprinkler from damage by sand and dirt particles
  • Brass coupling plug, compatible with all commercial plug-in systems
  • Multi-functional for watering surfaces or small front gardens

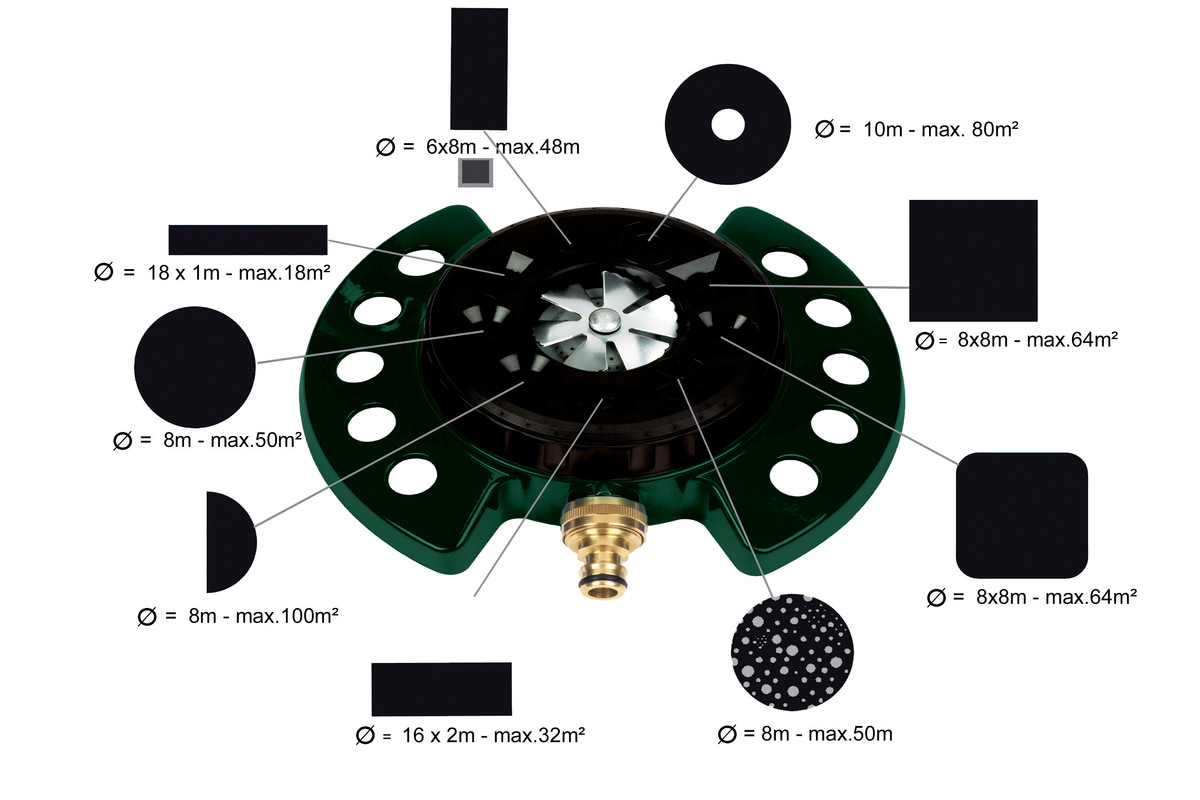

  • 9 Sprinkler areas, from circle to rectangle to atomised spray
  • Desired sprinkler area adjustable by turning the sprinkler disc
  • Sprinkler surfaces:
  • Circle Ø = maximum 10 m / 80 m²
  • Semi-circle r = max. 8 m / 100 m²
  • Square max. 8 x 8 m / 64 m²
  • Rectangle max. 16 x 2 m / 32 m²
  • Connection:
  • Brass cap nut, 3/4" female thread
  • Brass coupling plug 3/4" male thread
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
