Novoflex/ Novorapid steel

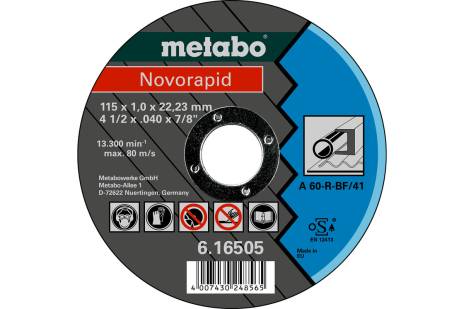

Quality class A 60-R / A 46 R "Novorapid" steel
- Quality Novorapid: powerful entry-level class
- Thin cutting disc for general metal processing, especially for thin-walled materials such as pipes, metal sheets, profiles, wires etc.
- Good cutting performance with good tool life.
- Hardness: medium-hard
- Low material consumption, power-saving, low machine load
- Maximum working speed: 80 m/s
| Quality class | Diameter x thickness x bore | Version | Maximum speed | Sales unit / packaging unit | Order no. | |
|---|---|---|---|---|---|---|
| A 60-R | 115 x 1 x 22.23 mm // 4 1/2 x 0.04 x 7/8 " | straight | 13300 rpm | 1 / 25 | 616505000 |

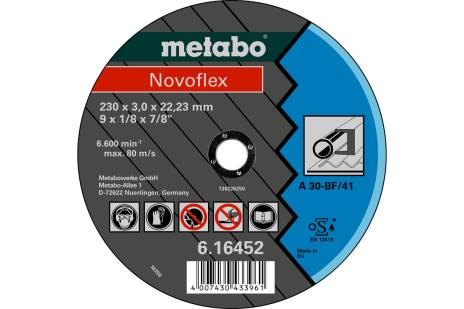

Quality class A 30 "Novoflex" steel
- Quality Novoflex: powerful entry-level class
- Hardness: medium-hard
- Universal use in metal processing
- Good cutting performance with good tool life.
- Maximum working speed 80 m/s
- Arbeitshöchstgeschwindigkeit 80 m/s
| Quality class | Diameter x thickness x bore | Version | Maximum speed | Sales unit / packaging unit | Order no. | |
|---|---|---|---|---|---|---|
| A 30 | 115 x 2.5 x 22.23 mm | straight | 13300 rpm | 1 / 25 | 616442000 | |
| A 30 | 125 x 2.5 x 22.23 mm | straight | 12200 rpm | 1 / 25 | 616444000 | |
| A 30 | 100 x 2.5 x 16 mm | straight | 15300 rpm | 1 / 25 | 616446000 | |
| A 30 | 100 x 2.5 x 16 mm | offset | 15300 rpm | 1 / 25 | 616447000 | |
| A 30 | 150 x 3 x 22.23 mm | straight | 10200 rpm | 1 / 25 | 616448000 | |
| A 30 | 180 x 3 x 22.23 mm | straight | 8500 rpm | 1 / 25 | 616450000 | |
| A 30 | 230 x 3 x 22.23 mm | straight | 6600 rpm | 1 / 25 | 616452000 | |
| A 30 | 125 x 2.5 x 22.23 mm | offset | 12200 rpm | 1 / 25 | 616456000 | |
| A 30 | 180 x 3 x 22.23 mm | offset | 8500 rpm | 1 / 25 | 616457000 | |
| A 30 | 230 x 3 x 22.23 mm | offset | 6600 rpm | 1 / 25 | 616477000 |
