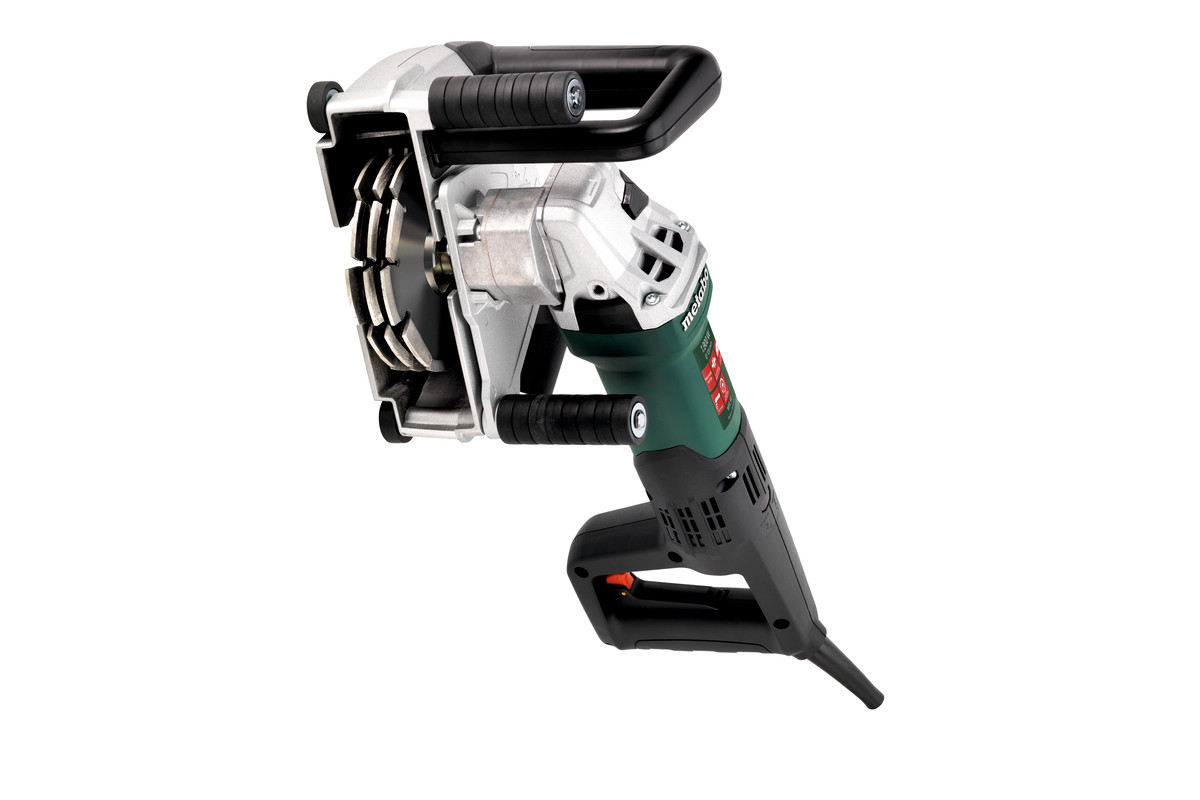

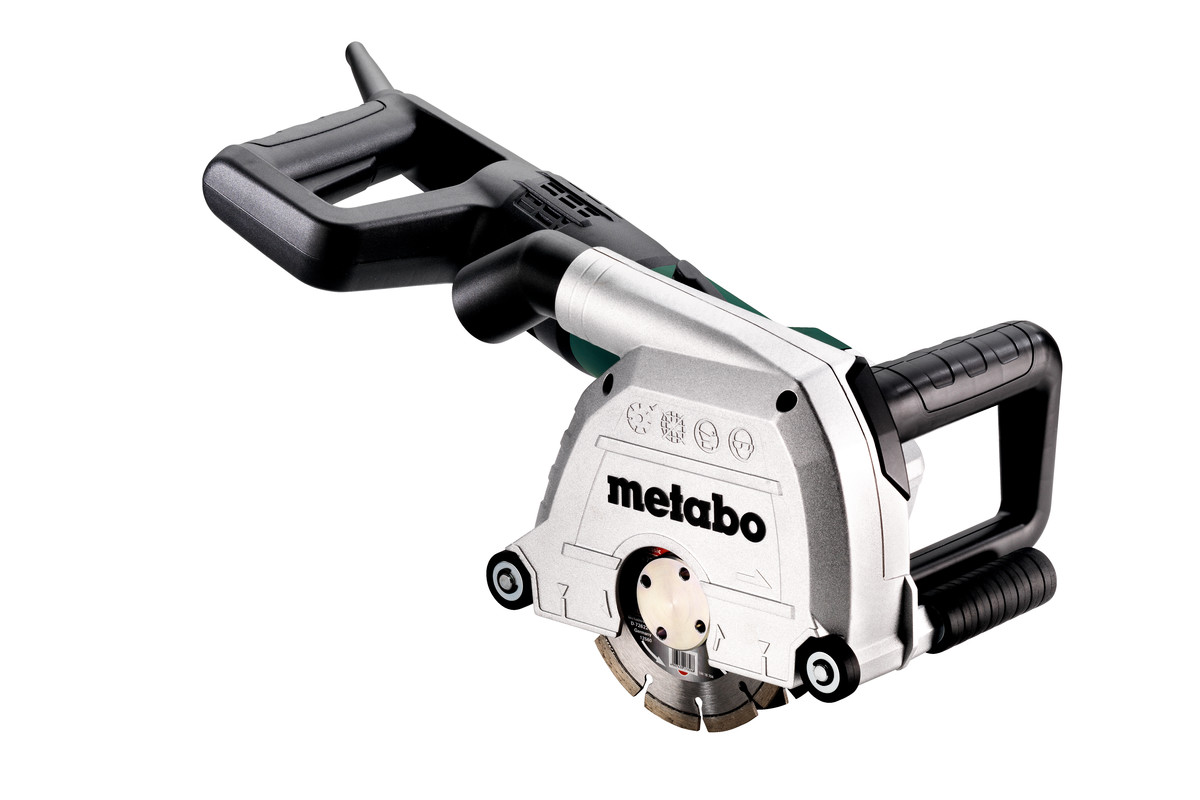

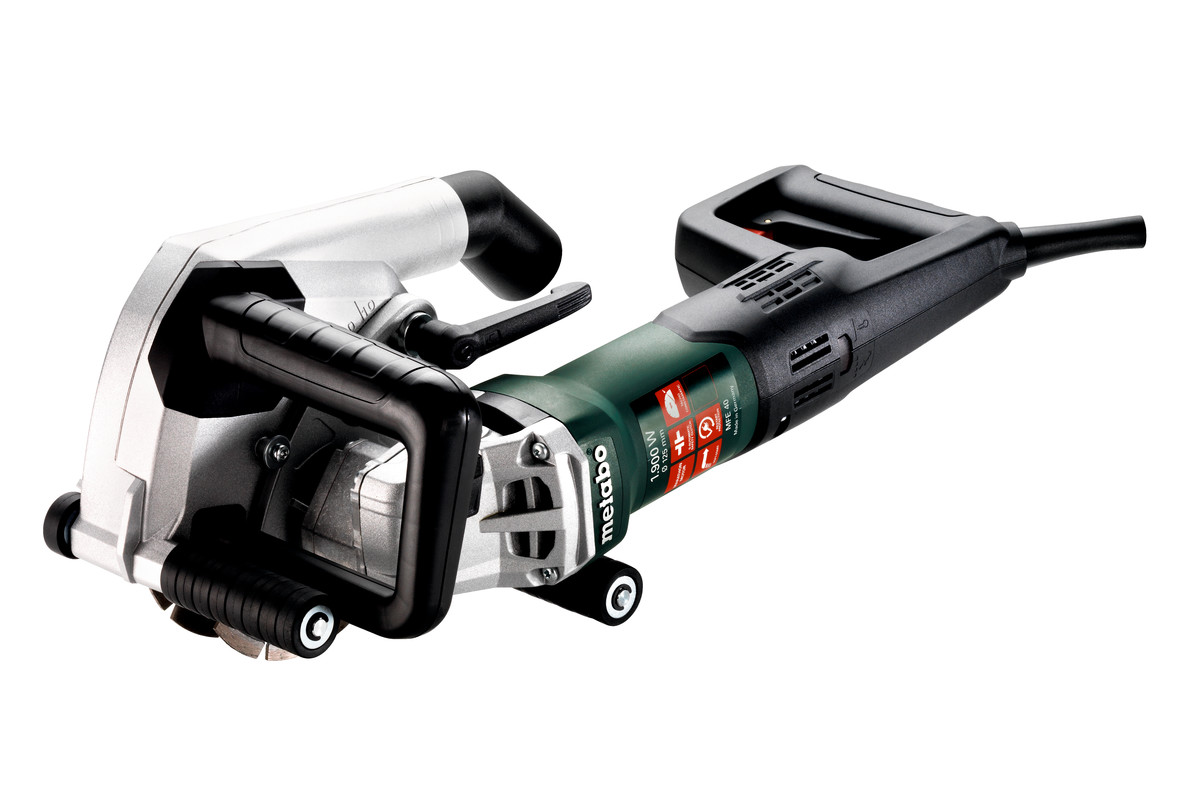

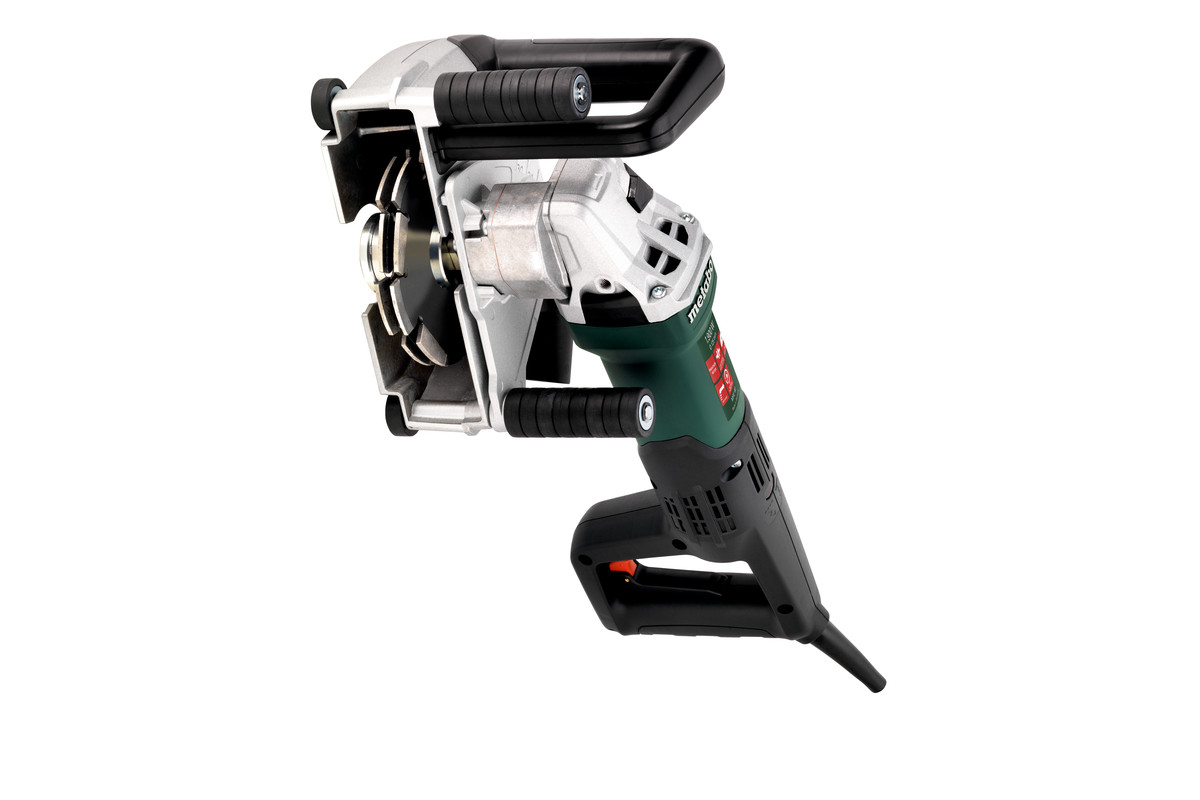

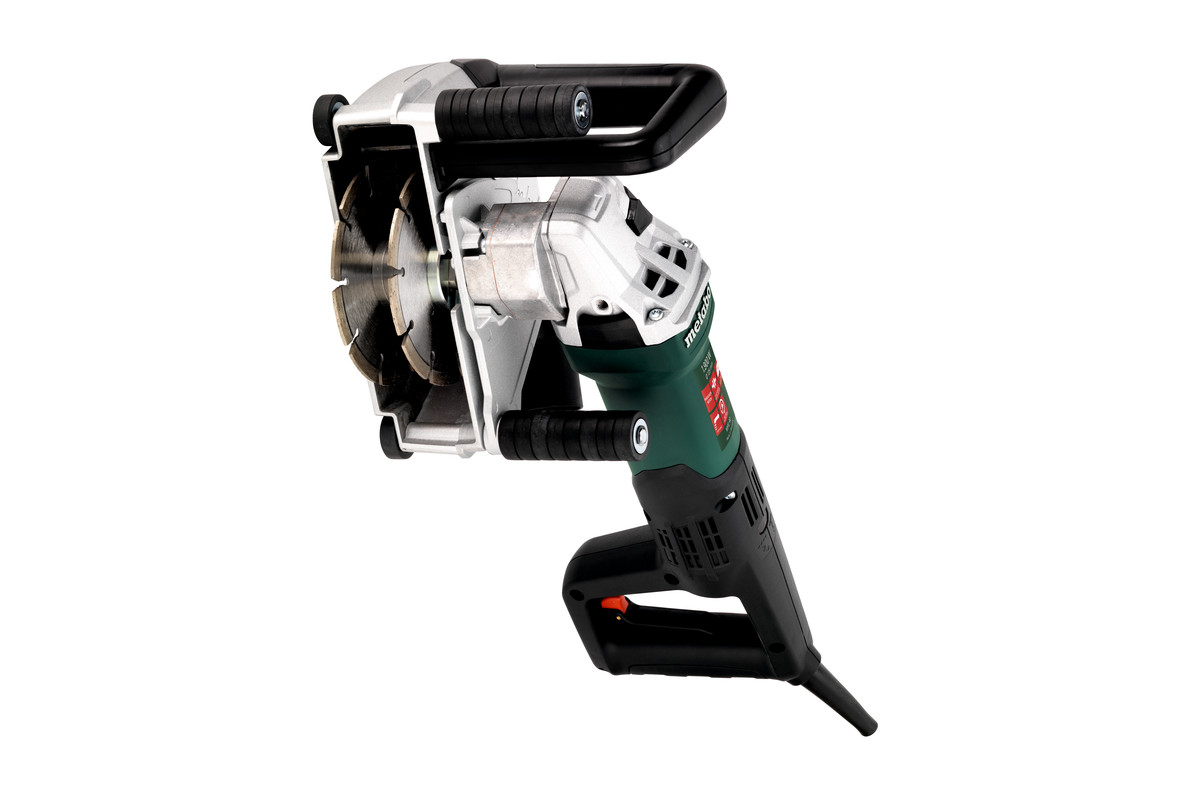

MFE 40 (604040530) Wall chaser

(220-240 V / 50 - 60 Hz); Plastic Carry Case

Order no.: 604040530 EAN: 4007430327611

Adjustable cutting depth:

10 - 40 mm // 3/8 - 1 9/16 "

Possible groove widths:

9 / 15.5 / 22 / 28.5 / 35 mm / 3/8 / 5/8 / 7/8 / 1 1/8 / 1 3/8 "

Cutting disc Ø:

125 mm / 5 "

Rated input power:

1900 W

Weight (without power cable):

4.6 kg / 10.1 lbs

Ideal for electric installations to lay cables and pipework under plaster with cutting depths up to 40 mm
Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
Robust aluminium die-cast hood with rubber rollers and optimal handle position for comfortable guidance of the machine
Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)

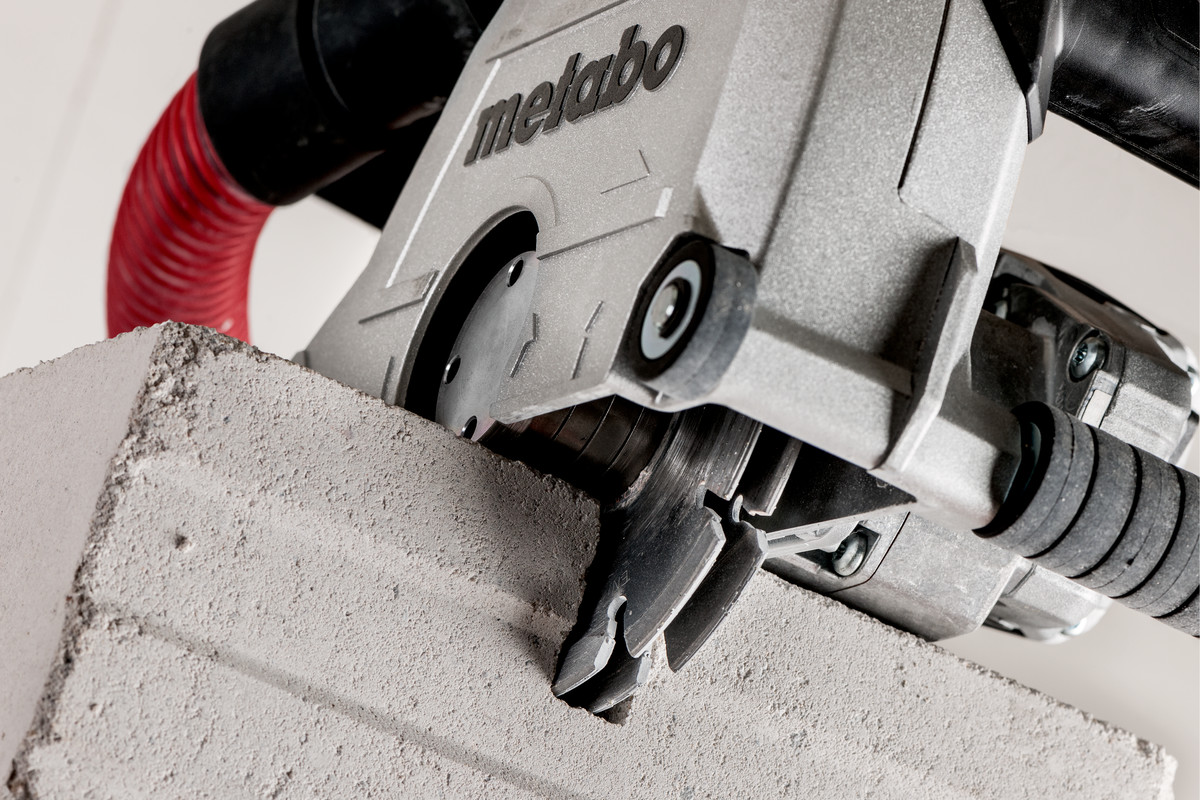

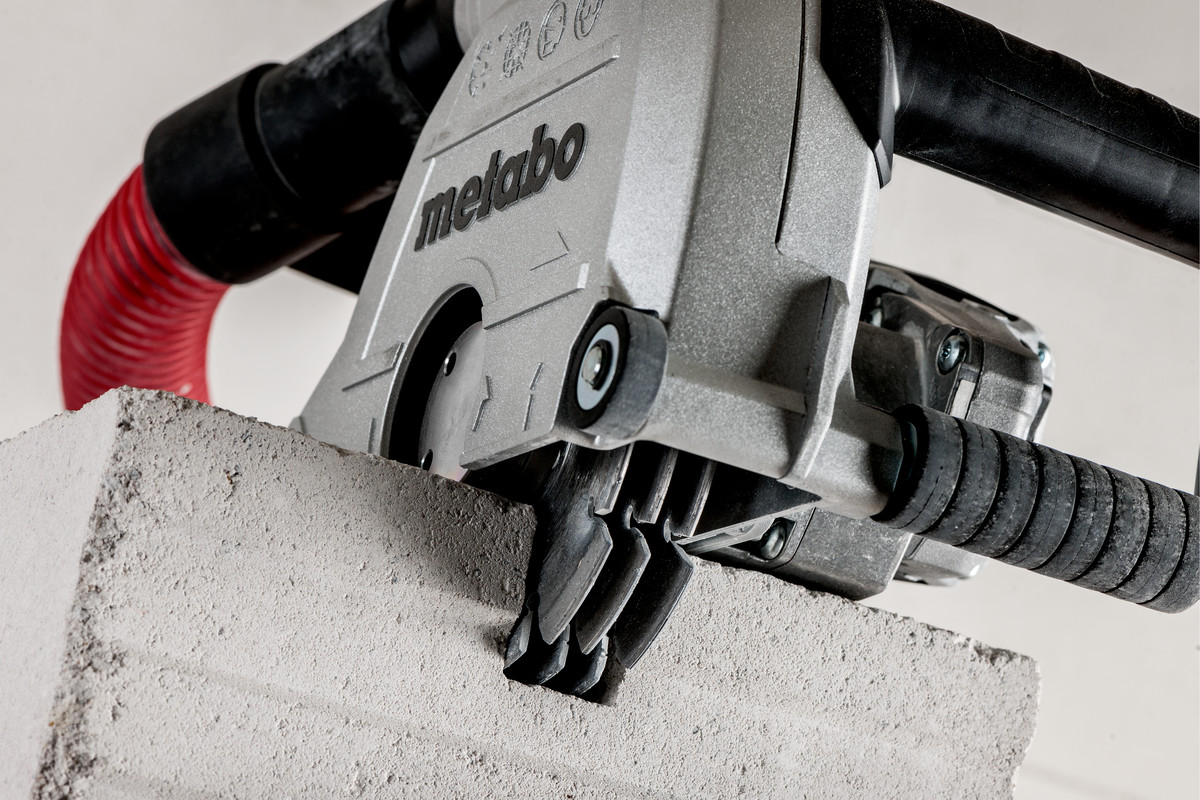

Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)

more product information

Shop Online

Manual Spare-parts list

Description
Technical data
Scope of delivery
Accessories
Accessories Detail

Ideal for electric installations to lay cables and pipework under plaster with cutting depths up to 40 mm
Maximum work progress by means of powerful motor, constant speed and two-speed high-performance gear
Robust aluminium die-cast hood with rubber rollers and optimal handle position for comfortable guidance of the machine
Push cut for optimal view of the marking line
Channel width and cutting depth can be set
Metabo Marathon motor with patented dust protection for long service life
Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
Electronic soft start and restart protection for safe working
LED signal informs about overload or active restart protection
Clean, low-dust working by means of connecting a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
Suitable for slitting grooves up to a width of 30 mm without centre in one workstep (with special accessories)

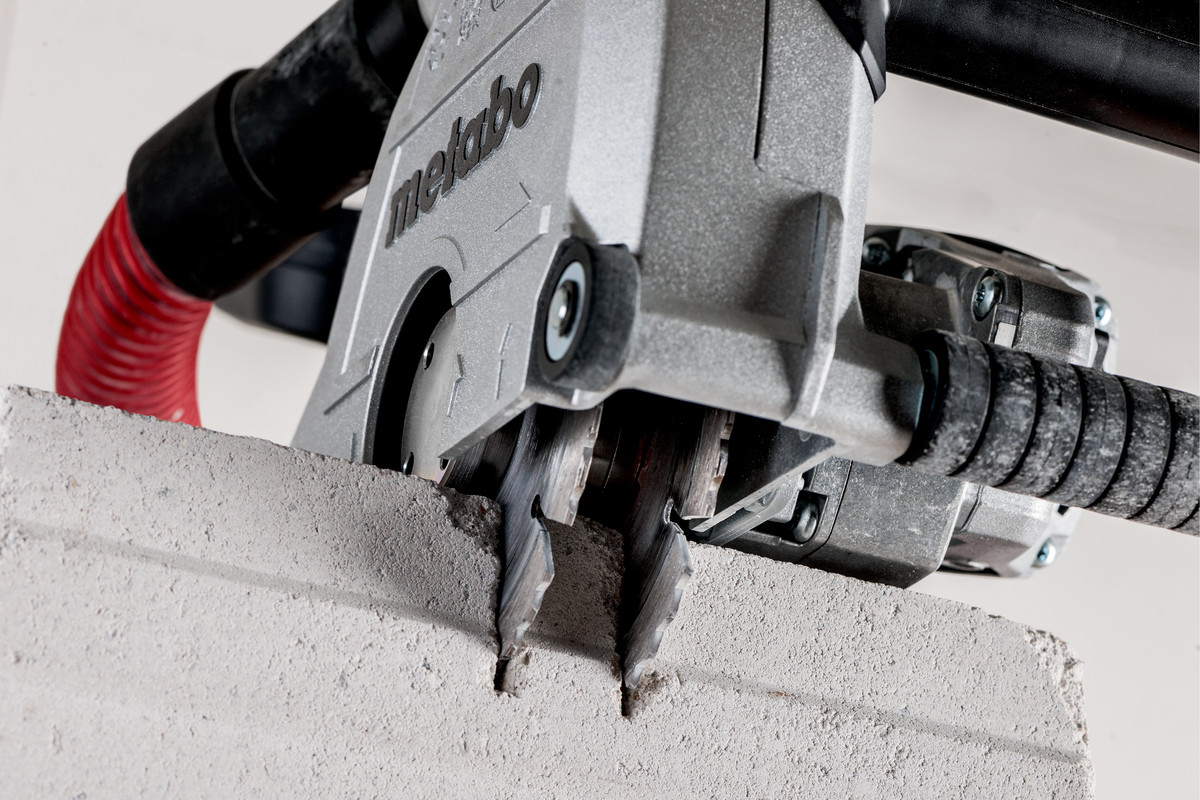

Also suitable for cutting with only one diamond cutting disc
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.

Characteristics

Adjustable cutting depth

10 - 40 mm // 3/8 - 1 9/16 "

Possible groove widths

9 / 15.5 / 22 / 28.5 / 35 mm / 3/8 / 5/8 / 7/8 / 1 1/8 / 1 3/8 "

Cutting disc Ø

125 mm / 5 "

Rated input power

1900 W

Output power

1120 W

No-load speed
