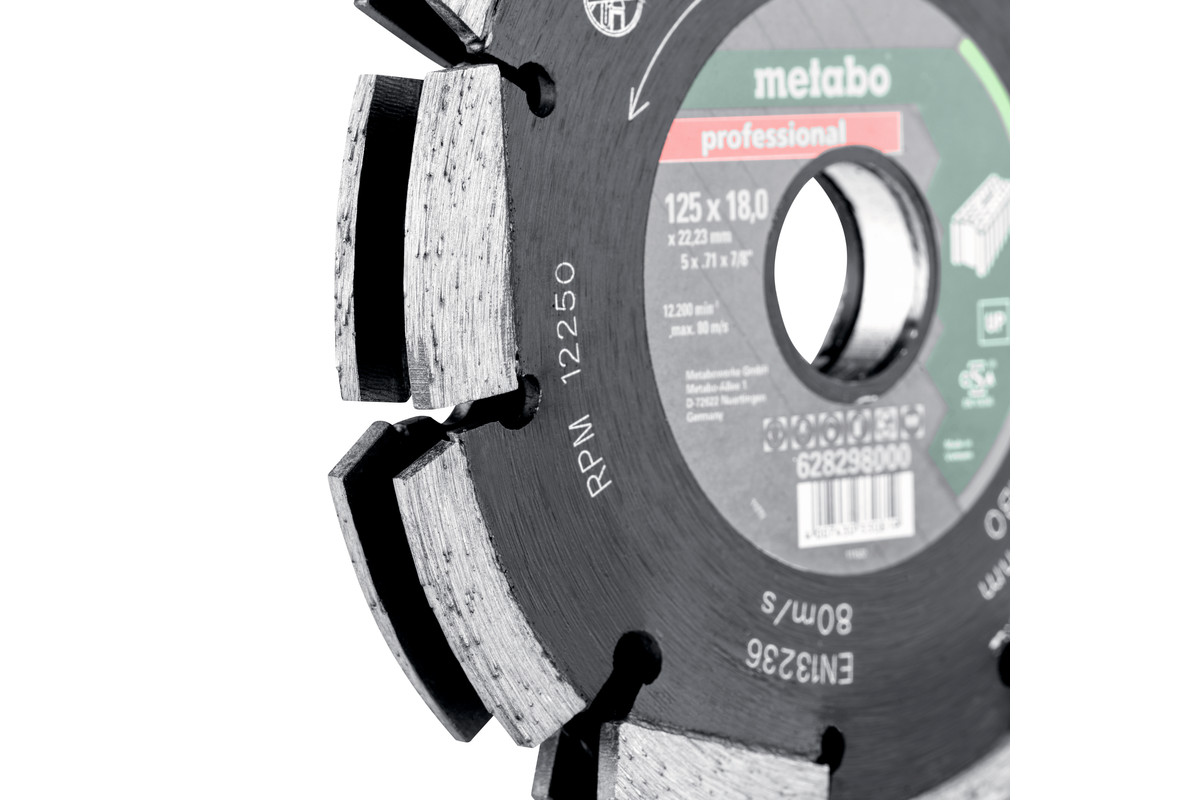

Dia-CD2, 125x18x22.23mm, "professional","UP", universal (628298000)

  • Fast and comfortable cutting of wall slots in different materials possible

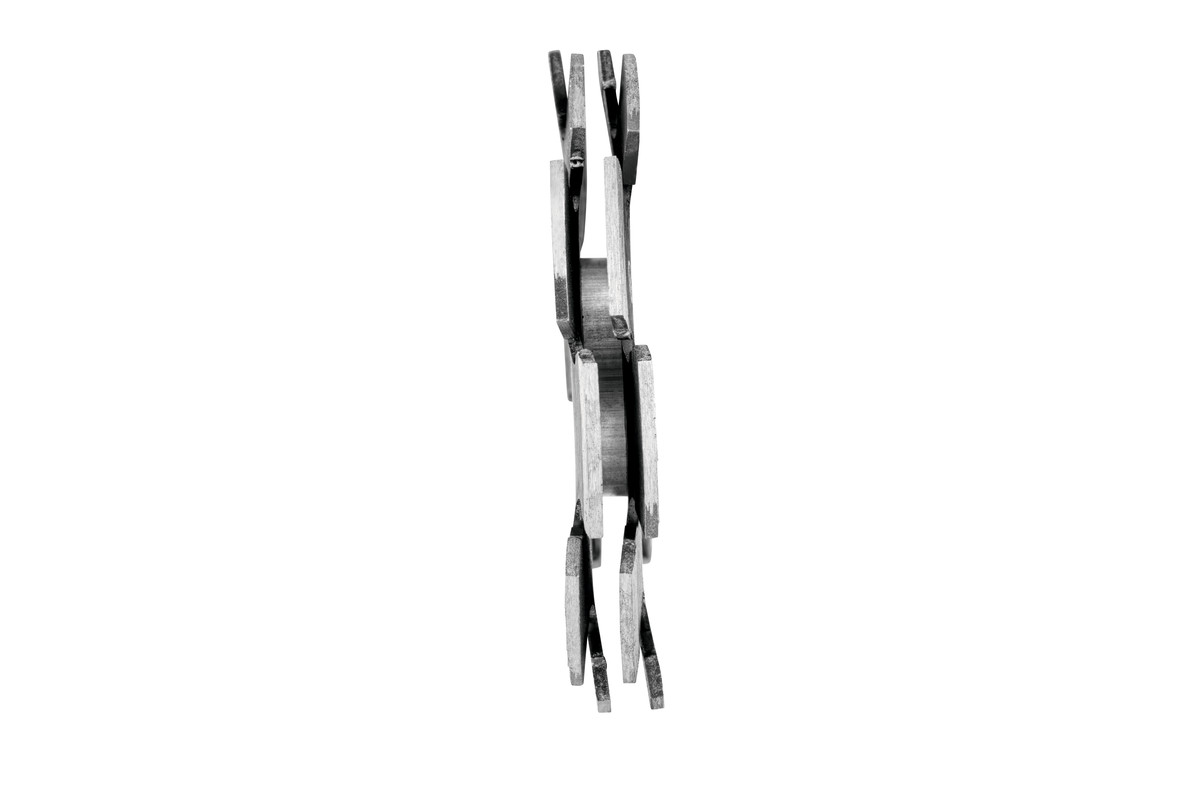

  • Highly reduced workload thanks to the intelligent system of interlacing arrangement of segments, since chisseling away of the centre is not required. Great time saving thanks to cutting in one step
  • Reduction of dirt and dust, since the material is removed cleanly and completely from the slot
  • Customised slots for individual lines, or for Ø 20 and 25 mm-empty pipes. Max. cutting width: 20 mm (2 rows 628298000) / 30 mm (3 rows 628299000)

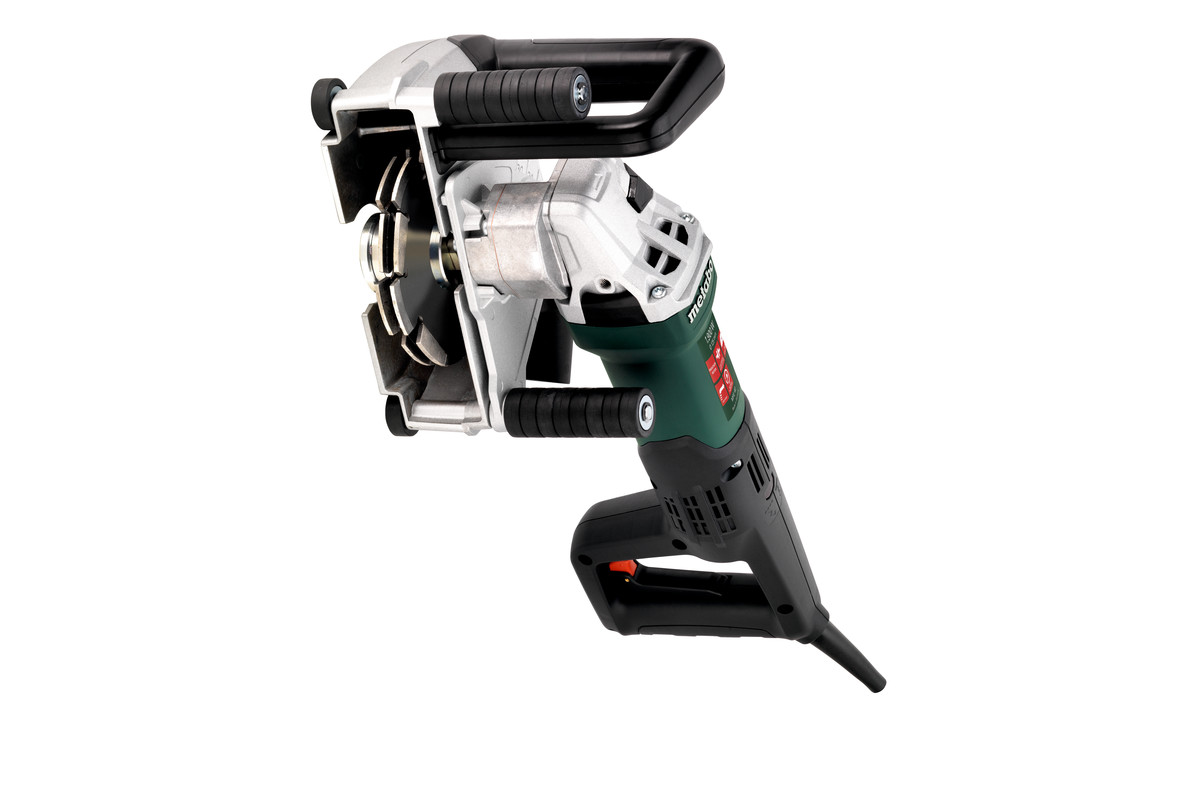

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Diameter x bore
125 x 22.23 mm // 5 x 7/8 "
Segment dimensions
18 x 7 mm // 23/32 x 0.275 "
Number of segments
20
Maximum speed
12200 rpm
Sales unit
1

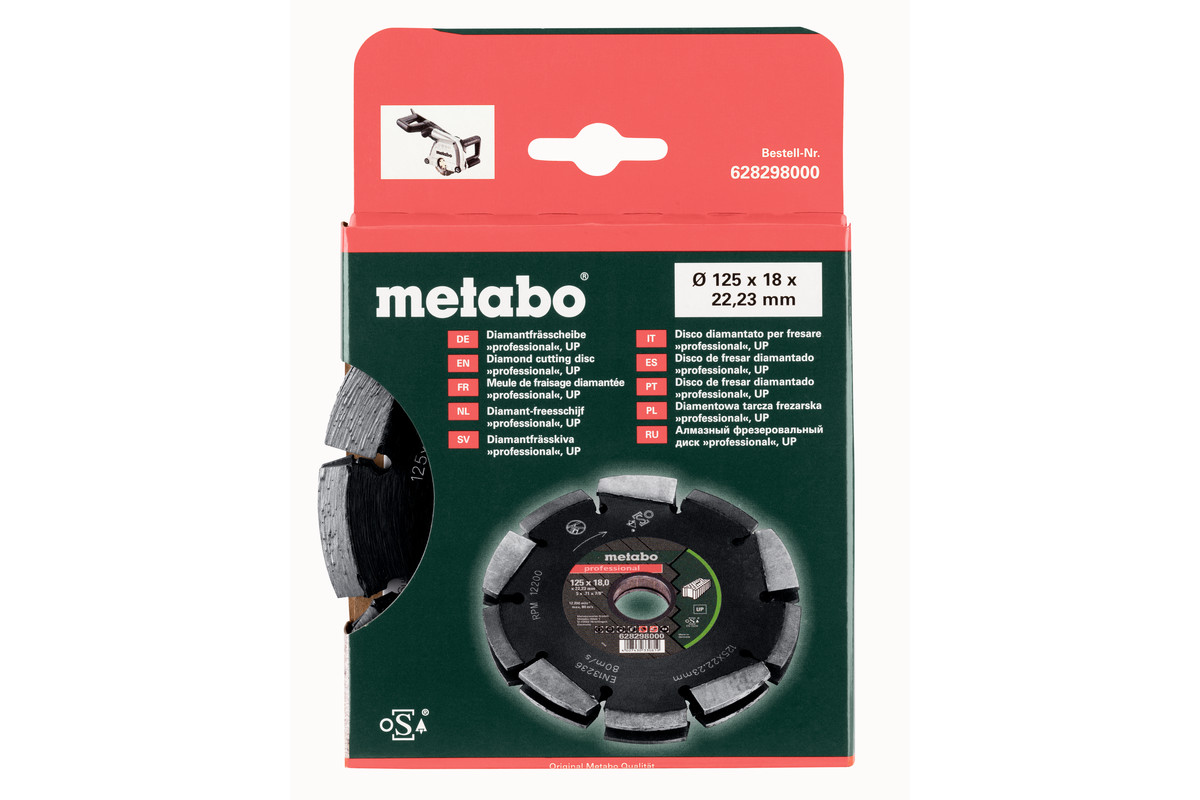

Packaging
Cardboard box
