Bi-metal hole saws

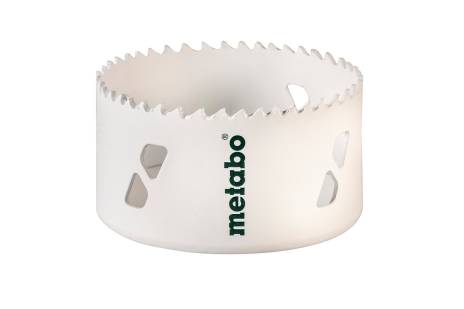

HSS bi-metal hole saw, 30 mm (625171000)
Bi-metal hole saws
  • Hole saws made of bi-metal with hardened cobalt teeth. Quicker chip removal through a new kind of teeth with irregular tooth shape and division; giving much quicker cuts with less vibration. The larger teeth gaps and the inclination ensure effective chip removal.
  • Quicker and softer chip removal through new kind of teeth with irregular tooth shape and division; thus less vibration
  • For use in cast steel and grey cast iron, stainless steel, constructional steel, aluminium, bronze, copper, PVC, acrylic glass, wood.
  • Maximum cutting depth approximately 40 mm
  • Thread for hole saws-Ø 14-30 mm: 1/2"-20 UNF; thread for hole saws-Ø 32-152mm: 5/8"-18 UNF
  • Use hole saws only with the corresponding arbor and pilot drill.
  • For hole saws with Ø 14-30 mm use arbor with 1/2"-20 UNF. For hole saws with 6 32-152 mm arbor with 5/8"-18 UNF.
Diameter Order no.
30 mm / 1 3/16 " 625171000
83 mm / 3 1/4 " 625199000

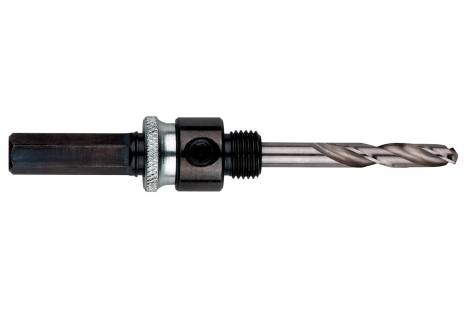

Adapter SW 9/ 1/2"-20 UNF,Ø 14-30 mm (625215000)
Arbors for bi-metal hole saws
  • for hole saws Ø 14-30 mm
Designation Hole saw Ø Shaft type Order no.
Adapter SW 9/ 1/2"-20 UNF 14 - 30 mm SW9 625215000
Adapter SW 9/ 5/8"-18 UNF 32 - 152 mm SW9 625216000
SDS-plus adapter/ 1/2"-20 UNF 14 - 30 mm SDS-plus 625217000
Pilot drill
Order no.
HSS-G pilot drill 6.35 mm (625220000)
  • For work with the HSS bi-metal hole saws in combination with one of the anchor-head holders: 625215000 to 625218000

Diameter: 6.35 mm / 1/4 "
625220000

Bi-metal hole saws, assortments
Order no.
Bi-metal hole saw set 1, 8 pieces (625434000)
  • Comprising:
  • Bi-metal hole saw Ø 22,29, 35, 44, 51 and 68 mm
  • Arbor for hole saw Ø 14-30 mm (SW 9/ 1/2"-20 UNF)
  • Arbor for hole saw Ø 32-152 mm (SW 9/ 5/8"-18 UNF)
  • Pilot drill
  • Plastic carry case

625434000

Bi-metal hole saw set 2, 11 pieces (625435000)
  • Comprising:
  • Bi-metal hole saw Ø 19, 22, 29, 35, 44, 51, 57, 64 and 68 mm
  • Arbor for hole saw Ø 14-30 mm (SW 9/ 1/2"-20 UNF)
  • Arbor for hole saw Ø 32-152 mm (SW 9/ 5/8"-18 UNF)
  • Pilot drill
  • Plastic carry case

625435000
