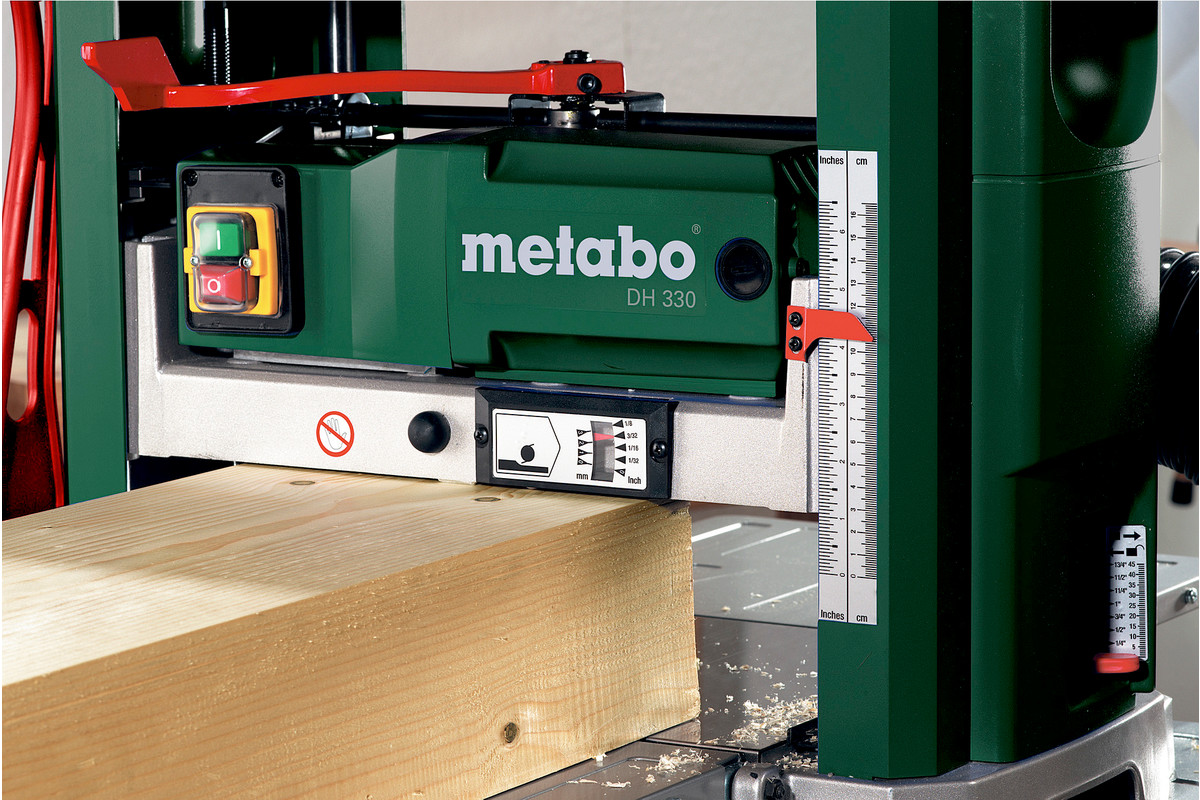

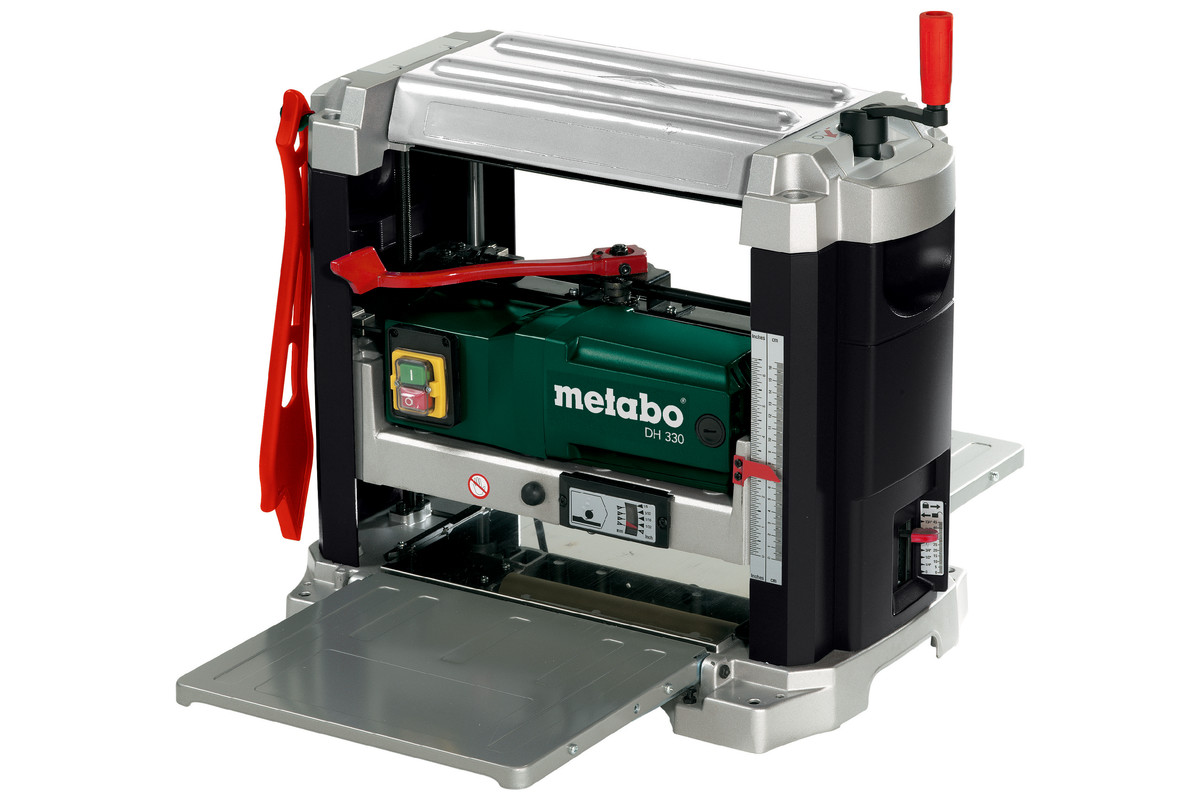

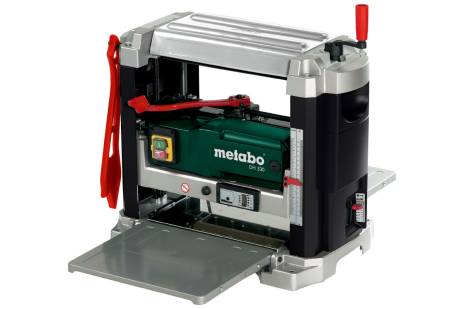

DH 330 (0200033019) Bench Thicknesser

(220-240 V / 50 Hz); Cardboard box

Order no.: 0200033019 EAN: 4003665424484
Chip removal bench thicknesser:
0 - 3 mm // 0 - 1/8 "
Rated input power:
1800 W
  • Ideal for mobile use due to low weight
  • Powerful universal motor for powerful lugging drive and even planing result
  • Precise thickness adjustment for quick and exact planing
  • Ideal for mobile use due to low weight
  • Stable gear for uniform work piece feed

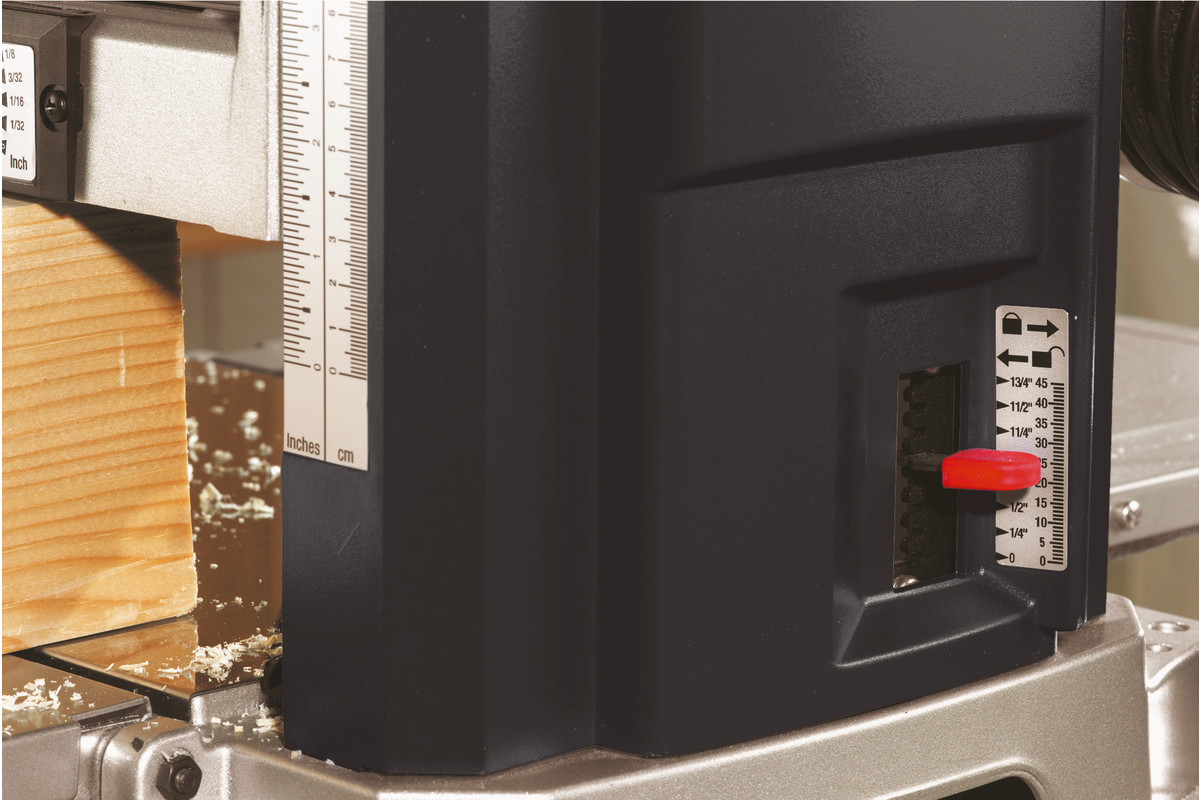

  • Convenient height adjustment with crank handle
  • Easy setting of common passage heights using stop points
  • Powerful universal motor for powerful lugging drive and even planing result
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Precise thickness adjustment for quick and exact planing
  • Large feed and exit tables support the conveyance of long materials
  • Planing locking mechanism prevents unintentional adjustment of the chip removal setting
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Dimensions
579 x 857 x 574 mm // 1.9 x 2.9 x 1.9 ft
Chip removal bench thicknesser
0 - 3 mm // 0 - 1/8 "
Material thickness table
Cast aluminium / special steel aluminium
Thickness table L x W
840 x 330 mm // 33 x 13 "
Passage height/width
152 / 330 mm // 6 / 13 "
Feed rate
7.51 m/min / 25 ft/min
Diameter of blade shaft
47 mm / 1 7/8 "
Number of blades
2
Revolutions of blade shaft
9800 rpm
Mains voltage
220 - 240 V
Rated input power
1800 W
Weight
35 kg / 77.2 lbs
Noise emission
Uncertainty of measurement K
4 dB(A)
  • 2 integrated HSS reversible planer blades
  • Push stick
  • Extraction Nozzles
