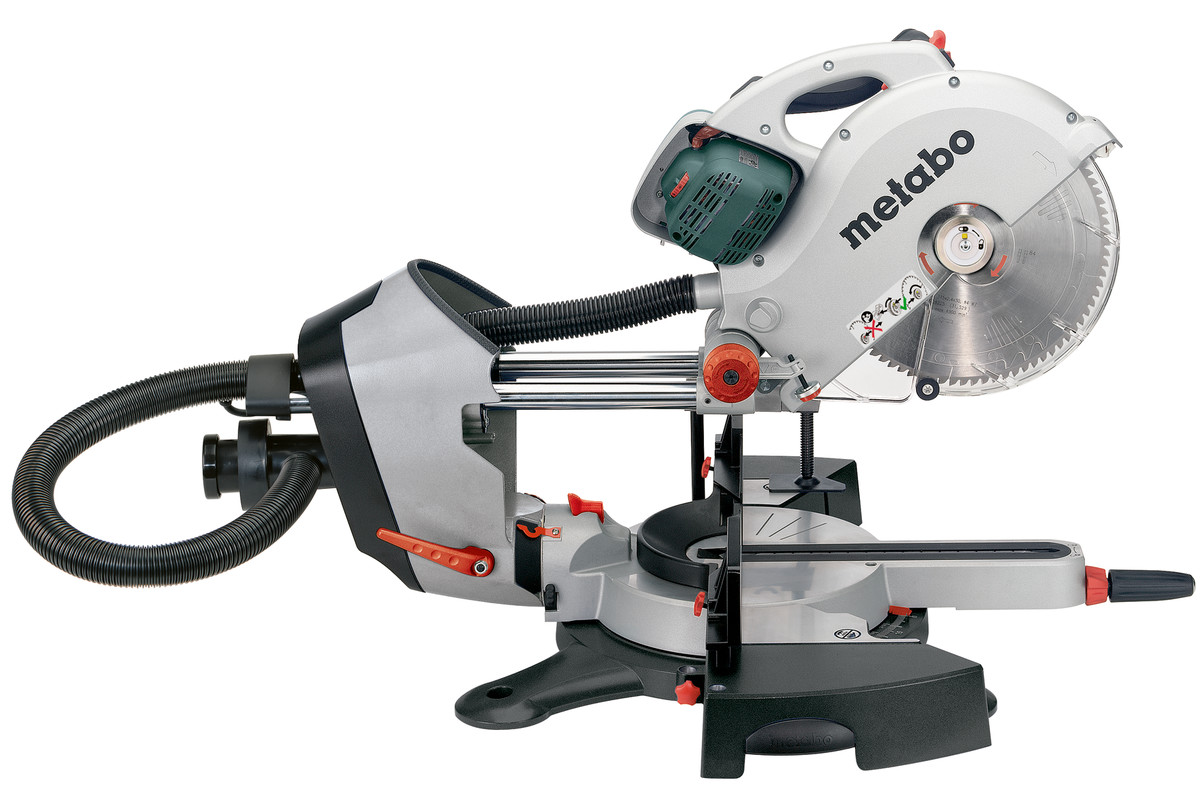

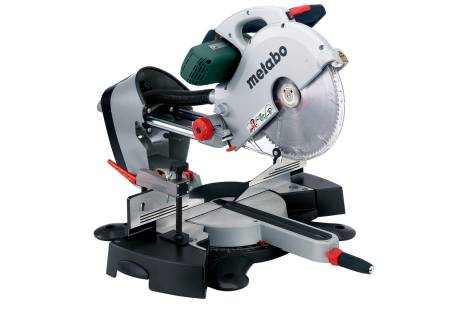

KGS 315 Plus (0103150000) Mitre saw

(220-240 V / 50 Hz); Cardboard box; With sliding function

Order no.: 0103150000 EAN: 4003665505671
Maximum cutting width 90°/45°:
320 / 223 mm // 12 9/16 / 8 3/4 "
Maximum cutting depth at 90°/45°:
120 / 76 mm // 4 11/16 / 3 "
Rated input power:
1600 W
Rated input power S1 100%:
1600 W
Rated input power S6 20%:
2200 W
  • Enormous cutting performance due to extremely powerful universal motor and large saw blade
  • Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
  • Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece.
  • Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
  • Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
  • Enormous cutting performance due to extremely powerful universal motor and large saw blade
  • Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
  • Large cutting capacity thanks to sliding function for wide work pieces
  • Easy transport thanks to ergonomically-designed handles and saw head lock
  • Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece.
  • Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
  • Metabo Quick for changing saw blades without tools
  • Soft start for long service life of motor and drive
  • Fast and precise setting of common angles using stop points
  • Sliding high rear fence profiles for safe sawing
  • Quick-action clamp for secure fixing of the work piece from the top or front
  • Integrated, pull-out table width extensions made from die-cast aluminium
  • Depth guide for easy creation of grooves
  • All scales and operating elements are visible from the working position and can be operated intuitively
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Dimensions
950 x 765 x 660 mm // 3.2 x 2.5 x 2.2 ft
Support surface
1070 x 505 x 365 mm
Maximum cutting width 90°/45°
320 / 223 mm // 12 9/16 / 8 3/4 "
Maximum cutting depth at 90°/45°
120 / 76 mm // 4 11/16 / 3 "
Cutting capacity 90°/90°
320 x 120 mm // 12 9/16 x 4 11/16 "
Cutting capacity 45°/45°
223 x 76 mm // 8 25/32 x 3 "
Turntable setting left/right
47 / 60 °
Saw blade tilt left/right
46 / 46 °
Saw blade
315 x 30 mm // 12 3/8 x 1.181 "
Rated input power
1600 W
Rated input power S1 100%
1600 W
Rated input power S6 20%
2200 W
No-load speed
3100 - 4100 rpm
Speed at rated load
4100 rpm
Cutting speed
51 - 68 m/s // 167 - 223 ft/s
Weight
27.2 kg / 60 lbs
Cable length
2.1 m / 7 ft
Noise emission
Sound pressure level
89 dB(A)
Sound power level (LwA)
98 dB(A)
Uncertainty of measurement K
2.6 dB(A)
  • Carbide saw blade (84 teeth)
  • 2 Table length extensions
  • Material clamp
  • Adapter 35/58 mm
