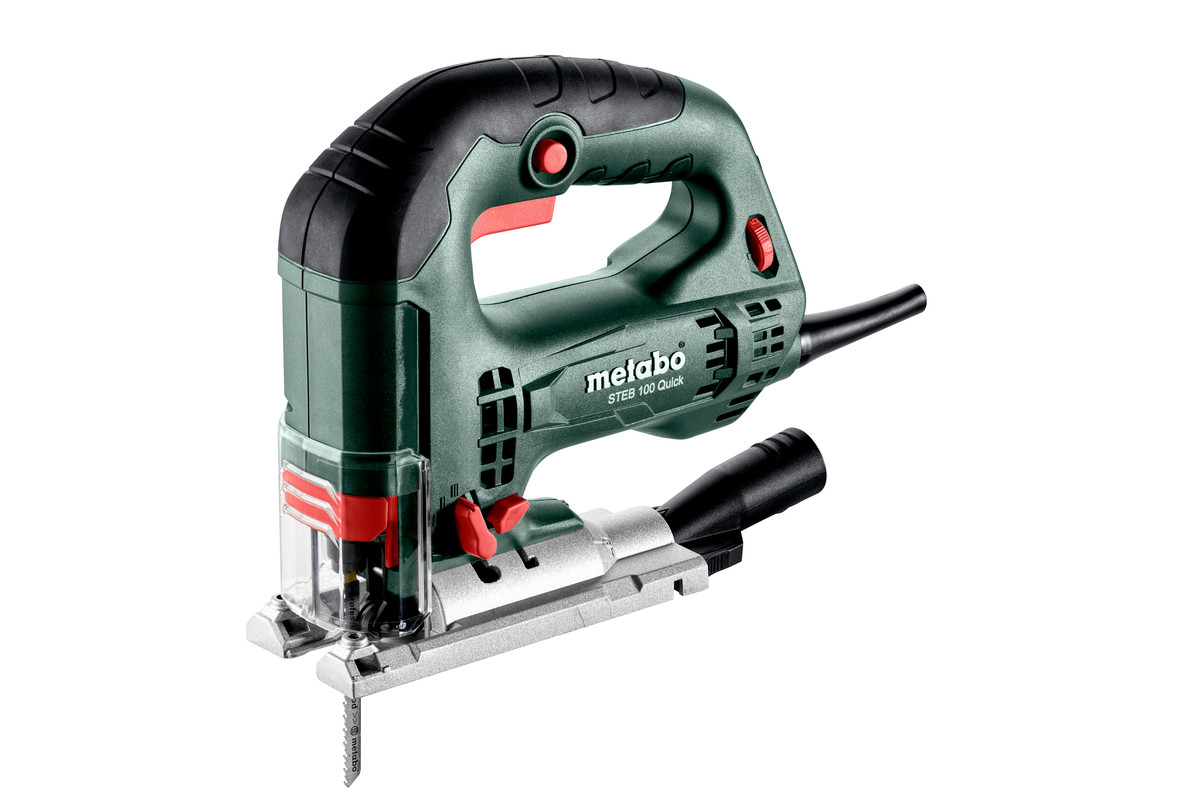

STEB 100 Quick (601110500) Jigsaw

(220-240 V / 50 - 60 Hz); Plastic Carry Case

Order no.: 601110500 EAN: 4061792226296

Rated input power:

710 W

Cutting depth wood:

100 mm / 4 "

Strokes in idle:

1000 - 3100 rpm

Weight (without power cable):

2.1 kg / 4.6 lbs

Universal jigsaw with bow-type handle for precise guidance while sawing
Metabo Quick for tool-free saw blade change and with automatic ejection

more product information

Shop Online

Manual Spare-parts list

Description
Technical data
Scope of delivery
Accessories
Accessories Detail

Universal jigsaw with bow-type handle for precise guidance while sawing
Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support
Metabo Quick for tool-free saw blade change and with automatic ejection
Top handle with non-slip soft-grip surface
Selectable chip blowing function ensures free view of cutting line
Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised stroke rates, which remain almost constant under load

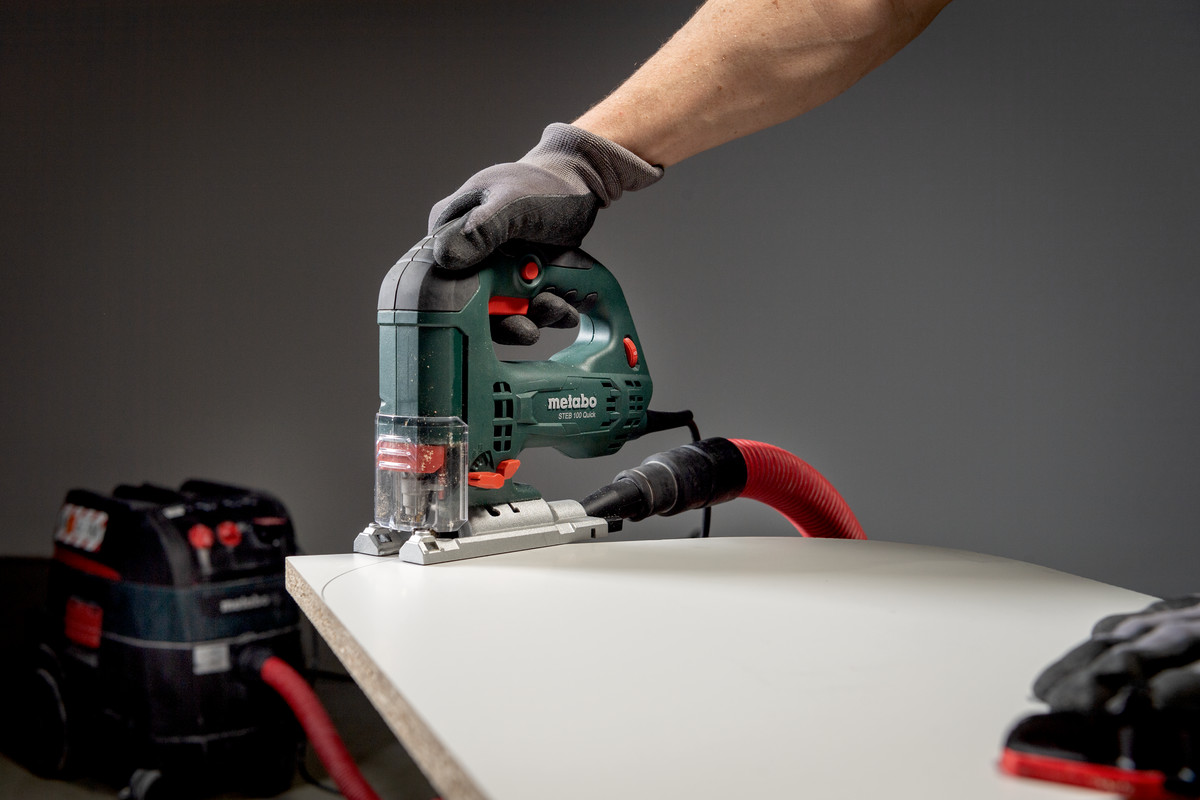

Extraction possibility by means of connecting an all-purpose vacuum cleaner
Non-detachable protective glass that can be pushed down for effective extraction and for protection against flying chips
Precision guide rail and guiding device available as accessory

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.

Characteristics

Rated input power

710 W

Output power

470 W

Cutting depth wood

100 mm / 4 "

Cutting depth NF metal

25 mm / 1 "

Cutting depth sheet steel

10 mm / 3/8 "

Swivel range from / to:
