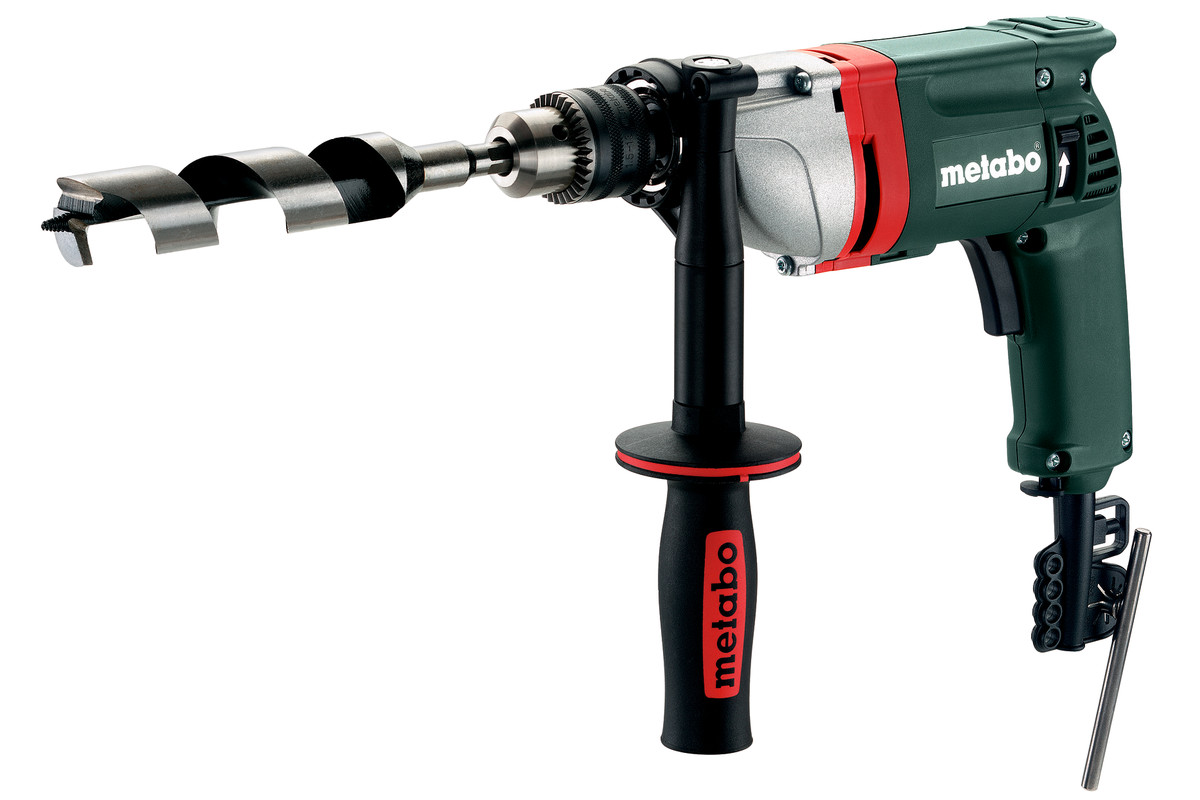

BE 75-16 (600580190) Drill

(220-240 V / 50 - 60 Hz); Cardboard box

Order no.: 600580190 EAN: 4007430203953
Rated input power:
750 W
Drill Ø steel:
16 mm // 5/8 "
Drill-Ø soft wood:
50 mm // 2 "
No-load speed:
0 - 660 rpm
Maximum torque:
75 Nm // 664 in-lbs
  • Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
  • Vario (V)-Electronics for working at customised speeds to suit various application materials
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
  • Robust die cast aluminium gear housing for optimum heat dissipation and durability
  • Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
  • Vario (V)-Electronics for working at customised speeds to suit various application materials
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
  • Spindle with hexagonal recess for screwdriver bits for working without chuck
  • Suitable for powerful drilling of larger diameters and for stirring thick, liquid-like materials
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Rated input power
750 W
Output power
470 W
Drill Ø steel
16 mm // 5/8 "
Drill-Ø soft wood
50 mm // 2 "
No-load speed
0 - 660 rpm
Speed at rated load
350 rpm
Gears
1
Maximum torque
75 Nm // 664 in-lbs
Collar diameter
43 mm / 1 11/16 "
Chuck capacity
1.5 - 13 mm // 1/16 - 1/2 "
Drill spindle with hexagonal recess
6.35 mm / 1/4 "
Drill spindle thread
1/2 " - 20 UNF
Weight (without power cable)
2.6 kg / 5.7 lbs
Cable length
2.5 m / 8 ft
Vibration
Drilling in metal
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
81 dB(A)
Sound power level (LwA)
92 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Geared chuck
  • Chuck key
  • long side handle
