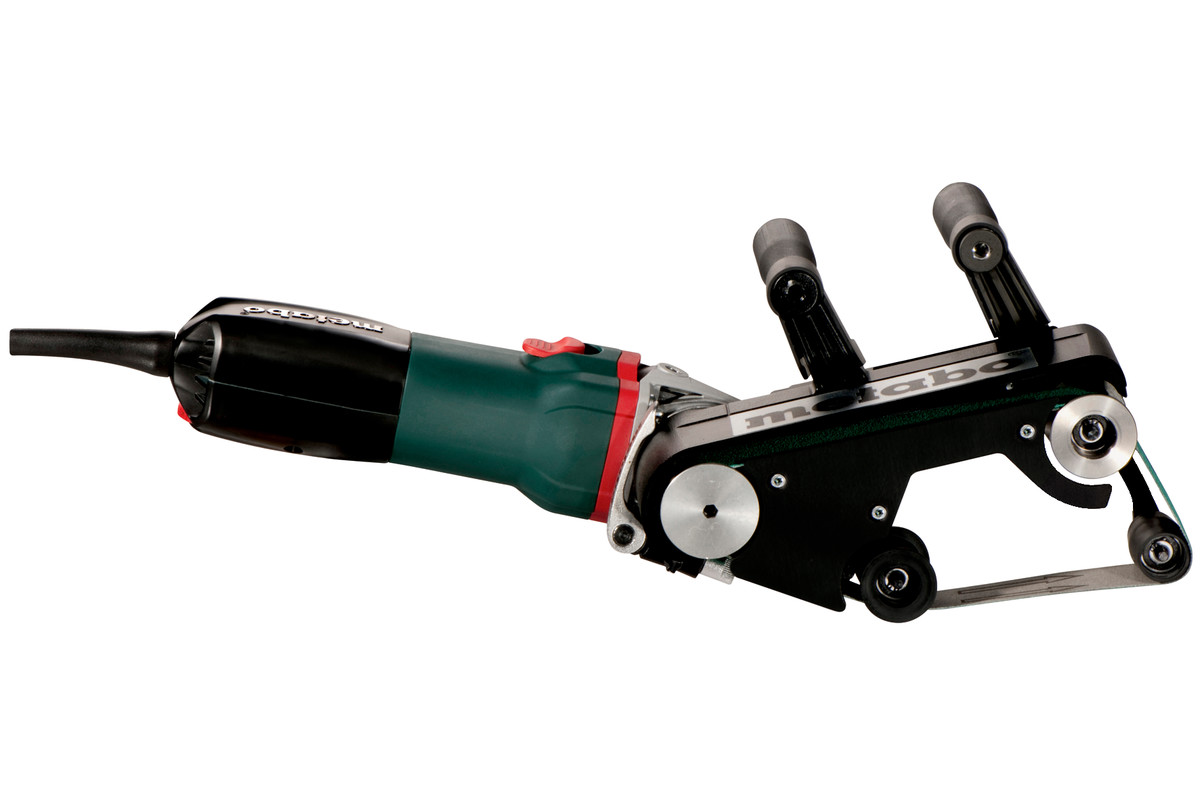

RBE 9-60 Set (602183510) Tube Belt Sander

(220-240 V / 50 - 60 Hz); Metal Carry Case

Order no.: 602183510 EAN: 4007430298898
Rated input power:
900 W
Maximum pipe diameter:
60 mm / 2 3/8 "
Wrap angle:
190 °

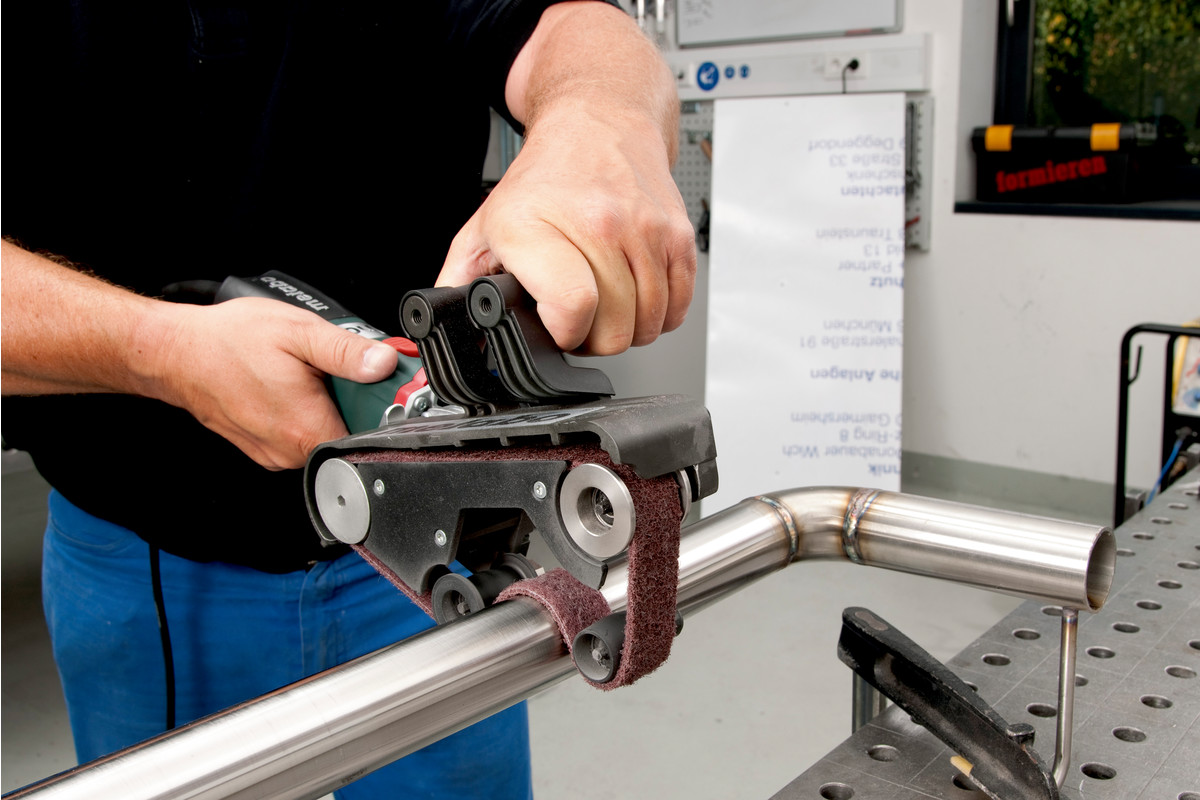

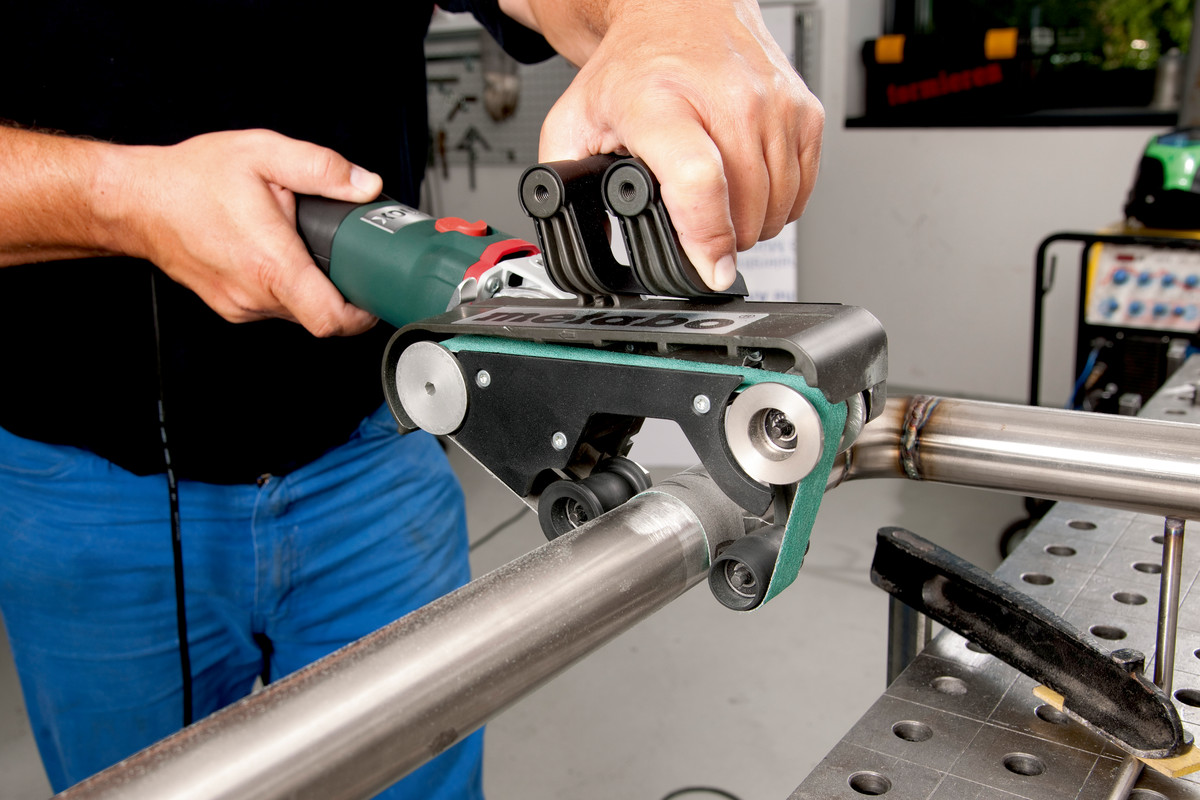

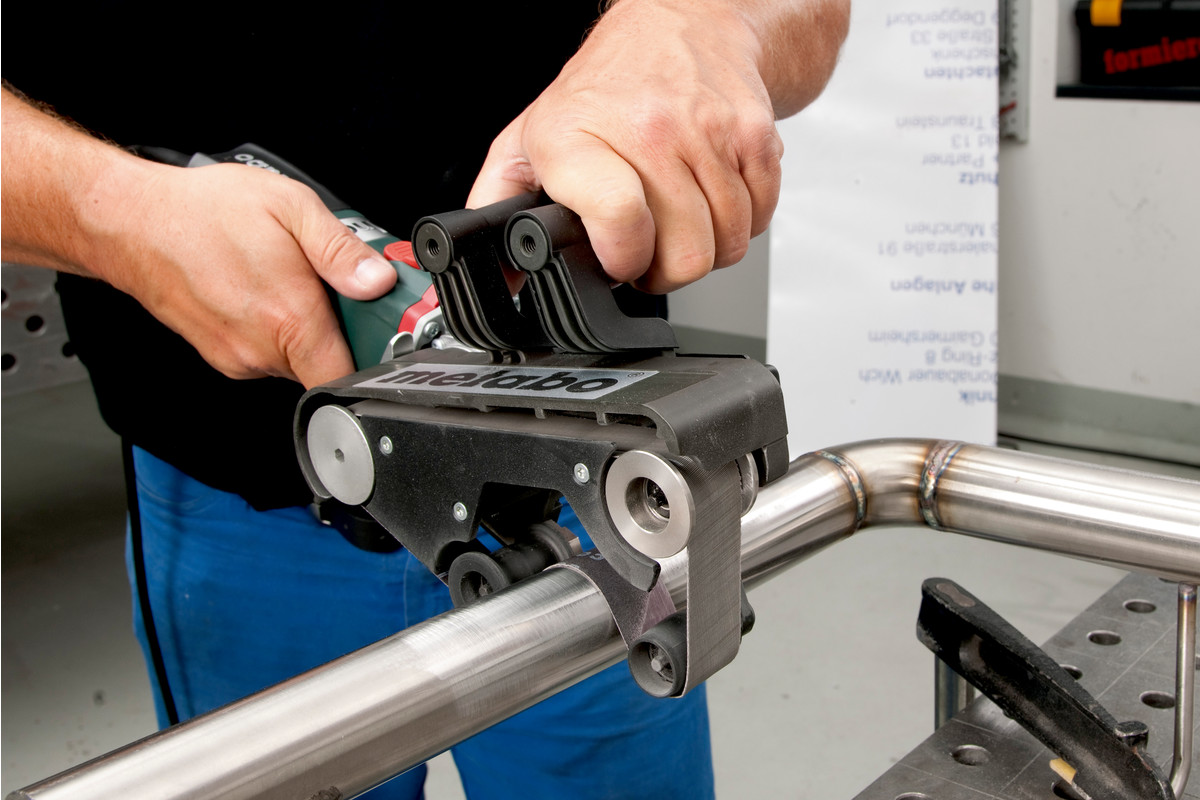

  • Compact tube belt sander with high belt speeds for productive processing of stainless steel pipes
  • Metabo Marathon motor with patented dust protection for long service life
  • Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
  • Compact tube belt sander with high belt speeds for productive processing of stainless steel pipes
  • Large wrap angle of 190° for smooth surfaces
  • Metabo Marathon motor with patented dust protection for long service life
  • Thumbwheel controlled Vario-Constamatic (VC)-Full wave electronics ideal for working on materials requiring customised speeds, and at speeds which remain almost constant under load
  • Tool-free change of sanding belt and adjustable belt guide
  • Electronic overload protection for long service life
  • Electronic soft start for smooth start-up
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Auto-stop carbon brushes to protect the motor
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Rated input power
900 W
Output power
470 W
Belt speed in idle
8 - 14 m/s // 1575 - 2756 ft/min m/s
Dimensions of grinding belt
30 x 533 mm / 1 3/16 x 21 "
Maximum pipe diameter
60 mm / 2 3/8 "
Wrap angle
190 °
Weight (without power cable)
3.1 kg / 6.8 lbs
Cable length
4 m / 13 ft
Vibration
Surface grinding
1.8 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
88 dB(A)
Sound power level (LwA)
99 dB(A)
Uncertainty of measurement K
3 dB(A)

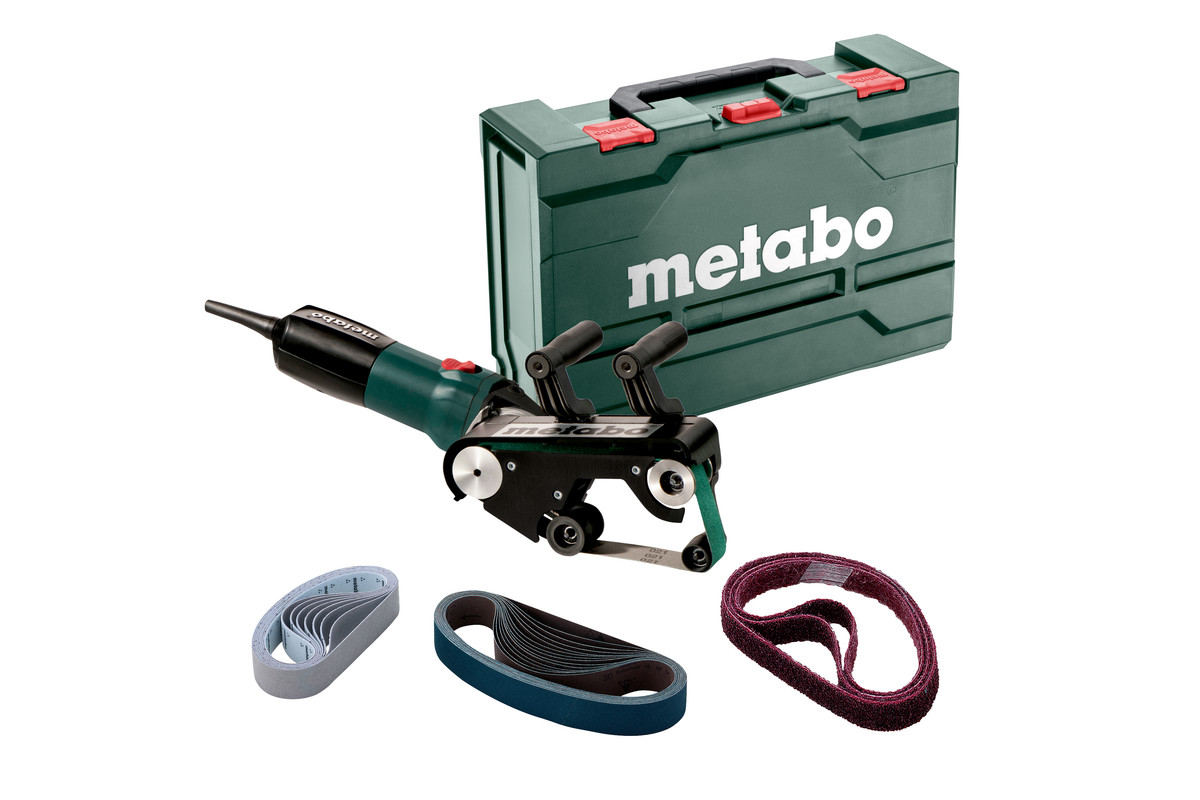

  • 10 Sanding belts zirconia (30x533 mm; P80)
  • 2 Pyramid sanding belts (30x533 mm; P280/A65)
  • 2 Pyramid sanding belts (30x533 mm; P400/A45)
  • 2 Pyramid sanding belts (30x533 mm; P600/A30)
  • 2 Pyramid sanding belts (30x533 mm; P1200/A16)
  • 3 Fleece bands (30x533 mm; medium)
  • Metal carry case
