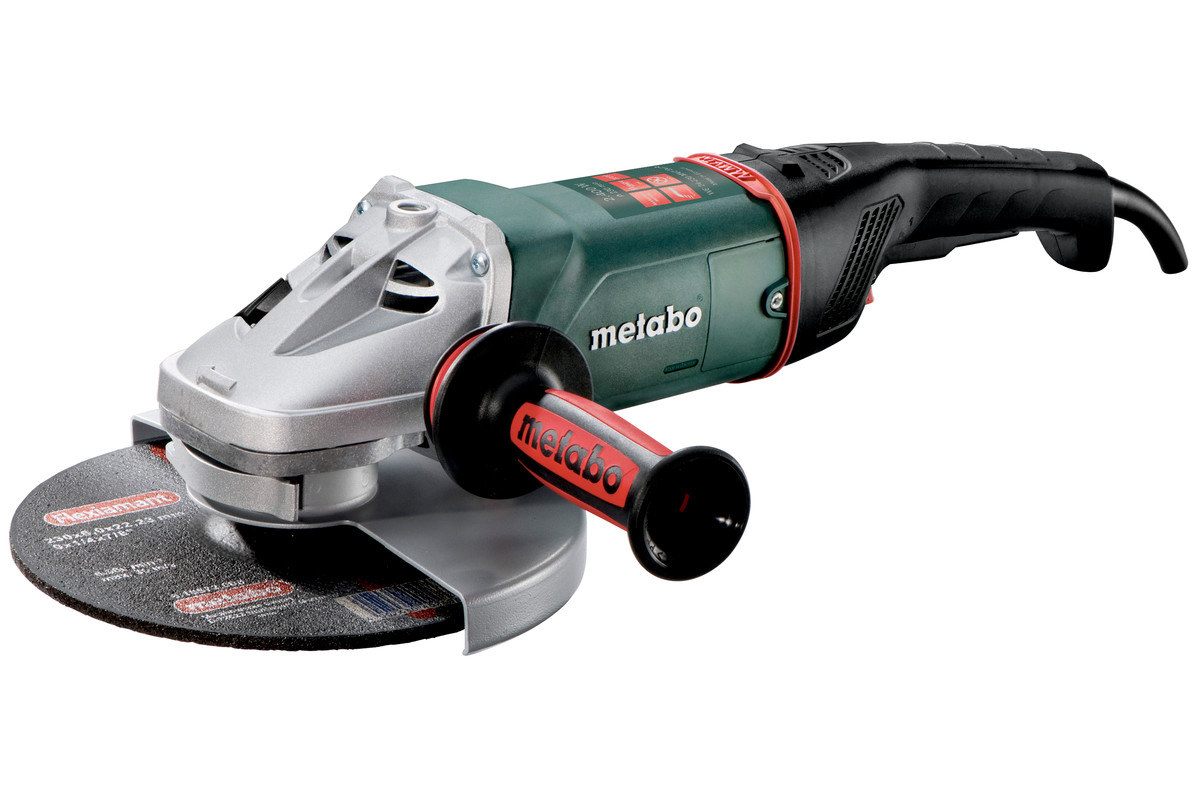

WE 24-230 MVT Quick (606470190) Angle grinder

(220-240 V / 50 - 60 Hz); Cardboard box; with quick-locking nut, rotating main handle

Order no.: 606470190 EAN: 4007430268235
Disc-Ø:
230 mm // 9 "
Rated input power:
2400 W
No-load speed:
6600 rpm
Torque:
17 Nm / 150 in-lbs
  • Metabo Marathon motor with patented dust protection for long service life
  • Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety
  • Deadman's switch for high user protection
  • Rotating back handle and side handle can be mounted at 3 positions for optimum handle position also when cutting
  • Metabo Quick for tool-free disc change by means of a quick-locking nut
  • Tool-free adjustable guard; twist-proof
  • Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health
  • Metabo Marathon motor with patented dust protection for long service life
  • Electronic safety shutdown: reduces kickback if the disc stops unexpectedly - for high user safety
  • Deadman's switch for high user protection
  • Rotating back handle and side handle can be mounted at 3 positions for optimum handle position also when cutting
  • Metabo Quick for tool-free disc change by means of a quick-locking nut
  • Tool-free adjustable guard; twist-proof
  • Starting current limitation prevents the actuation of the lock on start-up
  • Electronic overload protection and restart protection
  • Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health
  • Metabo safety switch prevents unintentional start
  • Auto-stop carbon brushes to protect the motor
  • LED signal indicates triggered restart protection or overheating
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Disc-Ø
230 mm // 9 "
Rated input power
2400 W
Output power
1600 W
No-load speed
6600 rpm
Speed at rated load
4600 rpm
Torque
17 Nm / 150 in-lbs
Spindle thread
M 14
Handle circumference
144 mm / 5.669 "
Weight (without power cable)
5.8 kg / 12.8 lbs
Cable length
4 m / 13 ft
Vibration
Surface grinding
6.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Grinding with sandpaper
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
94 dB(A)
Sound power level (LwA)
105 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Guard
  • Inner support flange
  • Quick-locking nut
  • Metabo VibraTech (MVT) side handle
