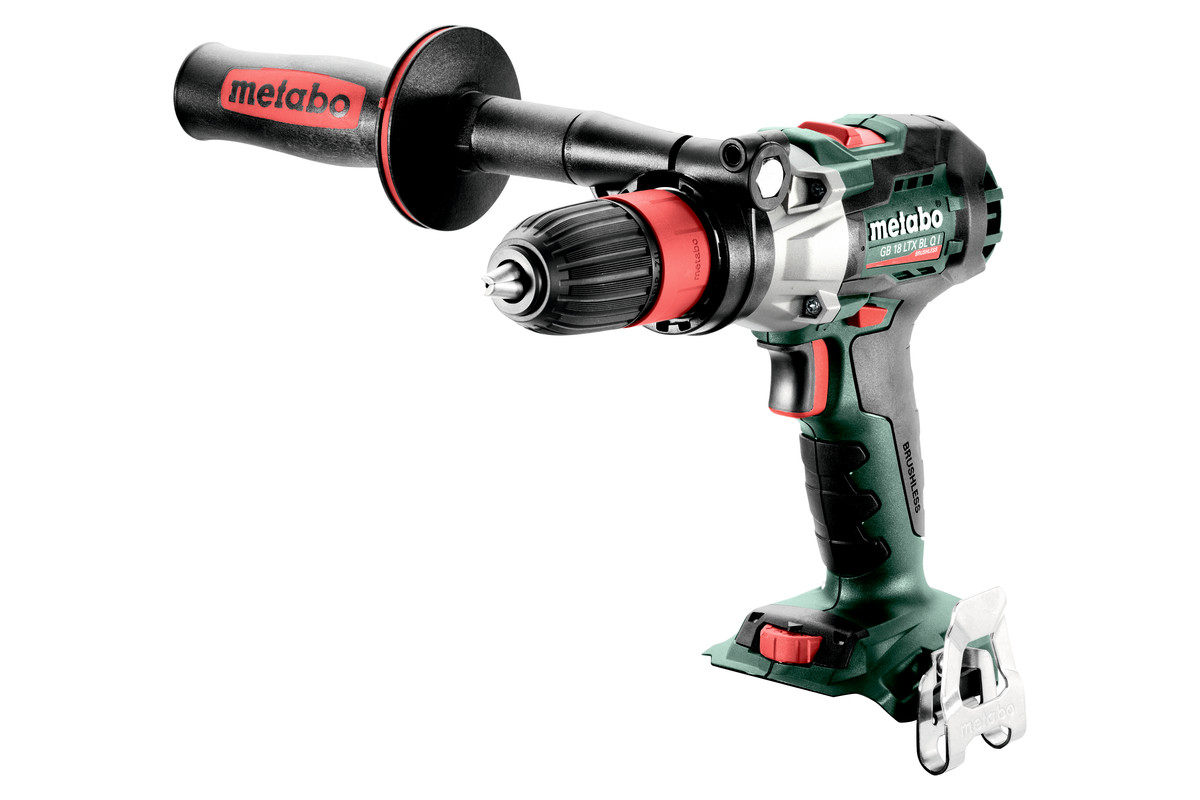

GB 18 LTX BL Q I (602362850) Cordless tapper

18V; Cardboard box

GB 18 LTX BL Q I (602362850) Cordless tapper
Order no.: 602362850 EAN: 4061792188198
Battery voltage:
18 V
Maximum torque, soft:
65 Nm / 575 in-lbs
Maximum torque, hard:
130 Nm / 1151 ft. lbs
Max. thread diameter:
M 12 (1/2" UNC/UNF)
  • High-grade, powerful drill for the most demanding applications with unique, patented thread-tapping function.

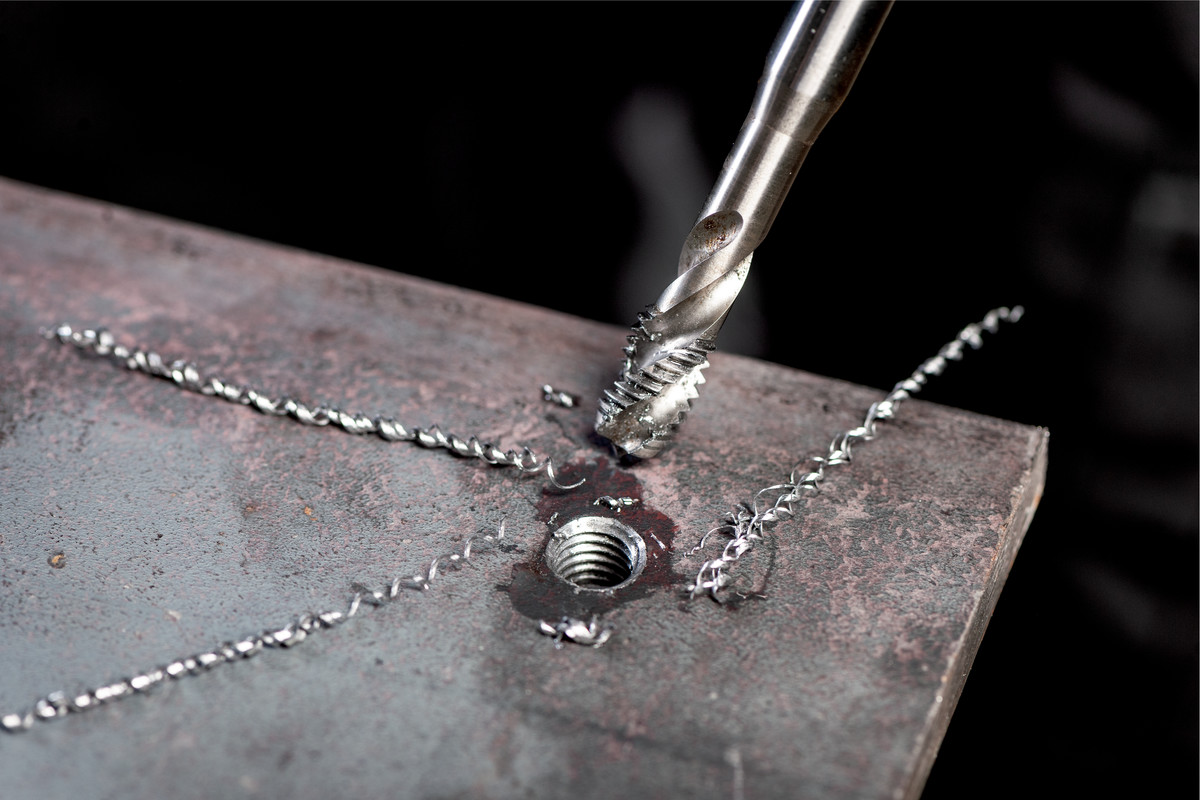

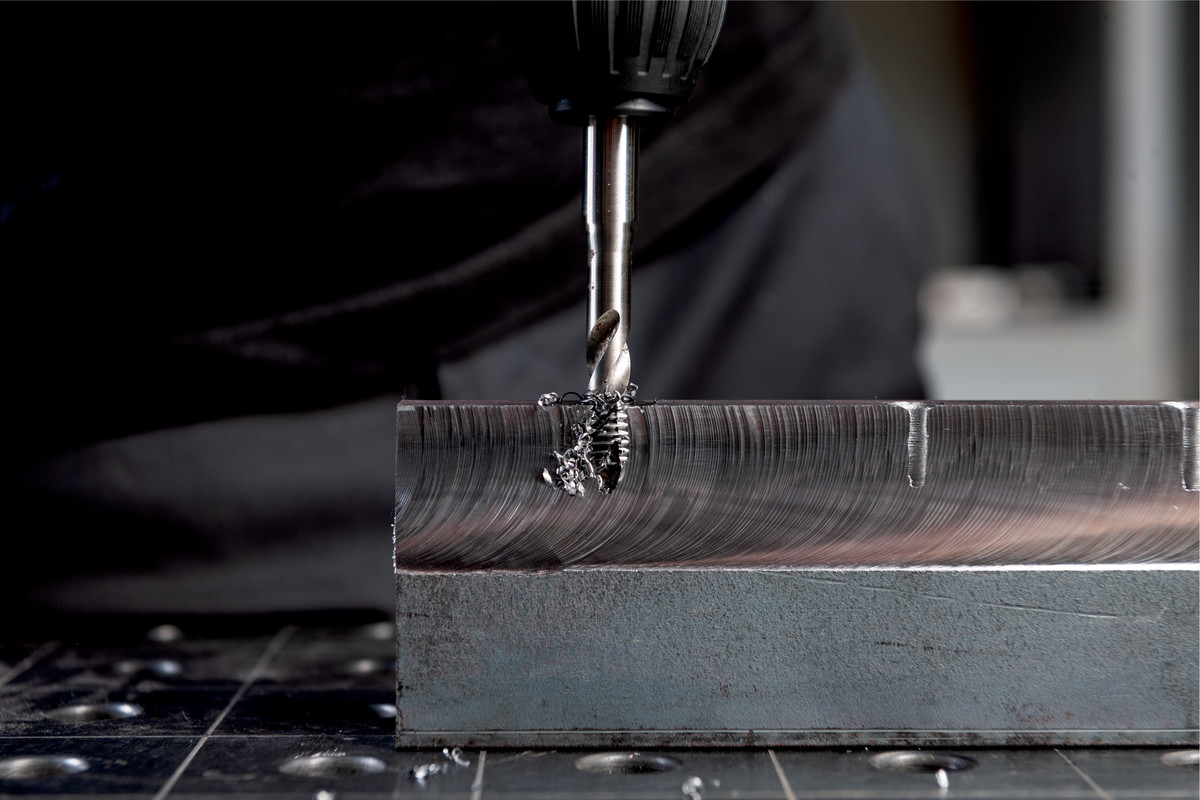

  • Quick and interruption-free cutting and cleaning of threads thanks to automatic change of direction of rotation

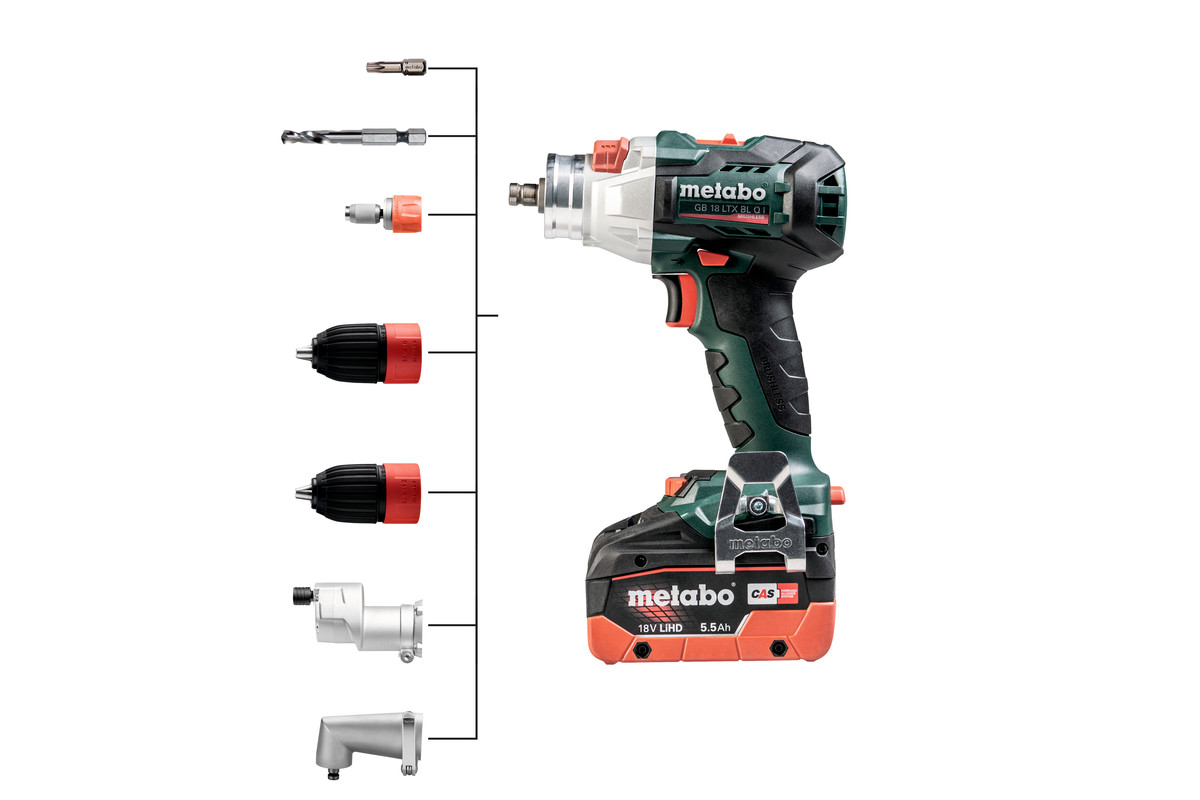

  • Metabo quick system: quick exchange of chucks, bit holders, angle adapters and more for flexible work

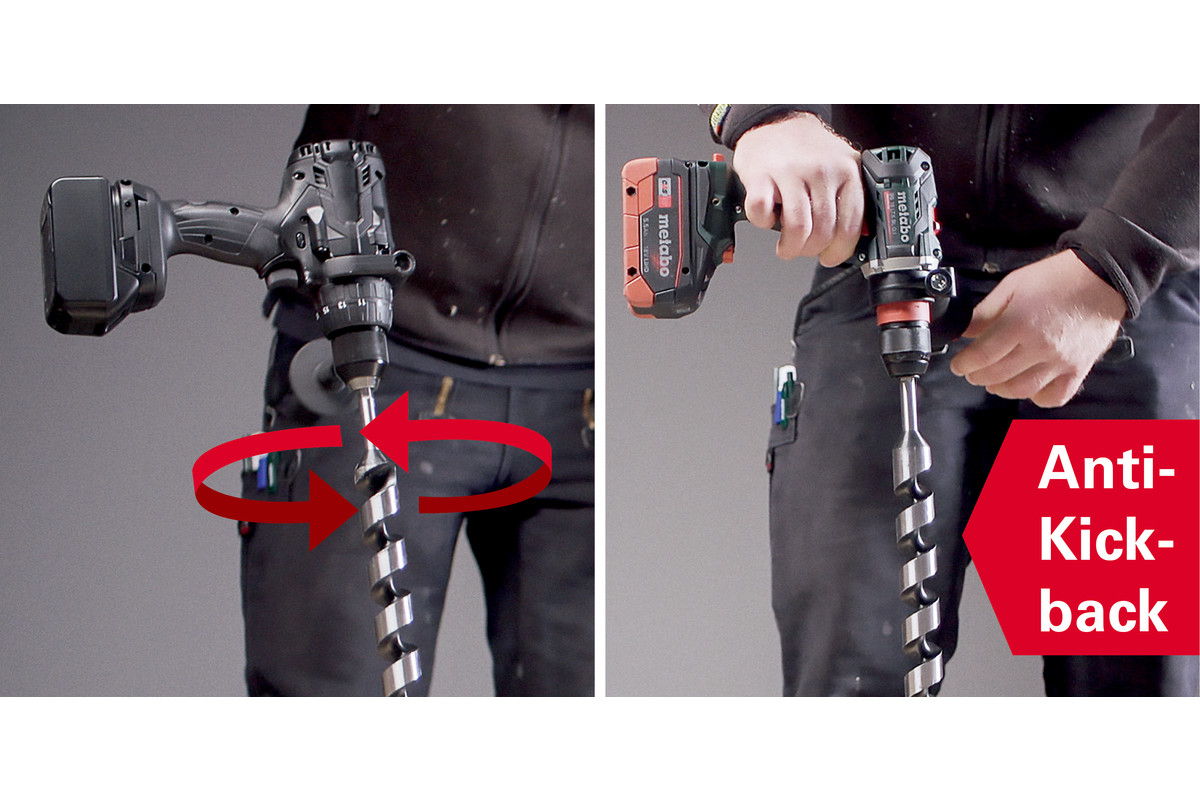

  • Electronic safety shutdown: no kickback if the drill bit stops unexpectedly - for high user safety
more product information
 Shop Online
Manual Spare-parts list
  • High-grade, powerful drill for the most demanding applications with unique, patented thread-tapping function.
  • Quick and interruption-free cutting and cleaning of threads thanks to automatic change of direction of rotation
  • Long service life and tool life of the tappers by virtue of intelligent torque monitoring
  • Metabo quick system: quick exchange of chucks, bit holders, angle adapters and more for flexible work
  • Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
  • Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
  • Precision Stop: electronic torque control with increased precision for accurate and intricate working
  • Overload protection: protects the motor from overheating
  • Spindle with hexagonal recess for screwdriver bits for working without chuck
  • Euro collar (Ø 43 mm) for versatile use
  • Electronic safety shutdown: no kickback if the drill bit stops unexpectedly - for high user safety
  • Integrated working light to illuminate the contact area
  • Handy belt hook and bit holder can be fixed either on the right or left side
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Battery voltage
18 V
Maximum torque, soft
65 Nm / 575 in-lbs
Pulse torque
65 Nm / 575 in-lbs
Maximum torque, hard
130 Nm / 1151 ft. lbs
Adjustable torque
1 - 20 Nm // 9 - 177 in-lbs
Max. thread diameter
M 12 (1/2" UNC/UNF)
Drill Ø steel
13 mm / 1/2 "
Drill-Ø soft wood
68 mm / 2.68 "
No-load speeds
0 - 550 / 0 - 2000 rpm
Collar diameter
13 mm / 1 11/16 "
Weight without battery pack
1.8 kg / 4 lbs
Weight with battery pack
2.2 kg / 4.9 lbs
Vibration
Drilling in metal
2.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
79 dB(A)
Sound power level (LwA)
87 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Quick-change tapping chuck M4-M6
  • Quick-change tapping chuck M8-M12
  • Side handle
  • Belt hook and bit case
