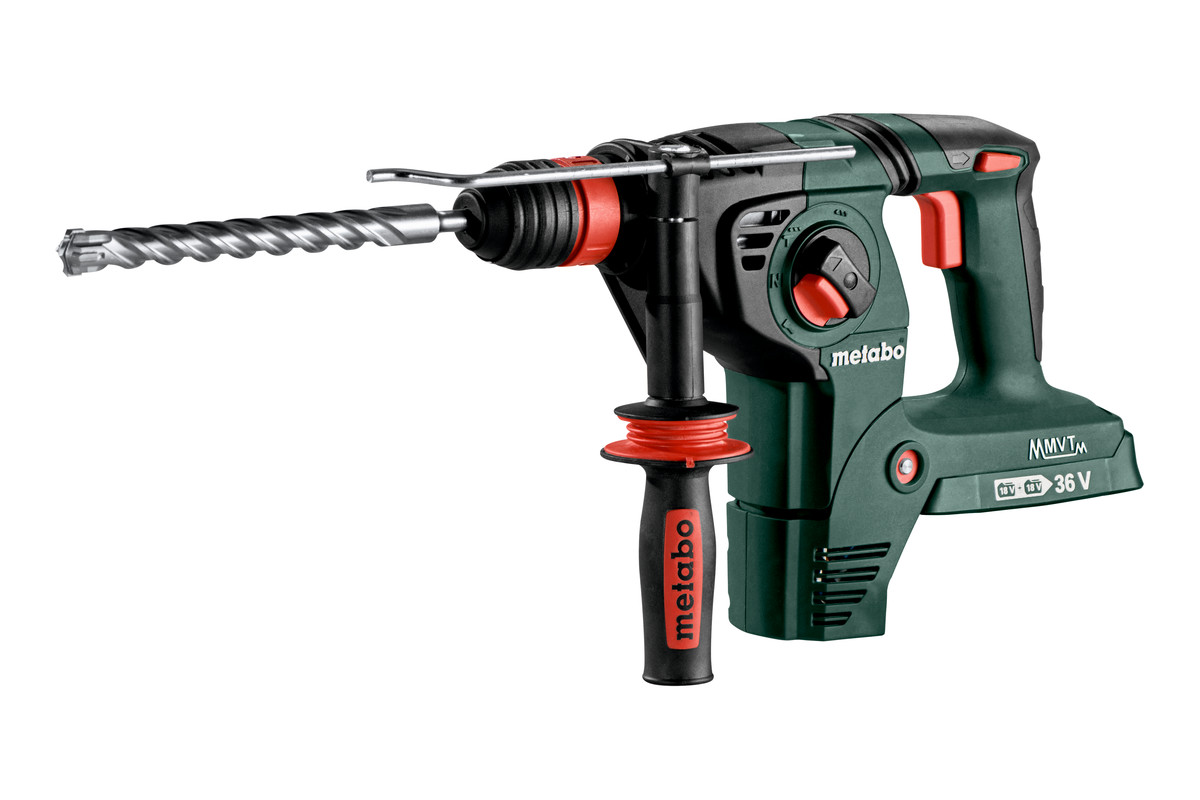

KHA 36-18 LTX 32 (600796840) Cordless combination hammer

18V; metaBOX 165 L; with Metabo Quick change chuck

KHA 36-18 LTX 32 (600796840) Cordless combination hammer
Order no.: 600796840 EAN: 4007430318053
Battery voltage:
18 V
Max. single blow energy (EPTA):
3.1 J
Maximum impact rate:
4500 bpm
Drill-Ø concrete with hammer drills:
32 mm / 1 1/4 "
Tool holder:
SDS-plus
  • Combination hammer with 3 functions: hammer drilling, drilling and chiselling
  • 100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18 Volt battery packs from Metabo
  • Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health
  • Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for many different applications
  • Variospeed (V) Electronics for working at customised speeds to suit various application materials
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
more product information
 Shop Online
Manual Spare-parts list
  • Combination hammer with 3 functions: hammer drilling, drilling and chiselling
  • 100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18 Volt battery packs from Metabo
  • Metabo VibraTech (MVT): integrated damping system to reduce vibrations in order to protect the user's health
  • Ergonomic housing shape for chiselling tasks without side handle
  • Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for many different applications
  • Variospeed (V) Electronics for working at customised speeds to suit various application materials
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
  • With metaBOX, the intelligent solution for transport and storage
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Battery voltage
18 V
Max. single blow energy (EPTA)
3.1 J
Maximum impact rate
4500 bpm
Drill-Ø concrete with hammer drills
32 mm / 1 1/4 "
Drill-Ø masonry with core bits
68 mm / 2 11/16 "
Drill Ø steel
13 mm / 1/2 "
Drill-Ø soft wood
30 mm / 1 3/16 "
No-load speed
0 - 1100 rpm
Tool holder
SDS-plus
Weight without battery pack
3.8 kg / 8.4 lbs
Weight with battery pack
5.1 kg / 11.2 lbs
Vibration
Hammer drilling concrete
13 m/s²
Uncertainty of measurement K
1.5 m/s²
Chiseling
10.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
91 dB(A)
Sound power level (LwA)
99 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Hammer chuck for tools with SDS-plus shank end
  • Keyless chuck for tools with cylindrical shank
  • Metabo VibraTech (MVT) side handle
  • Drilling depth guide
  • metaBOX 165 L
  • without battery pack, without charger
