• The design of the feed mechanism enables the maximum drilling depth of 65 mm to be achieved with a swivelling motion
  • Asymmetrical arrangement of the column in relation to the base plate enables the processing of larger workpieces
  • Unlimited access to the controls of drill and drill stand by angled cantilever
  • No risk of injury or drill breakage thanks to the safe adjustment of the device carrier to the required working height
  • Adjustable depth guide

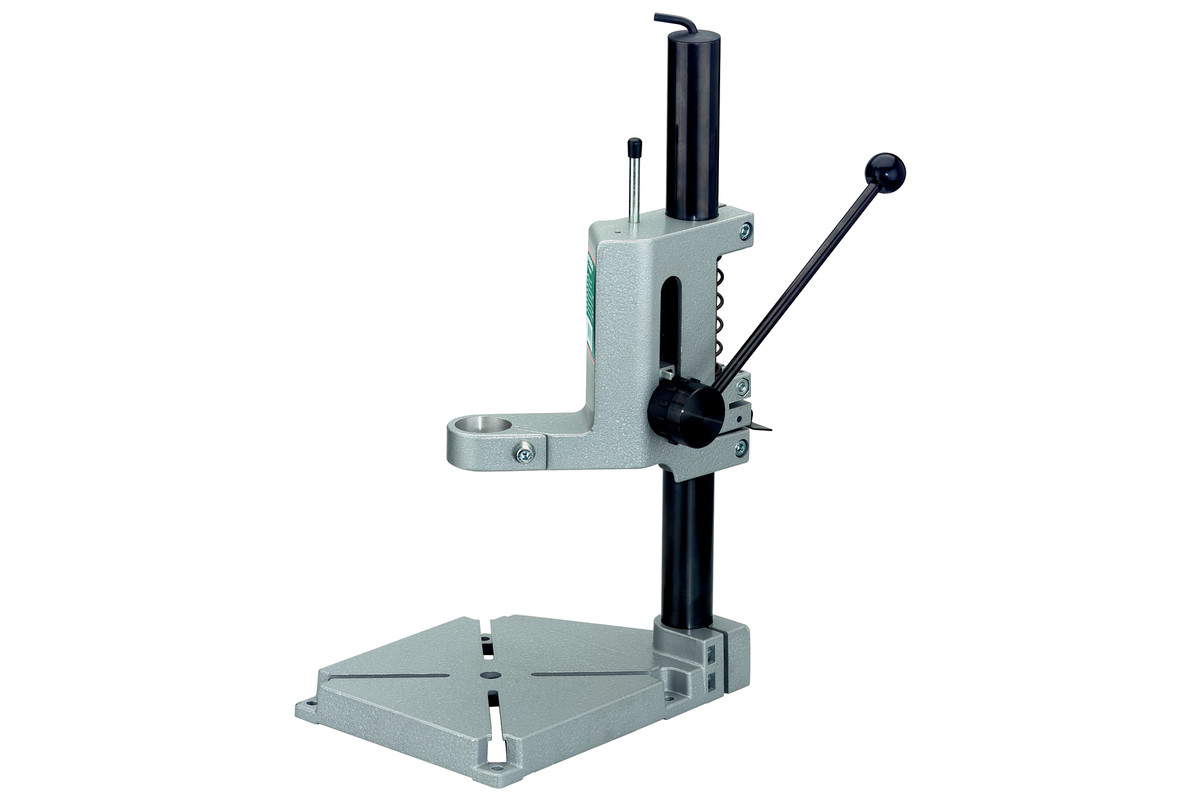

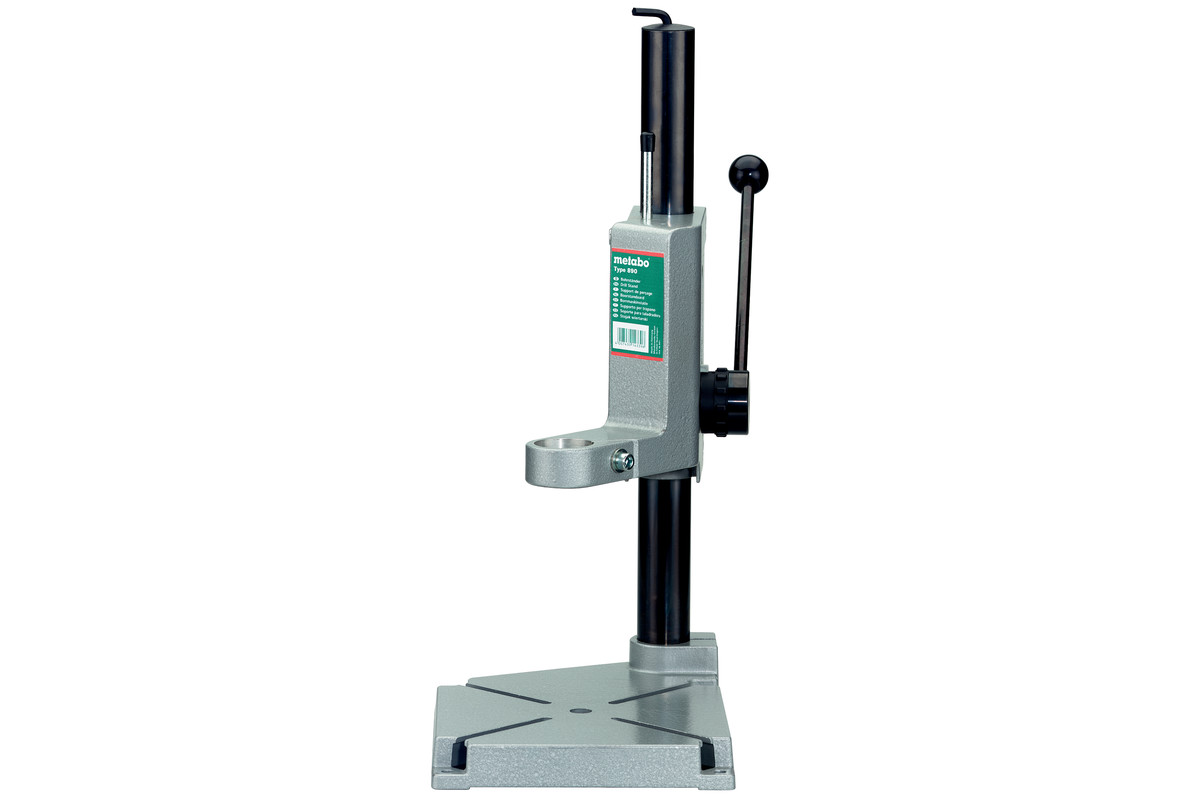

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Distance, bit centre to column
165 mm / 6 1/2 "
Working stroke
65 mm / 2 9/16 "
Height of column
500 mm / 20 "
Column Ø
40 mm / 1 9/16 "
Aperture
43 mm
Base plate
220 x 213 mm // 8 21/32 x 8 3/8 "
Weight
5.5 kg / 12.13 lbs
