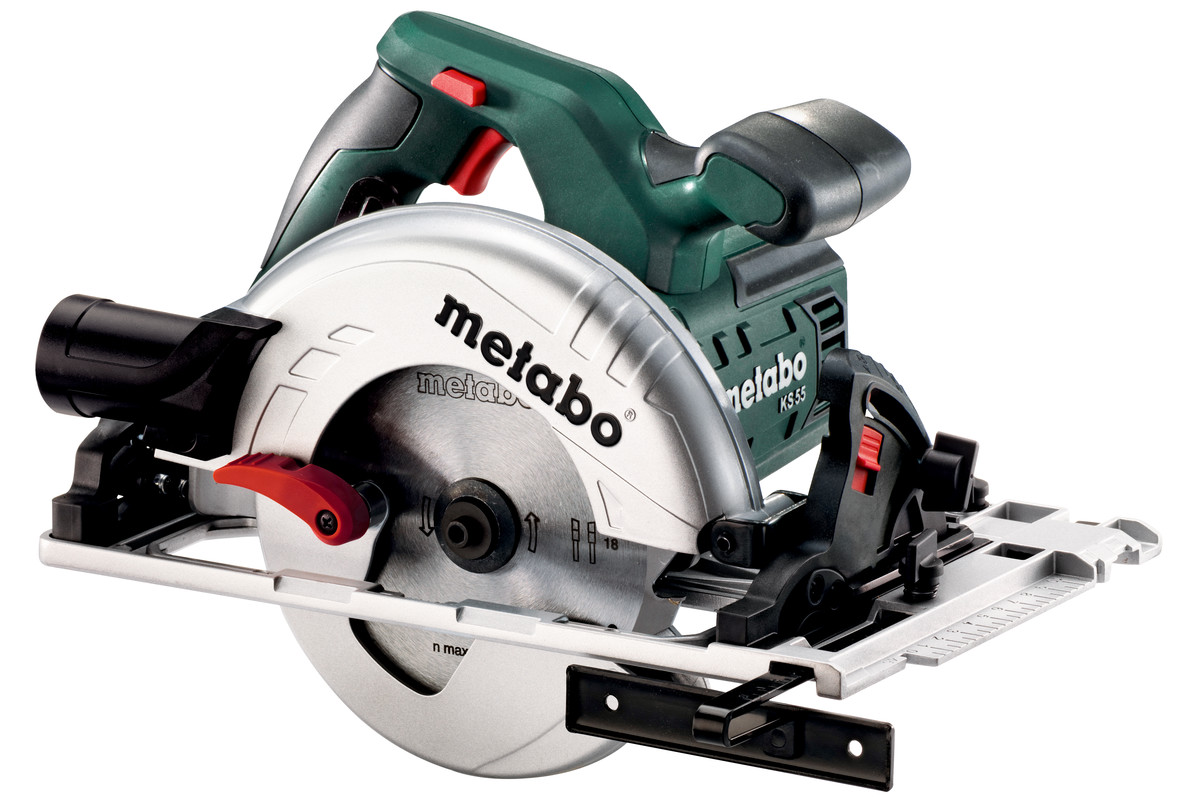

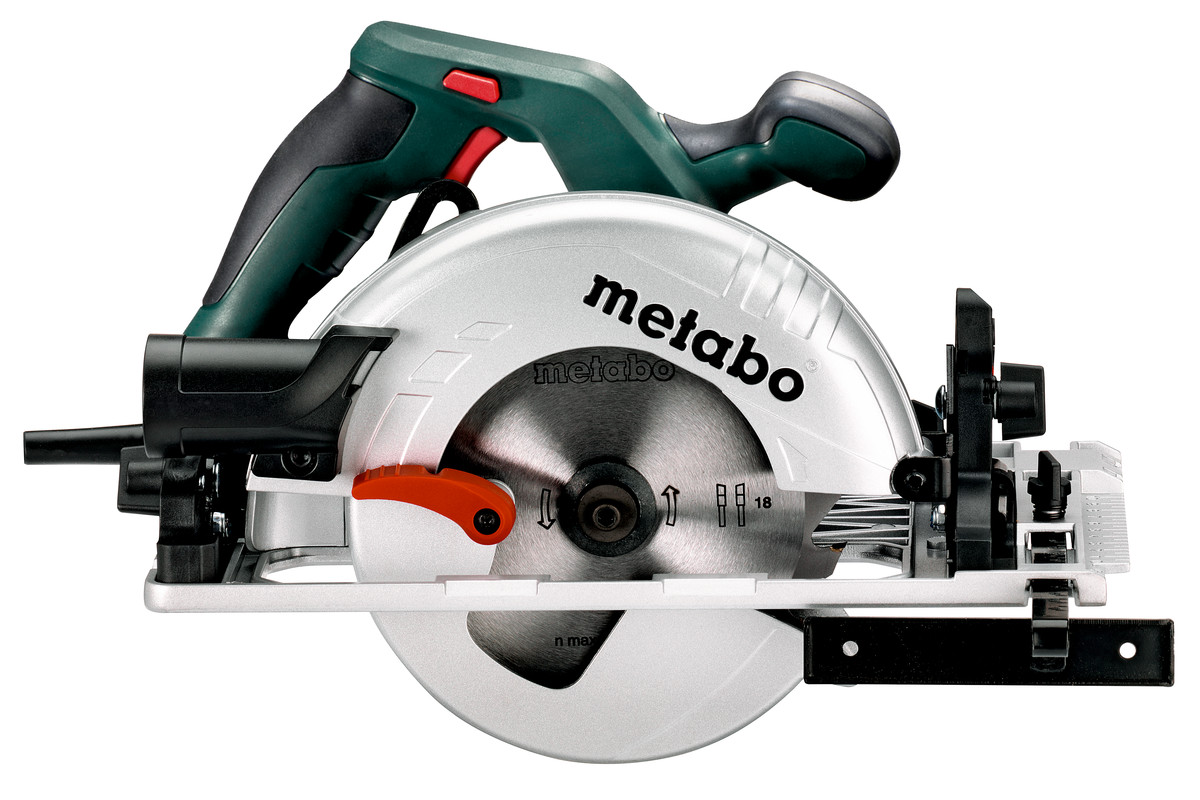

KS 55 FS (600955000) Circular Saw

Cardboard box

KS 55 FS (600955000) Circular Saw
Order no.: 600955000 EAN: 4007430230430
Rated input power:
1200 W
Maximum cutting depth at 90°:
55 mm
Saw blade Ø x bore:
160 x 20 mm
No-load speed:
5600 rpm

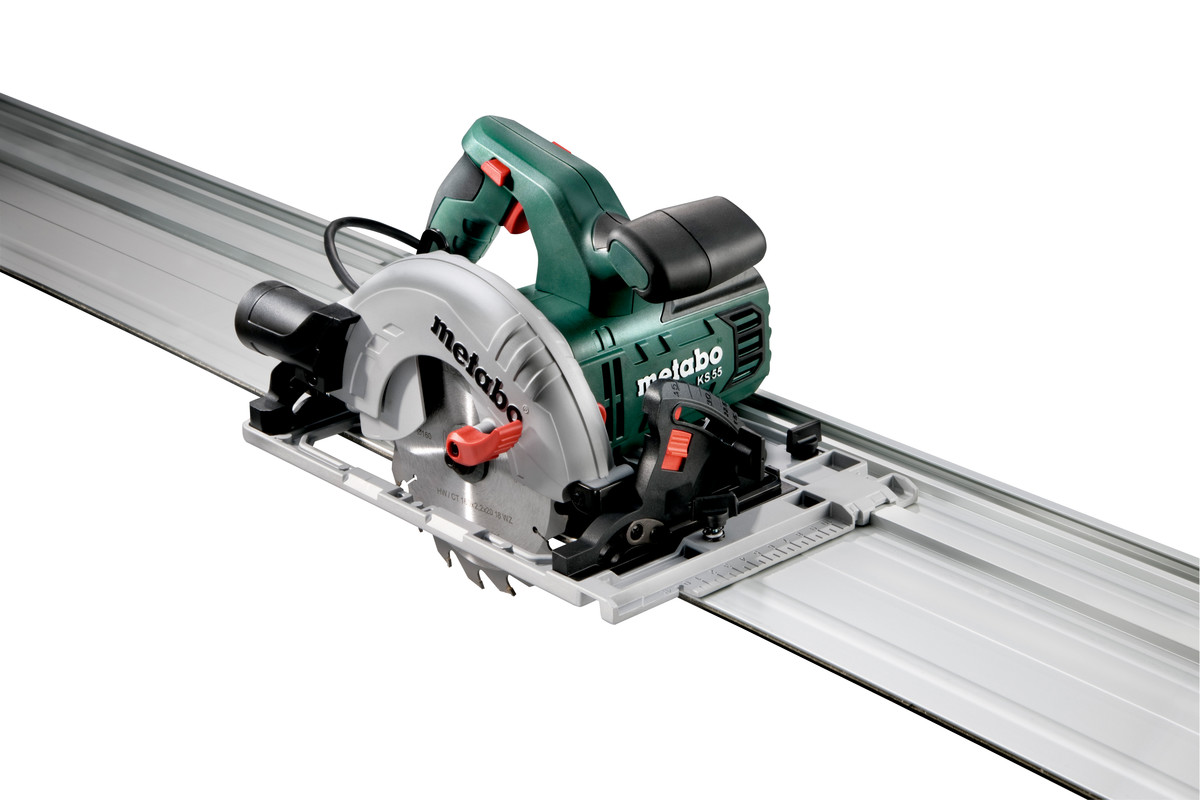

  • Robust circular saw can be used directly on guide rails from Metabo and other manufacturers for precise, long cuts
  • Light guide plate made from die cast aluminium
  • 0° position re-adjustable for highest cutting precision
more product information
Manual Spare-parts list
  • Robust circular saw can be used directly on guide rails from Metabo and other manufacturers for precise, long cuts
  • Light guide plate made from die cast aluminium
  • Grip area with non-slip soft-grip surface
  • Clearly visible cutting indicator for precise sawing after initial cut
  • 0° position re-adjustable for highest cutting precision
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Adjustment of machine without tools for using with the precision guide rail
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Rated input power
1200 W
Output power
670 W
Maximum cutting depth at 90°
55 mm
Maximum cutting depth at 45°
39 mm
Max. cutting depth with guide rail
50 mm
Saw blade Ø x bore
160 x 20 mm
Swivel range from / to:
‌ 0 / + 47 °
No-load speed
5600 rpm
Revolutions at rated load
4400 rpm
Max. cutting speed
47 m/s
Torque
5 Nm
Weight (without power cable)
4 kg
Cable length
4 m
Vibration
Sawing chipboards
3.4 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
93 dB(A)
Sound power level (LwA)
104 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Carbide circular saw blade (18 teeth)
  • Parallel guide
  • Extraction connector
  • Hexagonal wrench
