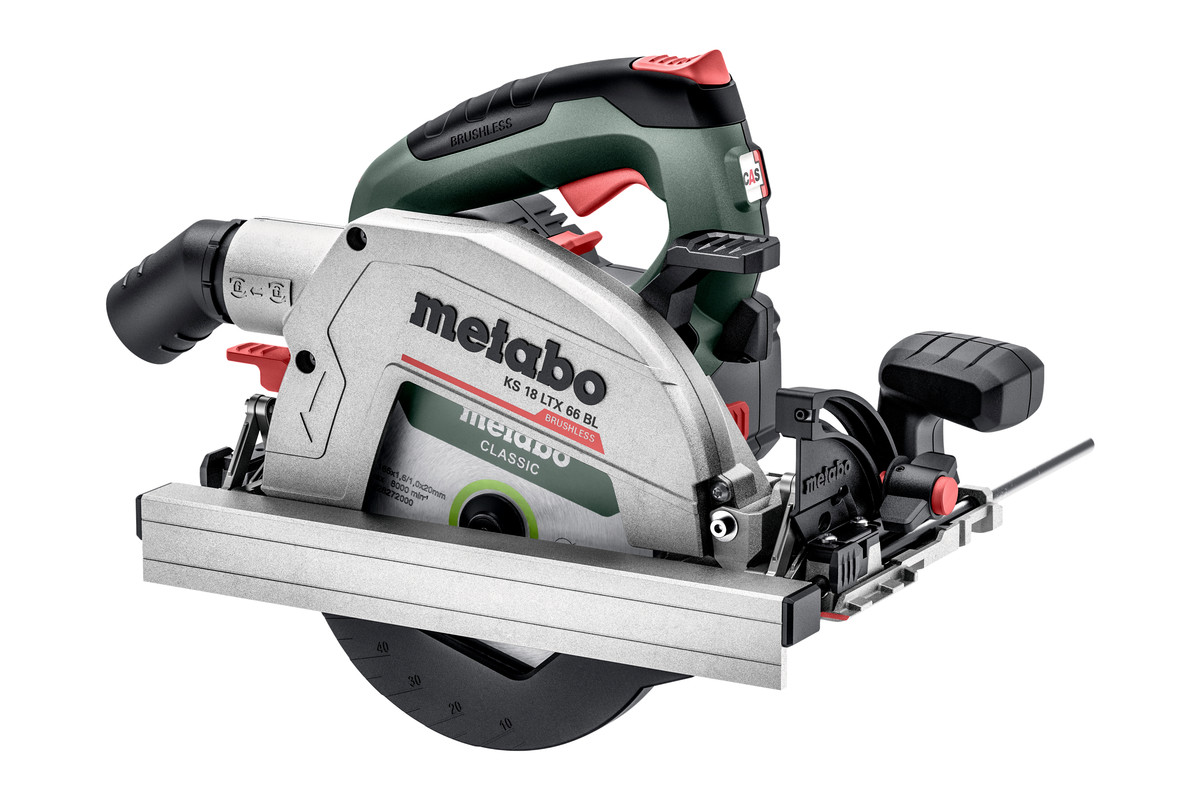

KS 18 LTX 66 BL (611866850) Cordless circular saw

18V; Cardboard box

Order no.: 611866850 EAN: 4061792196490
Battery voltage:
18 V
Maximum cutting depth at 90°:
66 mm
Saw blade Ø x bore:
165 x 20 mm
No-load speed:
4800 rpm
  • Powerful, light, cordless circular saw for universal use on construction sites
  • Aluminium base plate can be directly used on guide rails from Metabo and Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers

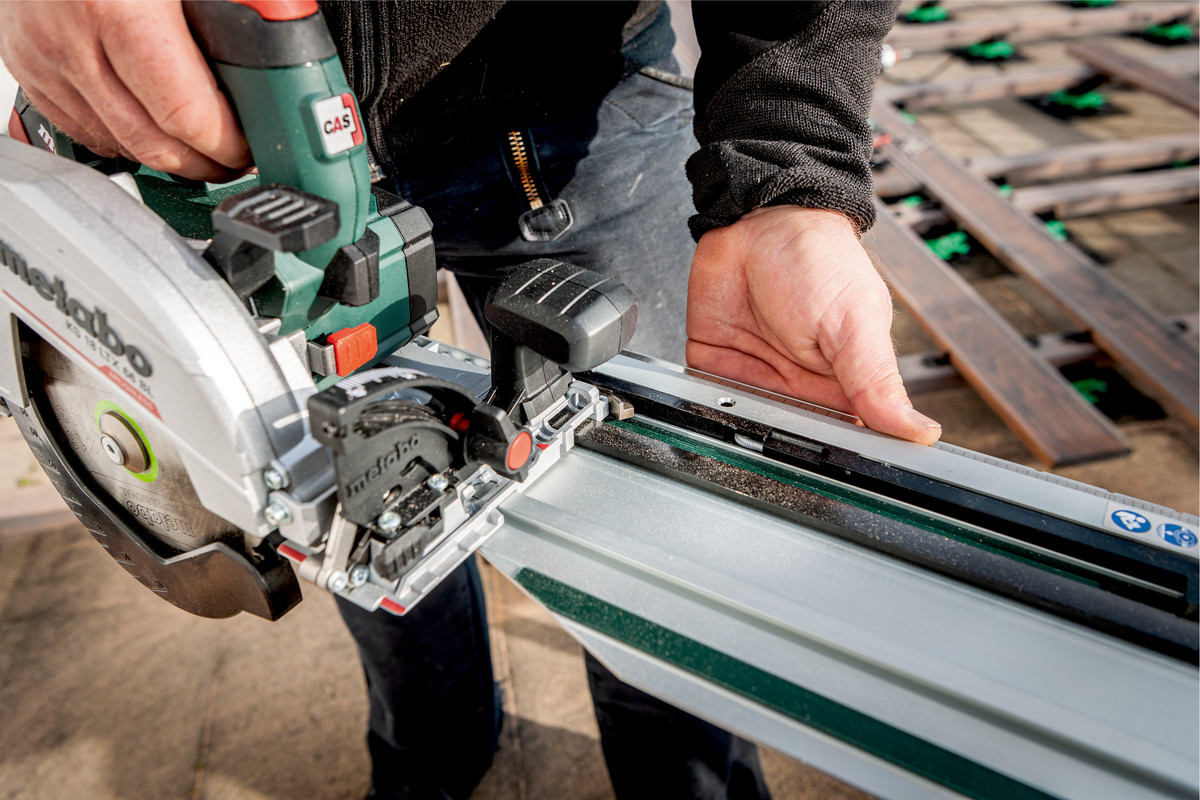

  • Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
  • LIHD high-performance battery packs and the Metabo brushless motor guarantee maximum power and enduring sawing
  • Integrated LED work light for optimum illumination of the cutting line
  • Powerful, light, cordless circular saw for universal use on construction sites
  • Aluminium base plate can be directly used on guide rails from Metabo and Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
  • Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
  • LIHD high-performance battery packs and the Metabo brushless motor guarantee maximum power and enduring sawing
  • Automatic switching on/off of the connected vacuum cleaner thanks to CordlessControl. (available as accessory)
  • Sawdust ejection nozzle for any working position can be rotated and locked individually
  • Integrated LED work light for optimum illumination of the cutting line
  • 0° position re-adjustable for highest cutting precision
  • Clearly visible cutting indicator for precise sawing after initial cut
  • Robust and durable thanks to aluminium die-cast saw housing
  • Handle with non-slip soft-grip surface for safe guidance
  • Extraction possibility by means of connecting an all-purpose vacuum cleaner
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Battery voltage
18 V
Swivel range from / to:
‌ 0 / + 46 °
Adjustable cutting depth
0 - 66 mm
Maximum cutting depth at 90°
66 mm
Maximum cutting depth at 45°
43 mm
Max. cutting depth with guide rail
61 mm
Saw blade Ø x bore
165 x 20 mm
No-load speed
4800 rpm
Max. cutting speed
43 m/s
Weight without battery pack
3.5 kg
Weight with battery pack
4.5 kg
Vibration
Sawing chipboards
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
87 dB(A)
Sound power level (LwA)
98 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Carbide circular saw blade (18 teeth)
  • Parallel guide
  • Hexagonal wrench
  • without battery pack, without charger
