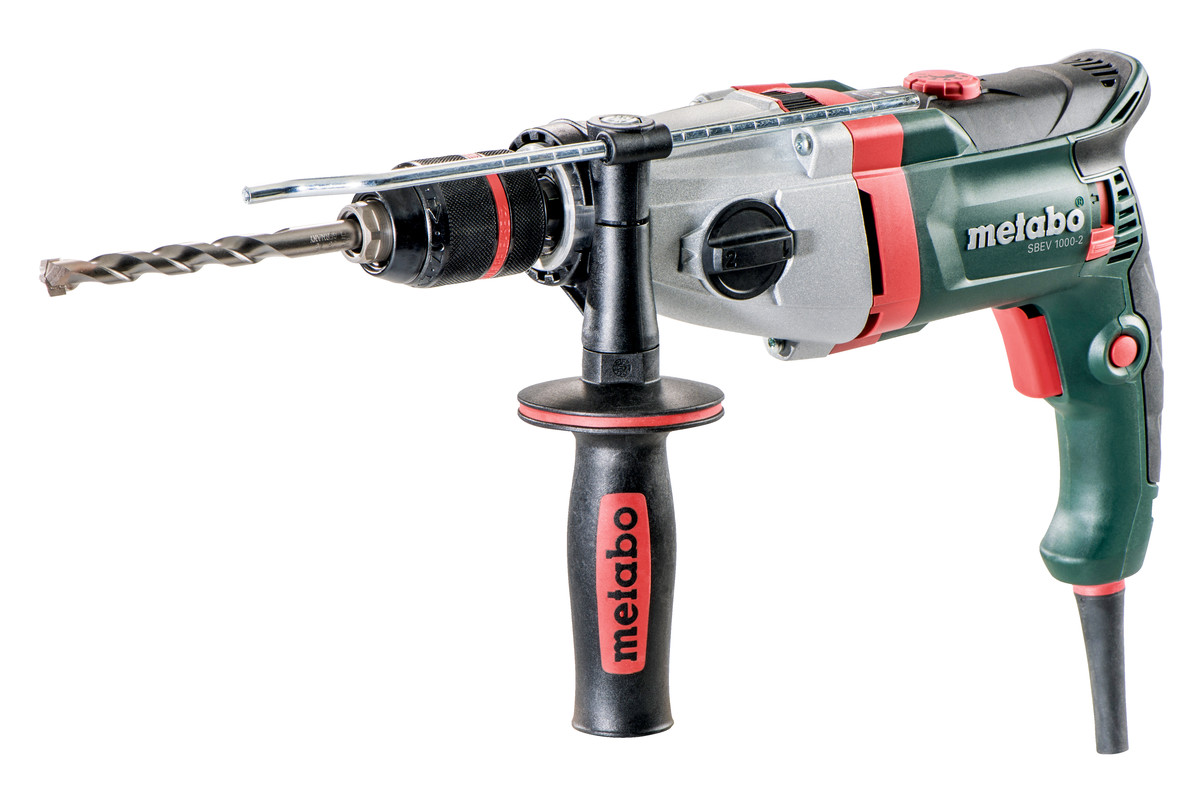

SBEV 1000-2 (600783500) Impact Drill

metaBOX 145 L

Order no.: 600783500 EAN: 4007430313119
Rated input power:
1010 W
Maximum torque:
40 / 14 Nm
Drill-Ø masonry:
22 mm
Drill-Ø concrete:
20 mm
Drill Ø steel:
16 / 10 mm
Drill-Ø soft wood:
40 / 25 mm
No-load speed:
0 - 1000 / 0 - 2800 rpm
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Robust die cast aluminium gear housing for optimum heat dissipation and long service life
  • Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
  • Metabo Marathon-motor with dust protection for long service life
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Thumbwheel for Speed Preselection
  • Robust die cast aluminium gear housing for optimum heat dissipation and long service life
  • Rotating carbon brush bridge for maximum performance even in anti-clockwise operation, e.g. for the removal of stubborn screws
  • Metabo Marathon-motor with dust protection for long service life
  • Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the tool stop unexpectedly
  • Forward and reverse rotation
  • Spindle with hexagonal recess for screwdriver bits for working without chuck
  • Restart protection: prevents unintentional start-up after power supply interruption
  • Cable-protecting ball joint for optimal freedom of motion when working
  • With metaBOX, the intelligent solution for transport and storage
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Rated input power
1010 W
Output power
540 W
Maximum torque
40 / 14 Nm
Drill-Ø masonry
22 mm
Drill-Ø concrete
20 mm
Drill Ø steel
16 / 10 mm
Drill-Ø soft wood
40 / 25 mm
No-load speed
0 - 1000 / 0 - 2800 rpm
Revolutions at rated load
1000 / 2800 rpm
Maximum impact rate
53200 bpm
Gears
2
Chuck capacity
1.5 - 13 mm
Collar diameter
43 mm
Drill spindle with hexagonal recess
6.35 mm
Drill spindle thread
1/2 " - 20 UNF
Chuck clamping type
Keyless chuck
Weight (without power cable)
2.7 kg
Cable length
4 m
Vibration
Drilling in metal
4.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Impact drilling concrete
17 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
103 dB(A)
Sound power level (LwA)
114 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Futuro Plus keyless chuck
  • rubber-coated side handle
  • Drilling depth guide
  • metaBOX 145 L
