- integrated disposable reversible planer blades
- short, swivelling jointing fence
- Chip ejection hood
- Push stick
- Extraction Nozzles
- Transport wheels

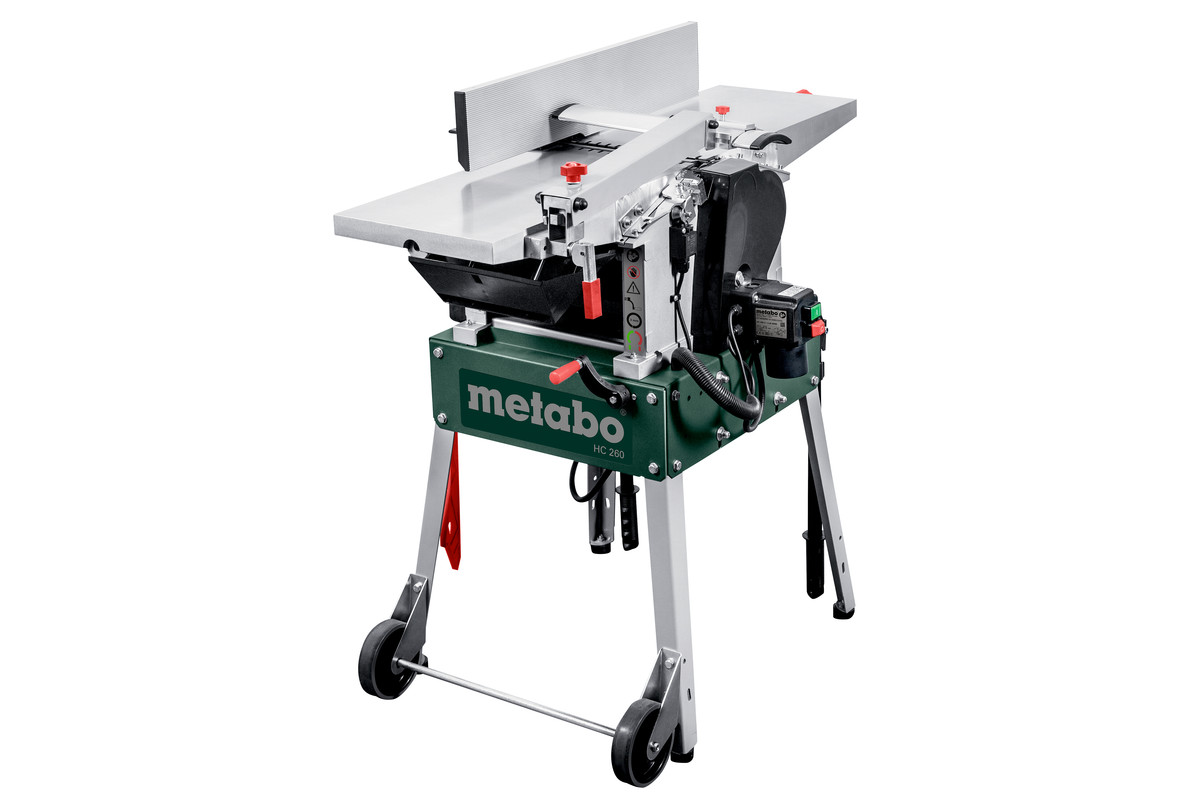

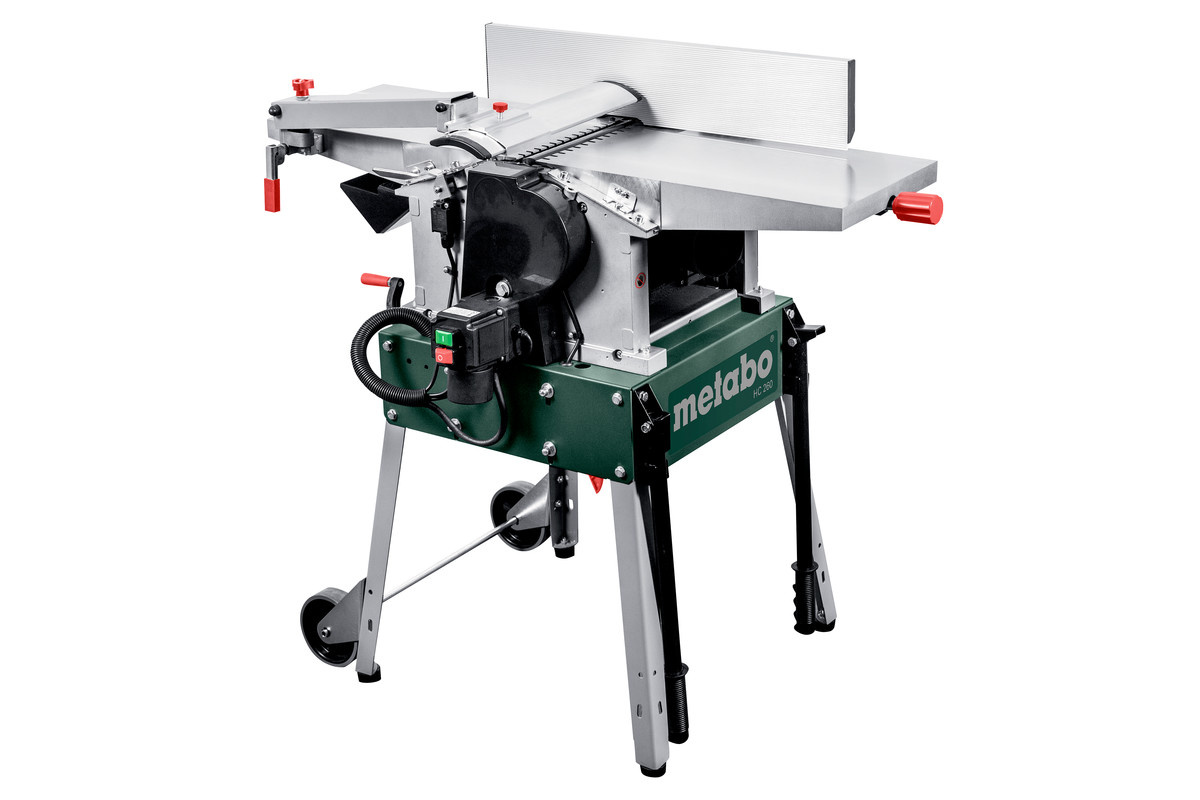

Planer thicknesser | (220-240 V / 50 Hz)
HC 260 C - 2,2 WNB (0114026038) Planer thicknesser | (220-240 V / 50 Hz)
Order no.: 0114026038
Your Delivery Scope
- integrated disposable reversible planer blades
- short, swivelling jointing fence
- Chip ejection hood
- 0 - 3 mmChip removal, planing
- 0 - 3 mmChip removal bench thicknesser
- 160 / 260 mmPassage height/width
- 6500 rpmRevolutions of blade shaft
- Simple conversion from surface planer to bench thicknesser without tools
- Stable gear for uniform work piece feed
- Thickness table made of solid, non-abrasive grey cast iron
- Convenient height adjustment with crank handle
- Planer blades with double blade for longer service life
- Jointing fence, swivelling 90°-45°
- Quiet induction motor, maintenance-free and robust.
- Restart protection: prevents unintentional start-up after power supply interruption
| Dimensions | 1110 x 620 x 980 mm |
| Dressing plates L x W | 1040 x 280 mm |
| Chip removal, planing | 0 - 3 mm |
| Chip removal bench thicknesser | 0 - 3 mm |
| Material dressing plates | Cast aluminium |
| Material thickness table | Grey cast iron |
| Thickness table L x W | 400 x 260 mm |
| Passage height/width | 160 / 260 mm |
| Feed rate | 5 m/min |
| Diameter of blade shaft | 63 mm |
| Number of blades | 2 |
| Revolutions of blade shaft | 6500 rpm |
| Mains voltage | 220 - 240 V |
| Output power | 1600 W |
| Weight | 71 kg |
| Uncertainty of measurement K | 3 dB(A) |
- integrated disposable reversible planer blades
- short, swivelling jointing fence
- Chip ejection hood
- Push stick
- Extraction Nozzles
- Transport wheels
