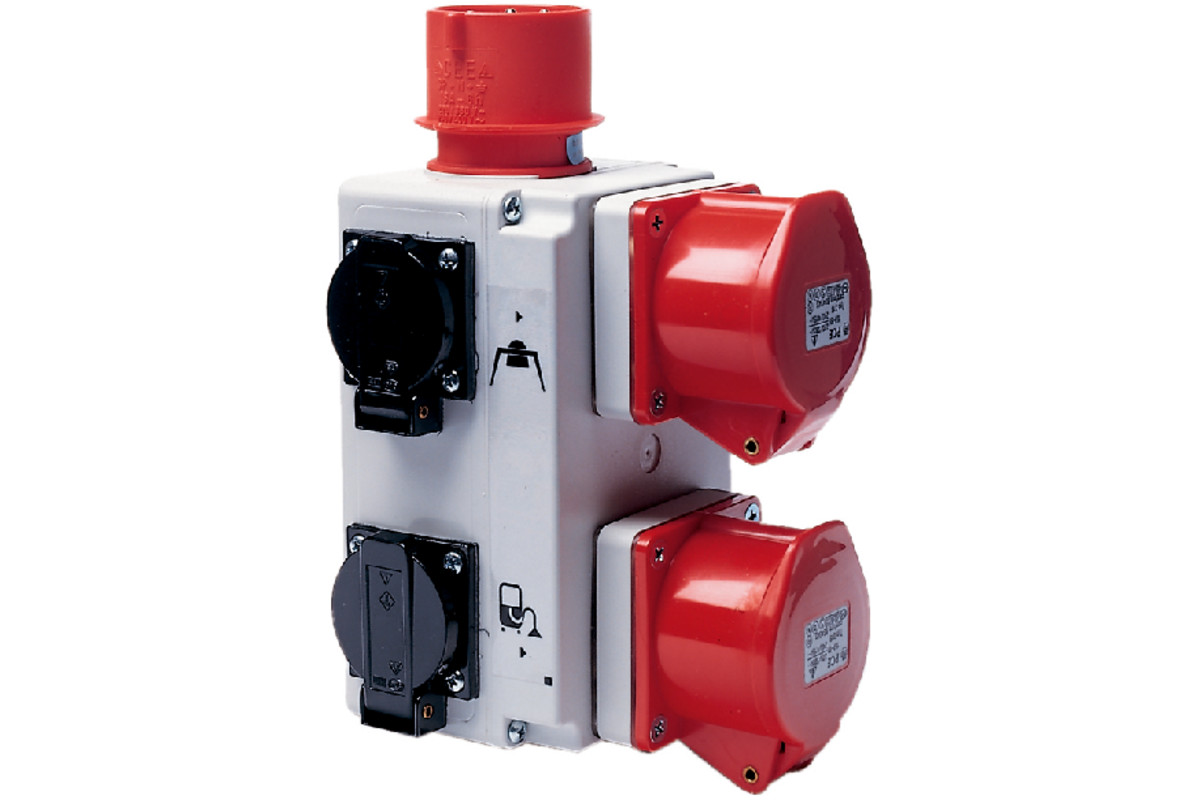

Automatic switch-on device ALV 10 (0913014634)

  • Automatic power on/off of the chip and dust extraction unit after the wood processing machine has been switched on or off
  • Time-delayed: in this way, even residual dust is extracted
  • 2 Alternating current sockets ( 230 V )
  • 2 Three-phase sockets ( 400 V )
  • Mains connection with phase inverter
  • Mains voltage: 220-240 V / 380-400 V
  • 4 Screwing options M5 x 7.2 mm
  • IP 44
The machine shown may differ in equiment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Mains voltage 230/400 V
Mains frequency 50 - 60 Hz
Fuse protection T 16 A
Dimensions 235 x 106 x 155
Suitable for SPA 1000 / SPA 1700 D / SPA 2000 D / SPA 1100 / SPA 1701 W / SPA 2001 W / SPA 2001 D / SPA 1101 / SPA 1702 W / SPA 2002 W / SPA 2002 D / SPA 1200
