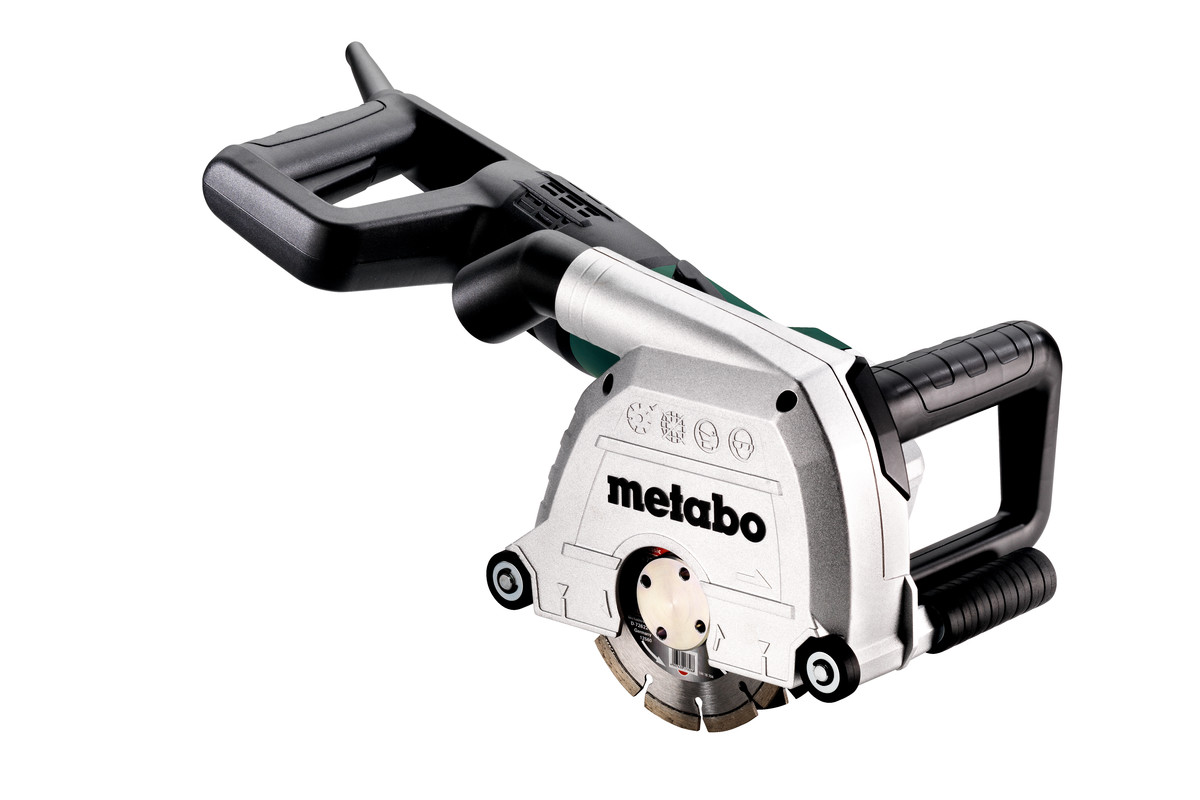

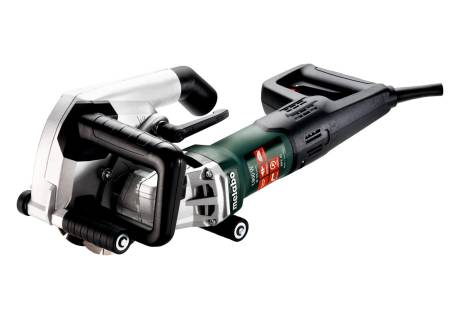

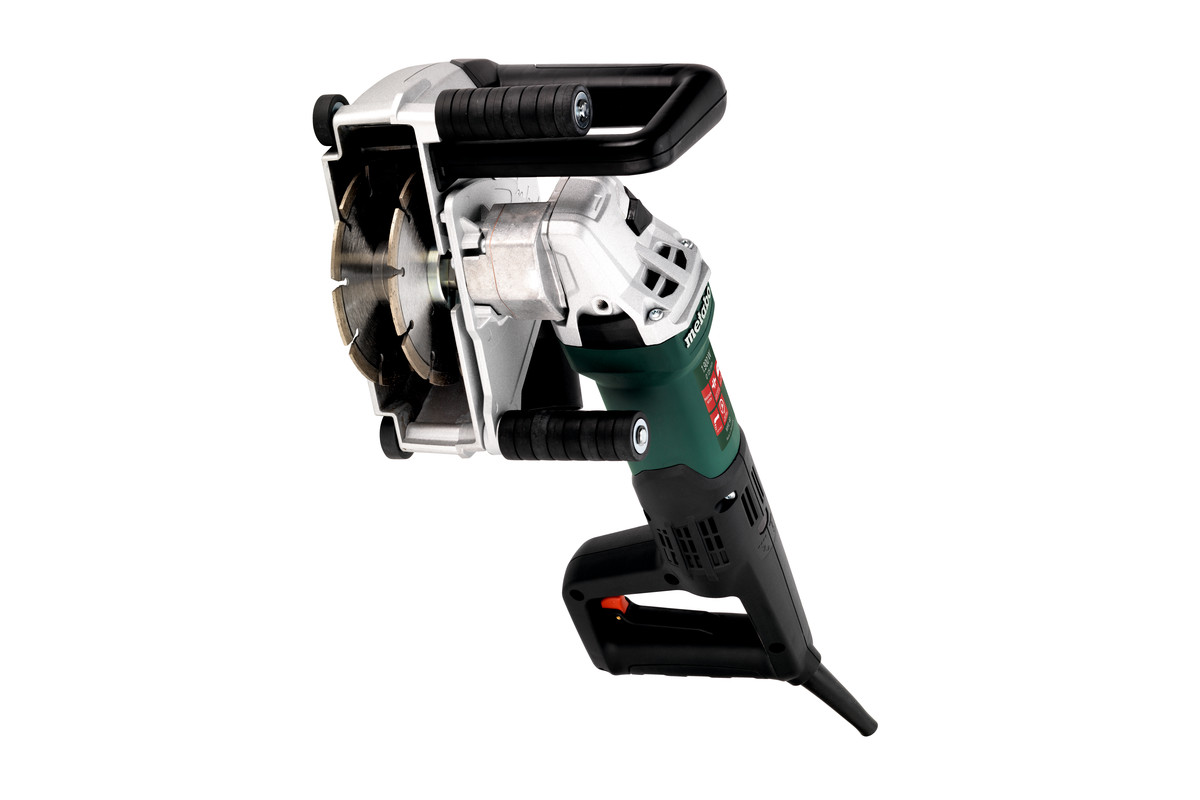

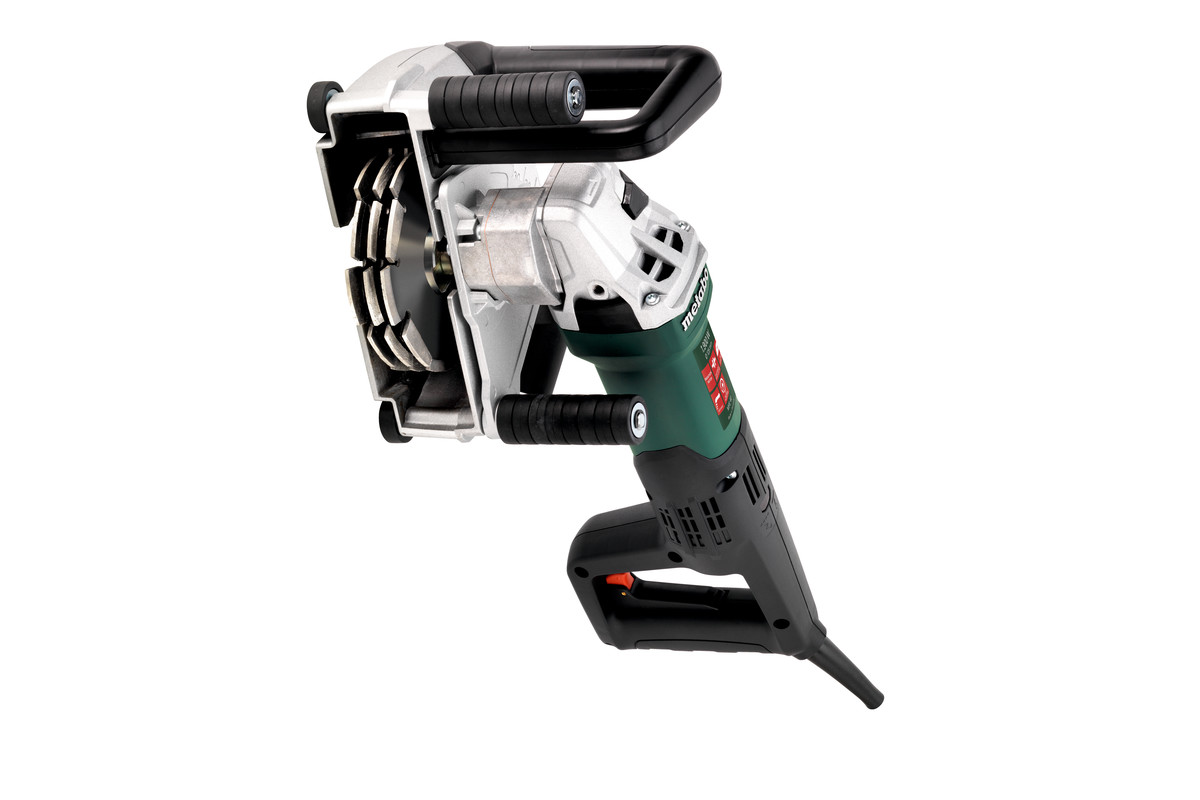

MFE 40 (604040620) Wall Chaser

Plastic Carry Case

Order no.: 604040620 EAN: 4007430327642
Amps:
15 AMPS
Adjustable cutting depth:
3/8 - 1 5/8 "
Possible groove widths:
3/8 / 5/8 / 7/8 / 1 1/8 / 1 3/8 "
Cutting disc Ø:
5 "
Rated input power:
1700 W
Weight (without power cable):
10.1 lbs
  • Ideal for electronic installation for wiring cables and empty pipes under plaster with cutting depths up to 40 mm
  • Maximum work progress thanks to strong motor, constant speed, and two-stage high-power drive
  • Ideal for electronic installation for wiring cables and empty pipes under plaster with cutting depths up to 40 mm
  • Maximum work progress thanks to strong motor, constant speed, and two-stage high-power drive
  • Robust cast aluminum cover with rubber rollers and optimum grip arrangement for comfortable machine guidance
  • Sliding cut for optimal view of the marking line
  • Channel width and cutting depth can be set
  • Metabo Marathon motor with patented dust protection for long service life
  • Tacho-Constamatic (TC)-Full Wave Electronics: fast work progress by means of constant speed under load
  • Electronic soft start and restart protection for safe work
  • LED signal informs about overload or active restart protection
  • Clean, low-dust work through connection to a Metabo all-purpose vacuum cleaner (certified with ASR 35 M ACP)
  • Suitable for cutting grooves up to 30 mm width without center bridge in one work step (with specialized accessories)
  • Also suitable for cutting with just one diamond cutting disc
  • Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive for safe working should the disc stop unexpectedly.
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Parameters
Amps
15 AMPS
Adjustable cutting depth
3/8 - 1 5/8 "
Possible groove widths
3/8 / 5/8 / 7/8 / 1 1/8 / 1 3/8 "
Cutting disc Ø
5 "
Rated input power
1700 W
Output power
950 W
No-load speed
5000 RPM
Revolutions at rated load
4400 RPM
Torque
6 Nm
Weight (without power cable)
10.1 lbs
Cable length
13 ft
Noise emission
Sound pressure level
93 dB(A)
Sound power level (LwA)
104 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Spacer rings
  • 2 Diamond cutting discs
  • Flange nut
  • Spanner wrench
  • Chase extraction chisel
  • Plastic carrying case
