• For tiles; enclosed edge

For tiles; enclosed edge

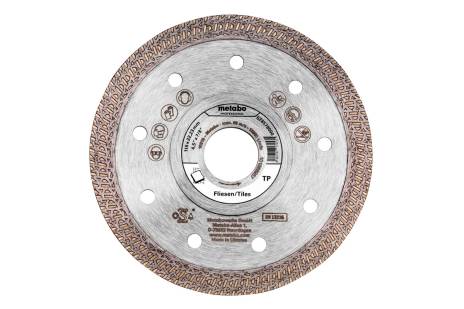

Diamond cutting disc 115x22.23mm, "TP", tiles "professional" (628578000)
Diamond cutting discs "professional" / TP
  • Powerful diamond cutting disc with closed edge for cutting without chipped edges on workpieces with high-quality surfaces with high cutting performance and very good tool life
  • Fast and clean cutting results thanks to extra thin steel blade with steel core reinforcement and particular cutting edge geometry
  • Particularly suited for: fine earthenware, tiles, natural stone slabs
  • Segment height 10 mm
Diameter x bore Segment dimensions Maximum speed Sales unit Packaging Order no.
115 x 22.23 mm 1.4 x 10 mm 13300 rpm 1 Cardboard box 628578000
125 x 22.23 mm 1.4 x 10 mm 12200 rpm 1 Cardboard box 628579000
230 x 22.23 mm 1.6 x 10 mm 6600 rpm 1 Cardboard box 628580000

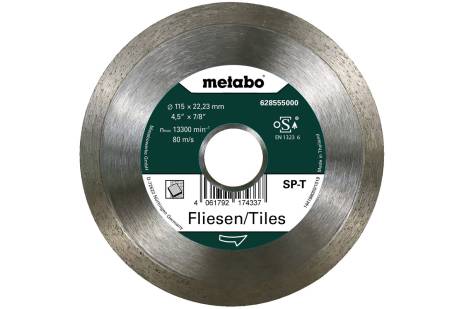

Diamond cutting disc SP - T, 115 x 22.23 mm, tiles (628555000)
Diamond cutting discs "SP" / SP-T
  • Standard diamond cutting disc with closed edge for cutting without chipped edges on workpieces with high-quality surfaces such as tiles, natural stone slabs
  • High cutting output and good tool life
  • Segment height 7 mm
  • Delivery in counter display when ordering 10 pieces
Diameter x bore Segment dimensions Maximum speed Sales unit Packaging Order no.
115 x 22.23 mm 1.5 x 7 mm 13300 rpm 1 Cardboard box 628555000
125 x 22.23 mm 1.5 x 7 mm 12200 rpm 1 Cardboard box 628556000
230 x 22.23 mm 1.65 x 7 mm 6600 rpm 1 Cardboard box 628557000
Diamond cutting disc 76x10mm, "TP", tiles "professional" (626874000)
Diamond cutting discs "professional" 76 mm / TP
  • Special disc to meet the highest demands for all types of tiles, glazed and unglazed, natural stone slabs, fine earthenware, ceramic
  • Optimum cutting quality and very long tool life thanks to optimised thin wall technology and adapted diamond structure
  • Sintered cutting edge, segment height: 6 mm
Diameter x bore Segment dimensions Maximum speed Sales unit Packaging Order no.
76 x 10 mm 1 x 6 mm 20100 rpm 1 Blister 626874000
