- Powerful, slim deep well pump for pumping up to 6,200 litres of clear water per hour from wells and shafts
- Powerful and quiet pump running gear with 8 gears for particularly high delivery rate
- Slim design for use in drilled wells from Ø 100 mm (4")
- Robust stainless steel housing and high-quality components for extremely long service life
- Maintenance-free motor for efficient, economical operation
- Overload protection: automatic shutdown if overheating is imminent, after cooling down the pump starts automatically
- Integrated check valve prevents dry running of the pump when it is switched off, enabling a short restart process
- Integrated filter and high-quality mechanical seal for reliable function, even in continuous mode
- Base for safe operation on the ground, removal optional for operation in a drilled well

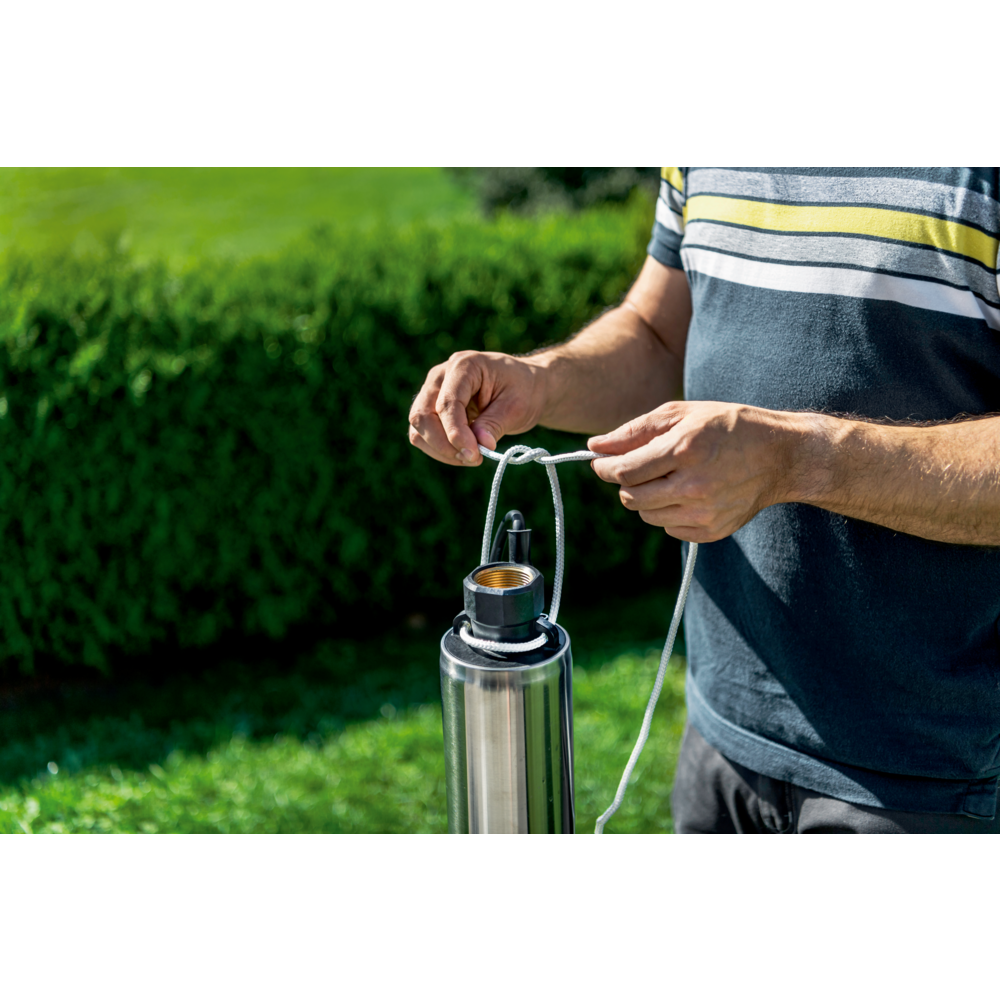

- Comfortable installation thanks to practical eyelets on the pump head for the lowering cable
Deep well pump

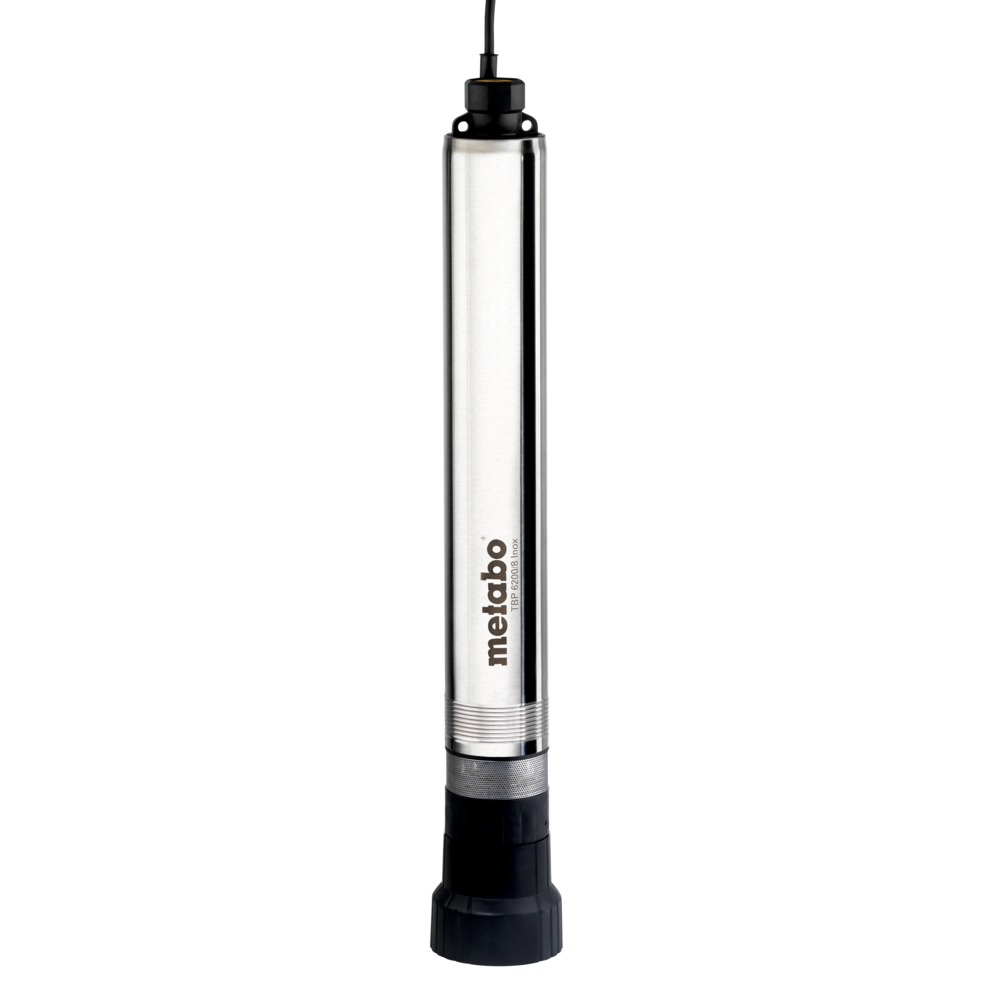

TBP 6200/8 Inox (610217000) Deep well pump
Order no.: 610217000
Your Delivery Scope
Base
Lowering cable
Screwdriver
- 1100 WRated input power
- 6200 l/h / 1638 gal/hMaximum delivery rate
- 55 m / 180 ftMaximum delivery height
- 19 m / 62 ftMaximum immersion depth
| Rated input power | 1100 W |
| Maximum delivery rate | 6200 l/h / 1638 gal/h |
| Maximum delivery height | 55 m / 180 ft |
| Maximum pressure | 5.5 bar / 79 psi |
| Maximum immersion depth | 19 m / 62 ft |
| Discharge port | 1 1/4" female thread |
| Pump housing | Stainless steel |
| Pump diameter | 98 mm |
| Protection type IP | IP X8 |
| Number of impellers | 8 |
| Dimensions | 124 x 124 x 816 mm // 4.882 x 4.882 x 32.126 " |
| Weight | 9.3 kg / 20.5 lbs |
| Cable length | 22 m / 72 ft |
| Base |
| Lowering cable |
| Screwdriver |
