- For automatic water supply, for garden irrigation and groundwater pumping as well as pumping, pumping empty, circulation of clear water
- Pressure vessel for energy-saving and low-noise provision of water
- Pressure switch at the tank for automatic activation in case of increased water demand
- Maintenance-free capacitor motor
- Overload protection: protects the motor from overheating
- High-quality slip seal system for long service life
- For garden irrigation with 1 to 6 sprinklers
- For single phase alternating current
Domestic waterwork

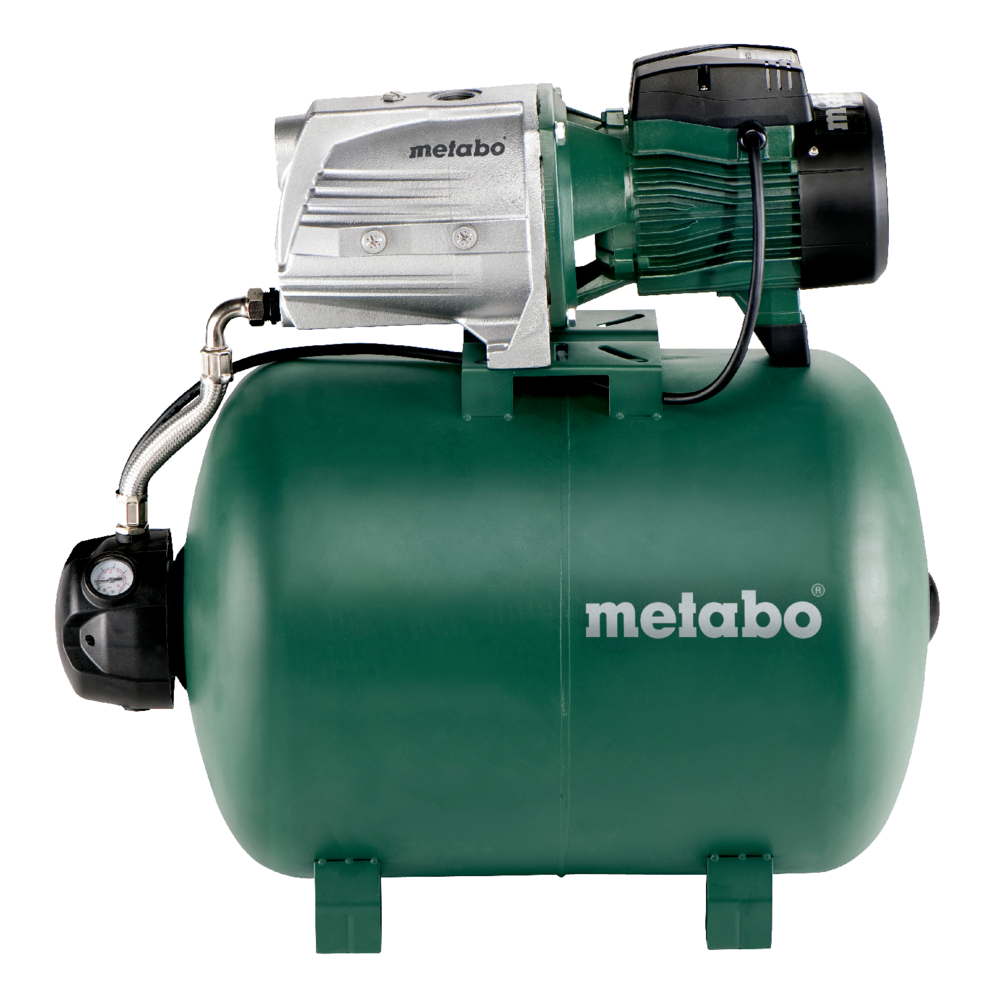

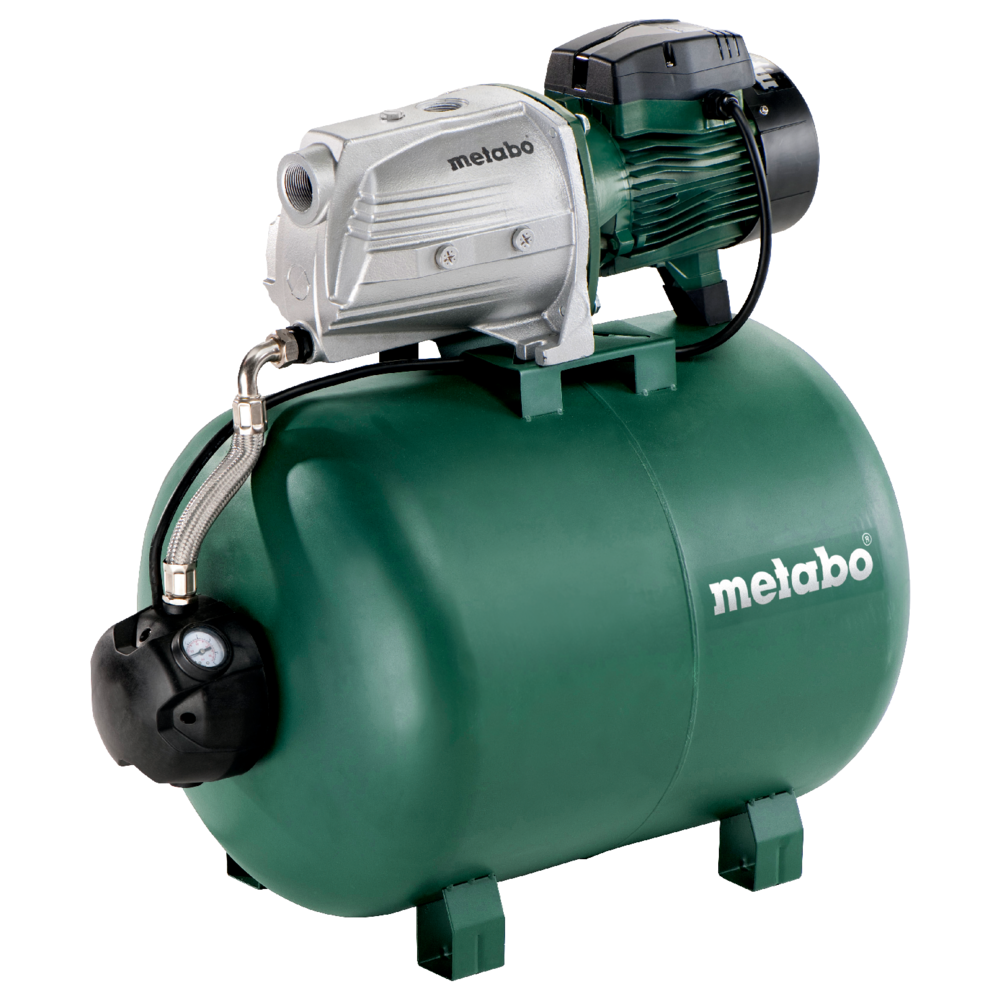

HWW 9000/100 G (600977000) Domestic waterwork
Order no.: 600977000
Your Delivery Scope
(220-240 V / 50 Hz)
Cardboard box
- 1900 WRated input power
- 9000 l/h / 2378 gal/hMaximum delivery rate
- 51 m / 167 ftMaximum delivery height
- 9 m / 30 ftMaximum suction height
- 100 l / 26.4 galTank capacity, approximately
| Rated input power | 1900 W |
| Maximum delivery rate | 9000 l/h / 2378 gal/h |
| Maximum delivery height | 51 m / 167 ft |
| Maximum pressure | 5.1 bar / 74 psi |
| Maximum suction height | 9 m / 30 ft |
| Switch-on pressure approx. | 1.5 bar / 21.8 psi |
| Switch-off pressure approx. | 3.9 bar / 56.6 psi |
| Suction port | 1 1/4" female thread |
| Discharge port | 1" female thread |
| Tank capacity, approximately | 100 l / 26.4 gal |
| Pump housing | Grey cast iron |
| Protection type IP | IP X4 |
| Drive shaft | Stainless steel |
| Tank | Steel |
| Number of impellers | 1 |
| Dimensions | 730 x 448 x 740 mm // 28 3/4 x 17 5/8 x 29 1/8 " |
| Weight | 39.9 kg / 83.6 lbs |
| Cable length | 1.5 m / 5 ft |
| Sound pressure level | 73 dB(A) |
| Sound power level (LwA) | 85.4 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
| Check Valve |
| Fabric Sealing Tape |
