- Automatic submersible pressure pump for garden irrigation and supplying other devices from lower-lying sources, such as wells or cisterns
- Powerful, 4-stage pump drive ensures constant, high pressure

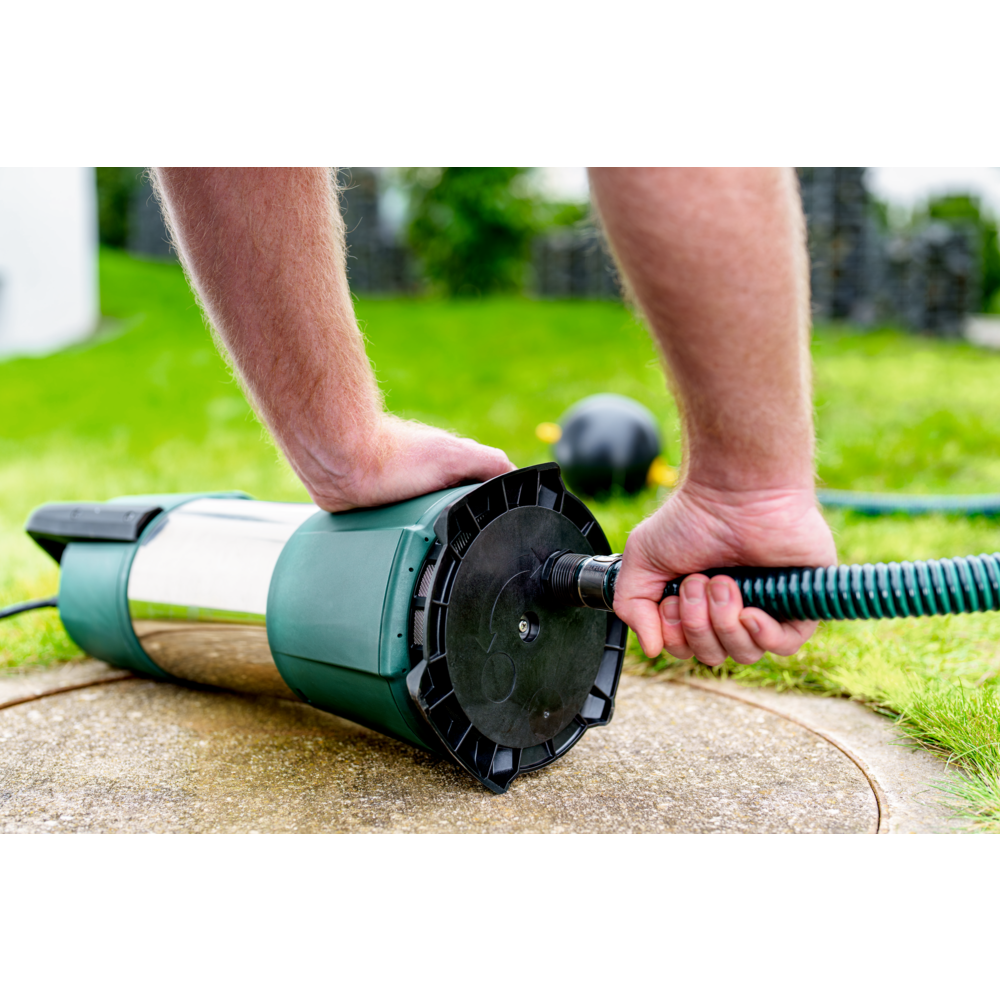

- Floating intake on the surface of the water in case of sediment load can be installed quickly and easily
- Auto start: the pump switches on automatically when water is needed, then off again
- Up to 3 sprinklers can be connected to the pump at the same time
- Overload protection: protects the motor from overheating
- Integrated check valve reliably prevents water from flowing back into the pump
- Pump has a long service life thanks to a robust housing made of corrosion-resistant stainless steel, an integrated filter and high-quality mechanical seal
- Ergonomic handle for comfortable transport

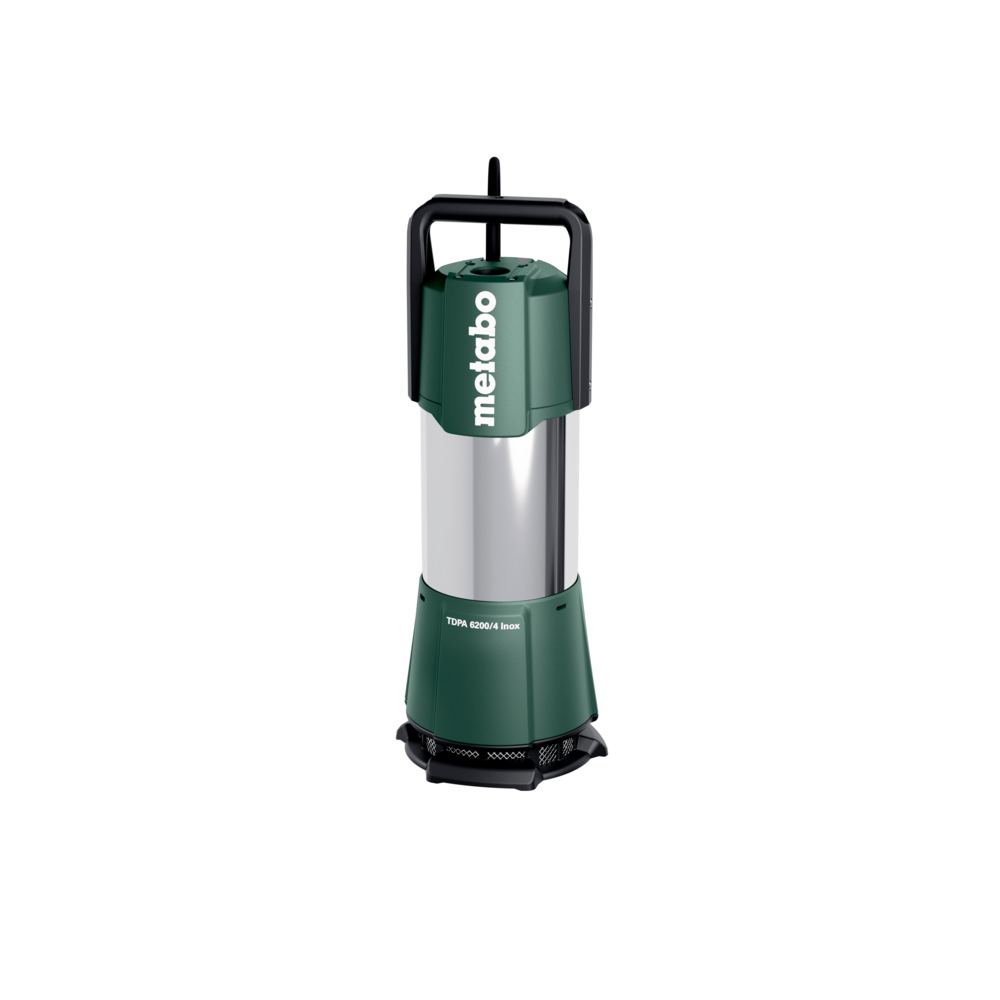

Submersible pressure pump
TDPA 6200/4 Inox (601773000) Submersible pressure pump
Order no.: 601773000
Your Delivery Scope

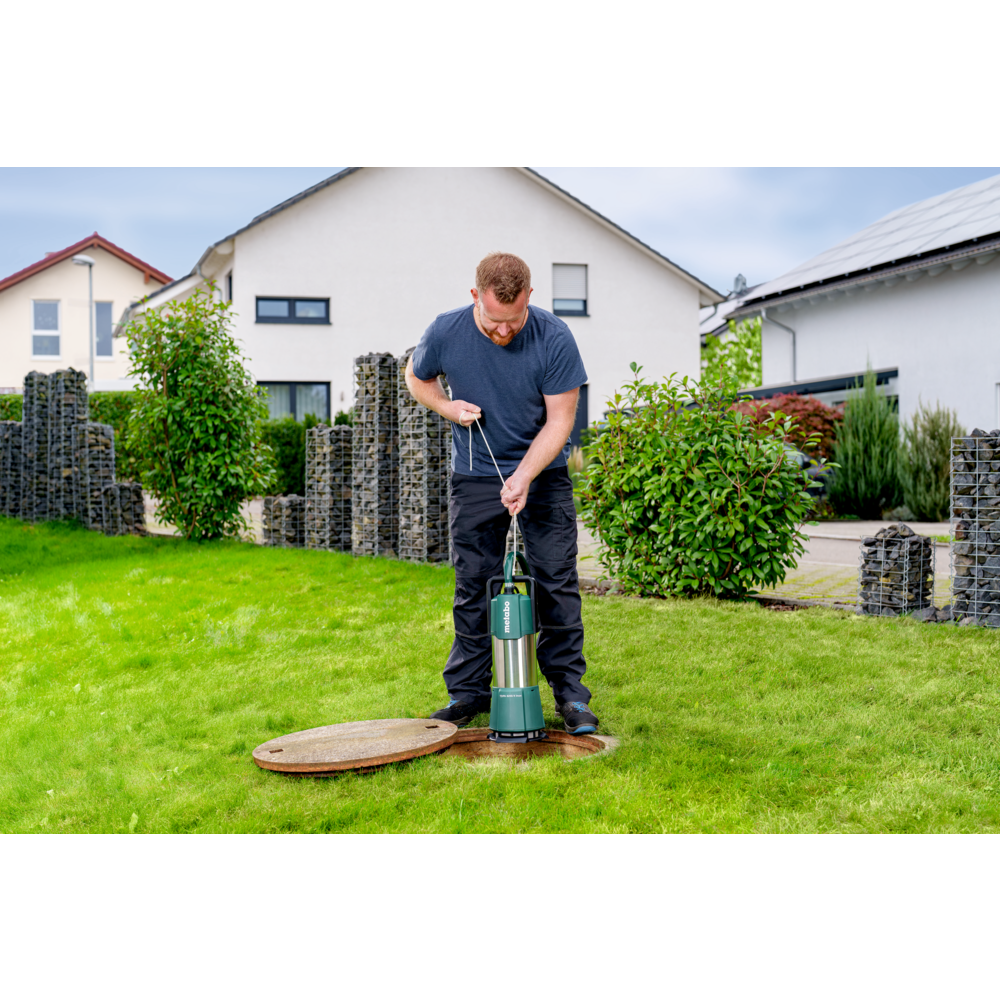

Lowering cable
- 1100 WRated input power
- 6200 l/h / 1638 gal/hMaximum delivery rate
- 47 m / 154 ftMaximum delivery height
- 12 m / 39 ftMaximum immersion depth
| Rated input power | 1100 W |
| Maximum delivery rate | 6200 l/h / 1638 gal/h |
| Maximum delivery height | 47 m / 154 ft |
| Maximum pressure | 4.7 bar / 68 psi |
| Maximum immersion depth | 12 m / 39 ft |
| Discharge port | 1" female thread |
| Pump housing | Stainless steel/plastic |
| Protection type IP | IP X8 |
| Maximum particle size up to | 1 |
| Number of impellers | 4 |

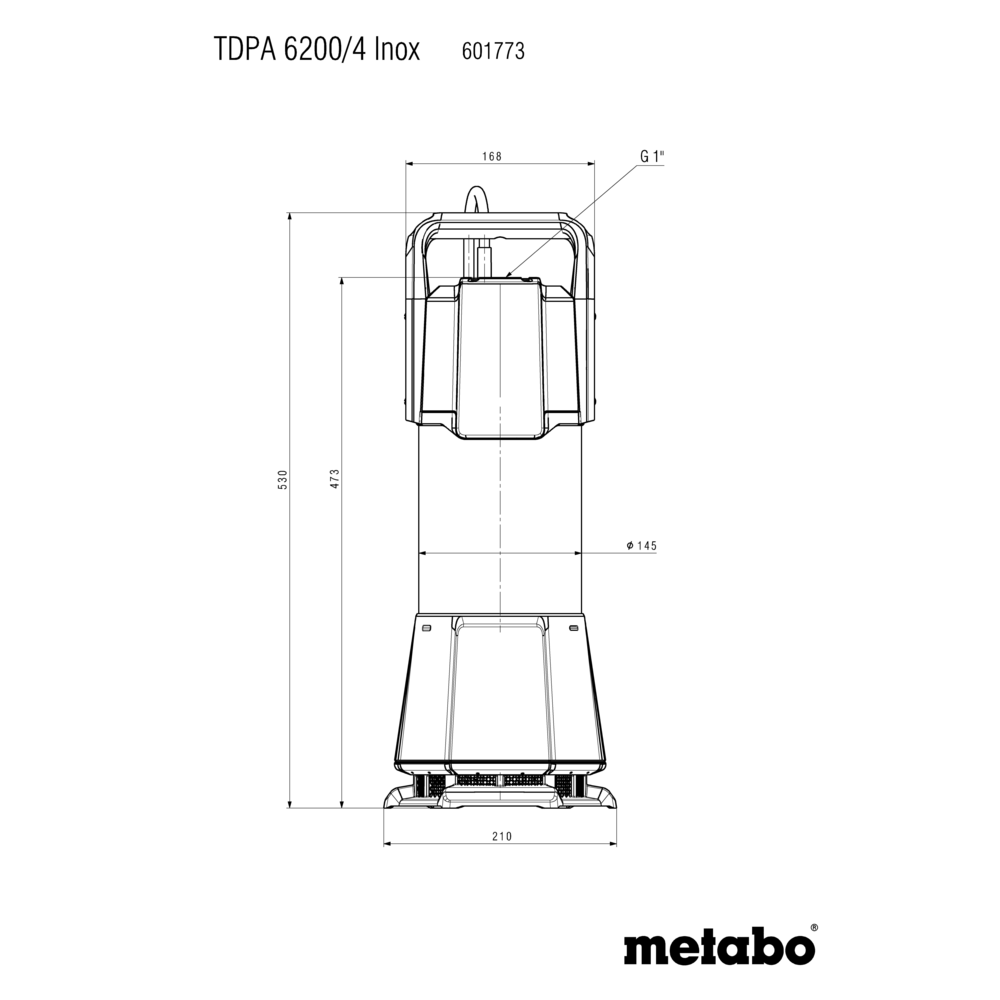

| Dimensions | 210 x 189 x 530 mm // 8 1/4 x 7.4 x 20.9 " |
| Weight | 8.2 kg / 18.1 lbs |
| Cable length | 15 m / 49 ft |
| Lowering cable |
