- Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly
- Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
- Large cutting capacity thanks to sliding function for wide work pieces
- Turntable with fast, precise setting of common angles using stop points
- Saw blade inclination from -2 to 47°, therefore also suited for undercuts
- Robust die-cast aluminium design for the highest demands
- Effective dust extraction via integrated dust scoop
- Soft start for long service life of motor and drive
- Extendable table width extensions, also removable to put underneath extremely long work pieces
- Quick-action clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- All scales and operating elements are visible from the working position and can be operated intuitively
- Ergonomic handle areas for carrying with one or two hands
Mitre saw

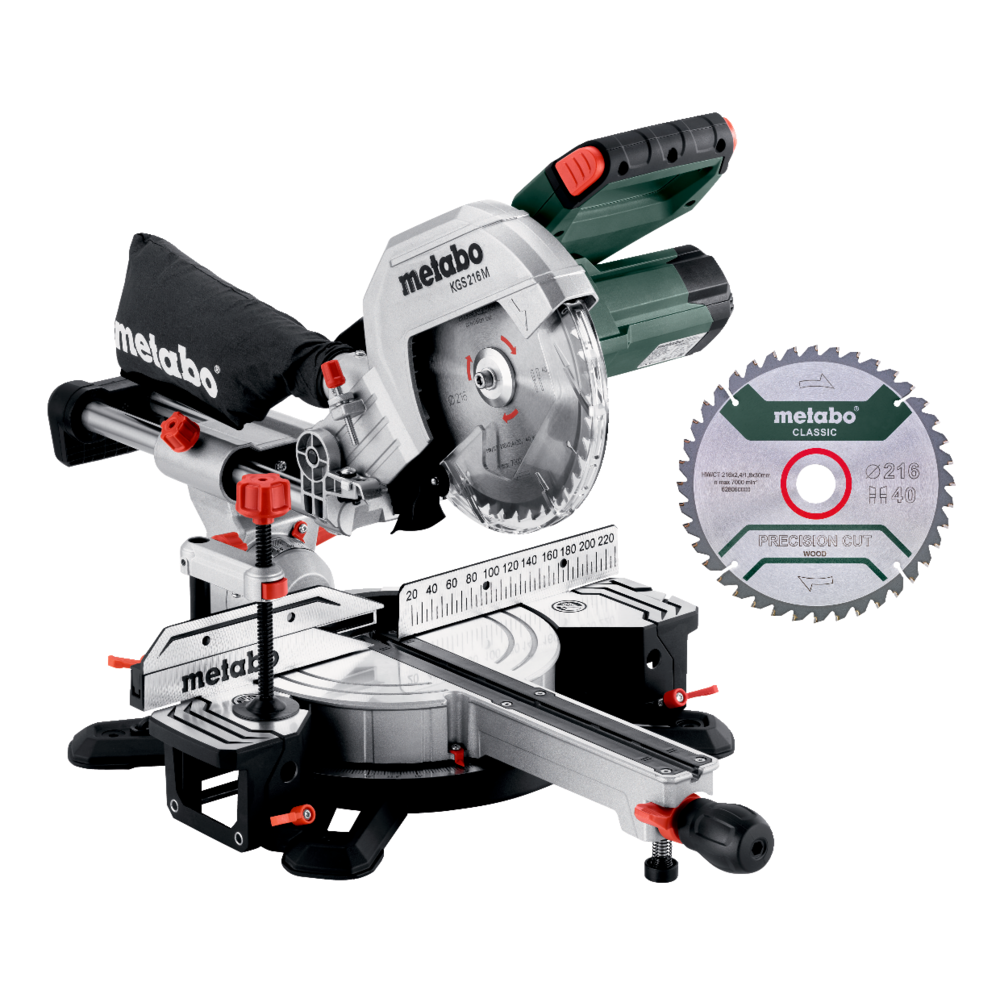

KGS 216 M Set (613216900) Mitre saw
Order no.: 613216900
Your Delivery Scope
(220-240 V / 50 - 60 Hz)
Cardboard box
with 2. carbide saw blade
- 305 / 215 mm // 12 / 8 1/2 "Maximum cutting width 90°/45°
- 70 / 40 mm // 2 3/4 / 1.57 "Maximum cutting depth at 90°/45°
- 1200 WRated input power S1 100%
- 1500 WRated input power S6 20%
| Dimensions | 710 x 476 x 512 mm // 27.95 x 18.74 x 20.15 " |
| Support surface | 345 x 730 mm // 13 1/2 x 28 3/4 " |
| Maximum cutting width 90°/45° | 305 / 215 mm // 12 / 8 1/2 " |
| Maximum cutting depth at 90°/45° | 70 / 40 mm // 2 3/4 / 1.57 " |
| Cutting capacity 90°/90° | 305 x 70 mm // 12 x 2 3/4 " |
| Cutting capacity 45°/45° | 215 x 40 mm // 8 1/2 x 1.57 " |
| Turntable setting left/right | 50 / 50 ° |
| Saw blade tilt left/right | 47 / 2 ° |
| Saw blade | 216 x 30 mm // 8 1/2 x 1.181 " |
| Rated input power S1 100% | 1200 W |
| Rated input power S6 20% | 1500 W |
| No-load speed | 5000 rpm |
| Speed at rated load | 3750 rpm |
| Cutting speed | 57 m/s // 187 ft/min |
| Weight | 13.4 kg / 29.54 lbs |
| Cable length | 2 m / 7 ft |
| Sound pressure level | 85 dB(A) |
| Sound power level (LwA) | 98 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
| Saw blade "precision cut wood - classic", 216x30, Z40 |
| second cabide saw blade |
| 2 Table length extensions |
| Length Guide |
| Material clamp |
| Tool for saw blade change |
| Cable winder |
| Chip Collection Bag |
