Mitre saw | (220-240 V / 50 - 60 Hz)

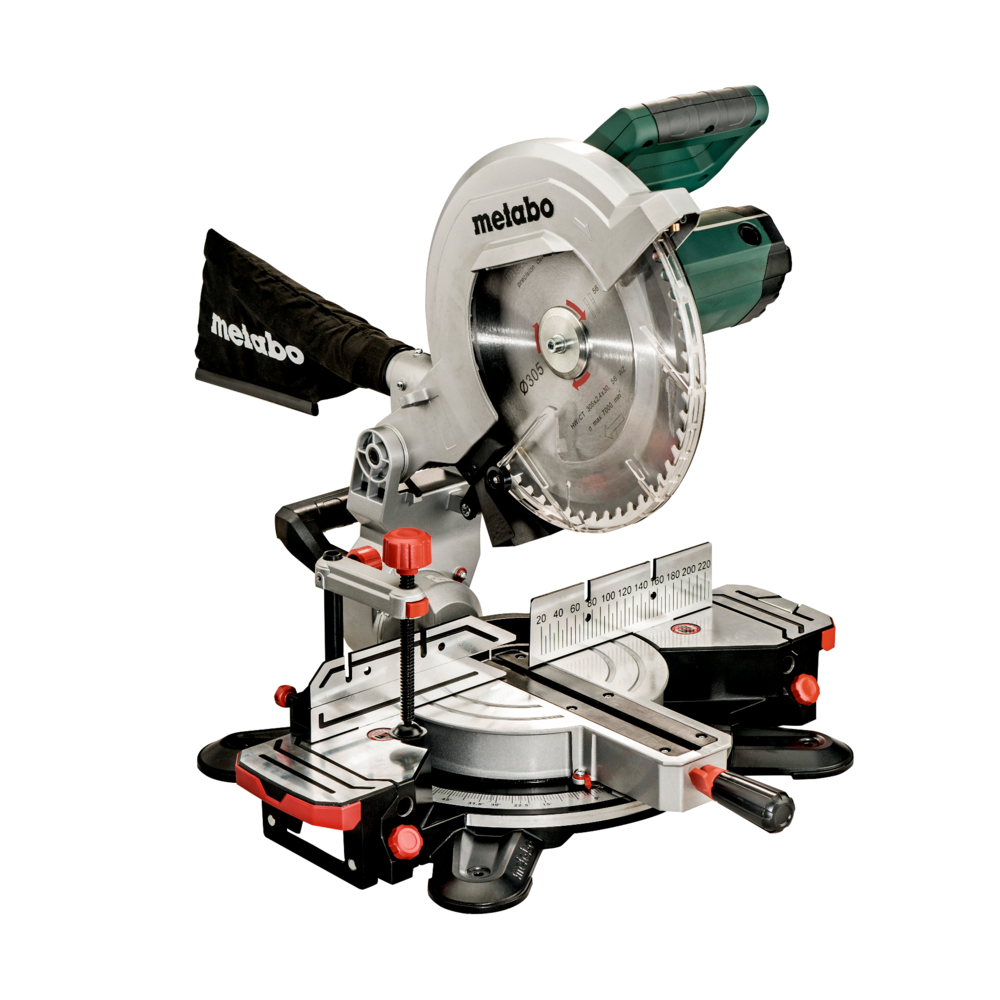

KS 305 M (619003000) Mitre saw | (220-240 V / 50 - 60 Hz)
Order no.: 619003000
Your Delivery Scope
Carbide saw blade (56 teeth)
2 Table length extensions
Length Guide
- 200 / 140 mm // 7 7/8 / 5 1/2 "Maximum cutting width 90°/45°
- 102 / 60 mm // 4 / 2 3/8 "Maximum cutting depth at 90°/45°
- 1600 WRated input power S1 100%
- 2000 WRated input power S6 20%
- Highest precision from direct saw head mount.
- Compact light weight, suitable also for one-handed transport
- Robust die-cast aluminium design for the highest demands
- Easy transport thanks to ergonomically-designed handles and saw head lock
- Effective dust extraction via integrated dust scoop
- Fast and precise setting of common angles using stop points
- Laser for exact display of the cutting line (mains powered, no batteries required)
- Extendable table width extensions, also removable to put underneath extremely long work pieces
- Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
- Sliding high rear fence profiles for safe sawing
- Quick-action clamp for secure fixing of the work piece from the top or front
- Saw head can be inclined to the left, with additional angle range for undercuts
- All scales and operating elements are visible from the working position and can be operated intuitively
- Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
| Dimensions | 600 x 600 x 600 mm // 23 5/8 x 23 5/8 x 23 5/8 " |
| Support surface | 340 x 775 mm // 13 3/8 x 30 1/2 " |
| Maximum cutting width 90°/45° | 200 / 140 mm // 7 7/8 / 5 1/2 " |
| Maximum cutting depth at 90°/45° | 102 / 60 mm // 4 / 2 3/8 " |
| Cutting capacity 90°/90° | 200 x 80 mm // 7 7/8 x 3 5/32 " |
| Cutting capacity 45°/45° | 130 x 45 mm // 5 1/8 x 1 25/32 " |
| Turntable setting left/right | 52 / 52 ° |
| Saw blade tilt left/right | 47 / 2 ° |
| Saw blade | 305 x 30 mm // 12 x 1 3/16 " |
| Rated input power S1 100% | 1600 W |
| Rated input power S6 20% | 2000 W |
| No-load speed | 3700 rpm |
| Speed at rated load | 2600 rpm |
| Cutting speed | 60 m/s // 197 ft/s |
| Weight | 17 kg / 37.5 lbs |
| Cable length | 2 m / 6.5 ft |
| Sound pressure level | 97 dB(A) |
| Sound power level (LwA) | 104 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
| Carbide saw blade (56 teeth) |
| 2 Table length extensions |
| Length Guide |
| Supplementary Fence |
| Material clamp |
| Tool for saw blade change |
| Cable winder |
| Chip Collection Bag |
