- Light, compact circular saw for universal construction site use
- Extraction possibility by means of connecting an all-purpose vacuum cleaner
Circular saw | (220-240 V / 50 - 60 Hz)

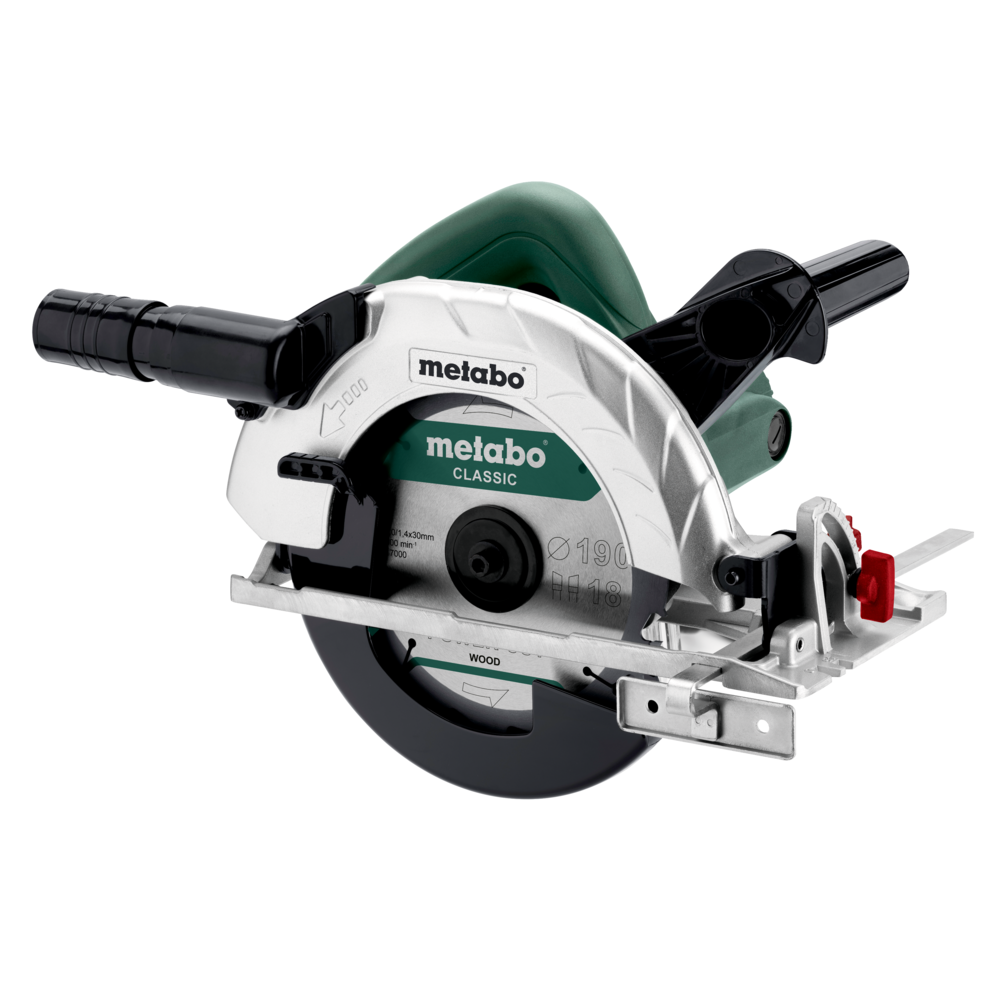

KS 190 (602364250) Circular saw | (220-240 V / 50 - 60 Hz)
Order no.: 602364250
Your Delivery Scope
Carbide circular saw blade (18 teeth)
Parallel guide
Hexagonal wrench
- 1050 WRated input power
- 65 mm / 2.559 "Maximum cutting depth at 90°
- 184.15 x 15.9 mm // 7 1/4 x 5/8 "Saw blade Ø x bore
- 5800 rpmNo-load speed
| Rated input power | 1050 W |
| Maximum cutting depth at 90° | 65 mm / 2.559 " |
| Maximum cutting depth at 45° | 44 mm / 1.732 " |
| Saw blade Ø x bore | 184.15 x 15.9 mm // 7 1/4 x 5/8 " |
| Swivel range from / to: | + 0 / + 45 ° |
| No-load speed | 5800 rpm |
| Max. cutting speed | 57.7 m/s / 189.7 ft/s |
| Weight (without power cable) | 3.4 kg |
| Cable length | 2.44 m / 8 ft |
| Sawing chipboards | 3.2 m/s² |
| Uncertainty of measurement K | 1.5 m/s² |
| Sound pressure level | 100 dB(A) |
| Sound power level (LwA) | 108 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
| Carbide circular saw blade (18 teeth) |
| Parallel guide |
| Hexagonal wrench |
