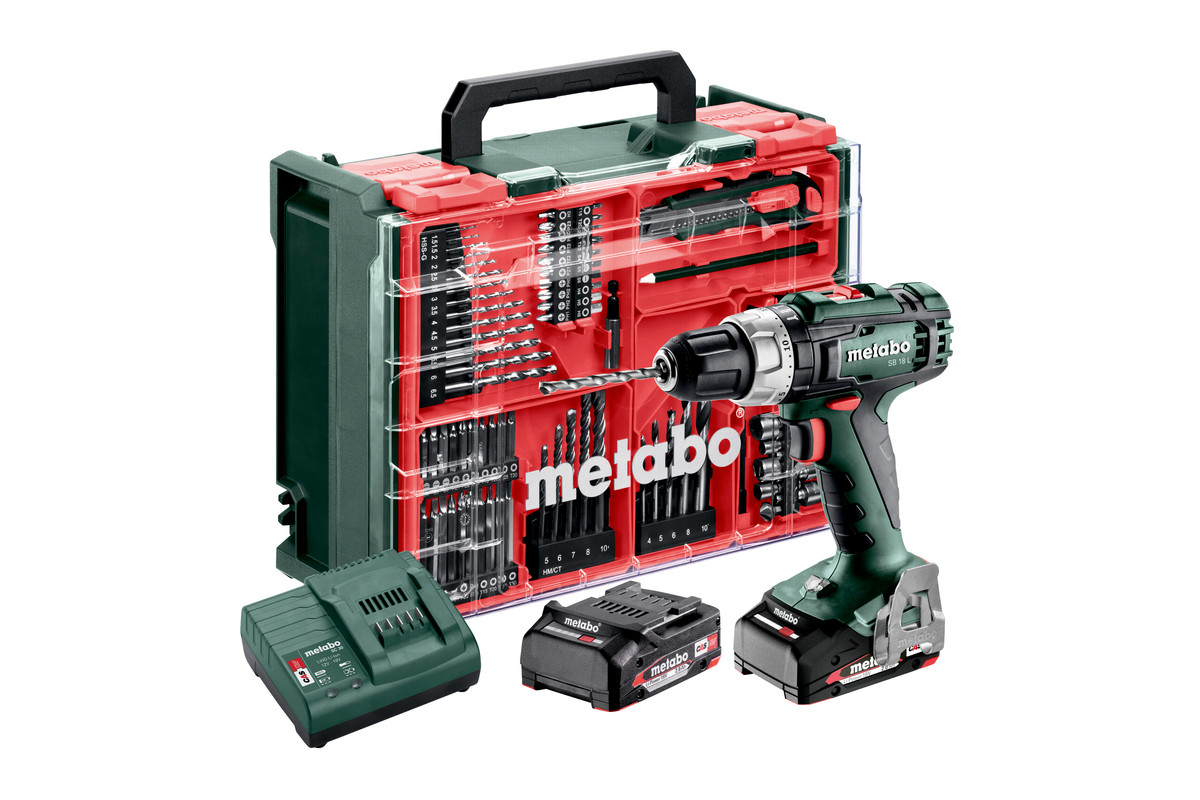

SB 18 L Set (602317710) Cordless hammer drill

18V 2x2Ah LiPOWER; Charger SC 36 (220-240 V / 50 - 60 Hz); Plastic Carry Case; with 78-piece mobile workshop

SB 18 L Set (602317710) Cordless hammer drill
Order no.: 602317710 EAN: 4061792249530
Battery voltage:
18 V
Maximum torque, soft:
25 Nm / 221.3 in-lbs
Maximum torque, hard:
50 Nm / 442.5 in-lbs
Drill-Ø masonry:
10 mm / 3/8 "
Drill Ø steel:
10 mm / 3/8 "
Drill-Ø soft wood:
20 mm / 25/32 "
No-load speed:
450 / 1800 rpm
  • Reliable, powerful hammer drill for all standard drilling and screwdriving applications
  • Hammer drill function for drilling in masonry
  • Mobile workshop (78 pieces): 5 wood drill bits (4/5/6/8/10mm), 5 masonry drill bits (5/6/7/8/10mm), 14 HSS drill bits (1.5/1.5/2/2/2.5/3/3/3.5/4/4.5/5/5.5/6/6.5mm), 20 screwdriver bits length 25mm (PH1/PH2/PH2/PH3/PZ1/PZ2/PZ2/PZ2/PZ3/H3/H4/H5/H6/T15/T20/T25/T30/S4/S5/S6), 10 screwdriver bits length 50mm (S4/S5/S6/PZ1/PZ2/PZ3/T15/T20/T25/T30), 10 screwdriver bits length 75mm (S4/S5/S6/PZ1/PZ2/PZ3/T15/T20/T25/T30), bit holder (60mm), 8 socket wrench (6/7/8/9/10/11/12/13mm), countersink (12.7mm), centering pin (5x100mm), cutter knife with 2 spare blades, measuring tape (3m/10"), pencil (HB)
  • Integrated LED work light with afterglow function for optimal brightness in the work area
more product information
Manual Spare-parts list
  • Reliable, powerful hammer drill for all standard drilling and screwdriving applications
  • Hammer drill function for drilling in masonry
  • Mobile workshop (78 pieces): 5 wood drill bits (4/5/6/8/10mm), 5 masonry drill bits (5/6/7/8/10mm), 14 HSS drill bits (1.5/1.5/2/2/2.5/3/3/3.5/4/4.5/5/5.5/6/6.5mm), 20 screwdriver bits length 25mm (PH1/PH2/PH2/PH3/PZ1/PZ2/PZ2/PZ2/PZ3/H3/H4/H5/H6/T15/T20/T25/T30/S4/S5/S6), 10 screwdriver bits length 50mm (S4/S5/S6/PZ1/PZ2/PZ3/T15/T20/T25/T30), 10 screwdriver bits length 75mm (S4/S5/S6/PZ1/PZ2/PZ3/T15/T20/T25/T30), bit holder (60mm), 8 socket wrench (6/7/8/9/10/11/12/13mm), countersink (12.7mm), centering pin (5x100mm), cutter knife with 2 spare blades, measuring tape (3m/10"), pencil (HB)
  • Integrated LED work light with afterglow function for optimal brightness in the work area
  • With handy belt hook and bit case which can be fixed either on the right or left side
  • Many brands, one battery pack system: This product can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-systems.com
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics
Type of battery pack
LiPOWER
Battery voltage
18 V
Battery pack capacity
2 x 2 Ah
Maximum torque, soft
25 Nm / 221.3 in-lbs
Maximum torque, hard
50 Nm / 442.5 in-lbs
Adjustable torque
1.5 - 6 Nm // 13.3 - 53.1 ft. lbs
Drill-Ø masonry
10 mm / 3/8 "
Drill Ø steel
10 mm / 3/8 "
Drill-Ø soft wood
20 mm / 25/32 "
No-load speed
450 / 1800 rpm
Maximum impact rate
27000 bpm
Chuck capacity
1.5 - 13 mm // 1/16 - 1/2 "
Weight without battery pack
1.2 kg / 2.6 lbs
Weight with battery pack
1.7 kg / 3.7 lbs
Vibration
Drilling in metal
2.8 m/s²
Uncertainty of measurement K
1.5 m/s²
Impact drilling concrete
21.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission
Sound pressure level
89 dB(A)
Sound power level (LwA)
100 dB(A)
Uncertainty of measurement K
3 dB(A)
  • Keyless chuck
  • Charger SC 36
  • Plastic carry case
  • Accessory set
  • Belt hook and bit case
  • 2 LiPOWER Battery Packs (18 V/2.0 Ah)
