Combo Set 5.2 (685213000) Cordless tools in a set

18V; Tool bag; BS 18 LTX BL + KH 18 LTX 24 + W 18 L 9-125 Quick + SSW 18 LTX 300 BL + R 12-18 DAB BT

Combo Set 5.2 (685213000) Cordless tools in a set
Pictures may differ
Order no.: 685213000 EAN: 4061792224667
  • Cordless drill/screwdriver BS 18 LTX BL I: brushless drill/screwdriver with maximum power for the toughest applications
  • Cordless impact wrench SSW 18 LT 300 BL: Compact brushless cordless impact wrench with 1/2" male square and 300 Nm for versatile applications
  • Cordless angle grinder W 18 9-125 Quick: Robust angle grinder with powerful motor and slim design for universal applications
  • Cordless combination hammer KH 18 LTX 24: combination hammer with 3 functions: hammer drilling, drilling and chiselling
  • Cordless worksite radio R 12-18 DAB+ BT: Robust worksite radio with digital DAB+ reception, top sound quality and many additional functions
Manual SSW 18 LTX 300 BL (602395890) Cordless impact wrench Spare-parts list SSW 18 LTX 300 BL (602395890) Cordless impact wrench
show more show less
  • Cordless drill/screwdriver BS 18 LTX BL I: brushless drill/screwdriver with maximum power for the toughest applications
  • Cordless impact wrench SSW 18 LT 300 BL: Compact brushless cordless impact wrench with 1/2" male square and 300 Nm for versatile applications
  • Cordless angle grinder W 18 9-125 Quick: Robust angle grinder with powerful motor and slim design for universal applications
  • Cordless combination hammer KH 18 LTX 24: combination hammer with 3 functions: hammer drilling, drilling and chiselling
  • Cordless worksite radio R 12-18 DAB+ BT: Robust worksite radio with digital DAB+ reception, top sound quality and many additional functions
The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to delivery scope and product description.
Accessories included only if listed in the delivery scope.
Characteristics SSW 18 LTX 300 BL (602395890) Cordless impact wrench
Battery voltage
18 V
Max. screw size
M18
Max. no-load speed
0 - 2650 rpm
Maximum impact rate
3750 bpm
Maximum torque
300 Nm / 220 ft. lbs
Max. loosening torque
480 Nm / 355 ft. lbs
Speed/torque levels
12
Bit retainer
Male square 1/2" (12.70 mm)
Weight without battery pack
1.1 kg / 2.4 lbs
Weight with battery pack
1.7 kg / 3.7 lbs
Characteristics R 12-18 DAB+ BT (600778850) Cordless worksite radio
Battery voltage
12 - 18 V
Max. runtime per battery charge
18 V / LiHD 8.0 Ah: 32 h
Radio frequency AM
522 - 1620 kHz
Radio frequency FM
87.5 - 108 MHz
Weight without battery pack
1.9 kg / 4.2 lbs
Weight with battery pack
2.1 kg / 4.6 lbs
Characteristics BS 18 LTX BL I (602358850) Cordless drill / screwdriver
Battery voltage
18 V
Maximum torque, soft
65 Nm / 575 ft. lbs
Pulse torque
65 Nm / 575 in-lbs
Maximum torque, hard
130 Nm / 1151 ft. lbs
Adjustable torque
1 - 20 Nm // 9 - 177 in-lbs
Drill Ø steel
13 mm / 1/2 "
Drill-Ø soft wood
68 mm / 2.68 "
No-load speeds
0 - 550 / 0 - 2000 rpm
Chuck capacity
1.5 - 13 mm // 1/16 - 1/2 "
Collar diameter
43 mm / 1 11/16 "
Weight without battery pack
1.7 kg / 3.7 lbs
Weight with battery pack
2.2 kg / 4.9 lbs
Characteristics W 18 L 9-125 Quick (602249850) Cordless angle grinder
Battery voltage
18 V
Disc-Ø
125 mm / 5 "
Max. cutting depth
34 / 1.339
No-load speed
8500 rpm
Spindle thread
M 14
Handle circumference
191 mm / 7.52 "
Weight without battery pack
1.6 kg
Weight with battery pack
2.3 kg
Characteristics KH 18 LTX 24 (601712850) Cordless hammer
Battery voltage
18 V
Max. single blow energy (EPTA)
2.1 J
Maximum impact rate
5200 bpm
Drill-Ø concrete with hammer drills
24 mm / 1 "
Drill-Ø masonry with core bits
68 mm / 2 11/16 "
Drill Ø steel
13 mm / 1/2 "
Drill-Ø soft wood
30 mm / 1 3/16 "
No-load speed
0 - 1400 rpm
Bit retainer
SDS-plus
Weight without battery pack
2.6 kg / 5.73 lbs
Vibration SSW 18 LTX 300 BL (602395890) Cordless impact wrench
Impact screwdriving
7 m/s²
Uncertainty of measurement K
1.5 m/s²
Vibration BS 18 LTX BL I (602358850) Cordless drill / screwdriver
Drilling in metal
2.2 m/s²
Uncertainty of measurement K
1.5 m/s²
Vibration W 18 L 9-125 Quick (602249850) Cordless angle grinder
Surface grinding
5 m/s²
Uncertainty of measurement K
1.5 m/s²
Grinding with sandpaper
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Vibration KH 18 LTX 24 (601712850) Cordless hammer
Hammer drilling concrete
11.5 m/s²
Uncertainty of measurement K
1.5 m/s²
Chiseling
7.8 m/s²
Uncertainty of measurement K
1.5 m/s²
Noise emission SSW 18 LTX 300 BL (602395890) Cordless impact wrench
Sound pressure level
95 dB(A)
Sound power level (LwA)
106 dB(A)
Uncertainty of measurement K
3 dB(A)
Noise emission BS 18 LTX BL I (602358850) Cordless drill / screwdriver
Sound pressure level
76 dB(A)
Sound power level (LwA)
87 dB(A)
Uncertainty of measurement K
3 dB(A)
Noise emission W 18 L 9-125 Quick (602249850) Cordless angle grinder
Sound pressure level
86 dB(A)
Sound power level (LwA)
97 dB(A)
Uncertainty of measurement K
3 dB(A)
Noise emission KH 18 LTX 24 (601712850) Cordless hammer
Sound pressure level
91 dB(A)
Sound power level (LwA)
98 dB(A)
Uncertainty of measurement K
3 dB(A)

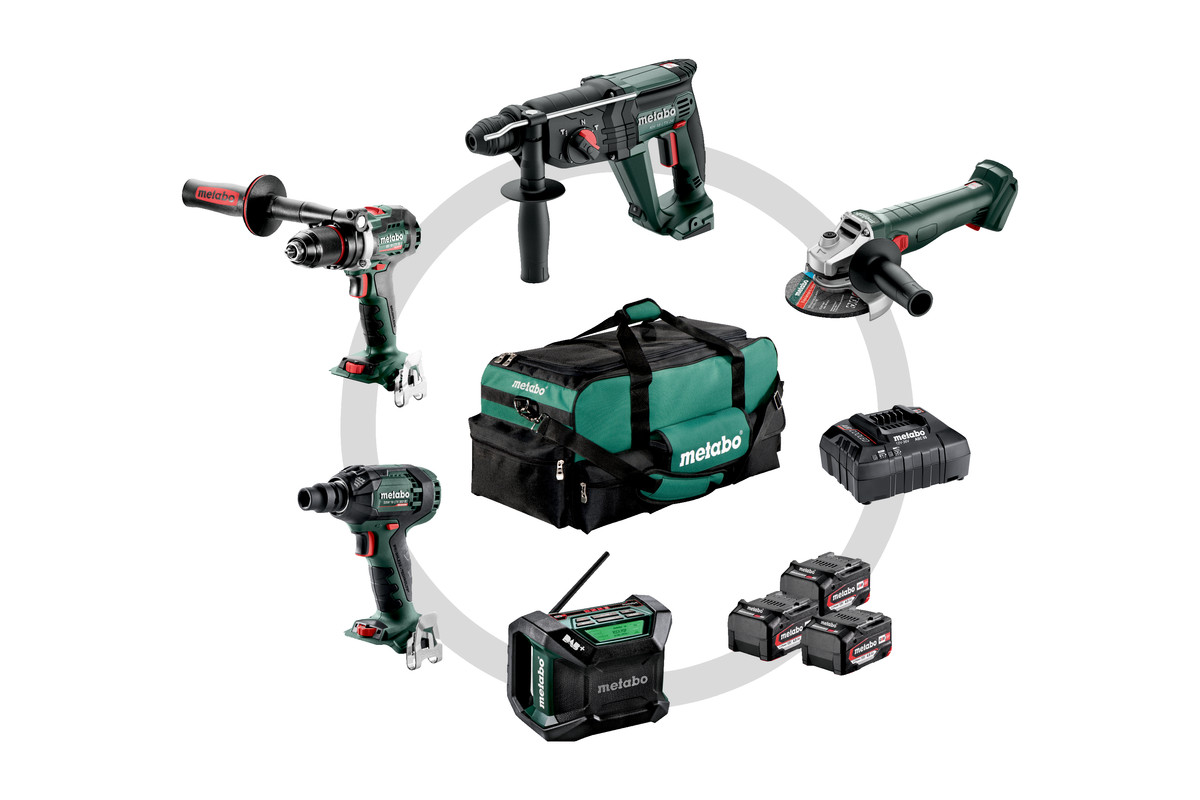

  • Cordless drill/screwdriver BS 18 LTX BL Impulse, cordless impact wrench SSW 18 LTX 300 BL, cordless combination hammer KHA 18 LTX 24, cordless angle grinder W 18 L 9-125 Quick, cordless worksite radio R 12-18 DAB + BT, 3 Li-power battery packs (18 V/4.0 Ah), charger ASC 55, tool bag (large)
