- More powerful and robust V-belt compressor for demanding use
- Belt drive for low speeds and a particularly quiet operation
- Oil-lubricated Piston Condenser
- For single phase alternating current
- Operating pressure can be regulated according to application by means of a pressure reducer and manometer
- Convenient pressure switch for good cold starting, complete with relief valve
- Additional manometer for displaying the tank pressure
- Overload protection: protects the motor from overheating
- Rubberised, stable wheels and pull handle for mobile use
- 10 year tank warranty against rust
Compressor

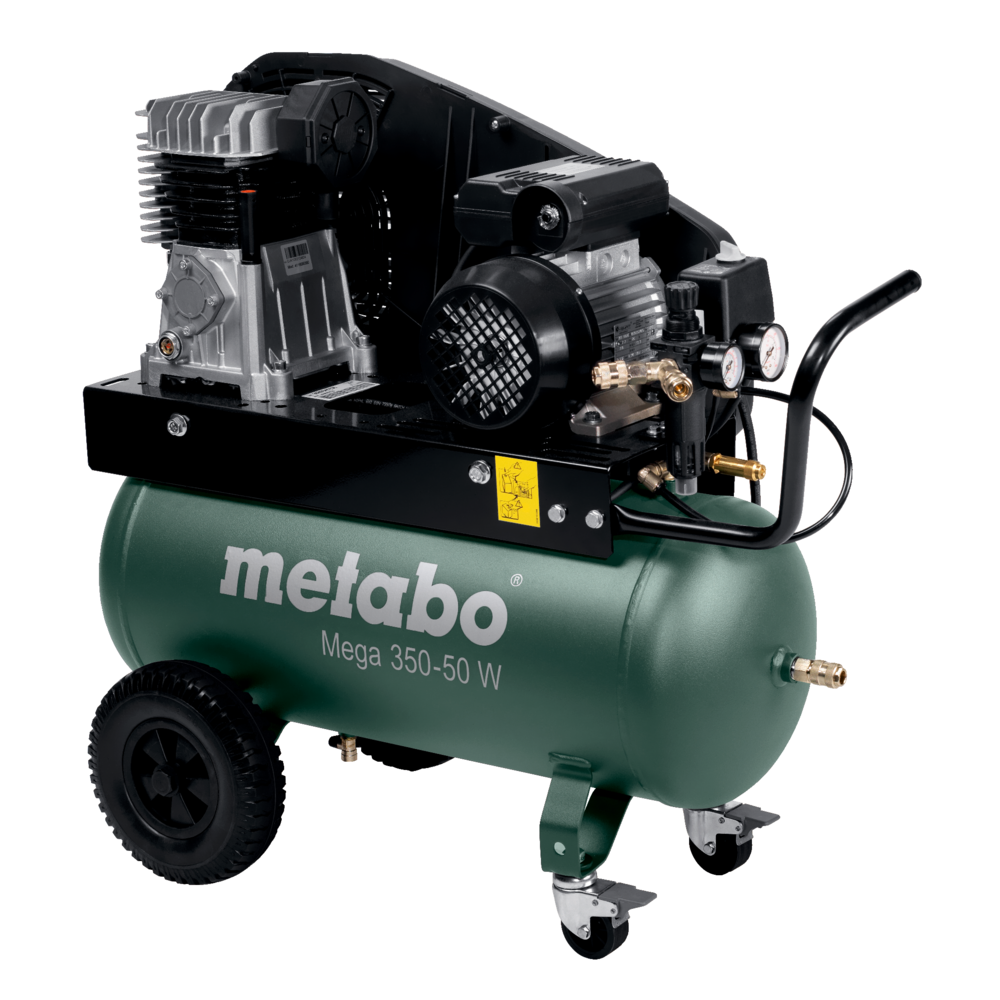

Mega 350-50 W (601589000) Compressor
Order no.: 601589000
Your Delivery Scope
(220-240 V / 50 Hz)
Cardboard box
- 250 l/min / 8.8 cfmFilling capacity
- 220 l/min / 7.8 cfmEffective delivery volume (at 80% max. pressure)
- 10 bar / 145 psiMaximum pressure
- 2.2 kW / 3 HPRated input power
- 50 l / 13.2 galTank capacity
| Suction rate | 320 l/min / 85 gal/h |
| Filling capacity | 250 l/min / 8.8 cfm |
| Effective delivery volume (at 80% max. pressure) | 220 l/min / 7.8 cfm |
| Maximum pressure | 10 bar / 145 psi |
| Mains voltage | 220 - 240 V |
| Rated input power | 2.2 kW / 3 HP |
| Maximum speed | 1350 rpm |
| Tank capacity | 50 l / 13.2 gal |
| Sound pressure level (LpA) | 86 dB(A) |
| Sound power level (LwA) | 93 dB(A) |
| Dimensions | 880 x 490 x 780 mm // 2.9 x 1.6 x 2.6 ft |
| Weight | 52 kg / 115 lbs |
| Cable length | 1.5 m / 5 ft |
| Sound pressure level | 86 dB(A) |
| Sound power level (LwA) | 93 dB(A) |
| 2 Universal couplings |
