- Quiet, comfortable, mobile: silent compressor for universal use with lots of clever details
- Very quiet operation thanks to the innovative design of the aggregate, ideal for use in noise-sensitive environments or small spaces
- Oil-free two-cylinder aggregate for simple transport and low-maintenance operation

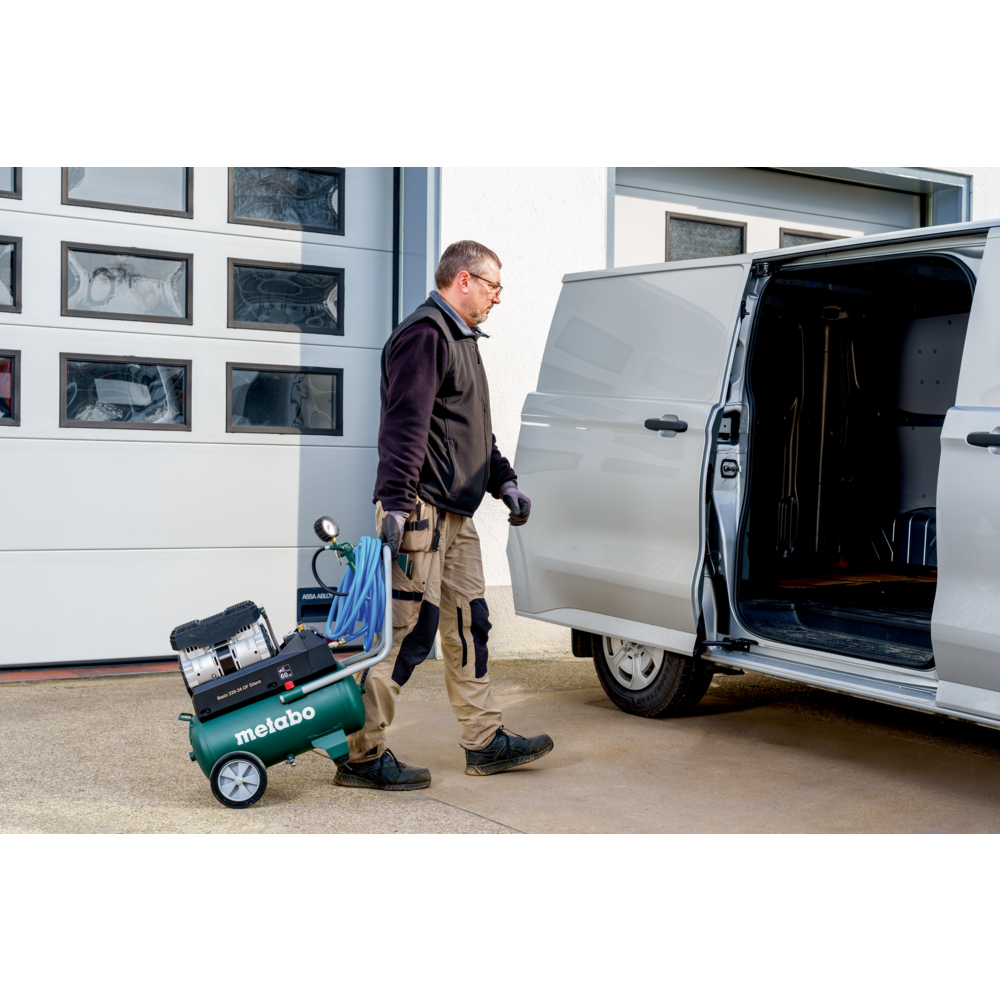

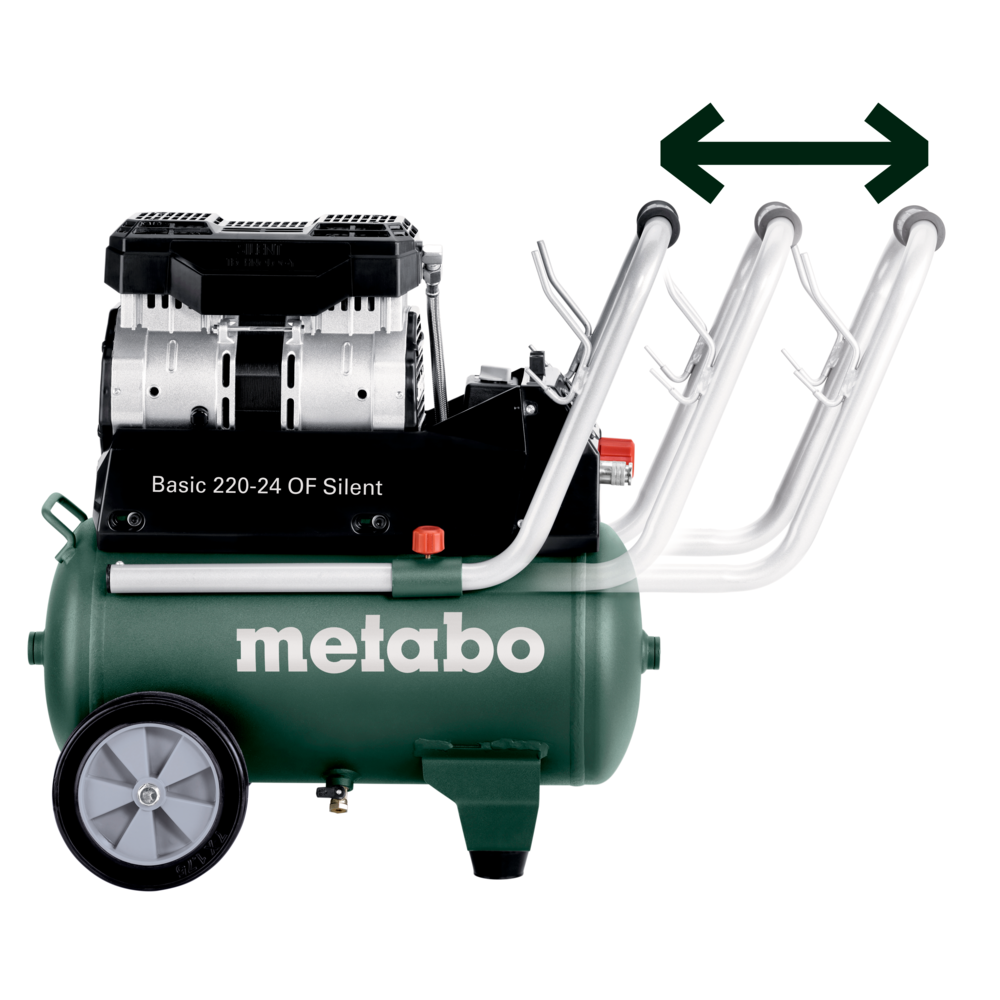

- VarioGrip: pull comfortably and save space while working, thanks to the movable clamping yoke with comfort handle

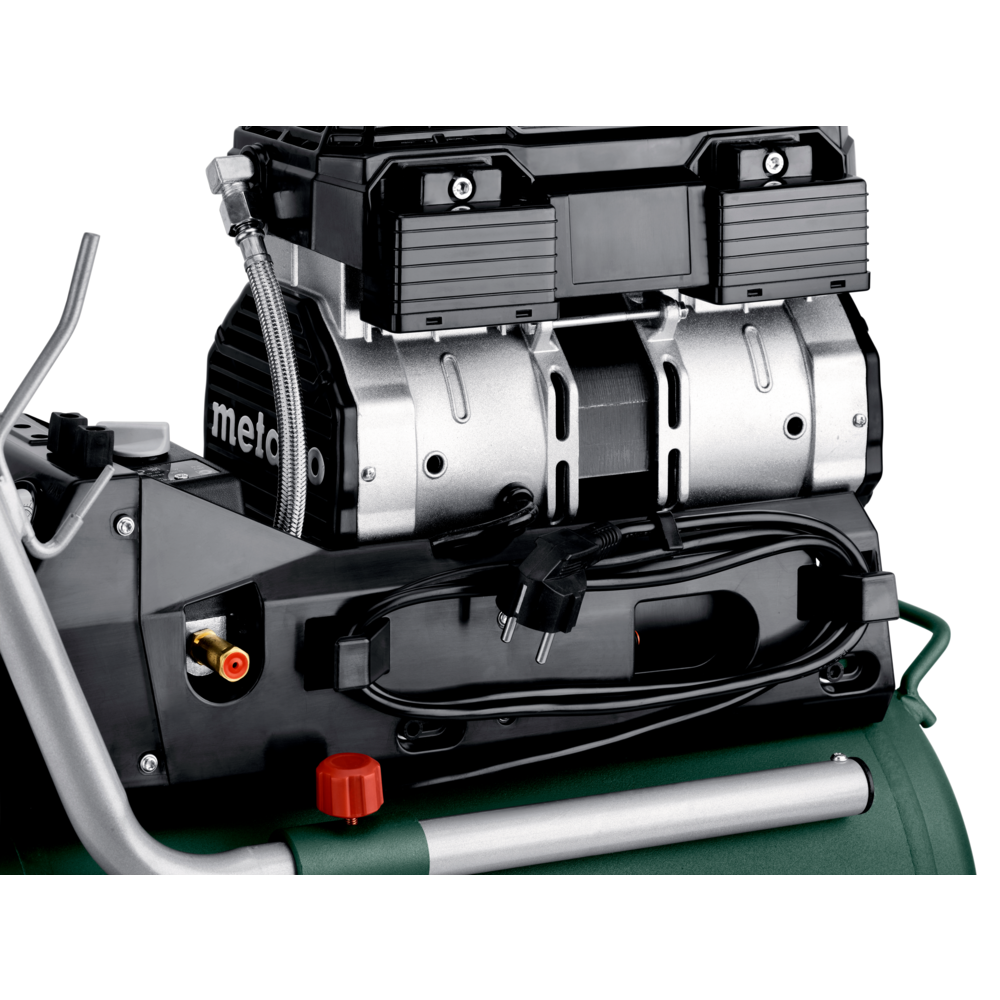

- Everything included: mount for compressed air hose and two compressed air tools, slots for small accessories and practical cable winder on the compressor

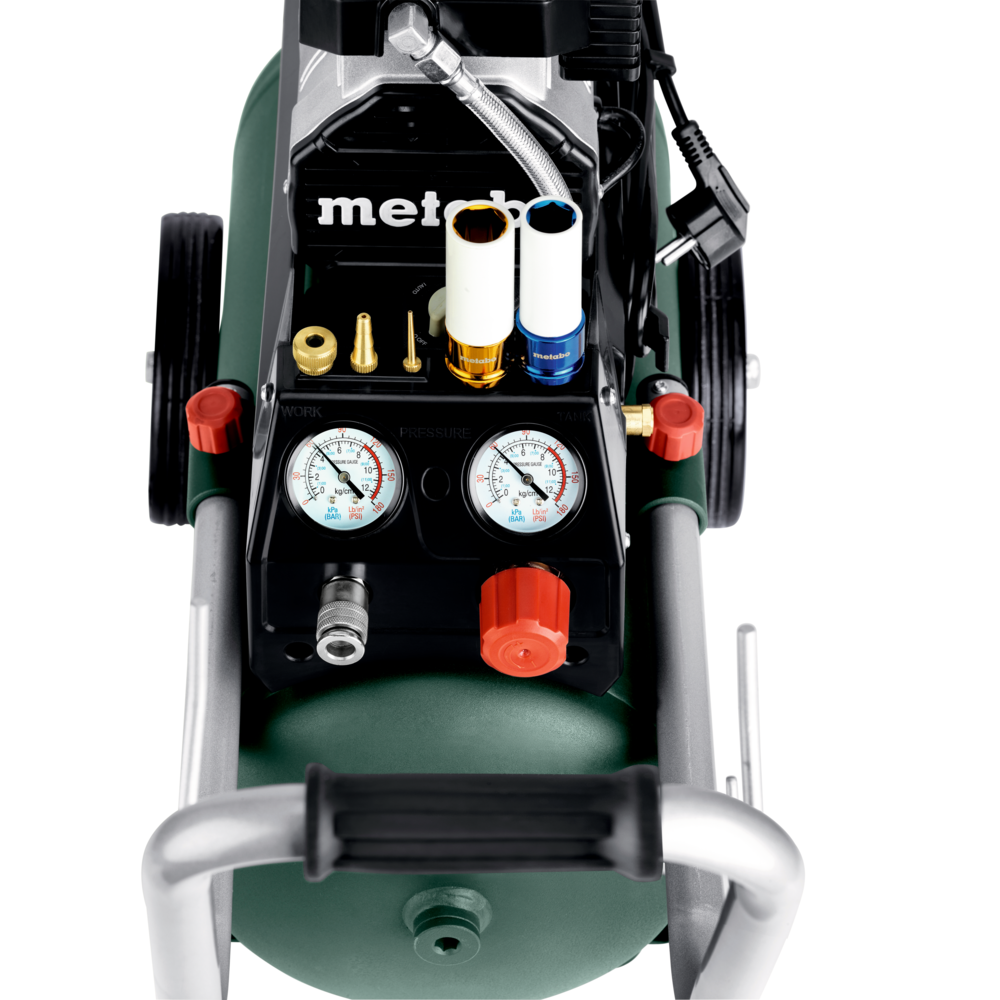

- Everything in view: user-friendly display with large pressure gauges for tank and operating pressure, pressure setting and hose connection
- Condor pressure switch for reliable function and regulation
- Overload protection: protects the motor from overheating
- Large wheels and rubberised feet for optimal stability
- Comfortable condensate outlet via ball valve with wing grip
- No testing required before initial operation
- 10 year tank warranty against rust
- Easy setup: smart packaging concept for quick, simple assembly of wheels and rubber feet after unpacking
Compressor

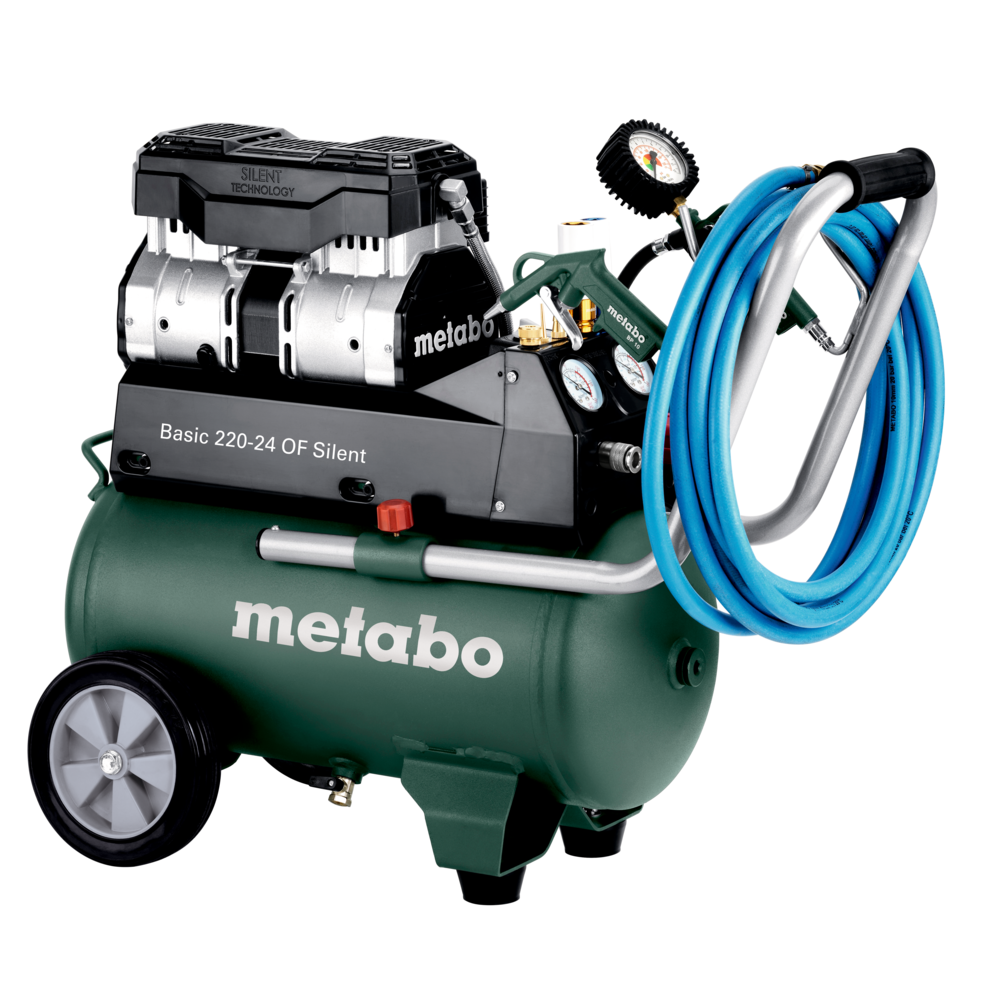

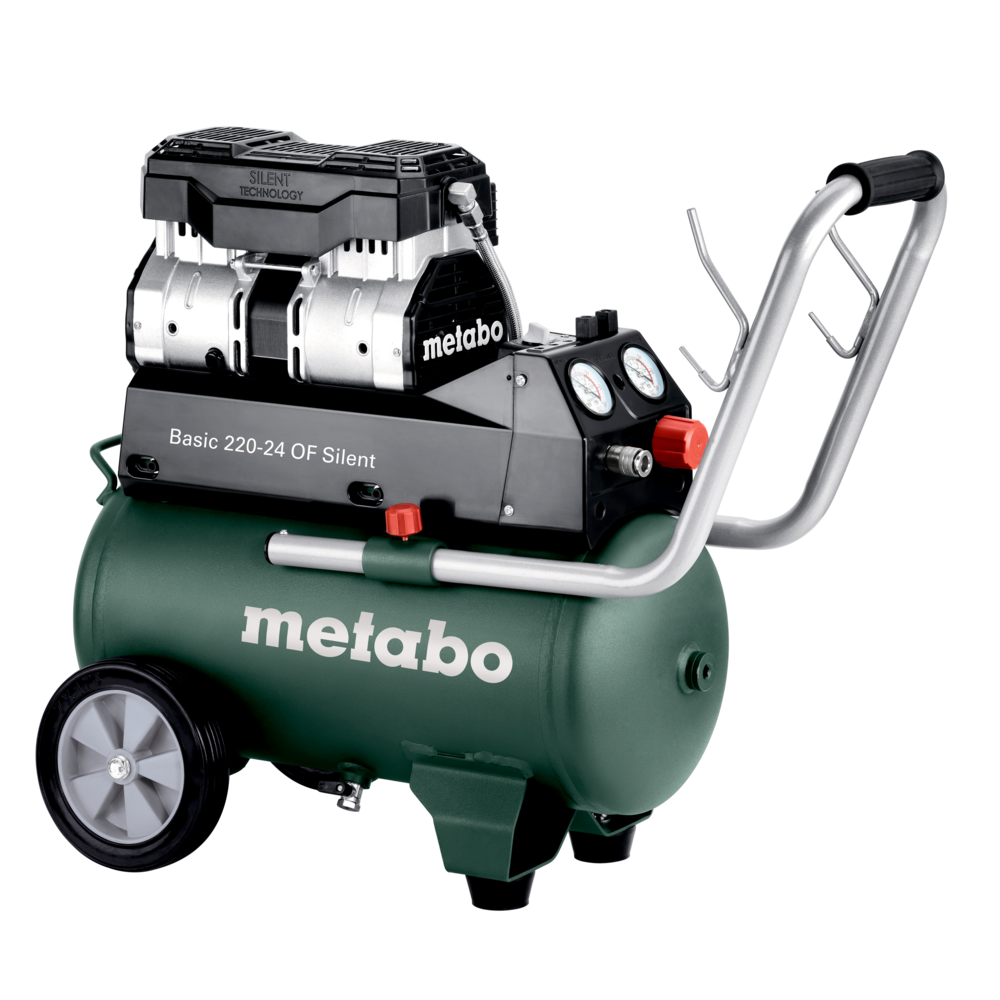

Basic 220-24 OF Silent (601593000) Compressor
Order no.: 601593000
Your Delivery Scope
(230 V / 50 Hz)
Cardboard box
- 110 l/min / 3.9 cfmFilling capacity
- 95 l/min / 3.4 cfmEffective delivery volume (at 80% max. pressure)
- 8 bar / 116 psiMaximum pressure
- 1.1 kW / 1.5 HPRated input power
- 24 l / 6.3 galTank capacity
| Suction rate | 220 l/min / 7.7 cfm |
| Filling capacity | 110 l/min / 3.9 cfm |
| Effective delivery volume (at 80% max. pressure) | 95 l/min / 3.4 cfm |
| Maximum pressure | 8 bar / 116 psi |
| Rated input power | 1.1 kW / 1.5 HP |
| Maximum speed | 2800 rpm |
| Tank capacity | 24 l / 6.3 gal |
| Sound pressure level (LpA) | 60 dB(A) |
| Sound power level (LwA) | 80 dB(A) |
| Dimensions | 561 x 330 x 591 mm // 22 3/32 x 13 x 23 1/4 " |
| Weight | 25 kg / 55.1 lbs |
| Cable length | 2.5 m / 98 7/16 " " |
| Sound pressure level | 60 dB(A) |
| Sound power level (LwA) | 80 dB(A) |
| Universal quick-action coupling |
| Pull handle with rubber-grip |
